Ferrari 599 GTO - AC SYSTEM - WATER PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
65460300 COMPLETE WATER PUMP $416.94 To Order
Photo Part No Description Price (each) Stock
107002 BRACKET WITH SHEATH $23.59 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
69966100 PUMP FASTENER BRACKET $286.60 To Order
Photo Part No Description Price (each) Stock
897379 RUBBER BUSHING $10.73 To Order
Photo Part No Description Price (each) Stock
67925600 PUMP MOUNTING BRACKET $31.66 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
68040000 WASHER $0.14 IN STOCK
Photo Part No Description Price (each) Stock
162606 CLIP $1.17 IN STOCK
Photo Part No Description Price (each) Stock
255291 DELIVERY PIPE FROM PUMP TO HEATER $252.68 To Order
262468 DELIVERY PIPE FROM PUMP TO HEATER $189.51 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.81 IN STOCK
80201900 BRACKET WITH SHEATH $48.00 To Order
Photo Part No Description Price (each) Stock
251561 PIPE FROM HEATER TO RH TGK $70.75 To Order
251562 PIPE FROM HEATER TO RH TGK $68.22 To Order
Photo Part No Description Price (each) Stock
251559 PIPE FROM HEATER TO LH TGK $66.95 To Order
251560 PIPE FROM HEATER TO LH TGK $68.22 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
241896 DELIVERY PIPE $241.34 To Order
262467 DELIVERY PIPE $141.78 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
67944500 RUBBER PIPE $11.00 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
67444900 LH TGK VALVE $226.26 IN STOCK
Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE $211.17 IN STOCK
Photo Part No Description Price (each) Stock
67944400 TGK VALVE MOUNTING BRACKET $92.00 To Order
Photo Part No Description Price (each) Stock
67933600 TGK VALVE FASTENER ROD $1.68 To Order
Photo Part No Description Price (each) Stock
748925 RUBBER CABLE GROMMET $2.39 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
61712600 BRACKET WITH SHEATH $1.68 IN STOCK
Photo Part No Description Price (each) Stock
67628400 PIPE SEAL $5.67 To Order
Photo Part No Description Price (each) Stock
67628500 PLATE $8.40 To Order
Photo Part No Description Price (each) Stock
14054511 NUT $1.22 IN STOCK
Photo Part No Description Price (each) Stock
67628300 SHIM $2.86 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
13000490 Screw Collar $0.72 IN STOCK
Photo Part No Description Price (each) Stock
68568400 BRACKET $25.25 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
159386 PLATE $2.12 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
219946 BRACKET $4.02 To Order
View All

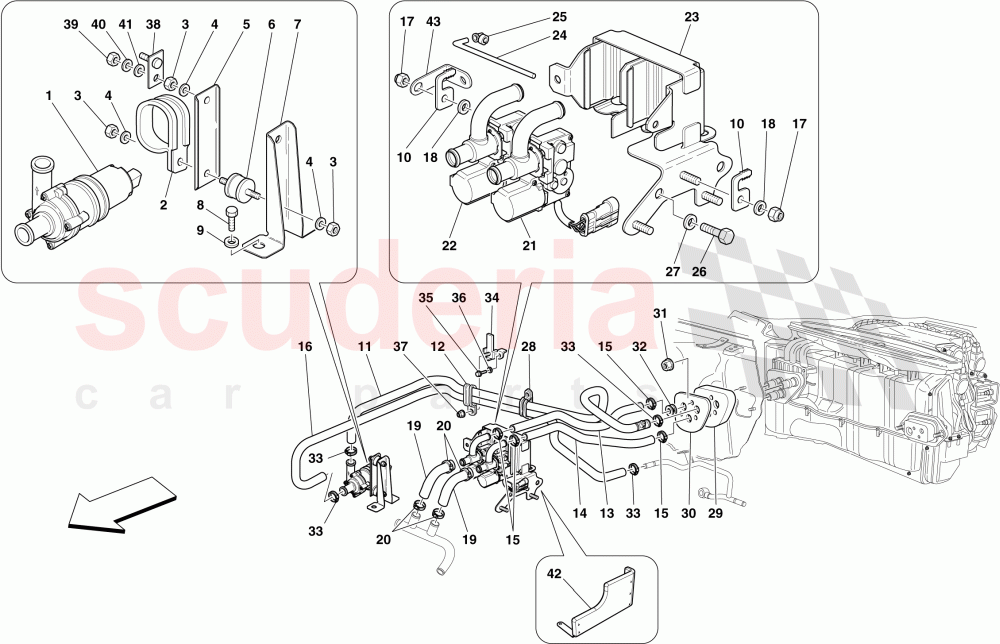

AC SYSTEM - WATER PIPES of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 65460300
COMPLETE WATER PUMP 		$416.94 1
2 107002
BRACKET WITH SHEATH
IN STOCK 		$23.59 (33.4% off) 1
3 14059290
FLANGED NUT M6
IN STOCK 		$1.31 4
4 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
5 69966100
PUMP FASTENER BRACKET 		$286.60 1
6 897379
RUBBER BUSHING 		$10.73 2
7 67925600
PUMP MOUNTING BRACKET 		$31.66 1
8 16296934
SCREW 6 X 14MM
IN STOCK 		$0.41 2
9 68040000
WASHER
IN STOCK 		$0.14 2
10 162606
CLIP
IN STOCK 		$1.17 (20.4% off) 2
11 255291
DELIVERY PIPE FROM PUMP TO HEATER
Not for GD 		$252.68 1
11 262468
DELIVERY PIPE FROM PUMP TO HEATER
Applicable for GD 		$189.51 1
12 291225
P clip Bracket With Sheath
Not for GD
IN STOCK 		$4.81 1
12 80201900
BRACKET WITH SHEATH
Applicable for GD 		$48.00 1
13 251561
PIPE FROM HEATER TO RH TGK
Not for GD 		$70.75 1
13 251562
PIPE FROM HEATER TO RH TGK
Applicable for GD 		$68.22 1
14 251559
PIPE FROM HEATER TO LH TGK
Not for GD 		$66.95 1
14 251560
PIPE FROM HEATER TO LH TGK
Applicable for GD 		$68.22 1
15 262111
SCREW CLAMP 		$1.39 4
16 241896
DELIVERY PIPE
Not for GD 		$241.34 1
16 262467
DELIVERY PIPE
Applicable for GD 		$141.78 1
17 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
18 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
19 67944500
RUBBER PIPE 		$11.00 2
20 262111
SCREW CLAMP 		$1.39 4
21 67444900
LH TGK VALVE
IN STOCK 		$226.26 (21.4% off) 1
22 67635900
RH TGK VALVE
IN STOCK 		$211.17 (26.4% off) 1
23 67944400
TGK VALVE MOUNTING BRACKET 		$92.00 1
24 67933600
TGK VALVE FASTENER ROD 		$1.68 1
25 748925
RUBBER CABLE GROMMET 		$2.39 1
26 16296934
SCREW 6 X 14MM
IN STOCK 		$0.41 3
27 12643724
WASHER
IN STOCK 		$0.06 (88% off) 3
28 61712600
BRACKET WITH SHEATH
IN STOCK 		$1.68 1
29 67628400
PIPE SEAL 		$5.67 1
30 67628500
PLATE 		$8.40 1
31 14054511
NUT
IN STOCK 		$1.22 3
32 67628300
SHIM 		$2.86 3
33 262111
SCREW CLAMP 		$1.39 4
33 13000490
Screw Collar
IN STOCK 		$0.72 (62.1% off) 1
34 68568400
BRACKET
Not for GD 		$25.25 1
35 86574700
SCREW 		$0.61 1
36 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
37 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
38 159386
PLATE 		$2.12 1
39 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
40 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
41 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
43 219946
BRACKET
Not for GD 		$4.02 (38.2% off) 1
