Ferrari 599 GTB Fiorano - EVAPORATOR UNIT AND CONTROLS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
69376300 COMPLETE EVAPORATOR GROUP $3,785.31 To Order
81716900 COMPLETE EVAPORATOR GROUP $5,426.83 To Order
81209000 COMPLETE EVAPORATOR GROUP $5,007.14 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
67002100 RH AIR DUCT $49.94 To Order
67924300 RH AIR DUCT $57.51 To Order
Photo Part No Description Price (each) Stock
67002200 LH AIR DUCT $49.94 To Order
67924400 LH AIR DUCT $57.51 To Order
Photo Part No Description Price (each) Stock
67439100 RH BRACKET Enquire To Order
67452700 LH BRACKET $35.49 To Order
Photo Part No Description Price (each) Stock
67439200 LH BRACKET $41.82 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
66853400 RH SLEEVE $51.45 To Order
67457100 RH SLEEVE $53.24 To Order
Photo Part No Description Price (each) Stock
66853500 LH CONNECTOR PIPE $51.45 To Order
67457200 LH CONNECTOR PIPE $53.24 To Order
Photo Part No Description Price (each) Stock
68125800 AIR DUCT $78.70 To Order
67852400 AIR DUCT $82.40 To Order
Photo Part No Description Price (each) Stock
217836 ELECTRONIC CONTROL UNIT $1,497.60 To Order
246050 ELECTRONIC CONTROL UNIT $1,667.34 To Order
237175 ELECTRONIC CONTROL UNIT $1,453.06 To Order
Photo Part No Description Price (each) Stock
68391600 ECU FASTENER BRACKET $73.52 To Order
Photo Part No Description Price (each) Stock
62771900 SCREW $0.23 IN STOCK
Photo Part No Description Price (each) Stock
85256500 FAN $1,076.68 IN STOCK
85256600 FAN RHD BRUSHLESS $2,688.05 To Order
Photo Part No Description Price (each) Stock
66855200 Pollen Filter $86.78 IN STOCK
Photo Part No Description Price (each) Stock
68390600 FILTER COVER $126.78 To Order
Photo Part No Description Price (each) Stock
68390700 COVER FASTENER $115.37 To Order
Photo Part No Description Price (each) Stock
69833300 ELECTRIC WIRING HARNESS $590.37 To Order
809190 WIRING HARNESS $2,473.76 To Order
809191 WIRING HARNESS $2,466.16 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68390100 AIR SENSOR $14.11 IN STOCK
Photo Part No Description Price (each) Stock
68389800 RUBBER PAD $7.71 To Order
Photo Part No Description Price (each) Stock
68391500 WATER PIPE FILLER FOAM $4.53 To Order
Photo Part No Description Price (each) Stock
68389500 INLET FILLER FOAM $10.60 To Order
Photo Part No Description Price (each) Stock
68390000 DEFROSTER DUCT FILLER FOAM $31.68 To Order
Photo Part No Description Price (each) Stock
68391800 FRONT FILLER FOAM $4.95 To Order
Photo Part No Description Price (each) Stock
68390200 PREFORMED FREON PIPE ASSEMBLY $393.57 To Order
Photo Part No Description Price (each) Stock
68391400 GUARD $2.77 To Order
Photo Part No Description Price (each) Stock
68390300 BRACKET $73.52 To Order
Photo Part No Description Price (each) Stock
68389400 GASKET $35.89 To Order
Photo Part No Description Price (each) Stock
68391100 TGK VALVE $109.09 To Order
Photo Part No Description Price (each) Stock
68389600 VALVE FILLER FOAM $4.54 To Order
Photo Part No Description Price (each) Stock
68391300 O-RING $29.59 To Order
Photo Part No Description Price (each) Stock
66309300 O-RING $1.39 IN STOCK
Photo Part No Description Price (each) Stock
64281500 UPPER FLANGE $4.27 To Order
Photo Part No Description Price (each) Stock
66309500 O-RING AIR CON SYSTEM $15.72 IN STOCK
Photo Part No Description Price (each) Stock
66309400 O-RING A/C SYSTEM $15.72 IN STOCK
Photo Part No Description Price (each) Stock
67588300 LOWER FLANGE $22.69 To Order
Photo Part No Description Price (each) Stock
68391700 BRACKET $24.07 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.64 To Order
Photo Part No Description Price (each) Stock
67134100 CONDENSATE DRAIN PIPE $22.69 To Order
Photo Part No Description Price (each) Stock
13274114 SCREW $0.05 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
12648925 WASHER $0.35 IN STOCK
Photo Part No Description Price (each) Stock
68040000 WASHER $0.14 IN STOCK
Photo Part No Description Price (each) Stock
67612600 GASKET $11.22 To Order
67852500 GASKET $5.49 To Order
Photo Part No Description Price (each) Stock
10978024 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
10977724 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
68298300 GASKET $2.78 To Order
View All

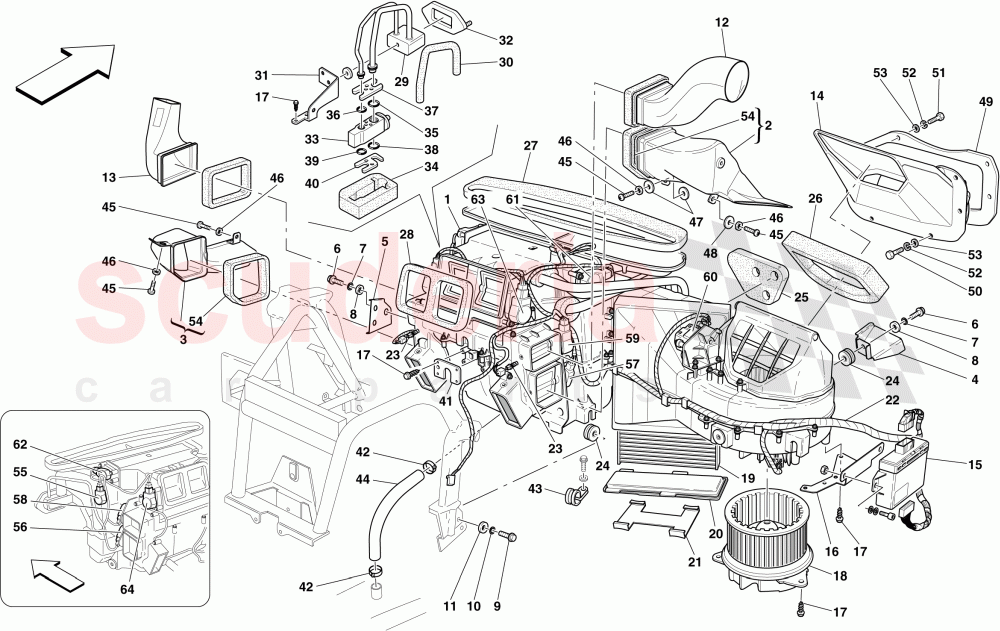

EVAPORATOR UNIT AND CONTROLS of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 69376300
COMPLETE EVAPORATOR GROUP
Not for GD; Applicable up to Ass. No. 88544 		$3,785.31 1
1 81716900
COMPLETE EVAPORATOR GROUP
Not for GD; Applicable from Ass. No. 88545 up to Ass. No. 91899 		$5,426.83 1
1 81209000
COMPLETE EVAPORATOR GROUP
Not for GD; Applicable from Ass. No. 91900 		$5,007.14 1
1 69131300
COMPLETE EVAPORATOR GROUP
Applicable for GD; Applicable up to Ass. No. 88544 		$3,442.95 1
1 81717500
COMPLETE EVAPORATOR GROUP
Applicable for GD; Applicable from Ass. No. 88545 up to Ass. No. 91899 		$5,755.23 1
1 81209100
COMPLETE EVAPORATOR GROUP
Applicable for GD; Applicable from Ass. No. 91900 		$4,177.17 1
2 67002100
RH AIR DUCT
Not for GD 		$49.94 1
2 67924300
RH AIR DUCT
Applicable for GD 		$57.51 1
3 67002200
LH AIR DUCT
Not for GD 		$49.94 1
3 67924400
LH AIR DUCT
Applicable for GD 		$57.51 1
4 67439100
RH BRACKET
Not for GD 		- 1 Enquire
4 67452700
LH BRACKET
Applicable for GD 		$35.49 1
5 67439200
LH BRACKET 		$41.82 1
6 86574700
SCREW 		$0.61 4
7 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
8 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
9 86574700
SCREW 		$0.61 3
10 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
11 12643724
WASHER
IN STOCK 		$0.06 (88% off) 3
12 66853400
RH SLEEVE
Not for GD 		$51.45 1
12 67457100
RH SLEEVE
Applicable for GD 		$53.24 1
13 66853500
LH CONNECTOR PIPE
Not for GD 		$51.45 1
13 67457200
LH CONNECTOR PIPE
Applicable for GD 		$53.24 1
14 68125800
AIR DUCT
Not for GD 		$78.70 1
14 67852400
AIR DUCT
Applicable for GD 		$82.40 1
15 217836
ELECTRONIC CONTROL UNIT
Applicable up to Ass. No. 88544 		$1,497.60 1
15 246050
ELECTRONIC CONTROL UNIT
Applicable from Ass. No. 88545 up to Ass. No. 91899 		$1,667.34 1
15 237175
ELECTRONIC CONTROL UNIT
Applicable from Ass. No. 91900 		$1,453.06 1
16 68391600
ECU FASTENER BRACKET 		$73.52 1
17 62771900
SCREW
IN STOCK 		$0.23 12
18 85256500
FAN
Not for GD
IN STOCK 		$1,076.68 1
18 85256600
FAN RHD BRUSHLESS
Applicable for GD 		$2,688.05 1
19 66855200
Pollen Filter
IN STOCK 		$86.78 (17.2% off) 1
20 68390600
FILTER COVER 		$126.78 1
21 68390700
COVER FASTENER 		$115.37 1
22 69833300
ELECTRIC WIRING HARNESS
Not for GD; Applicable up to Ass. No. 91899 		$590.37 1
22 809190
WIRING HARNESS
Not for GD; Applicable from Ass. No. 91900 		$2,473.76 1
22 809191
WIRING HARNESS
Applicable for GD; Applicable up to Ass. No. 91899 		$2,466.16 1
22 809192
WIRING HARNESS
Applicable for GD; Applicable from Ass. No. 91900 		$2,473.76 1
23 68390100
AIR SENSOR
IN STOCK 		$14.11 (5.9% off) 2
24 68389800
RUBBER PAD 		$7.71 5
25 68391500
WATER PIPE FILLER FOAM 		$4.53 1
26 68389500
INLET FILLER FOAM 		$10.60 1
27 68390000
DEFROSTER DUCT FILLER FOAM 		$31.68 1
28 68391800
FRONT FILLER FOAM 		$4.95 1
29 68390200
PREFORMED FREON PIPE ASSEMBLY 		$393.57 1
30 68391400
GUARD 		$2.77 1
31 68390300
BRACKET 		$73.52 1
32 68389400
GASKET 		$35.89 1
33 68391100
TGK VALVE 		$109.09 1
34 68389600
VALVE FILLER FOAM 		$4.54 1
35 68391300
O-RING 		$29.59 1
36 66309300
O-RING
IN STOCK 		$1.39 (64.4% off) 1
37 64281500
UPPER FLANGE 		$4.27 1
38 66309500
O-RING AIR CON SYSTEM
IN STOCK 		$15.72 1
39 66309400
O-RING A/C SYSTEM
IN STOCK 		$15.72 1
40 67588300
LOWER FLANGE 		$22.69 1
41 68391700
BRACKET 		$24.07 1
42 262111
SCREW CLAMP 		$1.39 2
43 10441790
BRACKET WITH SHEATH 		$0.64 (81.4% off) 1
44 67134100
CONDENSATE DRAIN PIPE 		$22.69 1
45 13274114
SCREW 		$0.05 4
46 62769800
WASHER D.5-14 X 2.5
IN STOCK 		$0.21 (30% off) 4
47 12648925
WASHER
IN STOCK 		$0.35 2
48 68040000
WASHER
IN STOCK 		$0.14 1
49 67612600
GASKET
Not for GD 		$11.22 1
49 67852500
GASKET
Applicable for GD 		$5.49 1
50 10978024
SCREW
M5 X 20 		$0.14 5
51 10977724
SCREW
IN STOCK 		$0.06 1
52 127493
WASHER 		$0.06 (80% off) 6
53 12637824
WASHER
IN STOCK 		$0.06 (88% off) 6
54 68298300
GASKET 		$2.78 2
