DOORS - FRAMEWORKS AND COVERINGS of Ferrari Ferrari 575M Maranello

View All

Ferrari 575M Maranello - DOORS - FRAMEWORKS AND COVERINGS

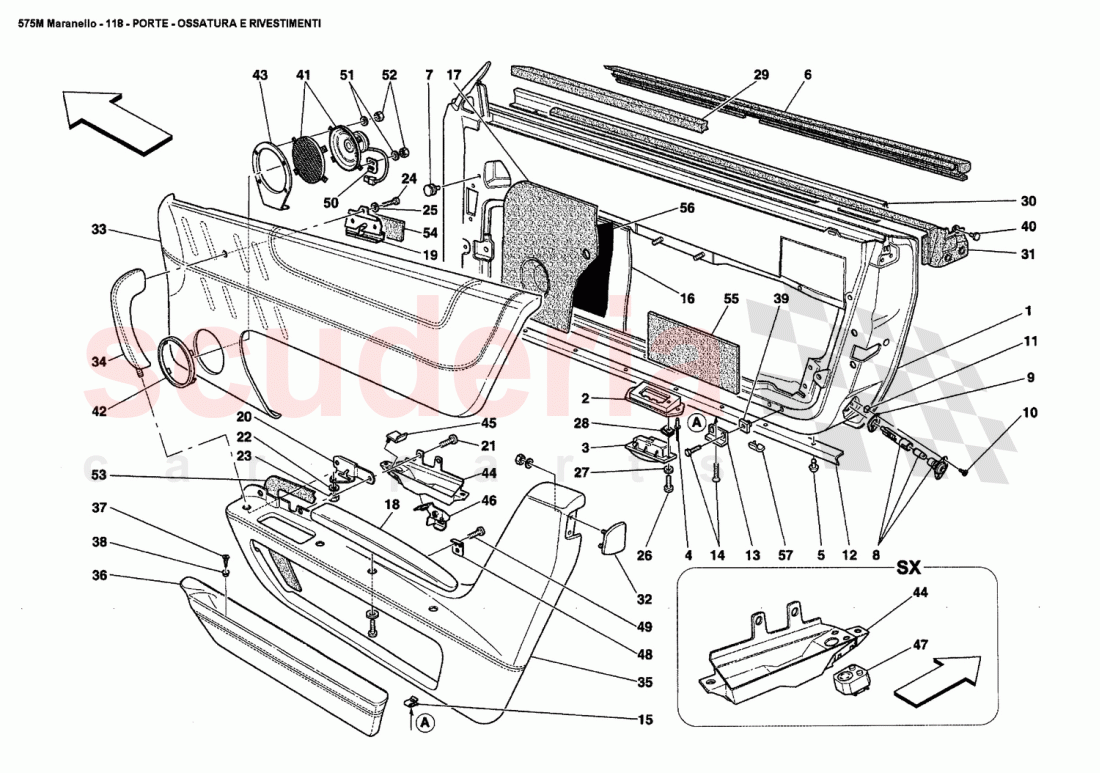

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66086400	R.H. DOOR FRAME	$5,744.08	To Order
	66086900	LH. DOOR FRAME	$2,891.60	To Order

Photo	Part No	Description	Price (each)	Stock
	60842000	UNDER DOOR BOX LAMP	$4.66	To Order

Photo	Part No	Description	Price (each)	Stock
	65088400	UNDER DOOR LAMP	$36.28	To Order

Photo	Part No	Description	Price (each)	Stock
	60643400	RIVET	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62764000	RIVET	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	64715800	R.H. OUTER GLASS SCRAPER	$113.31	To Order
	64715900	L.H. OUTER GLASS SCRAPER	$113.31	To Order

Photo	Part No	Description	Price (each)	Stock
	64580400	BLOCK	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	184786	Open-Door Light	$102.87	To Order

Photo	Part No	Description	Price (each)	Stock
	140576	GASKET	$15.40	To Order

Photo	Part No	Description	Price (each)	Stock
	15901475	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14115580	FIXING BLOCK	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	63758200	R.H. OUTER LOWER GASKET	$42.75	To Order
	63488300	L.H. OUTER LOWER GASKET	$45.37	To Order

Photo	Part No	Description	Price (each)	Stock
	64592600	BRACKET	$6.25	To Order

Photo	Part No	Description	Price (each)	Stock
	15957201	SCREW	$0.25	To Order

Photo	Part No	Description	Price (each)	Stock
	14115885	BLOCK	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65059500	WATER PROTECTION CLOTH FOR MICRO-SWITCH	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	66085500	R.H. WATER PROTECTION CLOTH	$36.33	To Order
	66085600	L.H. WATER PROTECTION CLOTH	$36.33	To Order

Photo	Part No	Description	Price (each)	Stock
	670881	R.H. DOOR ARM-REST	Enquire	To Order
	670882	L.H. DOOR ARM-REST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66177200	RH UPPER BRACKET FOR HANDLE MOULDING FIXING	$50.38	To Order
	66177300	LH UPPER BRACKET FOR HANDLE MOULDING FIXING	$50.38	To Order

Photo	Part No	Description	Price (each)	Stock
	66163900	L.H. BRACKET	$29.00	To Order
	66163800	R.H. BRACKET	$29.00	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	$0.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14058421	NUT	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14304621	SCREW	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	12624101	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	15901575	SCREW	$0.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62767100	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	62767500	CLIP	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	65196200	L.H. GASKET	$3.55	To Order
	65196100	R.H. GASKET	$3.55	To Order

Photo	Part No	Description	Price (each)	Stock
	66288400	R.H. GLASS SCRAPER	$144.87	To Order
	66288500	L.H. GLASS SCRAPER	$144.87	To Order

Photo	Part No	Description	Price (each)	Stock
	64905000	R.H. GASKET	$146.23	To Order
	64905100	L.H. GASKET	$174.11	To Order

Photo	Part No	Description	Price (each)	Stock
	645911	L.H. PANEL SEAL	Enquire	To Order
	645912	R.H. PANEL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	661601	L.H. UPPER PANEL	Enquire	To Order
	665338	LH. LINING	Enquire	To Order
	666355	LH. UPPER PANEL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	661637	L.H. HANDLE LINING	Enquire	To Order
	661632	R.H. HANDLE MOULDING	Enquire	To Order
	661636	R.H. HANDLE LINING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66836400	L.H. LOWER PANEL	$3,770.84	To Order
	66837400	L.H. LOWER PANEL	$3,770.84	To Order
	66837300	R.H. LOWER PANEL	$3,770.84	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	661623	L.H. POCKET	Enquire	To Order
	661627	L.H. LINING	Enquire	To Order
	66836800	L.H. POCKET	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	15915977	SCREW	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	81360700	WASHER	$2.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14115885	BLOCK	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14592587	FIXING BUTTON	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183364	LOUD SPEAKER WOOFER	$65.15	To Order
	184676	LOUD SPEAKER WOOFER	$128.63	To Order

Photo	Part No	Description	Price (each)	Stock
	66285000	RING NUT MOULDING	$46.50	To Order

Photo	Part No	Description	Price (each)	Stock
	66286500	LOUD SPEAKER SUPPORTING BRACKET	$53.52	To Order

Photo	Part No	Description	Price (each)	Stock
	66220900	R.H. HANDLE PLATE	$88.54	To Order
	66221000	L.H. HANDLE PLATE	$88.54	To Order

Photo	Part No	Description	Price (each)	Stock
	66639000	MOULDING BRACKET	$10.95	To Order

Photo	Part No	Description	Price (each)	Stock
	66177900	RH BRACKET FOR HANDLE FIXING	$29.00	To Order
	66178000	LH BRACKET FOR HANDLE FIXING	$29.00	To Order

Photo	Part No	Description	Price (each)	Stock

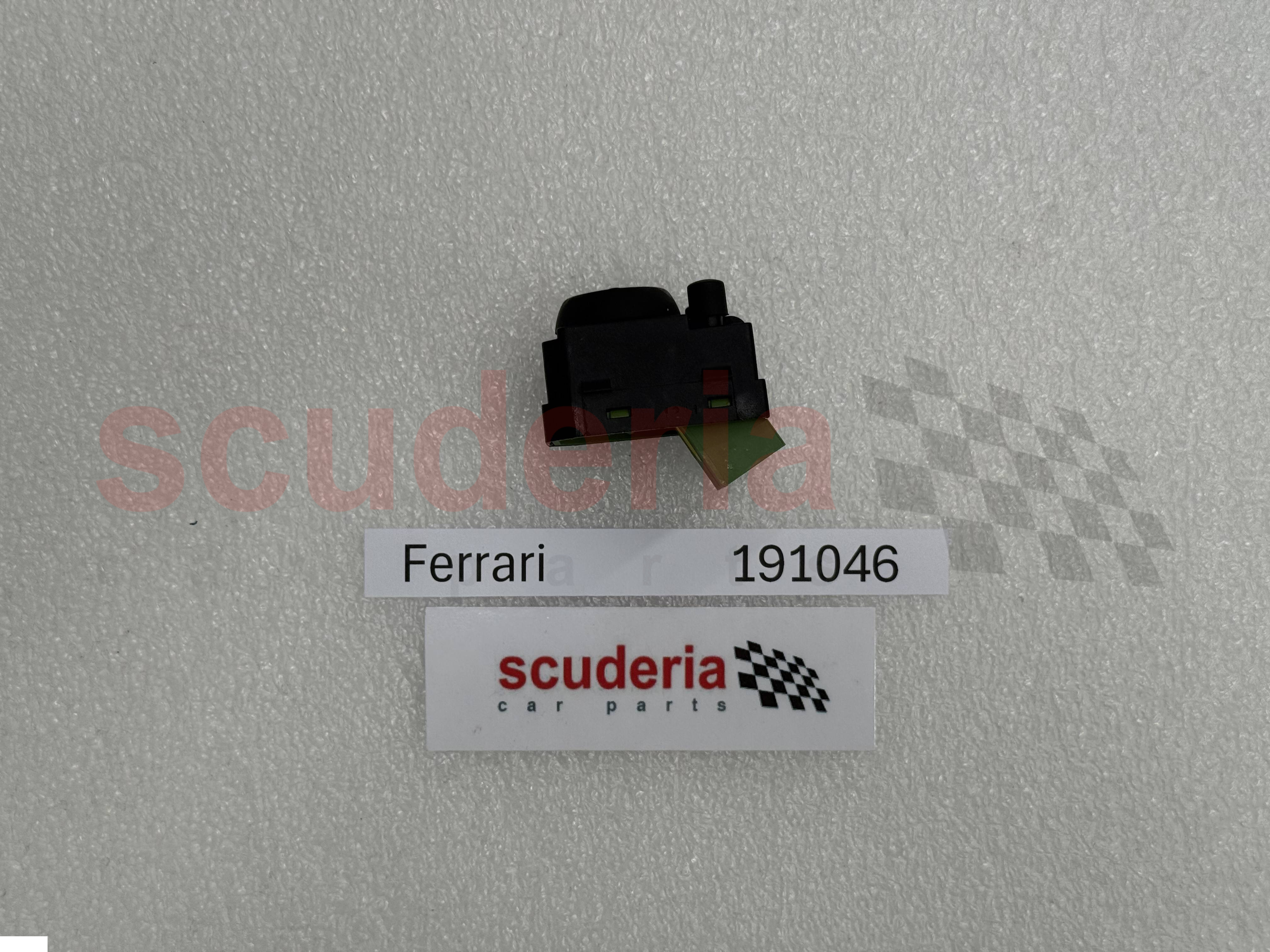

	191046	EXTERNAL SIDE MIRRORS CONTROL SWITCH	$586.13	To Order

Photo	Part No	Description	Price (each)	Stock
	66177800	BRACKET FOR POCKET	$24.42	To Order

Photo	Part No	Description	Price (each)	Stock
	15782601	SCREW	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	175856	CONNECTOR FASTENER BRACKET	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10794014	NUT	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67124800	SPONGE	$11.09	To Order

Photo	Part No	Description	Price (each)	Stock
	67124900	SPONGE	$10.43	To Order

Photo	Part No	Description	Price (each)	Stock
	67125000	SPONGE	$4.26	To Order

Photo	Part No	Description	Price (each)	Stock
	67668900	WATER PROTECTION CLOTH	$11.12	To Order

Photo	Part No	Description	Price (each)	Stock
	69101000	RUBBER	$5.55	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66086400	R.H. DOOR FRAME	66086400 R.H. DOOR FRAME	$5,744.08	1
1	66086900	LH. DOOR FRAME	66086900 LH. DOOR FRAME	$2,891.60	1
2	60842000	UNDER DOOR BOX LAMP	60842000 UNDER DOOR BOX LAMP	$4.66 MSRP: ~~18.82~~ (75.2% off)	2
3	65088400	UNDER DOOR LAMP	65088400 UNDER DOOR LAMP	$36.28 MSRP: ~~55.85~~ (35% off)	2
4	60643400	RIVET IN STOCK	60643400 RIVET IN STOCK	$0.42	4
5	62764000	RIVET IN STOCK	62764000 RIVET IN STOCK	$0.14 MSRP: ~~0.95~~ (85.3% off)	16
6	64715800	R.H. OUTER GLASS SCRAPER	64715800 R.H. OUTER GLASS SCRAPER	$113.31	1
6	64715900	L.H. OUTER GLASS SCRAPER	64715900 L.H. OUTER GLASS SCRAPER	$113.31	1
7	64580400	BLOCK IN STOCK	64580400 BLOCK IN STOCK	$0.34	12
8	184786	Open-Door Light	184786 Open-Door Light WITH BULB	$102.87	2
9	140576	GASKET	140576 GASKET	$15.40 MSRP: ~~26.74~~ (42.4% off)	2
10	15901475	SCREW	15901475 SCREW	$0.06 MSRP: ~~1.00~~ (94% off)	4
11	14115580	FIXING BLOCK IN STOCK	14115580 FIXING BLOCK IN STOCK	$0.15	4
12	63758200	R.H. OUTER LOWER GASKET	63758200 R.H. OUTER LOWER GASKET	$42.75	1
12	63488300	L.H. OUTER LOWER GASKET	63488300 L.H. OUTER LOWER GASKET	$45.37	1
13	64592600	BRACKET	64592600 BRACKET	$6.25	6
14	15957201	SCREW	15957201 SCREW	$0.25	18
15	14115885	BLOCK IN STOCK	14115885 BLOCK IN STOCK	$0.14	12
16	65059500	WATER PROTECTION CLOTH FOR MICRO-SWITCH	65059500 WATER PROTECTION CLOTH FOR MICRO-SWITCH	$1.40	2
17	66085500	R.H. WATER PROTECTION CLOTH	66085500 R.H. WATER PROTECTION CLOTH	$36.33	1
17	66085600	L.H. WATER PROTECTION CLOTH	66085600 L.H. WATER PROTECTION CLOTH	$36.33	1
18	670881	R.H. DOOR ARM-REST	670881 R.H. DOOR ARM-REST	-	1	Enquire
18	670882	L.H. DOOR ARM-REST	670882 L.H. DOOR ARM-REST	-	1	Enquire
19	66177200	RH UPPER BRACKET FOR HANDLE MOULDING FIXING	66177200 RH UPPER BRACKET FOR HANDLE MOULDING FIXING MOULDING FIXING	$50.38	1
19	66177300	LH UPPER BRACKET FOR HANDLE MOULDING FIXING	66177300 LH UPPER BRACKET FOR HANDLE MOULDING FIXING	$50.38	1
20	66163900	L.H. BRACKET	66163900 L.H. BRACKET	$29.00	1
20	66163800	R.H. BRACKET	66163800 R.H. BRACKET	$29.00	1
21	62797600	Allen Bolt Countersunk M6 x 20 IN STOCK	62797600 Allen Bolt Countersunk M6 x 20 IN STOCK	$0.97 MSRP: ~~1.45~~ (33.1% off)	4
22	12646604	WASHER IN STOCK	12646604 WASHER IN STOCK	$0.22 MSRP: ~~0.30~~ (26.7% off)	2
23	14058421	NUT IN STOCK	14058421 NUT IN STOCK	$1.23	2
24	14304621	SCREW	14304621 SCREW	$0.14 MSRP: ~~0.20~~ (30% off)	2
25	12624101	WASHER	12624101 WASHER	$0.06	2
26	15901575	SCREW IN STOCK	15901575 SCREW IN STOCK	$0.19	4
27	62767100	WASHER	62767100 WASHER	$0.06	4
28	62767500	CLIP	62767500 CLIP	$0.14	4
29	65196200	L.H. GASKET	65196200 L.H. GASKET	$3.55	1
29	65196100	R.H. GASKET	65196100 R.H. GASKET	$3.55	1
30	66288400	R.H. GLASS SCRAPER	66288400 R.H. GLASS SCRAPER	$144.87	1
30	66288500	L.H. GLASS SCRAPER	66288500 L.H. GLASS SCRAPER	$144.87	1
31	64905000	R.H. GASKET	64905000 R.H. GASKET	$146.23	1
31	64905100	L.H. GASKET	64905100 L.H. GASKET	$174.11	1
32	645911	L.H. PANEL SEAL	645911 L.H. PANEL SEAL	-	1	Enquire
32	645912	R.H. PANEL SEAL	645912 R.H. PANEL SEAL	-	1	Enquire
33	661601	L.H. UPPER PANEL	661601 L.H. UPPER PANEL	-	1	Enquire
33	665338	LH. LINING	665338 LH. LINING	-	1	Enquire
33	666355	LH. UPPER PANEL	666355 LH. UPPER PANEL	-	1	Enquire
33	666361	L.H. LINING	666361 L.H. LINING	-	1	Enquire
33	661600	R.H. UPPER PANEL	661600 R.H. UPPER PANEL Not for GD	-	1	Enquire
33	665337	R.H. LINING	665337 R.H. LINING	-	1	Enquire
33	666354	R.H. UPPER PANEL	666354 R.H. UPPER PANEL Valid for GD	-	1	Enquire
33	666360	R.H. LINING	666360 R.H. LINING	-	1	Enquire
34	661637	L.H. HANDLE LINING	661637 L.H. HANDLE LINING	-	1	Enquire
34	661632	R.H. HANDLE MOULDING	661632 R.H. HANDLE MOULDING	-	1	Enquire
34	661636	R.H. HANDLE LINING	661636 R.H. HANDLE LINING	-	1	Enquire
34	661633	L.H. HANDLE MOULDING	661633 L.H. HANDLE MOULDING	-	1	Enquire
35	66836400	L.H. LOWER PANEL	66836400 L.H. LOWER PANEL	$3,770.84	1
35	66837400	L.H. LOWER PANEL	66837400 L.H. LOWER PANEL	$3,770.84	1
35	66837300	R.H. LOWER PANEL	66837300 R.H. LOWER PANEL	$3,770.84	1
35	661611	L.H. LOWER PANEL	661611 L.H. LOWER PANEL	-	1	Enquire
35	661619	LH. LINING	661619 LH. LINING	-	1	Enquire
35	666367	LH. LOWER PANEL	666367 LH. LOWER PANEL	-	1	Enquire
35	666375	L.H. LINING	666375 L.H. LINING	-	1	Enquire
35	661610	R.H. LOWER PANEL	661610 R.H. LOWER PANEL	-	1	Enquire
35	661618	R.H. LINING	661618 R.H. LINING	-	1	Enquire
35	666366	R.H. LOWER PANEL	666366 R.H. LOWER PANEL	-	1	Enquire
35	666374	R.H. LINING	666374 R.H. LINING	-	1	Enquire
35	66836300	R.H. LOWER PANEL	66836300 R.H. LOWER PANEL Carbon / Optional	$3,770.84	1
36	661623	L.H. POCKET	661623 L.H. POCKET	-	1	Enquire
36	661627	L.H. LINING	661627 L.H. LINING	-	1	Enquire
36	66836800	L.H. POCKET	66836800 L.H. POCKET	-	1	Enquire
36	661622	R.H. POCKET	661622 R.H. POCKET	-	1	Enquire
36	661626	R.H. LINING	661626 R.H. LINING	-	1	Enquire
36	66836700	R.H. POCKET	66836700 R.H. POCKET Carbon / Optional / Not as spare part	-	1	Enquire
37	15915977	SCREW	15915977 SCREW	$0.28 MSRP: ~~0.60~~ (53.3% off)	8
38	81360700	WASHER	81360700 WASHER	$2.02	8
39	14115885	BLOCK IN STOCK	14115885 BLOCK IN STOCK	$0.14	12
40	14592587	FIXING BUTTON IN STOCK	14592587 FIXING BUTTON IN STOCK	$0.11 MSRP: ~~0.75~~ (85.3% off)	6
41	183364	LOUD SPEAKER WOOFER	183364 LOUD SPEAKER WOOFER	$65.15	2
41	184676	LOUD SPEAKER WOOFER	184676 LOUD SPEAKER WOOFER Valid for high power HI Fl	$128.63	2
42	66285000	RING NUT MOULDING	66285000 RING NUT MOULDING	$46.50	2
43	66286500	LOUD SPEAKER SUPPORTING BRACKET	66286500 LOUD SPEAKER SUPPORTING BRACKET BRACKET	$53.52	2
44	66220900	R.H. HANDLE PLATE	66220900 R.H. HANDLE PLATE	$88.54	1
44	66221000	L.H. HANDLE PLATE	66221000 L.H. HANDLE PLATE	$88.54	1
45	66639000	MOULDING BRACKET	66639000 MOULDING BRACKET	$10.95	1
46	66177900	RH BRACKET FOR HANDLE FIXING	66177900 RH BRACKET FOR HANDLE FIXING FIXING	$29.00	1
46	66178000	LH BRACKET FOR HANDLE FIXING	66178000 LH BRACKET FOR HANDLE FIXING	$29.00	1
47	191046	EXTERNAL SIDE MIRRORS CONTROL SWITCH	191046 EXTERNAL SIDE MIRRORS CONTROL SWITCH	$586.13 MSRP: ~~1,018.08~~ (42.4% off)	1
48	66177800	BRACKET FOR POCKET	66177800 BRACKET FOR POCKET	$24.42	6
49	15782601	SCREW	15782601 SCREW	$0.14	12
50	175856	CONNECTOR FASTENER BRACKET	175856 CONNECTOR FASTENER BRACKET	$2.14	2
51	62769800	WASHER IN STOCK	62769800 WASHER IN STOCK	$0.22 MSRP: ~~0.30~~ (26.7% off)	8
52	10794014	NUT IN STOCK	10794014 NUT IN STOCK	$0.06	8
53	67124800	SPONGE	67124800 SPONGE 1200x50mm	$11.09	1
54	67124900	SPONGE	67124900 SPONGE 150x50mm	$10.43	1
55	67125000	SPONGE	67125000 SPONGE 270x150mm	$4.26	1
56	67668900	WATER PROTECTION CLOTH	67668900 WATER PROTECTION CLOTH	$11.12 MSRP: ~~16.95~~ (34.4% off)	2
57	69101000	RUBBER	69101000 RUBBER	$5.55	4
