Ferrari 575M Maranello - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
183057 R.H. REAR HUB HOLDER Enquire To Order
183325 LH. REAR HUB HOLDER Enquire To Order
Photo Part No Description Price (each) Stock
197271 BEARING FOR WHEEL $1,101.37 To Order
197271 BEARING FOR WHEEL $1,101.37 To Order
Photo Part No Description Price (each) Stock
180591 SCREW $2.13 To Order
Photo Part No Description Price (each) Stock
183754 L.H. SUPPORT $18.94 To Order
183753 R.H. SUPPORT $18.94 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
188161 NUT $4.59 To Order
Photo Part No Description Price (each) Stock
196577 WASHER $4.04 To Order
Photo Part No Description Price (each) Stock
11500124 STUD BOLT $0.32 To Order
Photo Part No Description Price (each) Stock
205290 REAR SHOCK ABSORBER $2,371.06 To Order
190996 REAR SHOCK ABSORBER $1,814.98 To Order
190996 REAR SHOCK ABSORBER $1,814.98 To Order
Photo Part No Description Price (each) Stock
189997 SHOCK ABSORBER BUSHING $149.35 To Order
Photo Part No Description Price (each) Stock
157630 SHOCK ABSORBER BUSH $109.67 IN STOCK
Photo Part No Description Price (each) Stock
187095 HYPERBLOCK $45.37 To Order
204606 Bush for Front Upper Shock Absorber $235.03 To Order
Photo Part No Description Price (each) Stock
105369 CABLE GROMMET $1.16 To Order
Photo Part No Description Price (each) Stock
133771 THREADED INSERT $3.70 To Order
Photo Part No Description Price (each) Stock
13526170 THREADED INSERT $3.63 To Order
Photo Part No Description Price (each) Stock
153497 SPACER WASHER mm.3.10 -As $1.62 To Order
153495 SPACER WASHER mm. 3.00 $1.60 To Order
153496 SPACER WASHER mm.2.90 -As $1.60 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14306924 SCREW $0.64 IN STOCK
Photo Part No Description Price (each) Stock
188997 FASTENING SPACER $25.76 To Order
10520124 WASHER $0.67 IN STOCK
Photo Part No Description Price (each) Stock
203795 NUT $2.42 IN STOCK
Photo Part No Description Price (each) Stock
11500124 STUD BOLT $0.32 To Order
Photo Part No Description Price (each) Stock
208679 SPRING - Cosmos $732.93 To Order
169986 SPRING $556.01 To Order
175887 REAR SPRING $455.11 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
156978 UPPER SPACER $51.80 To Order
Photo Part No Description Price (each) Stock
113581 LOWER SPACER $20.22 To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT $0.50 IN STOCK
Photo Part No Description Price (each) Stock
204507 PAD FASTENING CUP $19.69 To Order
189055 PAD FASTENING CUP $353.34 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.97 IN STOCK
Photo Part No Description Price (each) Stock
159309 SCREW $8.47 To Order
Photo Part No Description Price (each) Stock
148020 NUT M12 X 1.25 $3.83 IN STOCK
Photo Part No Description Price (each) Stock
211606 REAR BRAKE DISC $4,481.31 To Order
191982 REAR BRAKE DISC $382.06 To Order
Photo Part No Description Price (each) Stock
104370 SCREW $8.70 IN STOCK
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.81 IN STOCK
Photo Part No Description Price (each) Stock
204458 PAD FASTENING SPRING $107.11 To Order
189054 PAD FASTENING SPRING $147.84 To Order
View All

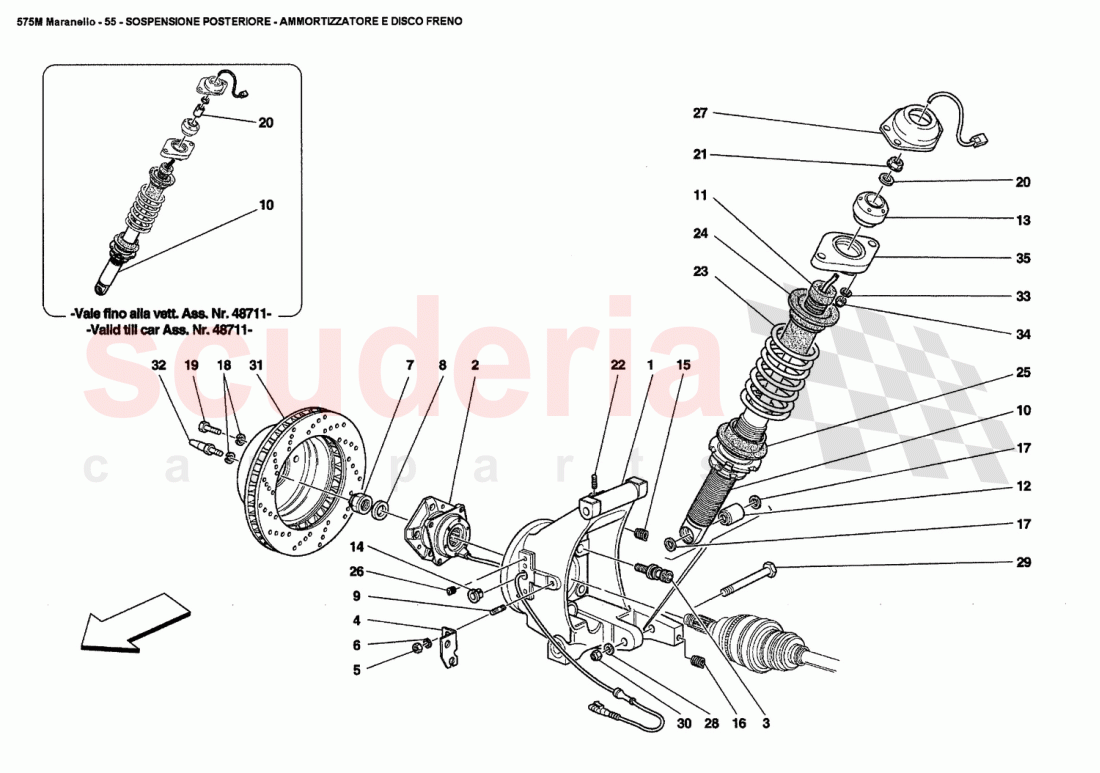

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 183324
COMPLETE LH REAR HUB HOLDER 		$1,206.98 1
- 183315
COMPLETE RH REAR HUB HOLDER 		$1,206.98 1
1 183057
R.H. REAR HUB HOLDER
With complete R.H. steering / knuckle 194243 / 		- 1 Enquire
1 183325
LH. REAR HUB HOLDER
With complete L.H. steering / knucklel 94244 		- 1 Enquire
2 197271
BEARING FOR WHEEL
Valid till stock exhaustion / Replace in couple 		$1,101.37 (36.6% off) 2
2 197271
BEARING FOR WHEEL 		$1,101.37 (36.6% off) 2
3 180591
SCREW 		$2.13 (46.1% off) 8
4 183754
L.H. SUPPORT 		$18.94 1
4 183753
R.H. SUPPORT 		$18.94 1
5 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
6 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
7 188161
NUT 		$4.59 (47.9% off) 2
8 196577
WASHER 		$4.04 2
9 11500124
STUD BOLT 		$0.32 (36% off) 2
10 205290
REAR SHOCK ABSORBER
Valid from car Ass. Nr. 55769 		$2,371.06 2
10 190996
REAR SHOCK ABSORBER
Valid till car Ass. Nr. 48711 		$1,814.98 2
10 190996
REAR SHOCK ABSORBER
Valid from car Ass. Nr. 48712 / Valid till Ass. Nr.55768 		$1,814.98 2
11 189997
SHOCK ABSORBER BUSHING 		$149.35 2
12 157630
SHOCK ABSORBER BUSH
IN STOCK 		$109.67 (28% off) 2
13 187095
HYPERBLOCK 		$45.37 (36.1% off) 2
13 204606
Bush for Front Upper Shock Absorber
Valid from Ass. Nr. 55769 		$235.03 (24.2% off) 2
14 105369
CABLE GROMMET 		$1.16 (66.9% off) 2
15 133771
THREADED INSERT 		$3.70 (25.6% off) 4
16 13526170
THREADED INSERT 		$3.63 (38.7% off) 2
17 153497
SPACER WASHER mm.3.10 -As 		$1.62 (68.7% off) -
17 153495
SPACER WASHER mm. 3.00 		$1.60 4
17 153496
SPACER WASHER mm.2.90 -As
As an alternative of 153495 		$1.60 -
18 127496
WASHER 		$0.06 (80% off) 4
19 14306924
SCREW
IN STOCK 		$0.64 2
20 188997
FASTENING SPACER 		$25.76 2
20 10520124
WASHER
IN STOCK 		$0.67 2
21 203795
NUT
IN STOCK 		$2.42 2
22 11500124
STUD BOLT 		$0.32 (36% off) 2
23 208679
SPRING - Cosmos
As an alternativa 		$732.93 2
23 169986
SPRING
As an alternative / Not for cars with handling "Fiorano equipmenf 		$556.01 2
23 175887
REAR SPRING
Valid for cars with handling "Fiorano equipment" / Optional 		$455.11 2
23 163652
SPRING
Sold in pair / Not for cars with handling "Fiorano equipment" 		$252.72 2
24 156978
UPPER SPACER 		$51.80 2
25 113581
LOWER SPACER 		$20.22 (10.9% off) 2
26 13525470
THREADED INSERT
IN STOCK 		$0.50 (80% off) 6
27 204507
PAD FASTENING CUP
Valid from Ass. Nr.55769 		$19.69 2
27 189055
PAD FASTENING CUP 		$353.34 2
28 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.97 2
29 159309
SCREW 		$8.47 (16.6% off) 2
30 148020
NUT M12 X 1.25
IN STOCK 		$3.83 2
31 211606
REAR BRAKE DISC
CCM Version 		$4,481.31 2
31 191982
REAR BRAKE DISC 		$382.06 (25% off) 2
32 104370
SCREW
IN STOCK 		$8.70 2
33 12601474
WASHER
IN STOCK 		$0.03 4
34 12574521
Nyloc Nut
IN STOCK 		$0.81 (59.5% off) 4
35 204458
PAD FASTENING SPRING 		$107.11 2
35 189054
PAD FASTENING SPRING 		$147.84 2
