Electrical Seat - Guide And Movement

Ferrari 575 Superamerica

Find Your Part

Ferrari 575 Superamerica - Electrical Seat - Guide and Movement

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
66327300 LH GUIDE ASSEMBLY $1,690.71 To Order
67284600 L.H. GUIDE ASSEMBLY $1,620.55 To Order
66327200 RH GUIDE ASSEMBLY $1,690.71 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65917500 SCREW $1.91 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
66327600 FRONT FASTENER BUSHING $7.31 To Order
Photo Part No Description Price (each) Stock
66327700 REAR FASTENER BUSHING $3.04 To Order
Photo Part No Description Price (each) Stock
66327500 COMPLETE SCREW $4.30 To Order
Photo Part No Description Price (each) Stock
67285500 L.H. BUSHING Enquire To Order
67285600 R.H. BUSHING $5.01 To Order
Photo Part No Description Price (each) Stock
66370200 LH CLIP $3.81 To Order
66324600 RH CLIP $3.81 To Order
Photo Part No Description Price (each) Stock
66326100 BOWDEN CABLE SHEATH $21.37 To Order
66326000 BACKREST BOLSTER ADJUSTMENT BOWDEN CABLE $18.31 To Order
Photo Part No Description Price (each) Stock
67285700 SEAT BACK COVERING $290.16 To Order
Photo Part No Description Price (each) Stock
66374500 ELECTRIC LUMBAR SUPPORT ADJUSTMENT MECHANISM $1,789.94 To Order
Photo Part No Description Price (each) Stock
66328400 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
67285000 SKIN-SAVER MEMORY CONTROL STATION $949.82 To Order
Photo Part No Description Price (each) Stock
67284800 CONTROL UNIT FIXING BRACKET $20.86 To Order
Photo Part No Description Price (each) Stock
67283700 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
67284900 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
67285100 SKIN-SAVER CONTROL STATION $1,007.98 To Order
Photo Part No Description Price (each) Stock
67285200 SCREW $0.29 To Order
Photo Part No Description Price (each) Stock
67285300 NUT $0.19 To Order
Photo Part No Description Price (each) Stock
67286000 L.H. MEMORY SEAT WIRING $626.16 To Order
67286300 L.H. SKIN-SAVER SEAT WIRING Enquire To Order
67286100 R.H. MEMORY SEAT WIRING $626.16 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
66328800 COMPLETE CONNECTOR BAR $140.49 To Order
Photo Part No Description Price (each) Stock
66328700 CROWN FASTENER $5.18 To Order
Photo Part No Description Price (each) Stock
66327800 BACKREST ADJUSTMENT MOTOR $507.21 To Order
Photo Part No Description Price (each) Stock
66328500 FASTENER KIT $3.29 To Order
Photo Part No Description Price (each) Stock
66329300 LH SEAT BUTTON PANEL $419.81 To Order
66329200 RH SEAT BUTTON PANEL $419.81 To Order
Photo Part No Description Price (each) Stock
67285800 PIN $4.10 To Order
Photo Part No Description Price (each) Stock
67285900 FLEXIBLE RING $0.17 To Order
Photo Part No Description Price (each) Stock
69340400 ELECTRIC WIRING $515.66 To Order
Photo Part No Description Price (each) Stock
66324200 SEAT RELEASE CABLE $142.31 To Order
Photo Part No Description Price (each) Stock
66324500 SEAT HOOK LEVER $24.42 To Order
Photo Part No Description Price (each) Stock
66324400 FIXING PLATE $11.39 To Order
Photo Part No Description Price (each) Stock
66324300 CLIP $3.29 IN STOCK
Photo Part No Description Price (each) Stock
66578900 SEAT DESENGAGEMENT SPRING $15.26 To Order
View All

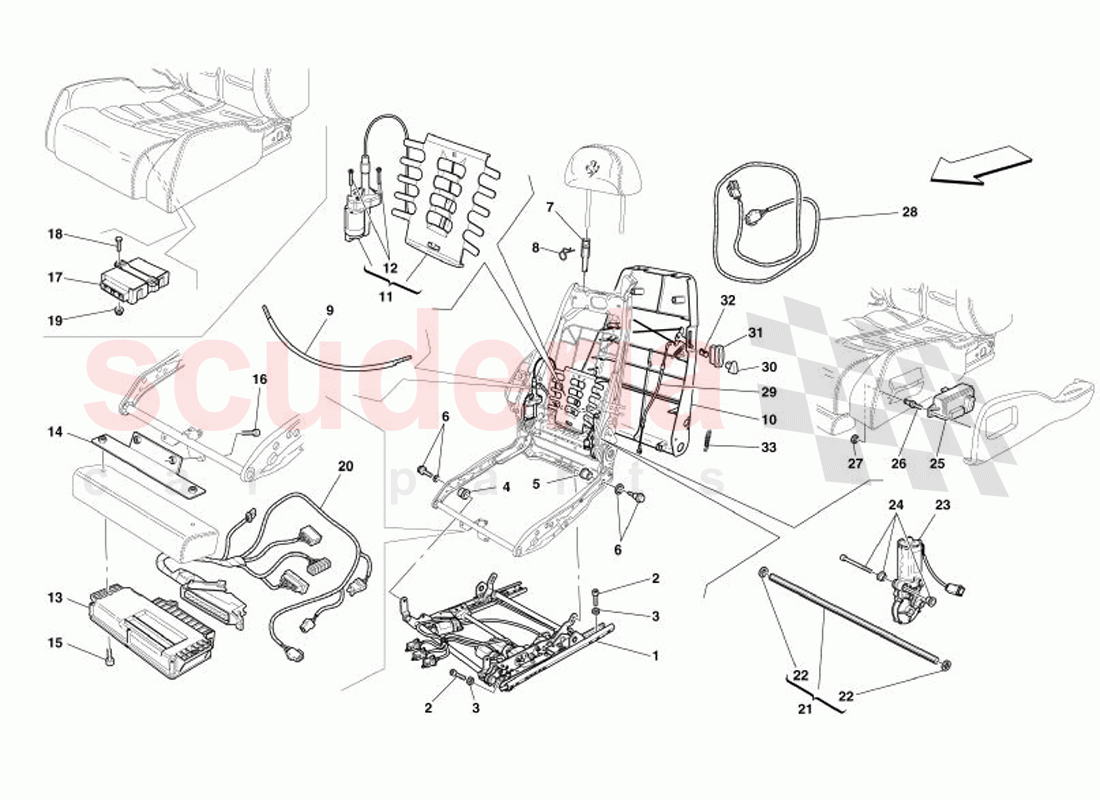

Electrical Seat - Guide and Movement of Ferrari Ferrari 575 Superamerica Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 66327300
LH GUIDE ASSEMBLY
Valid for GD 		$1,690.71 1
1 67284600
L.H. GUIDE ASSEMBLY
Not for GD 		$1,620.55 1
1 66327200
RH GUIDE ASSEMBLY
Not for GD 		$1,690.71 1
1 67284700
R.H. GUIDE ASSEMBLY
Valid for GD 		$1,929.64 1
2 65917500
SCREW 		$1.91 (64.3% off) 4
3 12601474
WASHER
IN STOCK 		$0.03 4
4 66327600
FRONT FASTENER BUSHING 		$7.31 4
5 66327700
REAR FASTENER BUSHING 		$3.04 4
6 66327500
COMPLETE SCREW 		$4.30 8
7 67285500
L.H. BUSHING
Black 		- 2 Enquire
7 67285600
R.H. BUSHING
Grey 		$5.01 2
8 66370200
LH CLIP 		$3.81 2
8 66324600
RH CLIP 		$3.81 2
9 66326100
BOWDEN CABLE SHEATH 		$21.37 2
9 66326000
BACKREST BOLSTER ADJUSTMENT BOWDEN CABLE 		$18.31 2
10 67285700
SEAT BACK COVERING 		$290.16 2
11 66374500
ELECTRIC LUMBAR SUPPORT ADJUSTMENT MECHANISM 		$1,789.94 2
12 66328400
SCREW 		$0.71 10
13 67285000
SKIN-SAVER MEMORY CONTROL STATION
Driver side 		$949.82 1
14 67284800
CONTROL UNIT FIXING BRACKET 		$20.86 1
15 67283700
SCREW 		$0.14 2
16 67284900
SCREW 		$0.14 2
17 67285100
SKIN-SAVER CONTROL STATION
Passenger side 		$1,007.98 1
18 67285200
SCREW 		$0.29 2
19 67285300
NUT 		$0.19 2
20 67286000
L.H. MEMORY SEAT WIRING
Not for GD 		$626.16 1
20 67286300
L.H. SKIN-SAVER SEAT WIRING
Valid for GD 		- 1 Enquire
20 67286100
R.H. MEMORY SEAT WIRING
Valid for GD 		$626.16 1
20 67286200
R.H. SKIN-SAVER SEAT WIRING
Not for GD 		$773.51 1
21 66328800
COMPLETE CONNECTOR BAR 		$140.49 2
22 66328700
CROWN FASTENER 		$5.18 4
23 66327800
BACKREST ADJUSTMENT MOTOR 		$507.21 2
24 66328500
FASTENER KIT 		$3.29 2
25 66329300
LH SEAT BUTTON PANEL 		$419.81 (30.8% off) 1
25 66329200
RH SEAT BUTTON PANEL 		$419.81 (30.8% off) 1
26 67285800
PIN 		$4.10 4
27 67285900
FLEXIBLE RING 		$0.17 4
28 69340400
ELECTRIC WIRING 		$515.66 2
29 66324200
SEAT RELEASE CABLE 		$142.31 4
30 66324500
SEAT HOOK LEVER 		$24.42 (25.5% off) 4
31 66324400
FIXING PLATE 		$11.39 4
32 66324300
CLIP
IN STOCK 		$3.29 4
33 66578900
SEAT DESENGAGEMENT SPRING 		$15.26 4
