Ferrari 550 Maranello - FRONT AND REAR LIGHTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
653382 RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT Enquire To Order
Photo Part No Description Price (each) Stock
653383 LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT Enquire To Order
Photo Part No Description Price (each) Stock
168229 R.H. FOG LIGHT $690.52 To Order
Photo Part No Description Price (each) Stock
64559700 R.H. FRONT BRACKET $126.45 To Order
Photo Part No Description Price (each) Stock
64559100 R.H. BRACKET $120.78 To Order
Photo Part No Description Price (each) Stock
64786700 R.H. OUTER REAR BRACKET $8.89 To Order
Photo Part No Description Price (each) Stock
64786600 R.H. INNER REAR BRACKET $74.60 To Order
Photo Part No Description Price (each) Stock
64765600 CENTRAL REAR BRACKET $8.43 To Order
Photo Part No Description Price (each) Stock
167958 ADDITIONAL STOP LIGHT $52.10 To Order
Photo Part No Description Price (each) Stock
15782601 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
157513 R.H. rear internal light $701.15 To Order
Photo Part No Description Price (each) Stock
157515 RH REAR OUTER EXTERNAL LIGHT $493.98 IN STOCK
Photo Part No Description Price (each) Stock
165558 SIDE TURN INDICATOR $30.72 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
11612524 SCREW $0.81 IN STOCK
Photo Part No Description Price (each) Stock
12648978 WASHER $0.47 IN STOCK
Photo Part No Description Price (each) Stock
10399580 CABLE GROMMET $0.88 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
11612424 SCREW $1.68 IN STOCK
Photo Part No Description Price (each) Stock
65183600 R.H. RETAINER $13.42 To Order
Photo Part No Description Price (each) Stock
174580 CABLE $10.08 To Order
Photo Part No Description Price (each) Stock
147563 FRONT SIDE MARKER LAMP $44.11 IN STOCK
Photo Part No Description Price (each) Stock
140594 REAR SIDE-MARKER LIGHT $44.11 IN STOCK
Photo Part No Description Price (each) Stock
11673111 NUT $0.23 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
155751 CLIP $4.36 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $705.69 IN STOCK
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
65898400 PLUG FOR LIGHTS $19.61 To Order
Photo Part No Description Price (each) Stock
65023200 PIN $43.04 To Order
Photo Part No Description Price (each) Stock
65189500 R.H. BRACKET $16.32 To Order
Photo Part No Description Price (each) Stock
65515300 LH Headlight Gasket $196.28 IN STOCK
65515200 RH Headlight Gasket $196.28 IN STOCK
View All

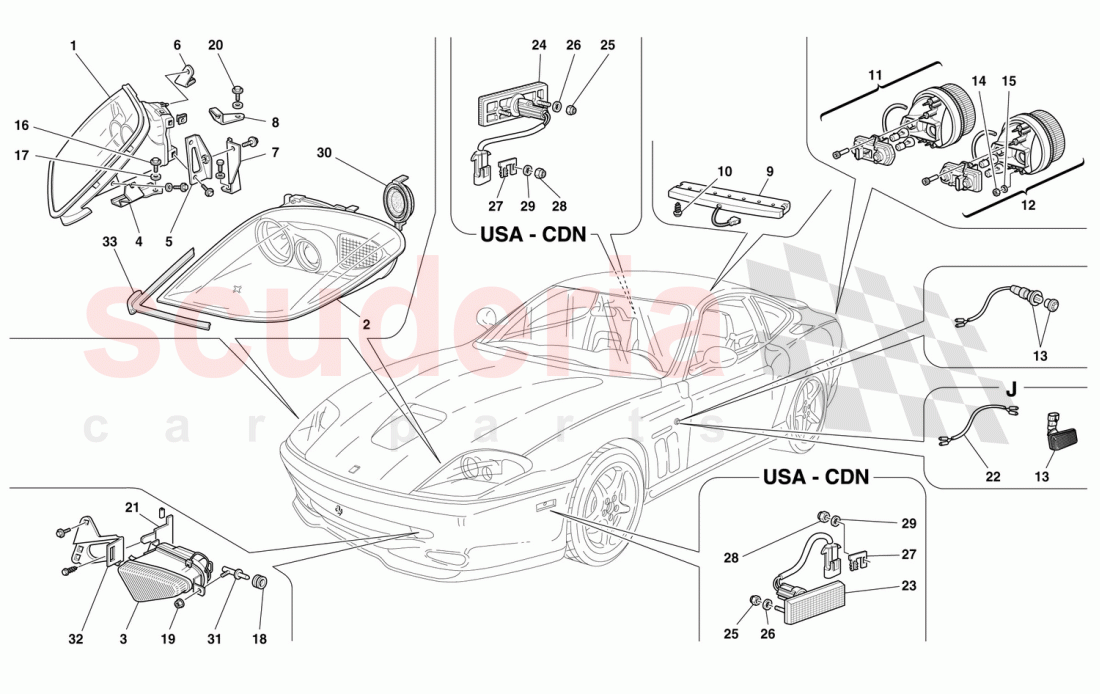

FRONT AND REAR LIGHTS of Ferrari Ferrari 550 Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 65189600
L.H. BRACKET 		$16.64 1
- 65183700
L.H. RETAINER 		$14.18 1
- 173616
R.H. FRONT SIDE DIRECTION LIGHT
LIGHT / Valid for J 		$21.06 1
- 175506
L.H. FRONT SIDE DIRECTION LIGHT
LIGHT / Valid for J 		$13.67 1
- 157522
R.H. rear external light
Valid for USA and CDN 		$467.43 (33.9% off) 1
- 157516
L.H. rear external light
Not for USA and CDN 		$478.04 1
- 157523
L.H. rear external light
Valid for USA and CDN 		$467.43 (33.9% off) 1
- 157524
RH Rear Inner Light
Valid for USA and CDN
IN STOCK 		$493.98 (31.7% off) 1
- 157514
LH REAR INTERNAL LIGHT
Not for USA and CDN
IN STOCK 		$493.98 1
- 157525
LH Inner Rear Light
Valid for USA and CDN
IN STOCK 		$493.98 (31.7% off) 1
- 64559000
L.H. BRACKET 		$120.78 1
- 64560600
L.H. OUTER REAR BRACKET 		$8.89 1
- 64786500
L.H. INNER REAR BRACKET 		$74.60 1
- 168230
L.H. FOG LIGHT 		$565.77 (55% off) 1
- 64559600
L.H. FRONT BRACKET 		$74.60 1
- 654823
LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for GD / 		- 1 Enquire
- 654825
LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for J / 		- 1 Enquire
- 654619
LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for USA and CDN / 		- 1 Enquire
- 654822
RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for GD / 		- 1 Enquire
- 654824
RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for J / 		- 1 Enquire
- 654618
RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Valid for USA and CDN / 		- 1 Enquire
1 653382
RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Not for USA, CDN, GD and J / 		- 1 Enquire
2 653383
LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
BEAM/POSITION/DIRECTION LIGHT / See relevant table for paint colour / Not for USA, CDN, GD and J / 		- 1 Enquire
3 168229
R.H. FOG LIGHT 		$690.52 (45.1% off) 1
4 64559700
R.H. FRONT BRACKET 		$126.45 (30.6% off) 1
5 64559100
R.H. BRACKET 		$120.78 (48.6% off) 1
6 64786700
R.H. OUTER REAR BRACKET 		$8.89 (25.9% off) 1
7 64786600
R.H. INNER REAR BRACKET 		$74.60 (47.3% off) 1
8 64765600
CENTRAL REAR BRACKET 		$8.43 (15.7% off) 2
9 167958
ADDITIONAL STOP LIGHT 		$52.10 (23% off) 1
10 15782601
SCREW 		$0.14 3
11 157513
R.H. rear internal light
Not for USA and CDN 		$701.15 1
12 157515
RH REAR OUTER EXTERNAL LIGHT
Not for USA and CDN
IN STOCK 		$493.98 1
13 165558
SIDE TURN INDICATOR
Not for USA, CDN and J / 		$30.72 (18.3% off) 2
14 14059290
FLANGED NUT M6
IN STOCK 		$1.31 8
15 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 8
16 11612524
SCREW
IN STOCK 		$0.81 2
17 12648978
WASHER
IN STOCK 		$0.47 2
18 10399580
CABLE GROMMET 		$0.88 2
19 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
20 11612424
SCREW
IN STOCK 		$1.68 (59.5% off) 4
21 65183600
R.H. RETAINER 		$13.42 1
22 174580
CABLE
Valid for J 		$10.08 2
23 147563
FRONT SIDE MARKER LAMP
Valid for USA and CDN
IN STOCK 		$44.11 (6.2% off) 2
24 140594
REAR SIDE-MARKER LIGHT
Valid for USA and CDN
IN STOCK 		$44.11 (6.3% off) 2
25 11673111
NUT
Valid for USA and CDN 		$0.23 8
26 12638124
WASHER
Valid for USA and CDN
IN STOCK 		$0.05 (92.9% off) 8
27 155751
CLIP
Valid for USA and CDN 		$4.36 (11.9% off) 2
28 319201
FUEL FILLER PIPE ASSEMBLY
Valid for USA and CDN
IN STOCK 		$705.69 2
29 12637824
WASHER
Valid for USA and CDN
IN STOCK 		$0.06 (88% off) 2
30 65898400
PLUG FOR LIGHTS 		$19.61 (39.9% off) 2
31 65023200
PIN 		$43.04 2
32 65189500
R.H. BRACKET 		$16.32 1
33 65515300
LH Headlight Gasket
IN STOCK 		$196.28 (14.1% off) 1
33 65515200
RH Headlight Gasket
IN STOCK 		$196.28 (14.1% off) 1
