Ferrari 550 Maranello - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
176184 R.H. STEERING KNUCKLE Enquire To Order
Photo Part No Description Price (each) Stock
133771 THREADED INSERT $3.72 To Order
Photo Part No Description Price (each) Stock
11000924 Stud bolt $1.35 To Order
Photo Part No Description Price (each) Stock
157900 HUB COMPLETE BEARING $1,910.23 To Order
Photo Part No Description Price (each) Stock
174045 FRONT TOOTHED WHEEL $1,207.40 To Order
Photo Part No Description Price (each) Stock
209184 NUT $9.96 To Order
Photo Part No Description Price (each) Stock
16324034 SCREW $14.41 To Order
Photo Part No Description Price (each) Stock
102901 SPACER WASHER $0.34 To Order
Photo Part No Description Price (each) Stock
164925 R.H. COVER $713.16 To Order
Photo Part No Description Price (each) Stock
170177 R.H. SUPPORT $242.77 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
143405 FASTON TONGUE $0.49 To Order
Photo Part No Description Price (each) Stock
149951 WASHER $0.29 IN STOCK
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
153495 SPACER WASHER mm. 3.00 $1.61 To Order
Photo Part No Description Price (each) Stock
183334 FRONT SHOCK ABSORBER $1,517.38 To Order
Photo Part No Description Price (each) Stock
152329 SHOCK ABSORBER PAD $20.35 To Order
Photo Part No Description Price (each) Stock
11021111 SCREW $0.46 To Order
Photo Part No Description Price (each) Stock
10519224 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
153285 Ball-Joint $521.08 To Order
Photo Part No Description Price (each) Stock
145478 Snap Ring $1.38 To Order
Photo Part No Description Price (each) Stock
153286 RUBBER SEAL $2.28 IN STOCK
Photo Part No Description Price (each) Stock
172356 CUP $302.07 To Order
Photo Part No Description Price (each) Stock
13543524 STUD BOLT $4.15 To Order
Photo Part No Description Price (each) Stock
170611 BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
172357 UPPER JOINT SUPPORT $89.76 To Order
Photo Part No Description Price (each) Stock
170143 RING NUT $61.34 To Order
Photo Part No Description Price (each) Stock
137824 ACTUATOR SUPPORT $31.97 To Order
Photo Part No Description Price (each) Stock
137826 NUT $3.36 To Order
Photo Part No Description Price (each) Stock
163648 SPRING $737.13 IN STOCK
Photo Part No Description Price (each) Stock
127991 COMPLETE SPACER $130.48 To Order
Photo Part No Description Price (each) Stock
152655 WASHER $8.91 To Order
Photo Part No Description Price (each) Stock
152842 WASHER $8.75 To Order
Photo Part No Description Price (each) Stock
184654 FRONT BRAKE DISC Enquire To Order
Photo Part No Description Price (each) Stock
157841 BRAKE DISC FIXING SCREW AND WHEEL CENRTERING $8.32 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14306924 SCREW $0.64 IN STOCK
Photo Part No Description Price (each) Stock
158732 SHOCK ABSORBER ACTUATOR $1,411.16 To Order
Photo Part No Description Price (each) Stock
160461 WASHER $0.86 To Order
Photo Part No Description Price (each) Stock
170144 WASHER $2.91 To Order
Photo Part No Description Price (each) Stock
155751 CLIP $4.38 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $709.17 IN STOCK
Photo Part No Description Price (each) Stock
14496324 WASHER $2.79 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.25 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
142079 CLIP $5.90 To Order
Photo Part No Description Price (each) Stock
173900 COMPLETE SPRING RETAINING CUP $595.06 To Order
Photo Part No Description Price (each) Stock
12354524 Stud Securing Exhaust $27.96 IN STOCK
View All

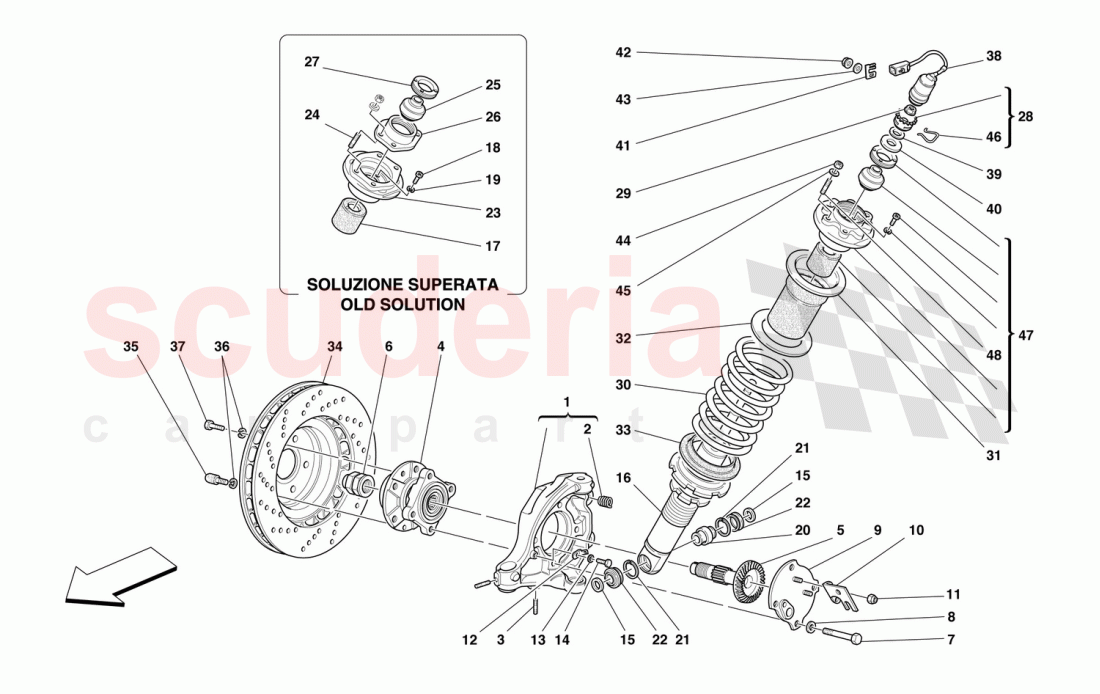

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 550 Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 173900
COMPLETE SPRING RETAINING CUP 		$595.06 2
- 104370
SCREW
Valid from car Ass. Nr. 33718 / Valid for aluminium rims
IN STOCK 		$8.75 2
- 184652
Front Brake Disc
Valid for aluminium rims / With 4 mm. diameter holes / Valid from car Ass. Nr. 37505 		$331.25 (23.9% off) 2
- 169985
SPRING
As an alternativa / Not for cars with handling "Fiorano equipment" 		$420.67 2
- 175886
SPRING
Valid for cars with handling "Fiorano equipment" / Optional 		$500.72 2
- 153497
SPACER WASHER mm.3.10 -As
As an alternative of 153495 		$1.62 (68.7% off) -
- 183334
FRONT SHOCK ABSORBER 		$1,517.38 2
- 153496
SPACER WASHER mm.2.90 -As
As an alternative of 153495 		$1.61 -
- 164926
L.H. COVER 		$789.03 1
- 170178
L.H. SUPPORT 		$303.46 1
- 209184
NUT
of 148851 		$9.96 (87.8% off) 2
- 176185
L.H. STEERING KNUCKLE
Not as spare part / With complete L.H. steering / knuckle 178887 		- 1 Enquire
- 184627
COMPLETE L.H. STEERING KNUCKLE 		$2,170.87 1
- 184626
COMPLETE R.H. STEERING KNUCKLE 		$2,170.87 1
1 176184
R.H. STEERING KNUCKLE
Not as spare part / With complete R.H. steering / knuckle 178886 		- 1 Enquire
2 133771
THREADED INSERT 		$3.72 (25.2% off) 4
3 11000924
Stud bolt 		$1.35 4
4 157900
HUB COMPLETE BEARING 		$1,910.23 (25.7% off) 2
5 174045
FRONT TOOTHED WHEEL 		$1,207.40 2
6 209184
NUT 		$9.96 (87.8% off) 2
7 16324034
SCREW 		$14.41 8
8 102901
SPACER WASHER 		$0.34 8
9 164925
R.H. COVER 		$713.16 1
10 170177
R.H. SUPPORT 		$242.77 1
11 14059290
FLANGED NUT M6
IN STOCK 		$1.32 4
12 143405
FASTON TONGUE 		$0.49 2
13 149951
WASHER
IN STOCK 		$0.29 2
14 10977524
SCREW
IN STOCK 		$0.14 2
15 153495
SPACER WASHER mm. 3.00 		$1.61 4
16 183334
FRONT SHOCK ABSORBER
Not as spare now / Replaced by 183334 		$1,517.38 2
17 152329
SHOCK ABSORBER PAD
Not as spare now 		$20.35 (33.1% off) 2
18 11021111
SCREW
Not as spare part now 		$0.46 8
19 10519224
WASHER
Not as spare part now
IN STOCK 		$0.06 (80% off) 8
20 153285
Ball-Joint 		$521.08 (35.4% off) 2
21 145478
Snap Ring 		$1.38 (54.6% off) 4
22 153286
RUBBER SEAL
IN STOCK 		$2.28 (1.7% off) 4
23 172356
CUP
Not as spare part now 		$302.07 2
24 13543524
STUD BOLT
Not as spare part now 		$4.15 (4.6% off) 8
25 170611
BALL JOINT
Not as spare part now 		- 2 Enquire
26 172357
UPPER JOINT SUPPORT
Not as spare part now 		$89.76 2
27 170143
RING NUT
Not as spare part now 		$61.34 2
28 137824
ACTUATOR SUPPORT 		$31.97 (46.1% off) 2
29 137826
NUT 		$3.36 (29.3% off) 2
30 163648
SPRING
Not for cars with handling "Fiorano equipment"
IN STOCK 		$737.13 2
31 127991
COMPLETE SPACER 		$130.48 2
32 152655
WASHER 		$8.91 2
33 152842
WASHER 		$8.75 (37.9% off) 2
34 184654
FRONT BRAKE DISC
Valid for magnesium rims 		- 2 Enquire
35 157841
BRAKE DISC FIXING SCREW AND WHEEL CENRTERING
Valid till car Ass. Nr. 33717 / Valid for magnesium rims 		$8.32 (16.8% off) 2
36 127496
WASHER 		$0.06 (80% off) 4
37 14306924
SCREW
IN STOCK 		$0.64 2
38 158732
SHOCK ABSORBER ACTUATOR
ABSORBER 		$1,411.16 (11.2% off) 2
39 160461
WASHER 		$0.86 2
40 170144
WASHER 		$2.91 2
41 155751
CLIP 		$4.38 (11.5% off) 2
42 319201
FUEL FILLER PIPE ASSEMBLY
IN STOCK 		$709.17 2
43 14496324
WASHER 		$2.79 2
44 104030
NUT
IN STOCK 		$0.25 (75% off) 8
45 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 8
46 142079
CLIP 		$5.90 (45.1% off) 2
47 173900
COMPLETE SPRING RETAINING CUP
Not as spare part now / Replaced by 173900 		$595.06 2
48 12354524
Stud Securing Exhaust
IN STOCK 		$27.96 (11.2% off) 8
