Gearbox

Ferrari 550 Maranello

Find Your Part

Ferrari 550 Maranello - GEARBOX

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
172620 GEAR BOX 3rd ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
13543524 STUD BOLT $4.12 To Order
Photo Part No Description Price (each) Stock
13543524 STUD BOLT $4.12 To Order
Photo Part No Description Price (each) Stock
13543624 STUD BOLT $0.43 To Order
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL $2.69 IN STOCK
Photo Part No Description Price (each) Stock
162306 GEAR BOX 2nd ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
185933 COMPLETE GEAR BOX 1st ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
162311 GASKET $18.03 To Order
Photo Part No Description Price (each) Stock
131757 BUSHING $12.93 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
238108 WASHER D6.1 X 9.9 X 1.6 $0.44 IN STOCK
Photo Part No Description Price (each) Stock
307477 THREADED PLUG $3.30 IN STOCK
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.35 IN STOCK
Photo Part No Description Price (each) Stock
13543424 STUD BOLT $1.69 To Order
Photo Part No Description Price (each) Stock
13543624 STUD BOLT $0.43 To Order
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL $2.69 IN STOCK
Photo Part No Description Price (each) Stock
13546334 STUD BOLT $0.87 To Order
Photo Part No Description Price (each) Stock
157010 BUSHING $9.69 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
223577 THREADED INSERT M22 X 1.5 X 9MM $5.12 IN STOCK
Photo Part No Description Price (each) Stock
14159470 PIN $4.62 To Order
Photo Part No Description Price (each) Stock
104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 $5.38 IN STOCK
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.35 IN STOCK
Photo Part No Description Price (each) Stock
157009 BUSHING $8.20 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
238108 WASHER D6.1 X 9.9 X 1.6 $0.44 IN STOCK
Photo Part No Description Price (each) Stock
13547334 STUD BOLT $6.14 To Order
View All

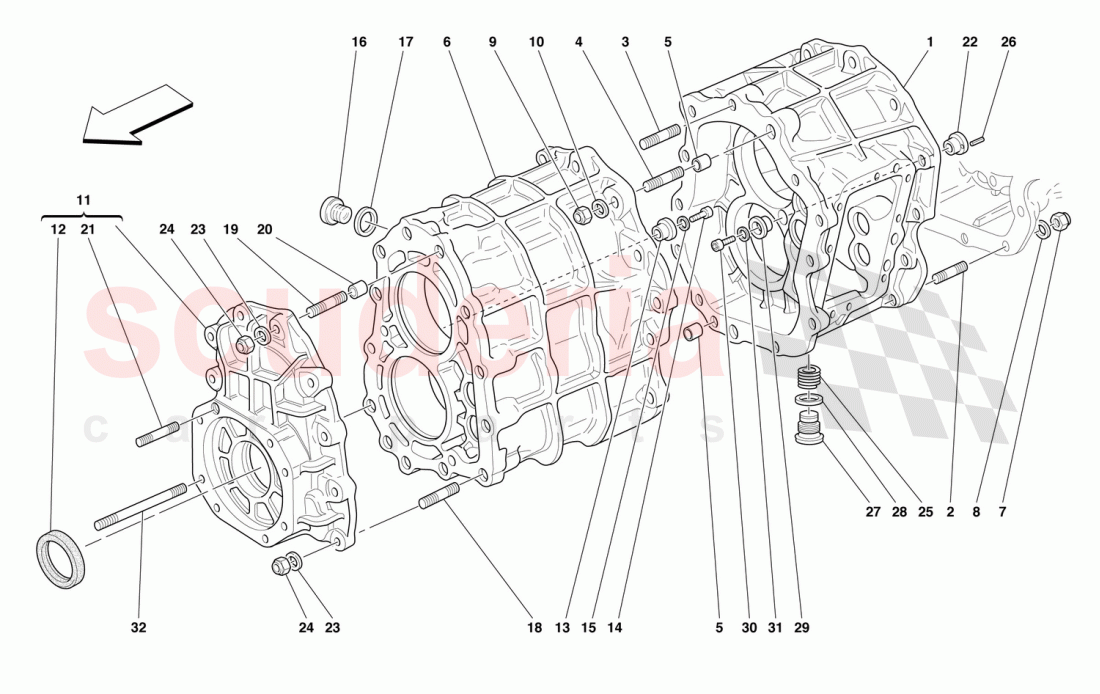

GEARBOX of Ferrari Ferrari 550 Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 172363
Gasket
Valid from engine Nr. 3011, / Ass. Nr. 37064
IN STOCK 		$11.06 (54.4% off) 1
- 185933
COMPLETE GEAR BOX 1st ELEMENT
Valid from engine Nr. 3011, / Ass. Nr. 37064 		- 1 Enquire
- 172617
COMPLETE GEARBOX ASSEMBLY 		$3,432.67 1
1 172620
GEAR BOX 3rd ELEMENT
With the complete gearbox 172617 		- 1 Enquire
2 13543524
STUD BOLT 		$4.12 (5.3% off) 4
3 13543524
STUD BOLT 		$4.12 (5.3% off) 11
4 13543624
STUD BOLT 		$0.43 2
5 102704
ALIGNMENT DOWEL
IN STOCK 		$2.69 2
6 162306
GEAR BOX 2nd ELEMENT
With the complete gearbox 172617 		- 1 Enquire
7 14040711
NUT
IN STOCK 		$0.35 13
8 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 13
9 14040711
NUT
IN STOCK 		$0.35 13
10 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 13
11 185933
COMPLETE GEAR BOX 1st ELEMENT
Valid till engine Nr. 3010, / Ass. Nr. 37063 / Not as spare part now / Replaced by 185933 		- 1 Enquire
12 162311
GASKET
Valid till engine Nr. 3010, / Ass. Nr. 37063 		$18.03 (22.1% off) 1
13 131757
BUSHING 		$12.93 1
14 248334
SCREW
IN STOCK 		$0.58 1
15 238108
WASHER D6.1 X 9.9 X 1.6
IN STOCK 		$0.44 (32.3% off) 1
16 307477
THREADED PLUG
IN STOCK 		$3.30 1
17 10263460
COPPER GASKET D.28-22.3 X 1.5
IN STOCK 		$0.35 (65% off) 1
18 13543424
STUD BOLT 		$1.69 8
19 13543624
STUD BOLT 		$0.43 2
20 102704
ALIGNMENT DOWEL
IN STOCK 		$2.69 2
21 13546334
STUD BOLT 		$0.87 3
22 157010
BUSHING 		$9.69 1
23 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 10
24 14040711
NUT
IN STOCK 		$0.35 10
25 223577
THREADED INSERT M22 X 1.5 X 9MM
IN STOCK 		$5.12 1
26 14159470
PIN 		$4.62 (16% off) 1
27 104280
MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5
IN STOCK 		$5.38 (22% off) 1
28 10263460
COPPER GASKET D.28-22.3 X 1.5
IN STOCK 		$0.35 (65% off) 1
29 157009
BUSHING 		$8.20 1
30 248334
SCREW
IN STOCK 		$0.58 1
31 238108
WASHER D6.1 X 9.9 X 1.6
IN STOCK 		$0.44 (32.3% off) 1
32 13547334
STUD BOLT 		$6.14 5
