Ferrari 550 Barchetta - AIR CONDITIONING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
165395 A.C. CONDENSER $715.93 To Order
Photo Part No Description Price (each) Stock
168481 RH BRACKET A.C. CONDENSER SUPPORT $75.44 To Order
Photo Part No Description Price (each) Stock
165136 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
165561 L.H. UPPER BRACKET $13.43 To Order
Photo Part No Description Price (each) Stock
168068 L.H. LOWER BRACKET $10.32 To Order
Photo Part No Description Price (each) Stock
64918600 PIPE FROM CONDENSER TO DEHYDRATOR FILTER $271.62 To Order
Photo Part No Description Price (each) Stock
64918700 PIPE FROM COMPRESSOR TO CONDENSER $316.90 To Order
Photo Part No Description Price (each) Stock
64894200 DEHYDRATOR FILTER $131.77 To Order
Photo Part No Description Price (each) Stock
66374400 PRESSURE SWITCH $214.87 To Order
Photo Part No Description Price (each) Stock
63994900 BRACKET FOR PUMP -Not as spare part- -Replaced by 69966100- $8.23 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
65460300 COMPLETE WATER PUMP $417.11 To Order
Photo Part No Description Price (each) Stock
165137 SCREW $0.55 To Order
Photo Part No Description Price (each) Stock
65190300 PIPE FROM HOSE TO COMPRESSOR $528.17 To Order
Photo Part No Description Price (each) Stock
285553 VIBRATION DAMPER $19.57 IN STOCK
Photo Part No Description Price (each) Stock
64827600 PIPE FROM DEHYDRATOR FILTER TO HOSE $400.57 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
64791200 HOSE FROM EVAPORATOR TO PIPE $271.62 To Order
Photo Part No Description Price (each) Stock
64791300 HOSE FROM PIPE TO EVAPORATOR $256.53 To Order
Photo Part No Description Price (each) Stock
63961900 FRAME FOR PIPE BUSHING $10.75 To Order
Photo Part No Description Price (each) Stock
63961800 RUBBER PIPE-HOLDER $27.80 To Order
Photo Part No Description Price (each) Stock
64999000 TGK VALVE $271.62 To Order
Photo Part No Description Price (each) Stock
65201000 RETURN TUBE FROM HEATER TO VALVE $25.64 To Order
Photo Part No Description Price (each) Stock
65201100 RETURN PIPE FROM VALVE TO NOURICE $379.18 To Order
Photo Part No Description Price (each) Stock
65128200 DELIVERY PIPE FROM PUMP TO EVAPORATOR $144.22 To Order
Photo Part No Description Price (each) Stock
65122300 DELIVERY PIPE FROM ENGINE TO PUMP $291.53 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.72 IN STOCK
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $705.30 IN STOCK
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
10459087 CABLE GROMMET $0.61 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.72 IN STOCK
Photo Part No Description Price (each) Stock
169463 BRACKET $9.19 To Order
Photo Part No Description Price (each) Stock
165136 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
156989 SMALL PLATE $8.14 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
14498801 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12648224 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
14778814 SCREW $1.52 IN STOCK
Photo Part No Description Price (each) Stock
897538 SCREW $1.52 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
175836 BRACKET $4.25 To Order
Photo Part No Description Price (each) Stock
66309300 O-RING $1.39 IN STOCK
Photo Part No Description Price (each) Stock
177655 O.R. GASKET $44.66 To Order
Photo Part No Description Price (each) Stock
65357600 ANTI-VIBRATION GASKET $6.74 To Order
Photo Part No Description Price (each) Stock
177507 BRACKET $11.10 To Order
View All

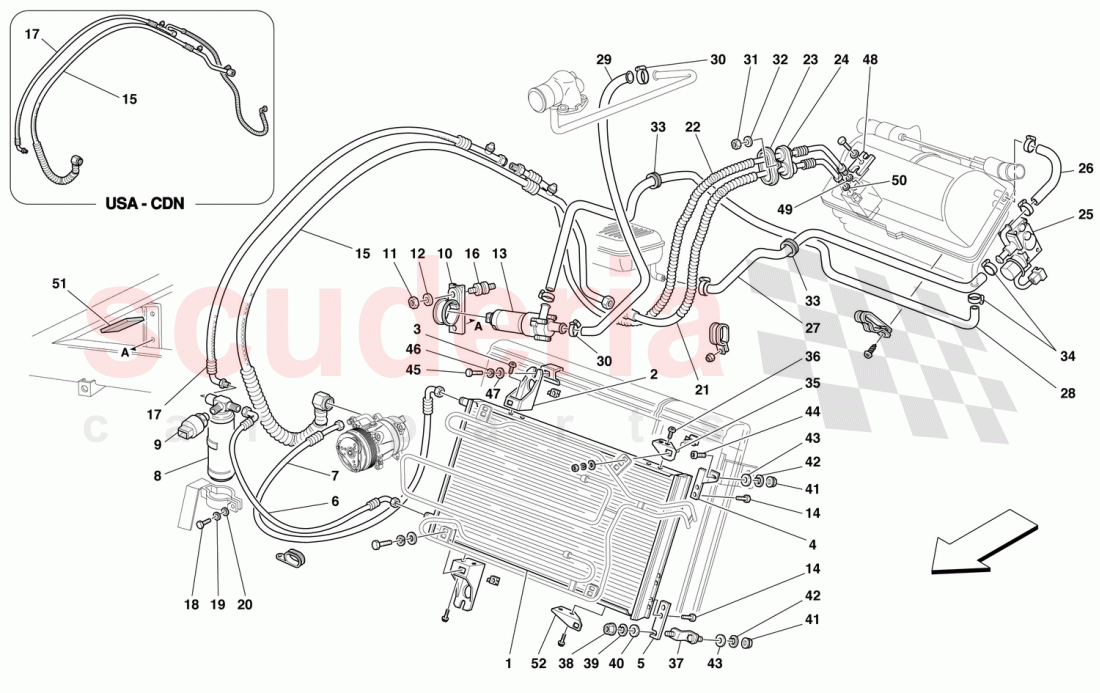

AIR CONDITIONING SYSTEM of Ferrari Ferrari 550 Barchetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 65238100
DELIVERY PIPE FROM ENGINE TO PUMP
TO PUMP / Valid for GD 		$302.66 1
- 65237600
RETURN PIPE FROM VALVE TO NOURICE
NOURICE / Valid for GD 		$56.80 (45.5% off) 1
- 65237500
DELIVERY PIPE FROM PUMP TO EVAPORATOR
EVAPORATOR / Valid for GD 		$73.52 1
- 65237700
HOSE FROM EVAPORATOR TO PIPE
PIPE / Valid for GD 		$377.26 1
- 65237800
HOSE FROM PIPE TO EVAPORATOR
EVAPORATOR / Valid for GD 		$316.90 1
- 65237900
PIPE FROM DEHYDRATOR FILTER TO HOSE
TO HOSE / Valid for GD 		$181.08 1
- 65238000
PIPE FROM HOSE TO COMPRESSOR
COMPRESSOR / Valid for GD 		$256.53 1
- 65856900
PIPE FROM DEHYDRATOR FILTER TO HOSE
TO HOSE / Valid for USA and CDN 		$254.87 1
- 65857600
PIPE FROM HOSE TO COMPRESSOR
COMPRESSOR / Valid for USA and CDN 		$256.53 1
1 165395
A.C. CONDENSER 		$715.93 1
2 168481
RH BRACKET A.C. CONDENSER SUPPORT
SUPPORT 		$75.44 2
3 165136
SCREW 		$0.44 4
4 165561
L.H. UPPER BRACKET 		$13.43 1
5 168068
L.H. LOWER BRACKET 		$10.32 1
6 64918600
PIPE FROM CONDENSER TO DEHYDRATOR FILTER
TO DEHYDRATOR FILTER 		$271.62 1
7 64918700
PIPE FROM COMPRESSOR TO CONDENSER
CONDENSER 		$316.90 (43.4% off) 1
8 64894200
DEHYDRATOR FILTER 		$131.77 1
9 66374400
PRESSURE SWITCH 		$214.87 1
10 63994900
BRACKET FOR PUMP -Not as spare part- -Replaced by 69966100- 		$8.23 1
11 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
12 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
13 65460300
COMPLETE WATER PUMP 		$417.11 1
14 165137
SCREW 		$0.55 4
15 65190300
PIPE FROM HOSE TO COMPRESSOR
COMPRESSOR / Not for USA, CDN and GD 		$528.17 1
16 285553
VIBRATION DAMPER
IN STOCK 		$19.57 2
17 64827600
PIPE FROM DEHYDRATOR FILTER TO HOSE
TO HOSE / Not for USA, CDN and GD 		$400.57 1
18 10902424
SCREW
IN STOCK 		$0.14 (80% off) 1
19 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 1
20 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
21 64791200
HOSE FROM EVAPORATOR TO PIPE
PIPE / Not for GD 		$271.62 (25.2% off) 1
22 64791300
HOSE FROM PIPE TO EVAPORATOR
EVAPORATOR / Not for GD 		$256.53 (23.5% off) 1
23 63961900
FRAME FOR PIPE BUSHING 		$10.75 1
24 63961800
RUBBER PIPE-HOLDER 		$27.80 1
25 64999000
TGK VALVE 		$271.62 1
26 65201000
RETURN TUBE FROM HEATER TO VALVE
TO VALVE 		$25.64 1
27 65201100
RETURN PIPE FROM VALVE TO NOURICE
NOURICE / Not for GD 		$379.18 1
28 65128200
DELIVERY PIPE FROM PUMP TO EVAPORATOR
EVAPORATOR / Not for GD 		$144.22 1
29 65122300
DELIVERY PIPE FROM ENGINE TO PUMP
TO PUMP / Not for GD 		$291.53 (69.4% off) 1
30 13000490
Screw Collar
IN STOCK 		$0.72 (62.1% off) 2
31 319201
FUEL FILLER PIPE ASSEMBLY
IN STOCK 		$705.30 2
32 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 2
33 10459087
CABLE GROMMET 		$0.61 2
34 13000490
Screw Collar
IN STOCK 		$0.72 (62.1% off) 2
35 169463
BRACKET 		$9.19 1
36 165136
SCREW 		$0.44 6
37 156989
SMALL PLATE 		$8.14 1
38 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
39 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 1
40 14498801
WASHER
IN STOCK 		$0.11 (45% off) 1
41 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
42 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
43 12648224
WASHER 		$0.23 2
44 14778814
SCREW
IN STOCK 		$1.52 1
45 897538
SCREW 		$1.52 2
46 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
47 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
48 175836
BRACKET 		$4.25 1
49 66309300
O-RING
IN STOCK 		$1.39 (64.4% off) 1
50 177655
O.R. GASKET 		$44.66 1
51 65357600
ANTI-VIBRATION GASKET
Valid for GD 		$6.74 1
52 177507
BRACKET 		$11.10 1
