Outside Gearbox Controls

Ferrari 550 Barchetta

Find Your Part

Ferrari 550 Barchetta - OUTSIDE GEARBOX CONTROLS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
165483 KNOB $904.95 To Order
Photo Part No Description Price (each) Stock
108010 CHECKNUT $23.61 IN STOCK
Photo Part No Description Price (each) Stock
167189 GEARBOX CONTROL LEVER $700.93 To Order
Photo Part No Description Price (each) Stock
146994 PIN $29.86 To Order
Photo Part No Description Price (each) Stock
177023 GEAR SELECTOR $2,024.83 To Order
Photo Part No Description Price (each) Stock
209152 SCREW $8.30 To Order
Photo Part No Description Price (each) Stock
232983 GASKET $76.73 To Order
Photo Part No Description Price (each) Stock
235980 BUSHING $212.31 To Order
Photo Part No Description Price (each) Stock
14303123 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
155435 TURRET -Not for GD- $1,222.09 To Order
Photo Part No Description Price (each) Stock
147561 SPRING $104.37 To Order
Photo Part No Description Price (each) Stock
154745 BALL $261.25 To Order
Photo Part No Description Price (each) Stock
178692 ROD $7.64 To Order
Photo Part No Description Price (each) Stock
231465 SPRING $107.80 To Order
Photo Part No Description Price (each) Stock
156101 SPRING RETAINER CAP $3.66 To Order
Photo Part No Description Price (each) Stock
103326 SEEGER RING $0.21 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.99 IN STOCK
Photo Part No Description Price (each) Stock
115980A SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
212959 GASKET $139.64 To Order
Photo Part No Description Price (each) Stock
127446 BALL SEAT FOR JOINT $27.15 To Order
Photo Part No Description Price (each) Stock
155480 ROCKER IN TOWER $329.65 To Order
Photo Part No Description Price (each) Stock
156128 BELLOW $145.43 To Order
Photo Part No Description Price (each) Stock
156129 FRAME $9.34 To Order
Photo Part No Description Price (each) Stock
10444621 SCREW $0.20 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
149907 BUSHING $30.47 To Order
Photo Part No Description Price (each) Stock
169974 FRONT CONTROL BAR FOR GEAR BOX $671.79 To Order
Photo Part No Description Price (each) Stock
169979 REAR CONTROL BAR FOR GEAR BOX $390.07 To Order
Photo Part No Description Price (each) Stock
155473 TERMINAL $254.70 To Order
Photo Part No Description Price (each) Stock
16043634 SCREW $0.21 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
160834 SHEATH $12.88 To Order
Photo Part No Description Price (each) Stock
66535800 SCREW $5.08 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
159762 SHIM $4.38 To Order
Photo Part No Description Price (each) Stock
15212724 SCREW $1.35 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
163926 FASTENER BUSHING $202.44 IN STOCK
Photo Part No Description Price (each) Stock
169976 FASTENER FOR BAR $317.05 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
View All

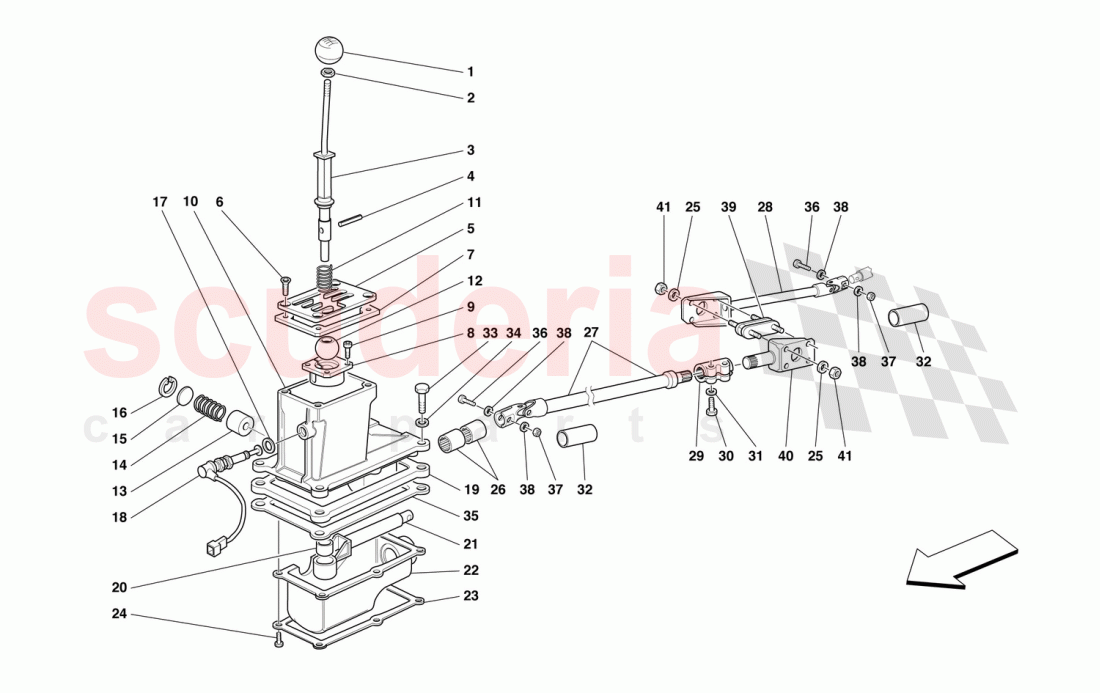

OUTSIDE GEARBOX CONTROLS of Ferrari Ferrari 550 Barchetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 157962
BELLOW
Valid for GD 		$157.22 1
- 157961
FRAME
Valid for GD 		$38.83 1
- 212981
GASKET
Valid for GD 		$139.64 1
- 233413
GASKET
Valid for GD 		$749.10 1
- 157453
TURRET -Valid for GD-
Valid for GD 		$1,391.12 1
- 242565
GEAR SELECTOR
Valid for GD 		$3,109.45 1
- 156100
SCREW -Valid for GD-
Valid for GD 		$2.63 4
- 171763
GEARBOX CONTROL LEVER
Valid for GD 		$538.96 1
1 165483
KNOB 		$904.95 1
2 108010
CHECKNUT
IN STOCK 		$23.61 (19.4% off) 1
3 167189
GEARBOX CONTROL LEVER
Not for GD 		$700.93 1
4 146994
PIN 		$29.86 1
5 177023
GEAR SELECTOR
Not for GD 		$2,024.83 1
6 209152
SCREW
Not for GD 		$8.30 4
7 232983
GASKET
Not for GD 		$76.73 1
8 235980
BUSHING 		$212.31 1
9 14303123
SCREW
IN STOCK 		$0.06 4
10 155435
TURRET -Not for GD-
Not for GD 		$1,222.09 1
11 147561
SPRING 		$104.37 1
12 154745
BALL 		$261.25 1
13 178692
ROD 		$7.64 1
14 231465
SPRING 		$107.80 1
15 156101
SPRING RETAINER CAP 		$3.66 1
16 103326
SEEGER RING 		$0.21 (73.8% off) 1
17 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.99 1
18 115980A
SWITCH 		- 1 Enquire
19 212959
GASKET
Not for GD 		$139.64 1
20 127446
BALL SEAT FOR JOINT 		$27.15 (27.9% off) 1
21 155480
ROCKER IN TOWER 		$329.65 1
22 156128
BELLOW
Not for GD 		$145.43 1
23 156129
FRAME
Not for GD 		$9.34 1
24 10444621
SCREW
IN STOCK 		$0.20 6
25 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 8
26 149907
BUSHING 		$30.47 2
27 169974
FRONT CONTROL BAR FOR GEAR BOX
GEAR BOX 		$671.79 1
28 169979
REAR CONTROL BAR FOR GEAR BOX
GEAR BOX 		$390.07 1
29 155473
TERMINAL 		$254.70 1
30 16043634
SCREW
IN STOCK 		$0.21 2
31 127496
WASHER 		$0.06 (80% off) 2
32 160834
SHEATH 		$12.88 2
33 66535800
SCREW 		$5.08 4
34 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 4
35 159762
SHIM
Possible fitting 		$4.38 1
36 15212724
SCREW
IN STOCK 		$1.35 2
37 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
38 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 4
39 163926
FASTENER BUSHING
IN STOCK 		$202.44 2
40 169976
FASTENER FOR BAR 		$317.05 1
41 14058519
FLANGED NUT M8 X 8
IN STOCK 		$0.23 (75.8% off) 8
