Ferrari 512 TR - Brake hydraulic system -Not for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
151471 Brake booster compl. $1,236.50 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
151849 Union $43.23 To Order
Photo Part No Description Price (each) Stock
151846 Union $31.36 To Order
Photo Part No Description Price (each) Stock
151911 Gasket $2.72 To Order
Photo Part No Description Price (each) Stock
119361 Rubber hose $137.71 To Order
Photo Part No Description Price (each) Stock
121232 Brake pedal $77.93 To Order
Photo Part No Description Price (each) Stock
106950 Pedal protection $37.95 To Order
Photo Part No Description Price (each) Stock
124686 Bush $3.83 To Order
Photo Part No Description Price (each) Stock
112128 DITTO THICKNESS mm. 1.0 $0.11 To Order
Photo Part No Description Price (each) Stock
121217 Brake relay lever $53.01 To Order
Photo Part No Description Price (each) Stock
100424 BALL JOINT $33.88 To Order
Photo Part No Description Price (each) Stock
148822 Tie rod $14.10 To Order
Photo Part No Description Price (each) Stock
104910 Fork, R.H. thread $7.39 To Order
Photo Part No Description Price (each) Stock
104911 Fork, L.H. thread $18.21 To Order
Photo Part No Description Price (each) Stock
10033414 Pin $6.44 To Order
Photo Part No Description Price (each) Stock
103167 WASHER $2.95 To Order
Photo Part No Description Price (each) Stock
264555 SPLIT PIN Enquire To Order
Photo Part No Description Price (each) Stock
11690911 L.H. THREADED NUT $3.46 To Order
Photo Part No Description Price (each) Stock
10788711 Nut, R.H. thread $0.05 To Order
Photo Part No Description Price (each) Stock
112157 Bellows $10.61 To Order
Photo Part No Description Price (each) Stock
133555 PUSHBUTTON SWITCH $34.15 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
148788 Brake booster control lever $121.44 To Order
Photo Part No Description Price (each) Stock
124586 Bush $3.17 To Order
Photo Part No Description Price (each) Stock
124714 Relay lever supporting pin $2.76 To Order
Photo Part No Description Price (each) Stock
13736911 Screw $0.15 To Order
Photo Part No Description Price (each) Stock
104895 SPRING $31.62 To Order
Photo Part No Description Price (each) Stock
133579 Oil reservoir $83.23 To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING $24.16 IN STOCK
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
120735 Filter $0.58 To Order
Photo Part No Description Price (each) Stock
144552 UNION $14.34 To Order
Photo Part No Description Price (each) Stock
151475 CABLE GROMMET $9.06 To Order
View All

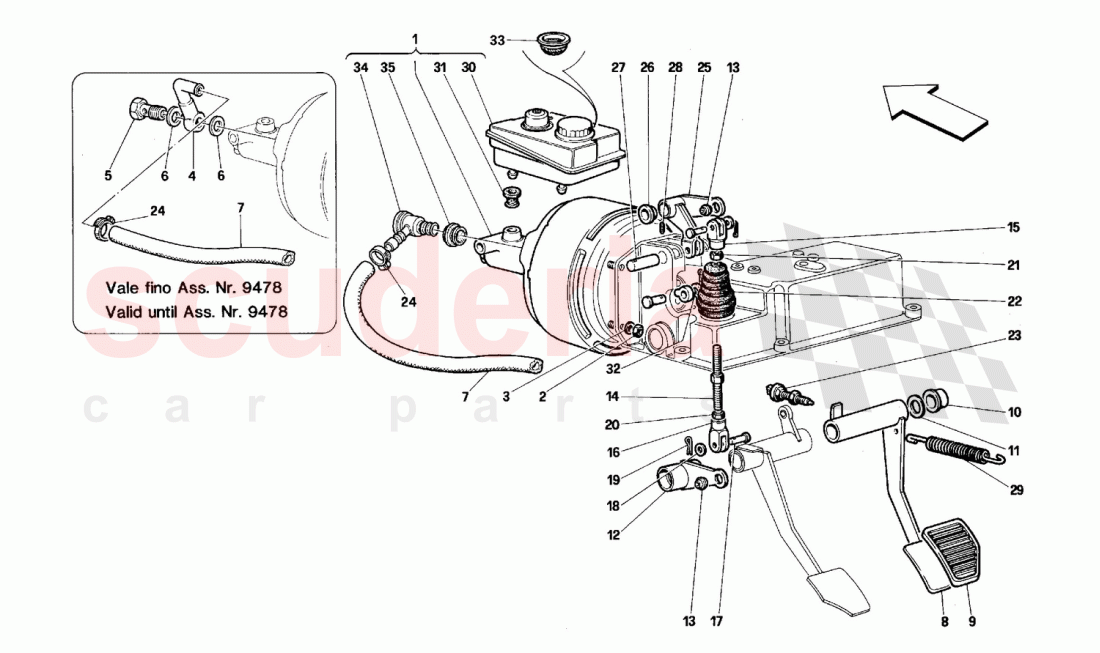

Brake hydraulic system -Not for GD- of Ferrari Ferrari 512 TR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 112129
DITTO THICKNESS mm. 1.1 		$0.27 -
- 112130
DITTO THICKNESS mm. 1.2 		$0.75 -
- 112131
DITTO THICKNESS mm. 1.3 		$0.27 -
- 151477
Rubber hose
Valid from car / Ass. Nr. 9479 		$157.91 1
- 112127
DITTO THICKNESS mm. 0.9
IN STOCK 		$0.27 -
- 151471
Brake booster compl.
Valid from car / Ass. Nr. 9479 		$1,236.50 (76.5% off) 1
1 151471
Brake booster compl.
Not as spare parts / Valid till car / Ass. Nr. 9478 / Remplaced from 151471 / + pipe 151477 		$1,236.50 (76.5% off) 1
2 147985
NUT
IN STOCK 		$0.14 (72% off) 4
3 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 4
4 151849
Union
Valid till car / Ass. Nr. 9478 		$43.23 1
5 151846
Union
Valid till car / Ass. Nr. 9478 		$31.36 1
6 151911
Gasket
Valid till car / Ass. Nr. 9478 		$2.72 2
7 119361
Rubber hose
Valid till car / Ass. Nr. 9478 		$137.71 1
8 121232
Brake pedal 		$77.93 1
9 106950
Pedal protection 		$37.95 (19.8% off) 1
10 124686
Bush 		$3.83 1
11 112128
DITTO THICKNESS mm. 1.0 		$0.11 1
12 121217
Brake relay lever 		$53.01 1
13 100424
BALL JOINT 		$33.88 2
14 148822
Tie rod 		$14.10 1
15 104910
Fork, R.H. thread 		$7.39 1
16 104911
Fork, L.H. thread 		$18.21 1
17 10033414
Pin 		$6.44 (69.9% off) 3
18 103167
WASHER 		$2.95 2
19 264555
SPLIT PIN 		- 3 Enquire
20 11690911
L.H. THREADED NUT 		$3.46 1
21 10788711
Nut, R.H. thread 		$0.05 1
22 112157
Bellows 		$10.61 1
23 133555
PUSHBUTTON SWITCH 		$34.15 (21.2% off) 1
24 262111
SCREW CLAMP 		$1.39 1
25 148788
Brake booster control lever 		$121.44 1
26 124586
Bush 		$3.17 2
27 124714
Relay lever supporting pin 		$2.76 1
28 13736911
Screw 		$0.15 1
29 104895
SPRING 		$31.62 1
30 133579
Oil reservoir 		$83.23 1
31 175189
SEAT RING
IN STOCK 		$24.16 (17.3% off) 2
32 12601474
WASHER
IN STOCK 		$0.03 1
33 120735
Filter 		$0.58 1
34 144552
UNION
Valid from car / Ass. Nr. 9479 		$14.34 1
35 151475
CABLE GROMMET
Valid from car / Ass. Nr. 9479 		$9.06 1
