Engine Intake Duct

Ferrari 488 Pista USA

Find Your Part

Ferrari 488 Pista USA - ENGINE INTAKE DUCT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
786157 RH INTAKE MANIFOLD $796.76 To Order
Photo Part No Description Price (each) Stock
309026 V6 Airbox Intake Manifold Connection Gasket $39.18 To Order
Photo Part No Description Price (each) Stock
309025 V8 Airbox Intake Manifold Gasket $40.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
283538 PRESSURE SENSOR $33.98 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
268877 CONNECTOR $64.49 To Order
Photo Part No Description Price (each) Stock
808984 COMPL. RH FLUSH PIPE BRACKET $39.18 To Order
Photo Part No Description Price (each) Stock
786158 LH INTAKE MANIFOLD $796.76 To Order
Photo Part No Description Price (each) Stock
808985 COMPL. LH FLUSH PIPE BRACKET $39.18 To Order
Photo Part No Description Price (each) Stock
786094 COMPL. COMPENSATION PIPE $101.17 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
231622 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
339588 COMPL. PLENUM CONNECTION BRACKET $139.10 To Order
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG $1.10 To Order
317584 THREADED CONNECTOR $24.01 To Order
Photo Part No Description Price (each) Stock
338932 RH FLUSH PIPE, ENGINE SIDE $97.37 To Order
Photo Part No Description Price (each) Stock
338933 LH FLUSH PIPE, ENGINE SIDE $97.37 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
259508 CLIP $0.53 IN STOCK
View All

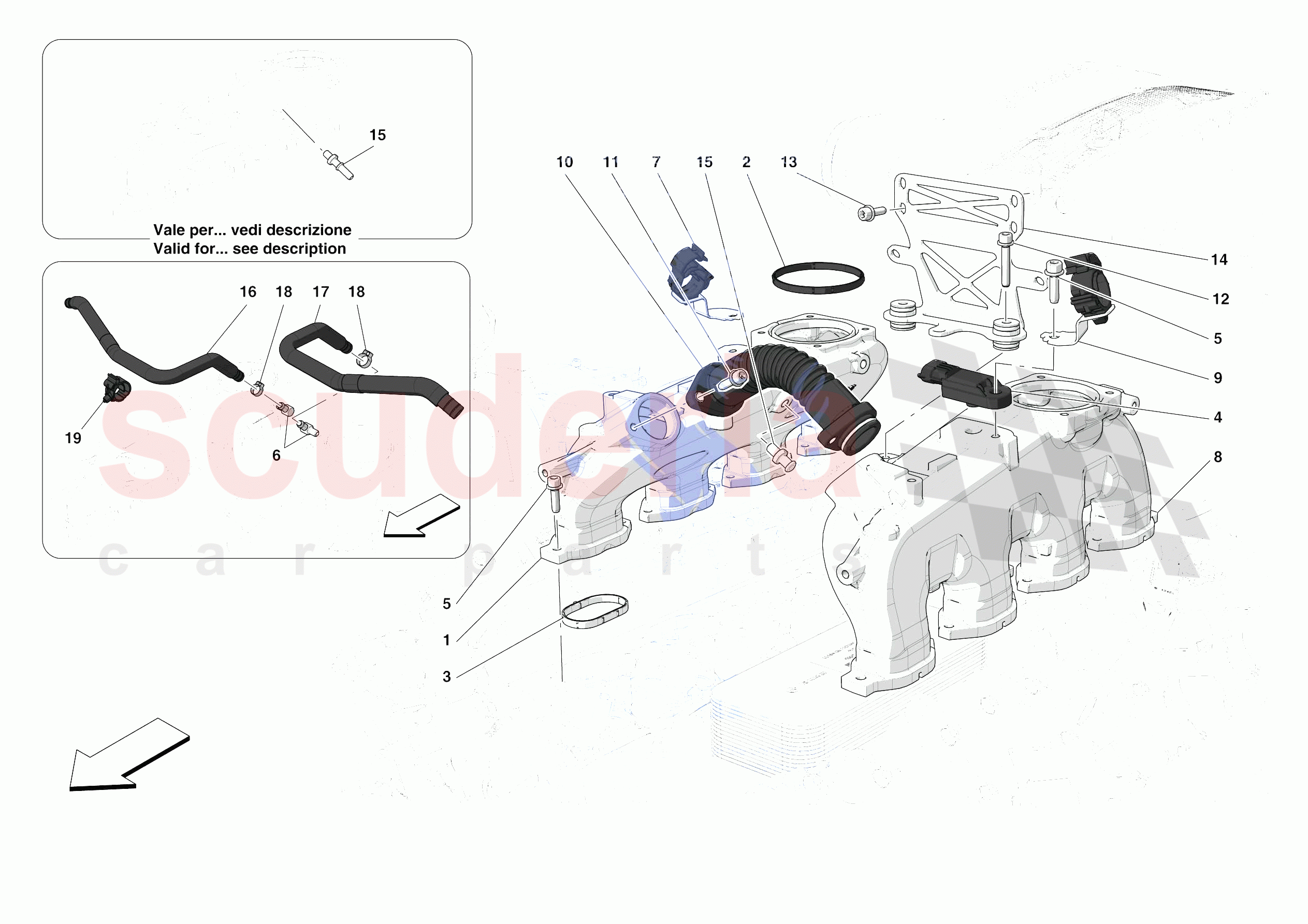

ENGINE INTAKE DUCT of Ferrari Ferrari 488 Pista USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 786157
RH INTAKE MANIFOLD 		$796.76 1
0002 309026
V6 Airbox Intake Manifold Connection Gasket 		$39.18 2
0003 309025
V8 Airbox Intake Manifold Gasket
ARRIVING SOON 		$40.49 8
0004 283538
PRESSURE SENSOR 		$33.98 2
0005 231619
SCREW
M6 X 22
IN STOCK 		$0.29 18
0006 268877
CONNECTOR 		$64.49 2
0007 808984
COMPL. RH FLUSH PIPE BRACKET 		$39.18 1
0008 786158
LH INTAKE MANIFOLD 		$796.76 1
0009 808985
COMPL. LH FLUSH PIPE BRACKET 		$39.18 1
0010 786094
COMPL. COMPENSATION PIPE 		$101.17 1
0011 231619
SCREW
M6 X 20
IN STOCK 		$0.29 2
0012 231622
SCREW
M6 X 35
IN STOCK 		$0.34 (32% off) 2
0013 231619
SCREW
M6 X 18
IN STOCK 		$0.29 4
0014 339588
COMPL. PLENUM CONNECTION BRACKET 		$139.10 1
0015 14326101
THREADED PLUG 		$1.10 (33.3% off) 2
0015 317584
THREADED CONNECTOR 		$24.01 2
0016 338932
RH FLUSH PIPE, ENGINE SIDE 		$97.37 1
0017 338933
LH FLUSH PIPE, ENGINE SIDE 		$97.37 1
0018 13432070
HOSE COLLAR
D. 15.7
ARRIVING SOON 		$0.49 (54.2% off) 2
0019 259508
CLIP
1 compartment-
IN STOCK 		$0.53 2
