Ferrari 488 Pista Spider USA - REAR SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
89231311 REAR FRAME $580.50 To Order
Photo Part No Description Price (each) Stock
87762311 RH INTERCOOLER MOUNTING TUBE $391.20 To Order
Photo Part No Description Price (each) Stock
87762211 LH INTERCOOLER MOUNTING TUBE $365.96 To Order
Photo Part No Description Price (each) Stock
87915900 RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH $391.20 To Order
86495700 LH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH $391.20 To Order
Photo Part No Description Price (each) Stock
87805311 LH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET $119.86 To Order
Photo Part No Description Price (each) Stock
87388611 ENGINE COMPARTMENT LID LOCK BRACKET $239.76 To Order
Photo Part No Description Price (each) Stock
87232000 LOCK SPACER $2.86 To Order
Photo Part No Description Price (each) Stock
87231900 ENGINE COMPARTMENT LID LOCK SHIM $13.39 To Order
Photo Part No Description Price (each) Stock
87231800 ENGINE COMPARTMENT LID LOCK SHIM $7.69 To Order
Photo Part No Description Price (each) Stock
87168911 RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET $164.05 IN STOCK
Photo Part No Description Price (each) Stock
86743611 BRACKET FOR REAR ADJUSTER $164.05 To Order
Photo Part No Description Price (each) Stock
86743511 BRACKET FOR RH LATERAL ADJUSTER $164.05 To Order
Photo Part No Description Price (each) Stock
86743411 BRACKET FOR LH LATERAL ADJUSTER $164.05 To Order
Photo Part No Description Price (each) Stock
86696111 FRONT LOWER MOUNTING BRACKET FOR RH FENDER $189.28 To Order
Photo Part No Description Price (each) Stock
86695911 FRONT LOWER MOUNTING BRACKET FOR LH FENDER $176.66 To Order
Photo Part No Description Price (each) Stock
231630 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
12647021 WASHER $0.30 IN STOCK
Photo Part No Description Price (each) Stock
85584100 SHIM $2.10 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
86675611 RH UPPER REAR TRELLIS MOUNTING BRACKET $176.66 To Order
Photo Part No Description Price (each) Stock
86675711 LH UPPER REAR TRELLIS MOUNTING BRACKET $164.05 To Order
Photo Part No Description Price (each) Stock
985761329 COMPL. RH TAIL LIGHT MOUNTING BRACKET $391.20 To Order
Photo Part No Description Price (each) Stock
985761332 COMPL. LH TAIL LIGHT MOUNTING BRACKET $252.38 To Order
Photo Part No Description Price (each) Stock
86674311 RH REAR FLANK TRELLIS $479.53 To Order
Photo Part No Description Price (each) Stock
86674511 LH REAR FLANK TRELLIS $479.53 To Order
Photo Part No Description Price (each) Stock
86879600 REAR ROOF TUB CROSS MEMBER $387.55 To Order
86879611 REAR ROOF TUB CROSS MEMBER $757.17 To Order
Photo Part No Description Price (each) Stock
82119700 SHIM $3.70 To Order
Photo Part No Description Price (each) Stock
81905000 SHIM $3.03 To Order
Photo Part No Description Price (each) Stock
81905100 SPACER FOR BUFFER BRACKET $1.52 To Order
Photo Part No Description Price (each) Stock
12647724 WASHER $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.56 IN STOCK
Photo Part No Description Price (each) Stock
86439311 LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS $214.53 To Order
Photo Part No Description Price (each) Stock
86439111 LOWER EXTRUDED ELEMENT CONNECTING TO LH CHASSIS $214.53 To Order
Photo Part No Description Price (each) Stock
83739011 RH VERTICAL EXTRUDED ELEMENT $201.90 To Order
Photo Part No Description Price (each) Stock
86919100 LH VERTICAL EXTRUDED ELEMENT $164.47 To Order
86919111 LH VERTICAL EXTRUDED ELEMENT $454.30 To Order
Photo Part No Description Price (each) Stock
87361311 RH BRACKET $201.90 To Order
Photo Part No Description Price (each) Stock
87361211 LH BRACKET $201.90 To Order
Photo Part No Description Price (each) Stock
86918400 RH AIR FILTER DUCT FASTENER BRACKET $10.50 To Order
86918411 RH AIR FILTER DUCT FASTENER BRACKET $201.90 To Order
Photo Part No Description Price (each) Stock
86918300 LH AIR FILTER DUCT FASTENER BRACKET $10.50 To Order
86918311 LH AIR FILTER DUCT FASTENER BRACKET $201.90 To Order
Photo Part No Description Price (each) Stock
86627800 COMPL. RH REAR FLANK MOUNTING BRACKET $176.66 To Order
86627811 COMPL. RH REAR FLANK MOUNTING BRACKET $328.11 To Order
Photo Part No Description Price (each) Stock
86627411 COMPL. LH REAR FLANK MOUNTING BRACKET $328.11 To Order
Photo Part No Description Price (each) Stock
83229411 COMPL. RH FRONT ROOF TUB BRACKET $201.90 To Order
Photo Part No Description Price (each) Stock
83229500 COMPL. LH FRONT ROOF TUB BRACKET $93.37 To Order
83229511 COMPL. LH FRONT ROOF TUB BRACKET $201.90 To Order
Photo Part No Description Price (each) Stock
985874802 COMPL. RH CONNECTION $252.38 To Order
Photo Part No Description Price (each) Stock
985874800 COMPL. LH CONNECTION $252.38 To Order
View All

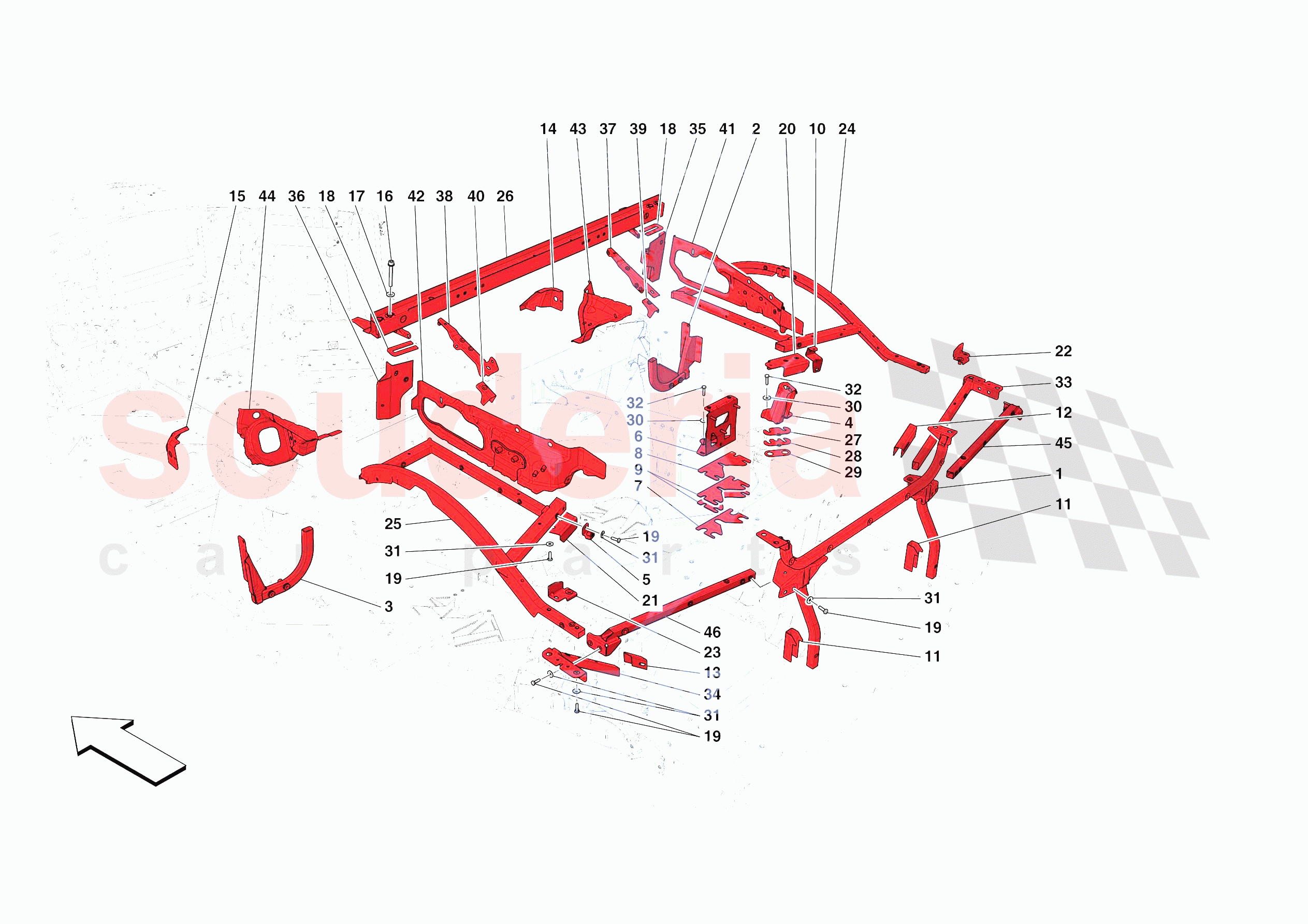

REAR SUBSTRUCTURE of Ferrari Ferrari 488 Pista Spider USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 89231311
REAR FRAME 		$580.50 1
0002 87762311
RH INTERCOOLER MOUNTING TUBE 		$391.20 1
0003 87762211
LH INTERCOOLER MOUNTING TUBE 		$365.96 1
0004 87915900
RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH 		$391.20 1
0004 86495700
LH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH 		$391.20 1
0005 87805311
LH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET 		$119.86 1
0006 87388611
ENGINE COMPARTMENT LID LOCK BRACKET 		$239.76 1
0007 87232000
LOCK SPACER 		$2.86 1
0008 87231900
ENGINE COMPARTMENT LID LOCK SHIM
Th. 3 mm 		$13.39 1
0009 87231800
ENGINE COMPARTMENT LID LOCK SHIM
Th. 1 mm 		$7.69 2
0010 87168911
RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET
IN STOCK 		$164.05 1
0011 86743611
BRACKET FOR REAR ADJUSTER 		$164.05 2
0012 86743511
BRACKET FOR RH LATERAL ADJUSTER 		$164.05 1
0013 86743411
BRACKET FOR LH LATERAL ADJUSTER 		$164.05 1
0014 86696111
FRONT LOWER MOUNTING BRACKET FOR RH FENDER 		$189.28 1
0015 86695911
FRONT LOWER MOUNTING BRACKET FOR LH FENDER 		$176.66 1
0016 231630
SCREW
M8 X 65 		$0.96 4
0017 12647021
WASHER
8.45 X 20 X 2
IN STOCK 		$0.30 4
0018 85584100
SHIM 		$2.10 4
0019 10902424
SCREW
M6 X 20
IN STOCK 		$0.14 (80% off) 18
0020 86675611
RH UPPER REAR TRELLIS MOUNTING BRACKET 		$176.66 1
0021 86675711
LH UPPER REAR TRELLIS MOUNTING BRACKET 		$164.05 1
0022 985761329
COMPL. RH TAIL LIGHT MOUNTING BRACKET 		$391.20 1
0023 985761332
COMPL. LH TAIL LIGHT MOUNTING BRACKET 		$252.38 1
0024 86674311
RH REAR FLANK TRELLIS 		$479.53 1
0025 86674511
LH REAR FLANK TRELLIS 		$479.53 1
0026 86879600
REAR ROOF TUB CROSS MEMBER
Applies until depletion 		$387.55 1
0026 86879611
REAR ROOF TUB CROSS MEMBER
Applicable after depletion of 86879600 		$757.17 1
0027 82119700
SHIM
Th. 3 mm 		$3.70 2
0028 81905000
SHIM
Th. 1 mm 		$3.03 2
0029 81905100
SPACER FOR BUFFER BRACKET 		$1.52 2
0030 12647724
WASHER
IN STOCK 		$0.14 7
0031 12643724
WASHER
IN STOCK 		$0.06 (88% off) 18
0032 231625
SCREW
M6 X 25
IN STOCK 		$0.56 7
0033 86439311
LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS 		$214.53 1
0034 86439111
LOWER EXTRUDED ELEMENT CONNECTING TO LH CHASSIS 		$214.53 1
0035 83739011
RH VERTICAL EXTRUDED ELEMENT 		$201.90 1
0036 86919100
LH VERTICAL EXTRUDED ELEMENT
Applies until depletion 		$164.47 1
0036 86919111
LH VERTICAL EXTRUDED ELEMENT
Applicable after depletion of 86919100 		$454.30 1
0037 87361311
RH BRACKET 		$201.90 1
0038 87361211
LH BRACKET 		$201.90 1
0039 86918400
RH AIR FILTER DUCT FASTENER BRACKET
Applies until depletion 		$10.50 1
0039 86918411
RH AIR FILTER DUCT FASTENER BRACKET
Applicable after depletion of 86918400 		$201.90 1
0040 86918300
LH AIR FILTER DUCT FASTENER BRACKET
Applies until depletion 		$10.50 1
0040 86918311
LH AIR FILTER DUCT FASTENER BRACKET
Applicable after depletion of 86918300 		$201.90 1
0041 86627800
COMPL. RH REAR FLANK MOUNTING BRACKET
Applies until depletion 		$176.66 1
0041 86627811
COMPL. RH REAR FLANK MOUNTING BRACKET
Applicable after depletion of 86627800 		$328.11 1
0042 86627411
COMPL. LH REAR FLANK MOUNTING BRACKET 		$328.11 1
0043 83229411
COMPL. RH FRONT ROOF TUB BRACKET 		$201.90 1
0044 83229500
COMPL. LH FRONT ROOF TUB BRACKET
Applies until depletion 		$93.37 1
0044 83229511
COMPL. LH FRONT ROOF TUB BRACKET
Applicable after depletion of 83229500 		$201.90 1
0045 985874802
COMPL. RH CONNECTION 		$252.38 1
0046 985874800
COMPL. LH CONNECTION 		$252.38 1
