Name: DASHBOARD - DUCTS -NOT FOR RHD-
Rating: 4.9 (1 reviews)

View All

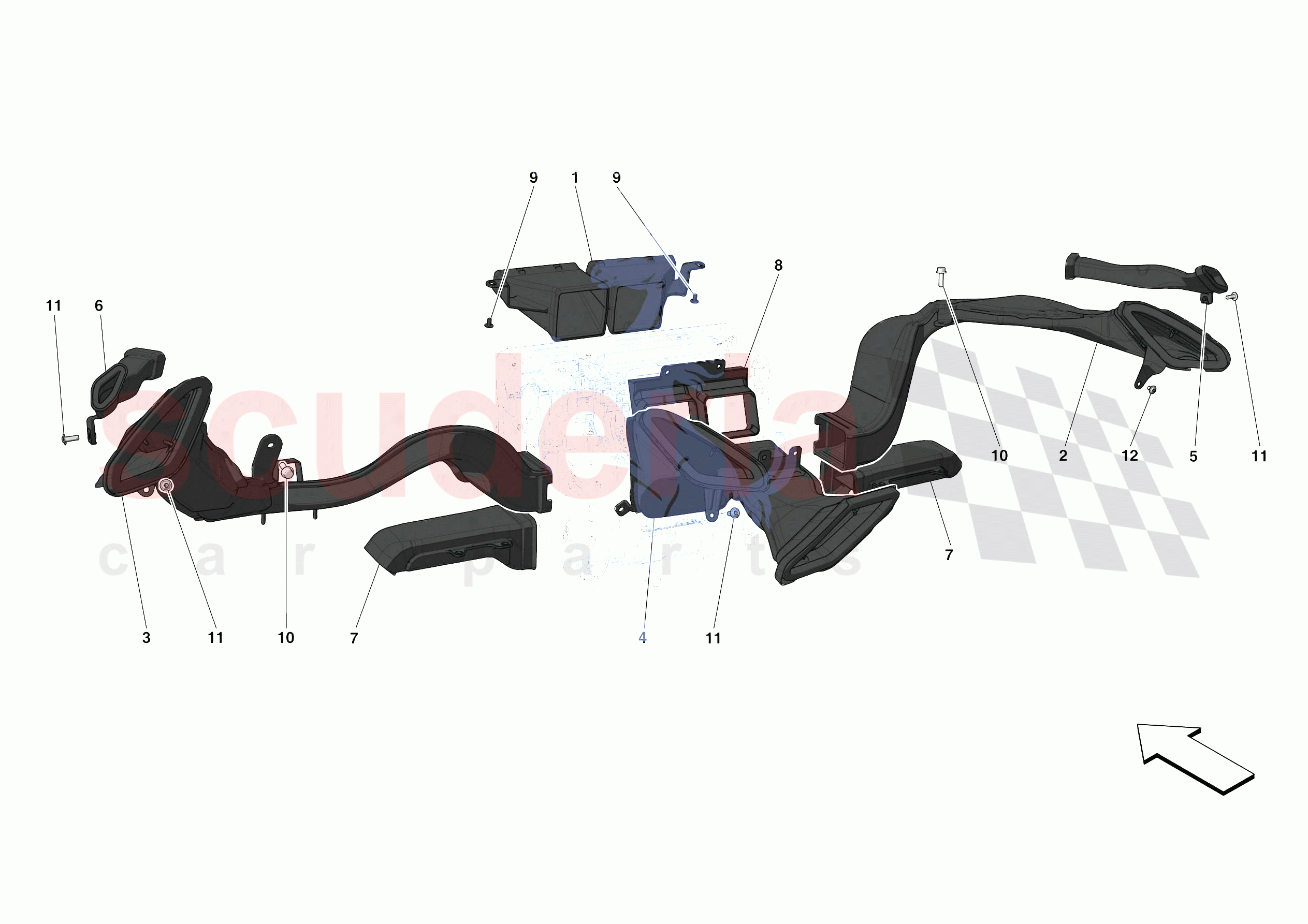

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86166200	HVAC DEFROSTER CONNECTOR	$91.51	To Order

Photo	Part No	Description	Price (each)	Stock
	86180200	COMPL. RH PASSENGER SIDE VENTILATION DUCT	$148.13	To Order

Photo	Part No	Description	Price (each)	Stock
	86179700	COMPL. LH DRIVER SIDE VENT DUCT	$219.14	To Order

Photo	Part No	Description	Price (each)	Stock
	86178400	COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT	$180.46	To Order

Photo	Part No	Description	Price (each)	Stock
	86175500	COMPL. PASSENGER SIDE DEMISTER DUCT	$85.06	To Order

Photo	Part No	Description	Price (each)	Stock
	86170700	COMPL. DRIVER SIDE DEMISTER DUCT	$85.06	To Order

Photo	Part No	Description	Price (each)	Stock
	84497100	FOOTWELL DUCT	$60.58	To Order

Photo	Part No	Description	Price (each)	Stock
	83127400	CENTRE AIR DUCT CONNECTOR	$12.88	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	86166200	HVAC DEFROSTER CONNECTOR	86166200 HVAC DEFROSTER CONNECTOR	$91.51	1
0002	86180200	COMPL. RH PASSENGER SIDE VENTILATION DUCT	86180200 COMPL. RH PASSENGER SIDE VENTILATION DUCT	$148.13	1
0003	86179700	COMPL. LH DRIVER SIDE VENT DUCT	86179700 COMPL. LH DRIVER SIDE VENT DUCT	$219.14	1
0004	86178400	COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT	86178400 COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT	$180.46	1
0005	86175500	COMPL. PASSENGER SIDE DEMISTER DUCT	86175500 COMPL. PASSENGER SIDE DEMISTER DUCT	$85.06	1
0006	86170700	COMPL. DRIVER SIDE DEMISTER DUCT	86170700 COMPL. DRIVER SIDE DEMISTER DUCT	$85.06	1
0007	84497100	FOOTWELL DUCT	84497100 FOOTWELL DUCT	$60.58	2
0008	83127400	CENTRE AIR DUCT CONNECTOR	83127400 CENTRE AIR DUCT CONNECTOR	$12.88	1
0009	11566224	SCREW	11566224 SCREW M5 X 14	$0.34	4
0010	16286124	SCREW	16286124 SCREW M6 X 20	$0.35	2
0011	11566224	SCREW	11566224 SCREW M5 X 14	$0.34	4
0012	11566224	SCREW	11566224 SCREW M5 X 8	$0.34	1

Dashboard - Ducts -Not For Rhd-

Ferrari 488 Pista Spider Europe RH
