Cylinder Heads - Lh Head

Ferrari 488 Pista Europe

Find Your Part

Ferrari 488 Pista Europe - CYLINDER HEADS - LH HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
837716 LH CYLINDER HEAD $3,088.55 To Order
909431 LH CYLINDER HEAD $3,419.66 To Order
979085 LH CYLINDER HEAD $2,794.08 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
801187 OIL PRESSURE REGULATOR VALVE $222.80 IN STOCK
801187 OIL PRESSURE REGULATOR VALVE $222.80 IN STOCK
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
806088 PLUG $6.68 To Order
Photo Part No Description Price (each) Stock
14453281 O-RING $1.22 IN STOCK
Photo Part No Description Price (each) Stock
14452781 GASKET $0.17 IN STOCK
Photo Part No Description Price (each) Stock
13026924 SCREW $0.29 To Order
Photo Part No Description Price (each) Stock
806088 PLUG $6.68 To Order
Photo Part No Description Price (each) Stock
14453281 O-RING $1.22 IN STOCK
Photo Part No Description Price (each) Stock
14452781 GASKET $0.17 IN STOCK
Photo Part No Description Price (each) Stock
13026924 SCREW $0.29 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
277903 PLUG $0.54 To Order
Photo Part No Description Price (each) Stock
306320 STUD BOLT $2.62 To Order
Photo Part No Description Price (each) Stock
307168 STUD BOLT $1.94 To Order
Photo Part No Description Price (each) Stock
271129 WASHER $1.10 IN STOCK
Photo Part No Description Price (each) Stock
271125 NUT $6.35 To Order
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.29 IN STOCK
Photo Part No Description Price (each) Stock
127816 O-RING $3.32 IN STOCK
Photo Part No Description Price (each) Stock
296759 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
296075 WASHER 13 X 5.8 $1.13 IN STOCK
Photo Part No Description Price (each) Stock
342272 CHECK VALVE $12.04 To Order
Photo Part No Description Price (each) Stock
781925 LH COVER GASKET, INTAKE SIDE $22.27 IN STOCK
781926 LH COVER GASKET, EXHAUST SIDE $22.27 IN STOCK
Photo Part No Description Price (each) Stock
319512 LH HEAD-CRANKCASE GASKET $144.16 To Order
Photo Part No Description Price (each) Stock
166657 O-Ring D.29.87 $0.46 IN STOCK
Photo Part No Description Price (each) Stock
226414 GRUB SCREW $6.09 To Order
Photo Part No Description Price (each) Stock
256827 GRUB SCREW $4.82 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
818173 CENTERING DOWEL $0.83 To Order
View All

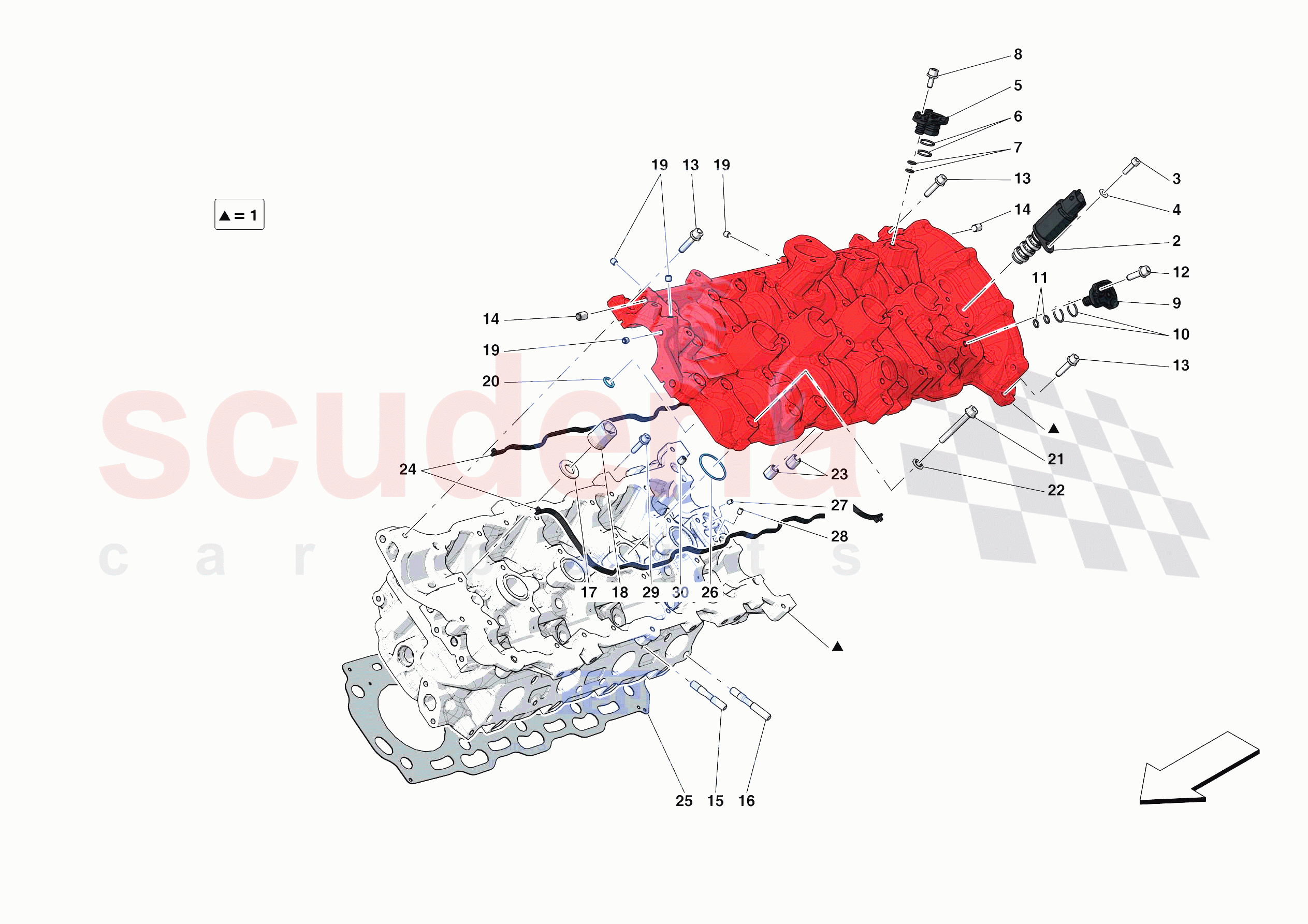

CYLINDER HEADS - LH HEAD of Ferrari Ferrari 488 Pista Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 837716
LH CYLINDER HEAD
Applicable up to engine No. 458735 		$3,088.55 1
0001 909431
LH CYLINDER HEAD
Applicable from engine No. 458736 up to engine No. 497962 		$3,419.66 1
0001 979085
LH CYLINDER HEAD
Applies until depletion; Applicable from engine No. 497963 		$2,794.08 1
0001 742679
LH CYLINDER HEAD
Applicable after depletion of 979085; Applicable from engine No. 497963 		$3,374.89 1
0002 801187
OIL PRESSURE REGULATOR VALVE
Applicable after depletion of 296017
IN STOCK 		$222.80 2
0002 801187
OIL PRESSURE REGULATOR VALVE
IN STOCK 		$222.80 2
0003 14304124
SCREW
M5 X 16 		$0.14 (81.3% off) 2
0004 11181574
WASHER
IN STOCK 		$0.02 2
0005 806088
PLUG 		$6.68 1
0006 14453281
O-RING
Also included in engine gasket set
IN STOCK 		$1.22 2
0007 14452781
GASKET
Also included in engine gasket set
IN STOCK 		$0.17 2
0008 13026924
SCREW
M6 X 14 		$0.29 1
0009 806088
PLUG 		$6.68 1
0010 14453281
O-RING
IN STOCK 		$1.22 2
0011 14452781
GASKET
IN STOCK 		$0.17 2
0012 13026924
SCREW
M6 X 14 		$0.29 1
0013 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 3
0014 277903
PLUG 		$0.54 2
0015 306320
STUD BOLT
M10 X 17 		$2.62 (19.9% off) 4
0016 307168
STUD BOLT
M8 X 14 		$1.94 (19.2% off) 6
0017 271129
WASHER
IN STOCK 		$1.10 10
0018 271125
NUT 		$6.35 10
0019 199760
THREADED PLUG
D. 6 X 1
IN STOCK 		$0.29 4
0020 127816
O-RING
IN STOCK 		$3.32 (32.9% off) 1
0021 296759
SCREW
M6 X 1 X 45 		$0.61 30
0022 296075
WASHER 13 X 5.8
IN STOCK 		$1.13 30
0023 342272
CHECK VALVE 		$12.04 2

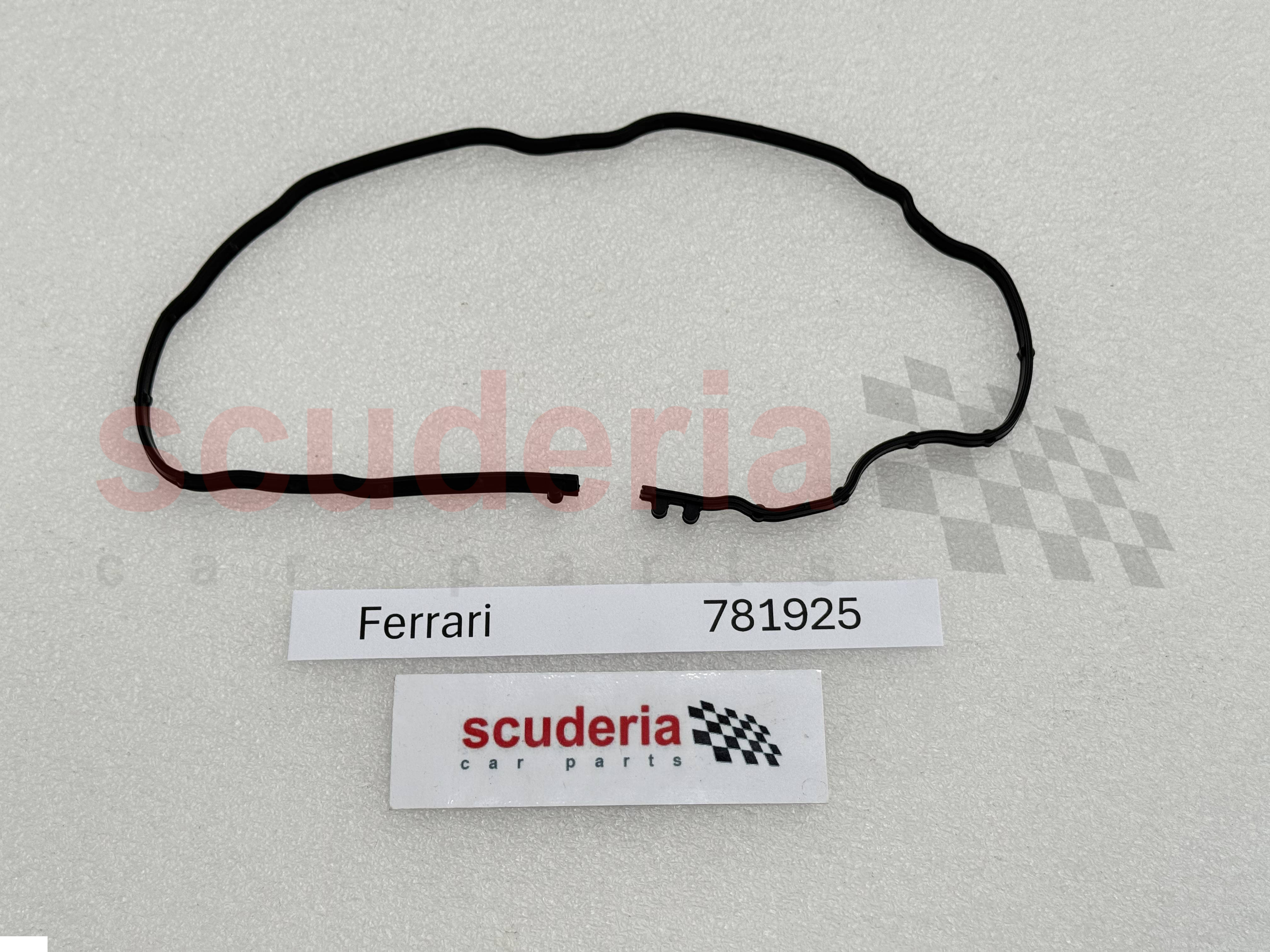

0024 781925
LH COVER GASKET, INTAKE SIDE
Applicable up to engine No. 458735
IN STOCK 		$22.27 1
0024 781926
LH COVER GASKET, EXHAUST SIDE
Applicable up to engine No. 458735
IN STOCK 		$22.27 1
0025 319512
LH HEAD-CRANKCASE GASKET 		$144.16 1

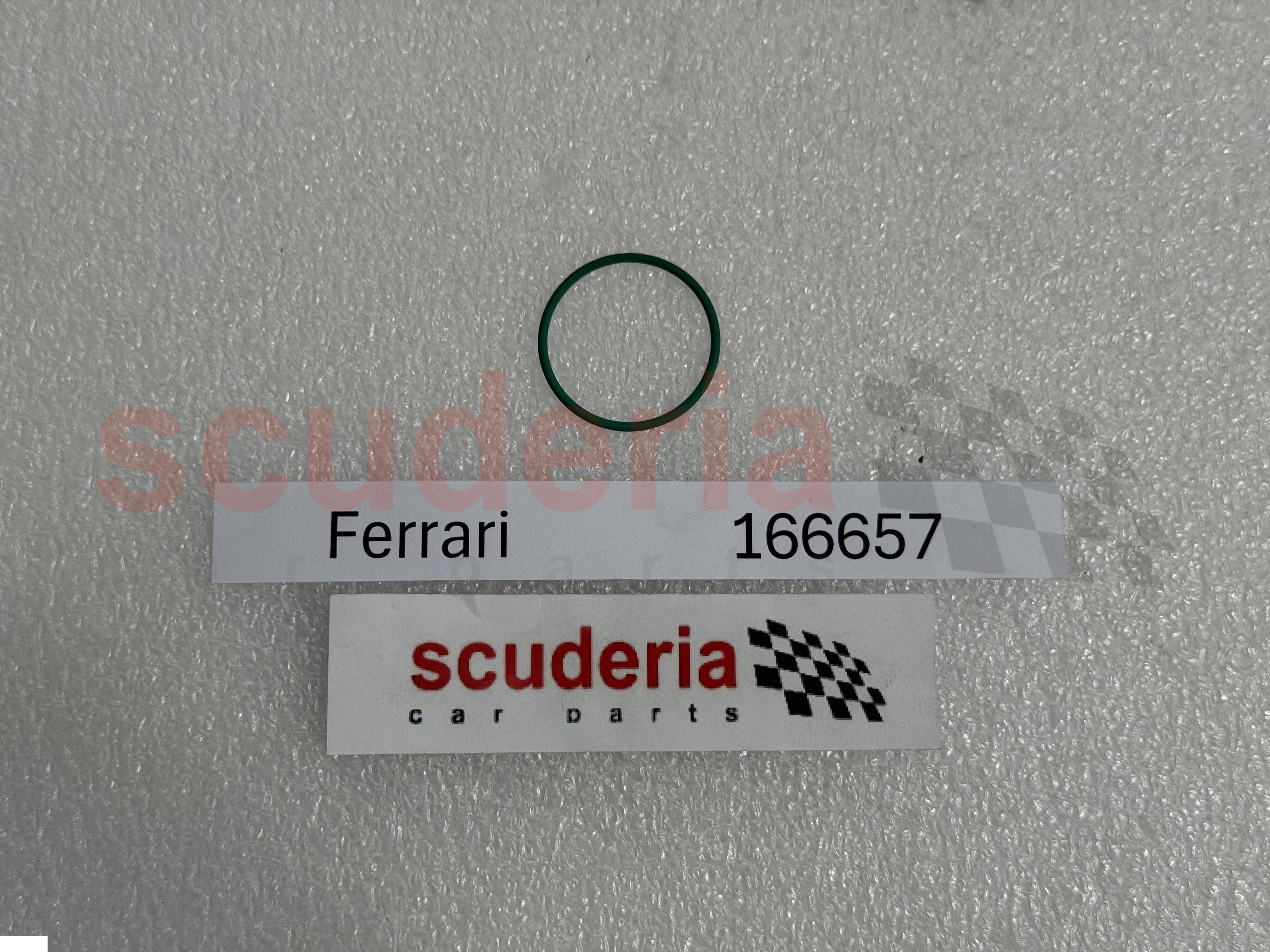

0026 166657
O-Ring D.29.87
IN STOCK 		$0.46 (8% off) 4
0027 226414
GRUB SCREW 		$6.09 1
0028 256827
GRUB SCREW 		$4.82 1
0029 231619
SCREW
M6 X 22
IN STOCK 		$0.29 1
0030 818173
CENTERING DOWEL 		$0.83 1
