Servo Brake System

Ferrari 488 Spider

Find Your Part

Ferrari 488 Spider - SERVO BRAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
248907 BRAKE SERVO COMPL. WITH PUMP $452.99 To Order
244010 BRAKE SERVO WITH PUMP LHD $582.51 IN STOCK
Photo Part No Description Price (each) Stock
956155 BRAKE FLUID RESERVOIR $51.99 IN STOCK
Photo Part No Description Price (each) Stock
238606 RUBBER PIPE $22.63 IN STOCK
262569 RUBBER PIPE $70.46 To Order
Photo Part No Description Price (each) Stock
262570 RUBBER PIPE $70.46 To Order
238607 RUBBER PIPE $20.12 IN STOCK
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
273670 COMPL. FRONT VACUUM PIPE $226.49 To Order
275505 COMPL. FRONT VACUUM PIPE $138.40 To Order
263409 COMPL. FRONT VACUUM PIPE $239.07 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
204777 CLIP $0.68 To Order
Photo Part No Description Price (each) Stock
250733 CLIP $0.74 IN STOCK
Photo Part No Description Price (each) Stock
140130 CLIP $0.14 IN STOCK
Photo Part No Description Price (each) Stock
320099 UNDERBODY BRAKE SERVO VACUUM PIPE $40.24 To Order
Photo Part No Description Price (each) Stock
315060 DEPRESSOR CONNECTOR PIPE $301.98 To Order
Photo Part No Description Price (each) Stock
198273 CLIP $1.52 To Order
Photo Part No Description Price (each) Stock
319839 CLIP $1.26 To Order
Photo Part No Description Price (each) Stock
172842 BRACKET WITH SHEATH $8.03 To Order
318111 BRACKET WITH SHEATH $14.55 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
12578211 NUT $0.29 To Order
View All

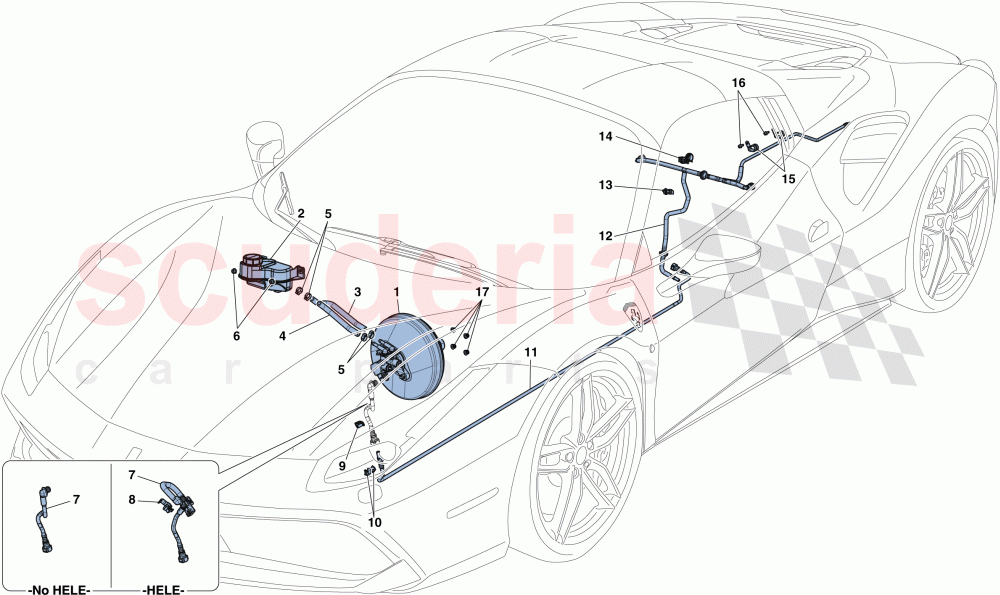

SERVO BRAKE SYSTEM of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 248907
BRAKE SERVO COMPL. WITH PUMP
Applicable for GD 		$452.99 1
1 244010
BRAKE SERVO WITH PUMP LHD
Not for GD
IN STOCK 		$582.51 1
2 956155
BRAKE FLUID RESERVOIR
IN STOCK 		$51.99 1
3 238606
RUBBER PIPE
Not for GD
IN STOCK 		$22.63 1
3 262569
RUBBER PIPE
Applicable for GD 		$70.46 1
4 262570
RUBBER PIPE
Applicable for GD 		$70.46 1
4 238607
RUBBER PIPE
Not for GD
IN STOCK 		$20.12 1
5 13432070
HOSE COLLAR
ARRIVING SOON 		$0.49 (54.2% off) 4
6 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
7 273670
COMPL. FRONT VACUUM PIPE
Applicable for HELE; Not for GD 		$226.49 1
7 275505
COMPL. FRONT VACUUM PIPE
Applicable for HELE; Applicable for GD 		$138.40 1
7 263409
COMPL. FRONT VACUUM PIPE
Not for HELE; Not for GD 		$239.07 1
7 262431
COMPL. FRONT VACUUM PIPE
Not for HELE; Applicable for GD 		$42.76 1
8 204777
CLIP
Applicable for HELE; Not for GD 		$0.68 1
9 250733
CLIP
IN STOCK 		$0.74 1
10 140130
CLIP
IN STOCK 		$0.14 (74.1% off) 2
11 320099
UNDERBODY BRAKE SERVO VACUUM PIPE 		$40.24 1
12 315060
DEPRESSOR CONNECTOR PIPE 		$301.98 1
13 198273
CLIP 		$1.52 1
14 319839
CLIP 		$1.26 1
15 172842
BRACKET WITH SHEATH
Applicable for GD 		$8.03 2
15 318111
BRACKET WITH SHEATH
Not for GD 		$14.55 2
16 248334
SCREW
M6 X 14
IN STOCK 		$0.58 2
17 12578211
NUT 		$0.29 (76.8% off) 4
