Ferrari 488 Spider - CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985317240 REAR SUBFRAME $20,084.64 To Order
Photo Part No Description Price (each) Stock
305362 REAR RH STRUT $492.65 To Order
Photo Part No Description Price (each) Stock
305361 REAR LH STRUT $492.65 To Order
Photo Part No Description Price (each) Stock
309018 REAR BUMPER FASTENING CROSS MEMBER $1,149.05 To Order
Photo Part No Description Price (each) Stock
86674311 RH REAR FLANK TRELLIS $479.81 To Order
Photo Part No Description Price (each) Stock
86674511 LH REAR FLANK TRELLIS $479.81 To Order
Photo Part No Description Price (each) Stock
86696111 FRONT LOWER MOUNTING BRACKET FOR RH FENDER $189.39 To Order
Photo Part No Description Price (each) Stock
86695911 FRONT LOWER MOUNTING BRACKET FOR LH FENDER $176.76 To Order
Photo Part No Description Price (each) Stock
239959 SCREW $6.65 To Order
Photo Part No Description Price (each) Stock
82119700 SHIM $3.70 To Order
81905000 SHIM $3.03 To Order
Photo Part No Description Price (each) Stock
82140800 TUB FOR POWERED REAR SCREEN $1,680.65 To Order
Photo Part No Description Price (each) Stock
83959100 LH PILLAR CONNECTOR REINFORCEMENT $46.70 To Order
83959000 RH PILLAR CONNECTOR REINFORCEMENT $46.70 To Order
Photo Part No Description Price (each) Stock
13791321 SCREW $0.93 To Order
Photo Part No Description Price (each) Stock
85584100 SHIM $2.10 To Order
Photo Part No Description Price (each) Stock
86918400 RH AIR FILTER DUCT FASTENER BRACKET $10.51 To Order
86918300 LH AIR FILTER DUCT FASTENER BRACKET $10.51 To Order
Photo Part No Description Price (each) Stock
87361300 RH BRACKET $48.94 To Order
87361200 LH BRACKET $48.94 To Order
Photo Part No Description Price (each) Stock
86238800 REAR FRAME $275.88 To Order
Photo Part No Description Price (each) Stock
87388600 ENGINE COMPARTMENT LID LOCK BRACKET $46.37 To Order
Photo Part No Description Price (each) Stock
86495800 RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH $391.43 To Order
87915900 RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH $391.43 To Order
Photo Part No Description Price (each) Stock
86495700 LH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH $391.43 To Order
Photo Part No Description Price (each) Stock
87441800 RH INTERCOOLER SUPPORT TUBE $454.56 To Order
87762311 RH INTERCOOLER MOUNTING TUBE $391.43 To Order
Photo Part No Description Price (each) Stock
87762211 LH INTERCOOLER MOUNTING TUBE $366.17 To Order
87442000 LH INTERCOOLER SUPPORT TUBE $454.56 To Order
Photo Part No Description Price (each) Stock
86743611 BRACKET FOR REAR ADJUSTER $164.14 To Order
Photo Part No Description Price (each) Stock
86439300 LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS $36.79 To Order
Photo Part No Description Price (each) Stock
86439100 LOWER EXTRUDED ELEMENT CONNECTING TO LH CHASSIS $36.03 To Order
Photo Part No Description Price (each) Stock
86675611 RH UPPER REAR TRELLIS MOUNTING BRACKET $176.76 To Order
Photo Part No Description Price (each) Stock
86675711 LH UPPER REAR TRELLIS MOUNTING BRACKET $164.14 To Order
Photo Part No Description Price (each) Stock
86743511 BRACKET FOR RH LATERAL ADJUSTER $164.14 To Order
Photo Part No Description Price (each) Stock
86743411 BRACKET FOR LH LATERAL ADJUSTER $164.14 To Order
Photo Part No Description Price (each) Stock
87168911 RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET $164.14 IN STOCK
Photo Part No Description Price (each) Stock
231630 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
86634500 HEADLIGHT MOUNTING BRACKET $8.71 IN STOCK
Photo Part No Description Price (each) Stock
985321394 LH REAR SUBSTRUCTURE MOUNTING BRACKET $189.39 To Order
Photo Part No Description Price (each) Stock
985321393 LH REAR SUBSTRUCTURE MOUNTING BRACKET $189.39 To Order
Photo Part No Description Price (each) Stock
239965 SCREW $36.20 IN STOCK
304454 SCREW $4.20 To Order
Photo Part No Description Price (each) Stock
10520024 WASHER $1.93 IN STOCK
Photo Part No Description Price (each) Stock
86627800 COMPL. RH REAR FLANK MOUNTING BRACKET $176.76 To Order
Photo Part No Description Price (each) Stock
86627400 COMPL. LH REAR FLANK MOUNTING BRACKET $126.86 To Order
Photo Part No Description Price (each) Stock
86879600 REAR ROOF TUB CROSS MEMBER $387.77 To Order
Photo Part No Description Price (each) Stock
83229400 COMPL. RH FRONT ROOF TUB BRACKET $69.77 To Order
Photo Part No Description Price (each) Stock
83229500 COMPL. LH FRONT ROOF TUB BRACKET $93.42 To Order
Photo Part No Description Price (each) Stock
83739000 RH VERTICAL EXTRUDED ELEMENT $161.34 To Order
Photo Part No Description Price (each) Stock
86919100 LH VERTICAL EXTRUDED ELEMENT $164.57 To Order
Photo Part No Description Price (each) Stock
81905100 SPACER FOR BUFFER BRACKET $1.52 To Order
Photo Part No Description Price (each) Stock
985317219 LOWER GEARBOX MOUNTING CROSS MEMBER $1,303.10 To Order
Photo Part No Description Price (each) Stock
14308124 SCREW $6.40 To Order
Photo Part No Description Price (each) Stock
13578324 WASHER $0.21 IN STOCK
View All

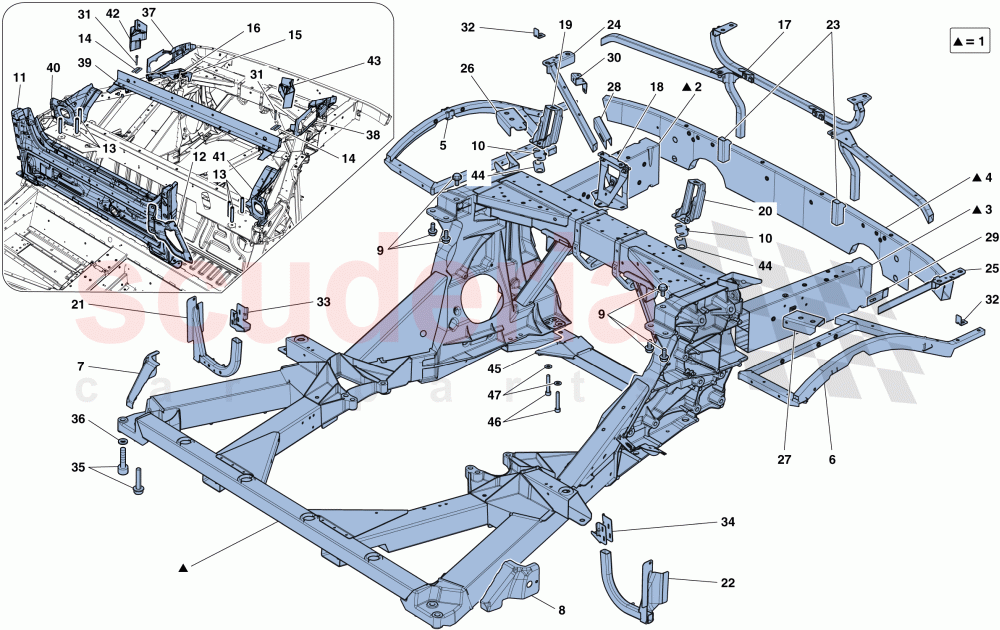

CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985317240
REAR SUBFRAME 		$20,084.64 1
2 305362
REAR RH STRUT 		$492.65 1
3 305361
REAR LH STRUT 		$492.65 1
4 309018
REAR BUMPER FASTENING CROSS MEMBER 		$1,149.05 1
5 86674311
RH REAR FLANK TRELLIS 		$479.81 1
6 86674511
LH REAR FLANK TRELLIS 		$479.81 1
7 86696111
FRONT LOWER MOUNTING BRACKET FOR RH FENDER 		$189.39 1
8 86695911
FRONT LOWER MOUNTING BRACKET FOR LH FENDER 		$176.76 1
9 239959
SCREW 		$6.65 6
10 82119700
SHIM
Th. 3 mm 		$3.70 2
10 81905000
SHIM
Th. 1 mm 		$3.03 2
11 82140800
TUB FOR POWERED REAR SCREEN 		$1,680.65 1
12 83959100
LH PILLAR CONNECTOR REINFORCEMENT 		$46.70 1
12 83959000
RH PILLAR CONNECTOR REINFORCEMENT 		$46.70 1
13 13791321
SCREW 		$0.93 6
14 85584100
SHIM 		$2.10 4
15 86918400
RH AIR FILTER DUCT FASTENER BRACKET 		$10.51 1
15 86918300
LH AIR FILTER DUCT FASTENER BRACKET 		$10.51 1
16 87361300
RH BRACKET 		$48.94 1
16 87361200
LH BRACKET 		$48.94 1
17 86238800
REAR FRAME 		$275.88 1
18 87388600
ENGINE COMPARTMENT LID LOCK BRACKET 		$46.37 1
19 86495800
RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH
Applicable up to Ass. No. 133468 		$391.43 1
19 87915900
RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH
Applicable from Ass. No. 133469 		$391.43 1
20 86495700
LH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH 		$391.43 1
21 87441800
RH INTERCOOLER SUPPORT TUBE
Applicable up to Ass. No. 131954 		$454.56 1
21 87762311
RH INTERCOOLER MOUNTING TUBE
Applicable from Ass. No. 131955 		$391.43 1
22 87762211
LH INTERCOOLER MOUNTING TUBE
Applicable from Ass. No. 131955 		$366.17 1
22 87442000
LH INTERCOOLER SUPPORT TUBE
Applicable up to Ass. No. 131954 		$454.56 1
23 86743611
BRACKET FOR REAR ADJUSTER 		$164.14 2
24 86439300
LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS 		$36.79 1
25 86439100
LOWER EXTRUDED ELEMENT CONNECTING TO LH CHASSIS 		$36.03 1
26 86675611
RH UPPER REAR TRELLIS MOUNTING BRACKET 		$176.76 1
27 86675711
LH UPPER REAR TRELLIS MOUNTING BRACKET 		$164.14 1
28 86743511
BRACKET FOR RH LATERAL ADJUSTER 		$164.14 1
29 86743411
BRACKET FOR LH LATERAL ADJUSTER 		$164.14 1
30 87168911
RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET
IN STOCK 		$164.14 1
31 231630
SCREW 		$0.96 4
32 86634500
HEADLIGHT MOUNTING BRACKET
IN STOCK 		$8.71 2
33 985321394
LH REAR SUBSTRUCTURE MOUNTING BRACKET 		$189.39 1
34 985321393
LH REAR SUBSTRUCTURE MOUNTING BRACKET 		$189.39 1
35 239965
SCREW
IN STOCK 		$36.20 4
35 304454
SCREW 		$4.20 4
36 10520024
WASHER
IN STOCK 		$1.93 4
37 86627800
COMPL. RH REAR FLANK MOUNTING BRACKET 		$176.76 1
38 86627400
COMPL. LH REAR FLANK MOUNTING BRACKET 		$126.86 1
39 86879600
REAR ROOF TUB CROSS MEMBER 		$387.77 1
40 83229400
COMPL. RH FRONT ROOF TUB BRACKET 		$69.77 1
41 83229500
COMPL. LH FRONT ROOF TUB BRACKET 		$93.42 1
42 83739000
RH VERTICAL EXTRUDED ELEMENT 		$161.34 1
43 86919100
LH VERTICAL EXTRUDED ELEMENT 		$164.57 1
44 81905100
SPACER FOR BUFFER BRACKET 		$1.52 2
45 985317219
LOWER GEARBOX MOUNTING CROSS MEMBER 		$1,303.10 1
46 14308124
SCREW
M10 X 1.25 X 60 		$6.40 6
47 13578324
WASHER
IN STOCK 		$0.21 6
