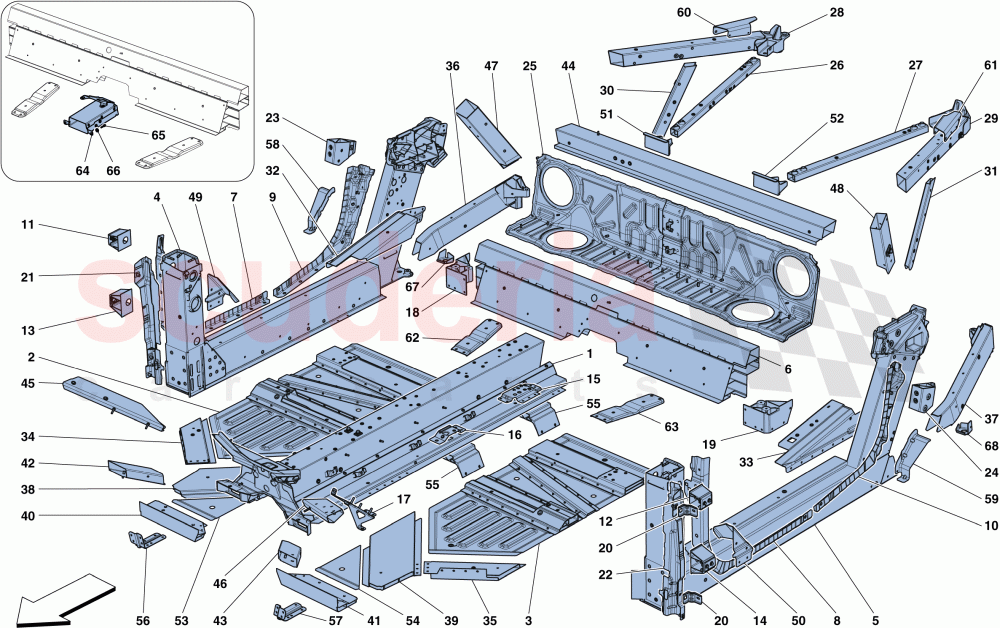

Ferrari 488 GTB - CENTRAL ELEMENTS AND PANELS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	316565	COMPL. TUNNEL	$17,034.56	To Order
	308113	COMPL. TUNNEL	$17,048.45	To Order

Photo	Part No	Description	Price (each)	Stock
	305372	COMPL. RH HALF FLOOR PANEL	$1,194.11	To Order

Photo	Part No	Description	Price (each)	Stock
	305368	COMPL. LH HALF FLOOR PANEL	$1,148.16	To Order

Photo	Part No	Description	Price (each)	Stock
	300620	RH CENTRE SIDEWALL	$9,411.51	To Order
	319018	RH CENTRE SIDEWALL	$9,411.51	To Order

Photo	Part No	Description	Price (each)	Stock
	300619	LH CENTRE SIDEWALL	$9,411.51	To Order
	319016	LH CENTRE SIDEWALL	$9,411.51	To Order

Photo	Part No	Description	Price (each)	Stock
	300798	SILL LINK CROSS MEMBER	$6,006.10	To Order

Photo	Part No	Description	Price (each)	Stock
	83814500	RH FRONT PANEL	$84.49	To Order

Photo	Part No	Description	Price (each)	Stock
	83814600	LH FRONT PANEL	$84.49	To Order

Photo	Part No	Description	Price (each)	Stock
	83815000	REAR RH ENDPIECE	$104.66	To Order

Photo	Part No	Description	Price (each)	Stock
	83814700	REAR LH ENDPIECE	$104.66	To Order

Photo	Part No	Description	Price (each)	Stock
	272633	COMPL. UPPER RH HINGE REINFORCEMENT	$353.14	To Order

Photo	Part No	Description	Price (each)	Stock
	272632	COMPL. UPPER LH HINGE REINFORCEMENT	$279.69	To Order

Photo	Part No	Description	Price (each)	Stock
	271953	COMPL. LOWER RH HINGE REINFORCEMENT	$215.26	To Order

Photo	Part No	Description	Price (each)	Stock
	271951	COMPL. LOWER LH HINGE REINFORCEMENT	$215.26	To Order

Photo	Part No	Description	Price (each)	Stock
	290920	REAR FASTENER BRACKET FOR LH SEAT	$112.24	To Order
	290921	REAR FASTENER BRACKET FOR RH SEAT	$112.24	To Order

Photo	Part No	Description	Price (each)	Stock
	262866	LH SEAT GUIDE RAIL FASTENER BRACKET	$100.89	To Order
	262867	RH SEAT GUIDE RAIL FASTENER BRACKET	$100.89	To Order

Photo	Part No	Description	Price (each)	Stock
	283681	ACCELERATOR PEDAL FASTENER BRACKET	$63.00	To Order
	266326	ACCELERATOR PEDAL FASTENER BRACKET	$138.72	To Order

Photo	Part No	Description	Price (each)	Stock
	300796	RH CONNECTOR PIECE EXTRUSION	$1,718.23	To Order

Photo	Part No	Description	Price (each)	Stock
	300794	LH CONNECTOR PIECE EXTRUSION	$1,718.23	To Order

Photo	Part No	Description	Price (each)	Stock
	86674711	LOWER FASTENER BRACKET FOR FRONT FENDER	$119.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86675911	A PILLAR FLANGE, FRONT RH ELEMENT	$252.23	To Order

Photo	Part No	Description	Price (each)	Stock
	86675800	A PILLAR FLANGE, FRONT LH SECTION	$108.45	To Order

Photo	Part No	Description	Price (each)	Stock
	86744400	RH LOCK STRIKER REINFORCEMENT	$137.77	To Order

Photo	Part No	Description	Price (each)	Stock
	86744200	LH LOCK STRIKER REINFORCEMENT	$132.92	To Order

Photo	Part No	Description	Price (each)	Stock
	312054	REAR FIREWALL	$1,223.41	To Order

Photo	Part No	Description	Price (each)	Stock
	304741	RH INTERNAL BOX MEMBER ON REMOVABLE SUBFRAME	$272.26	To Order

Photo	Part No	Description	Price (each)	Stock
	304740	LH INTERNAL BOX MEMBER ON REMOVABLE SUBFRAME	$272.26	To Order

Photo	Part No	Description	Price (each)	Stock
	300646	RH UPPER REAR DIAGONAL BRACE	$2,810.78	To Order

Photo	Part No	Description	Price (each)	Stock
	300645	LH UPPER REAR DIAGONAL BRACE	$2,702.25	To Order

Photo	Part No	Description	Price (each)	Stock
	309294	RH SUSPENSION CASTING BRACE	$290.07	To Order

Photo	Part No	Description	Price (each)	Stock
	309293	LH SUSPENSION CASTING BRACE	$290.07	To Order

Photo	Part No	Description	Price (each)	Stock
	300903	RH B-PILLAR TRUSS	$290.07	To Order
	318911	RH B-PILLAR TRUSS	$290.07	To Order

Photo	Part No	Description	Price (each)	Stock
	300901	LH B-PILLAR TRUSS	$302.68	To Order
	318909	LH B-PILLAR TRUSS	$290.07	To Order

Photo	Part No	Description	Price (each)	Stock
	303064	RH FLOOR LATERAL EXTRUSION	$290.07	To Order

Photo	Part No	Description	Price (each)	Stock
	303062	LH FLOOR LATERAL EXTRUSION	$290.07	To Order

Photo	Part No	Description	Price (each)	Stock
	317833	RH SUBFRAME CONNECTOR CRASH BOX	$2,844.12	To Order

Photo	Part No	Description	Price (each)	Stock
	317829	LH SUBFRAME CONNECTOR CRASH BOX	$2,340.28	To Order

Photo	Part No	Description	Price (each)	Stock
	311870	BRACE EXTRUSION BETWEEN TORQUE BOX AND RH TUNNEL	$390.98	To Order
	316704	BRACE EXTRUSION BETWEEN TORQUE BOX AND RH TUNNEL	$454.04	To Order

Photo	Part No	Description	Price (each)	Stock
	318360	BRACE EXTRUSION BETWEEN TORQUE BOX AND LH TUNNEL	$454.04	To Order
	311865	BRACE EXTRUSION BETWEEN TORQUE BOX AND LH TUNNEL	$390.98	To Order

Photo	Part No	Description	Price (each)	Stock
	301625	RH CASTING LINK FRONT CROSS MEMBER	$302.68	To Order

Photo	Part No	Description	Price (each)	Stock
	301624	LH CASTING LINK FRONT CROSS MEMBER	$302.68	To Order
	318355	FRONT LH CASTING LINK CROSS MEMBER	$302.68	To Order

Photo	Part No	Description	Price (each)	Stock
	307806	LOWER RH DIAGONAL BRACE CONNECTED TO TUNNEL	$117.12	To Order

Photo	Part No	Description	Price (each)	Stock
	307805	LOWER LH DIAGONAL BRACE CONNECTED TO TUNNEL	$107.86	To Order

Photo	Part No	Description	Price (each)	Stock
	304362	FUEL TANK CROSS MEMBER	$554.93	To Order

Photo	Part No	Description	Price (each)	Stock
	318915	RH TUNNEL UPPER FRONT DIAGONAL BRACE	$239.62	To Order
	307878	RH UPPER FRONT DIAGONAL BRACE FOR TUNNEL	$221.89	To Order

Photo	Part No	Description	Price (each)	Stock
	307882	LH UPPER FRONT DIAGONAL BRACE FOR TUNNEL	$184.04	To Order
	318913	LH TUNNEL UPPER FRONT DIAGONAL BRACE	$239.62	To Order

Photo	Part No	Description	Price (each)	Stock
	308659	REAR PILLAR BRACE FOR RH DOOR	$365.75	To Order

Photo	Part No	Description	Price (each)	Stock
	306367	REAR PILLAR BRACE FOR LH DOOR	$365.75	To Order

Photo	Part No	Description	Price (each)	Stock
	985308762	RH A-PILLAR TRUSS	$214.40	To Order

Photo	Part No	Description	Price (each)	Stock
	308761	LH A-PILLAR TRUSS	$92.05	To Order

Photo	Part No	Description	Price (each)	Stock
	304706	UPPER RH BELT JOINT CASTING	$466.65	To Order

Photo	Part No	Description	Price (each)	Stock
	304705	UPPER LH BELT JOINT CASTING	$466.65	To Order

Photo	Part No	Description	Price (each)	Stock
	248977	FRONT RH FLOOR ENDPIECE	$93.31	To Order

Photo	Part No	Description	Price (each)	Stock
	248976	FRONT LH FLOOR ENDPIECE	$93.31	To Order

Photo	Part No	Description	Price (each)	Stock
	317392	INTERNAL TUNNEL REINFORCEMENT	$227.01	To Order

Photo	Part No	Description	Price (each)	Stock
	300895	RH LOWER FRONT SUSPENSION CROSS-MEMBER REINFORCEMENT	$45.39	To Order

Photo	Part No	Description	Price (each)	Stock
	300894	LH LOWER FRONT SUSPENSION CROSS-MEMBER REINFORCEMENT	$45.39	To Order

Photo	Part No	Description	Price (each)	Stock
	304405	FRONT BRACKET FASTENING RH REAR FLANK TO CHASSIS	$55.47	To Order

Photo	Part No	Description	Price (each)	Stock
	304404	FRONT BRACKET FASTENING LH REAR FLANK TO CHASSIS	$44.46	To Order

Photo	Part No	Description	Price (each)	Stock
	313288	RH BODYSHELL SUBFRAME MOUNTING BRACKET	$69.36	To Order

Photo	Part No	Description	Price (each)	Stock
	313286	LH BODYSHELL SUBFRAME MOUNTING BRACKET	$57.53	To Order

Photo	Part No	Description	Price (each)	Stock
	311385	RH FUEL PIPE GUARD PLATE	$334.87	To Order

Photo	Part No	Description	Price (each)	Stock
	311384	LH FUEL PIPE GUARD PLATE	$334.87	To Order

Photo	Part No	Description	Price (each)	Stock
	87546300	COMPL. ENGINE BUFFER	$201.78	To Order

Photo	Part No	Description	Price (each)	Stock
	13027024	SCREW M6 X 16MM	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10523401	WASHER	$0.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	322620	RH SKILLET MOUNTING BRACKET	$36.57	To Order

Photo	Part No	Description	Price (each)	Stock
	322828	LH SKILLET MOUNTING BRACKET	$36.57	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	316565	COMPL. TUNNEL	316565 COMPL. TUNNEL ; Applicable for GD	$17,034.56	1
1	308113	COMPL. TUNNEL	308113 COMPL. TUNNEL ; Not for GD	$17,048.45	1
2	305372	COMPL. RH HALF FLOOR PANEL	305372 COMPL. RH HALF FLOOR PANEL	$1,194.11	1
3	305368	COMPL. LH HALF FLOOR PANEL	305368 COMPL. LH HALF FLOOR PANEL	$1,148.16	1
4	300620	RH CENTRE SIDEWALL	300620 RH CENTRE SIDEWALL ; Not for GD	$9,411.51	1
4	319018	RH CENTRE SIDEWALL	319018 RH CENTRE SIDEWALL ; Applicable for GD	$9,411.51	1
5	300619	LH CENTRE SIDEWALL	300619 LH CENTRE SIDEWALL ; Not for GD	$9,411.51	1
5	319016	LH CENTRE SIDEWALL	319016 LH CENTRE SIDEWALL ; Applicable for GD	$9,411.51	1
6	300798	SILL LINK CROSS MEMBER	300798 SILL LINK CROSS MEMBER	$6,006.10	1
7	83814500	RH FRONT PANEL	83814500 RH FRONT PANEL	$84.49	1
8	83814600	LH FRONT PANEL	83814600 LH FRONT PANEL	$84.49	1
9	83815000	REAR RH ENDPIECE	83815000 REAR RH ENDPIECE	$104.66	1
10	83814700	REAR LH ENDPIECE	83814700 REAR LH ENDPIECE	$104.66	1
11	272633	COMPL. UPPER RH HINGE REINFORCEMENT	272633 COMPL. UPPER RH HINGE REINFORCEMENT	$353.14	1
12	272632	COMPL. UPPER LH HINGE REINFORCEMENT	272632 COMPL. UPPER LH HINGE REINFORCEMENT	$279.69	1
13	271953	COMPL. LOWER RH HINGE REINFORCEMENT	271953 COMPL. LOWER RH HINGE REINFORCEMENT	$215.26	1
14	271951	COMPL. LOWER LH HINGE REINFORCEMENT	271951 COMPL. LOWER LH HINGE REINFORCEMENT	$215.26	1
15	290920	REAR FASTENER BRACKET FOR LH SEAT	290920 REAR FASTENER BRACKET FOR LH SEAT	$112.24	1
15	290921	REAR FASTENER BRACKET FOR RH SEAT	290921 REAR FASTENER BRACKET FOR RH SEAT	$112.24	1
16	262866	LH SEAT GUIDE RAIL FASTENER BRACKET	262866 LH SEAT GUIDE RAIL FASTENER BRACKET	$100.89	1
16	262867	RH SEAT GUIDE RAIL FASTENER BRACKET	262867 RH SEAT GUIDE RAIL FASTENER BRACKET	$100.89	1
17	283681	ACCELERATOR PEDAL FASTENER BRACKET	283681 ACCELERATOR PEDAL FASTENER BRACKET Not for GD	$63.00	1
17	266326	ACCELERATOR PEDAL FASTENER BRACKET	266326 ACCELERATOR PEDAL FASTENER BRACKET Applicable for GD	$138.72	1
18	300796	RH CONNECTOR PIECE EXTRUSION	300796 RH CONNECTOR PIECE EXTRUSION	$1,718.23	1
19	300794	LH CONNECTOR PIECE EXTRUSION	300794 LH CONNECTOR PIECE EXTRUSION	$1,718.23	1
20	86674711	LOWER FASTENER BRACKET FOR FRONT FENDER IN STOCK	86674711 LOWER FASTENER BRACKET FOR FRONT FENDER IN STOCK	$119.80	4
21	86675911	A PILLAR FLANGE, FRONT RH ELEMENT	86675911 A PILLAR FLANGE, FRONT RH ELEMENT	$252.23	1
22	86675800	A PILLAR FLANGE, FRONT LH SECTION	86675800 A PILLAR FLANGE, FRONT LH SECTION	$108.45	1
23	86744400	RH LOCK STRIKER REINFORCEMENT	86744400 RH LOCK STRIKER REINFORCEMENT	$137.77	1
24	86744200	LH LOCK STRIKER REINFORCEMENT	86744200 LH LOCK STRIKER REINFORCEMENT	$132.92	1
25	312054	REAR FIREWALL	312054 REAR FIREWALL	$1,223.41	1
26	304741	RH INTERNAL BOX MEMBER ON REMOVABLE SUBFRAME	304741 RH INTERNAL BOX MEMBER ON REMOVABLE SUBFRAME	$272.26	1
27	304740	LH INTERNAL BOX MEMBER ON REMOVABLE SUBFRAME	304740 LH INTERNAL BOX MEMBER ON REMOVABLE SUBFRAME	$272.26	1
28	300646	RH UPPER REAR DIAGONAL BRACE	300646 RH UPPER REAR DIAGONAL BRACE	$2,810.78	1
29	300645	LH UPPER REAR DIAGONAL BRACE	300645 LH UPPER REAR DIAGONAL BRACE	$2,702.25	1
30	309294	RH SUSPENSION CASTING BRACE	309294 RH SUSPENSION CASTING BRACE	$290.07	1
31	309293	LH SUSPENSION CASTING BRACE	309293 LH SUSPENSION CASTING BRACE	$290.07	1
32	300903	RH B-PILLAR TRUSS	300903 RH B-PILLAR TRUSS Not for GD	$290.07	1
32	318911	RH B-PILLAR TRUSS	318911 RH B-PILLAR TRUSS Applicable for GD	$290.07	1
33	300901	LH B-PILLAR TRUSS	300901 LH B-PILLAR TRUSS Not for GD	$302.68	1
33	318909	LH B-PILLAR TRUSS	318909 LH B-PILLAR TRUSS Applicable for GD	$290.07	1
34	303064	RH FLOOR LATERAL EXTRUSION	303064 RH FLOOR LATERAL EXTRUSION	$290.07	1
35	303062	LH FLOOR LATERAL EXTRUSION	303062 LH FLOOR LATERAL EXTRUSION	$290.07	1
36	317833	RH SUBFRAME CONNECTOR CRASH BOX	317833 RH SUBFRAME CONNECTOR CRASH BOX Not for GD	$2,844.12	1
37	317829	LH SUBFRAME CONNECTOR CRASH BOX	317829 LH SUBFRAME CONNECTOR CRASH BOX Not for GD	$2,340.28	1
38	311870	BRACE EXTRUSION BETWEEN TORQUE BOX AND RH TUNNEL	311870 BRACE EXTRUSION BETWEEN TORQUE BOX AND RH TUNNEL Not for GD	$390.98	1
38	316704	BRACE EXTRUSION BETWEEN TORQUE BOX AND RH TUNNEL	316704 BRACE EXTRUSION BETWEEN TORQUE BOX AND RH TUNNEL Applicable for GD	$454.04	1
39	318360	BRACE EXTRUSION BETWEEN TORQUE BOX AND LH TUNNEL	318360 BRACE EXTRUSION BETWEEN TORQUE BOX AND LH TUNNEL Applicable for GD	$454.04	1
39	311865	BRACE EXTRUSION BETWEEN TORQUE BOX AND LH TUNNEL	311865 BRACE EXTRUSION BETWEEN TORQUE BOX AND LH TUNNEL Not for GD	$390.98	1
40	301625	RH CASTING LINK FRONT CROSS MEMBER	301625 RH CASTING LINK FRONT CROSS MEMBER	$302.68	1
41	301624	LH CASTING LINK FRONT CROSS MEMBER	301624 LH CASTING LINK FRONT CROSS MEMBER Not for GD	$302.68	1
41	318355	FRONT LH CASTING LINK CROSS MEMBER	318355 FRONT LH CASTING LINK CROSS MEMBER Applicable for GD	$302.68	1
42	307806	LOWER RH DIAGONAL BRACE CONNECTED TO TUNNEL	307806 LOWER RH DIAGONAL BRACE CONNECTED TO TUNNEL	$117.12	1
43	307805	LOWER LH DIAGONAL BRACE CONNECTED TO TUNNEL	307805 LOWER LH DIAGONAL BRACE CONNECTED TO TUNNEL	$107.86	1
44	304362	FUEL TANK CROSS MEMBER	304362 FUEL TANK CROSS MEMBER	$554.93	1
45	318915	RH TUNNEL UPPER FRONT DIAGONAL BRACE	318915 RH TUNNEL UPPER FRONT DIAGONAL BRACE Applicable for GD	$239.62	1
45	307878	RH UPPER FRONT DIAGONAL BRACE FOR TUNNEL	307878 RH UPPER FRONT DIAGONAL BRACE FOR TUNNEL Not for GD	$221.89	1
46	307882	LH UPPER FRONT DIAGONAL BRACE FOR TUNNEL	307882 LH UPPER FRONT DIAGONAL BRACE FOR TUNNEL Not for GD	$184.04	1
46	318913	LH TUNNEL UPPER FRONT DIAGONAL BRACE	318913 LH TUNNEL UPPER FRONT DIAGONAL BRACE Applicable for GD	$239.62	1
47	308659	REAR PILLAR BRACE FOR RH DOOR	308659 REAR PILLAR BRACE FOR RH DOOR	$365.75	1
48	306367	REAR PILLAR BRACE FOR LH DOOR	306367 REAR PILLAR BRACE FOR LH DOOR	$365.75	1
49	985308762	RH A-PILLAR TRUSS	985308762 RH A-PILLAR TRUSS	$214.40	1
50	308761	LH A-PILLAR TRUSS	308761 LH A-PILLAR TRUSS	$92.05	1
51	304706	UPPER RH BELT JOINT CASTING	304706 UPPER RH BELT JOINT CASTING	$466.65	1
52	304705	UPPER LH BELT JOINT CASTING	304705 UPPER LH BELT JOINT CASTING	$466.65	1
53	248977	FRONT RH FLOOR ENDPIECE	248977 FRONT RH FLOOR ENDPIECE	$93.31	1
54	248976	FRONT LH FLOOR ENDPIECE	248976 FRONT LH FLOOR ENDPIECE	$93.31	1
55	317392	INTERNAL TUNNEL REINFORCEMENT	317392 INTERNAL TUNNEL REINFORCEMENT	$227.01	2
56	300895	RH LOWER FRONT SUSPENSION CROSS-MEMBER REINFORCEMENT	300895 RH LOWER FRONT SUSPENSION CROSS-MEMBER REINFORCEMENT	$45.39	1
57	300894	LH LOWER FRONT SUSPENSION CROSS-MEMBER REINFORCEMENT	300894 LH LOWER FRONT SUSPENSION CROSS-MEMBER REINFORCEMENT	$45.39	1
58	304405	FRONT BRACKET FASTENING RH REAR FLANK TO CHASSIS	304405 FRONT BRACKET FASTENING RH REAR FLANK TO CHASSIS	$55.47	1
59	304404	FRONT BRACKET FASTENING LH REAR FLANK TO CHASSIS	304404 FRONT BRACKET FASTENING LH REAR FLANK TO CHASSIS	$44.46	1
60	313288	RH BODYSHELL SUBFRAME MOUNTING BRACKET	313288 RH BODYSHELL SUBFRAME MOUNTING BRACKET	$69.36	1
61	313286	LH BODYSHELL SUBFRAME MOUNTING BRACKET	313286 LH BODYSHELL SUBFRAME MOUNTING BRACKET	$57.53	1
62	311385	RH FUEL PIPE GUARD PLATE	311385 RH FUEL PIPE GUARD PLATE	$334.87	1
63	311384	LH FUEL PIPE GUARD PLATE	311384 LH FUEL PIPE GUARD PLATE	$334.87	1
64	87546300	COMPL. ENGINE BUFFER	87546300 COMPL. ENGINE BUFFER	$201.78	1
65	13027024	SCREW M6 X 16MM IN STOCK	13027024 SCREW M6 X 16MM IN STOCK	$0.20 MSRP: ~~1.00~~ (80% off)	4
66	10523401	WASHER IN STOCK	10523401 WASHER IN STOCK	$0.38	4
67	322620	RH SKILLET MOUNTING BRACKET	322620 RH SKILLET MOUNTING BRACKET	$36.57	1
68	322828	LH SKILLET MOUNTING BRACKET	322828 LH SKILLET MOUNTING BRACKET	$36.57	1
