DASHBOARD AIR DUCTS parts for Ferrari 488 GTB

Find Your Part

DASHBOARD AIR DUCTS of Ferrari Ferrari 488 GTB

View All

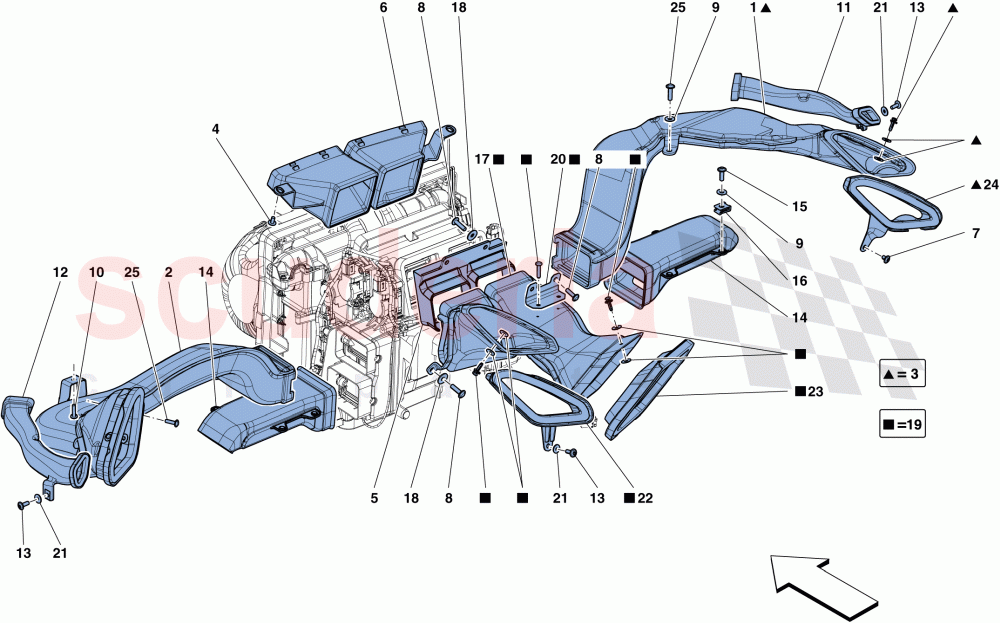

Ferrari 488 GTB - DASHBOARD AIR DUCTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86180200	COMPL. RH PASSENGER SIDE VENTILATION DUCT	$145.65	To Order

Photo	Part No	Description	Price (each)	Stock
	87023000	COMPL. RH DRIVER SIDE VENTILATION DUCT	$213.82	To Order
	86179700	COMPL. LH DRIVER SIDE VENT DUCT	$213.82	To Order

Photo	Part No	Description	Price (each)	Stock
	86180200	COMPL. RH PASSENGER SIDE VENTILATION DUCT	$145.65	To Order
	87028400	COMPL. LH PASSENGER SIDE VENTILATION DUCT	$163.50	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	83127400	CENTRE AIR DUCT CONNECTOR	$12.56	To Order

Photo	Part No	Description	Price (each)	Stock
	86166200	HVAC DEFROSTER CONNECTOR	$89.28	To Order
	87030200	HVAC DEFROSTER CONNECTOR	$89.28	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86175500	COMPL. PASSENGER SIDE DEMISTER DUCT	$83.00	To Order
	87031300	COMPL. DRIVER SIDE DEMISTER DUCT	$83.00	To Order

Photo	Part No	Description	Price (each)	Stock
	87030600	COMPL. PASSENGER SIDE DEMISTER DUCT	$83.00	To Order
	86170700	COMPL. DRIVER SIDE DEMISTER DUCT	$83.00	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84497100	FOOTWELL DUCT	$59.10	To Order

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	SCRE CLIP M6	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86178400	COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT	$176.08	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86178400	COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT	$176.08	To Order
	87023900	COMPL. LH DRIVER SIDE / LH PASSENGER SIDE VENTILATION DUCT	$201.23	To Order

Photo	Part No	Description	Price (each)	Stock
	86178400	COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT	$176.08	To Order

Photo	Part No	Description	Price (each)	Stock
	12646624	WASHER	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86949200	AIR DUCT FASTENER SURROUND	$9.03	To Order

Photo	Part No	Description	Price (each)	Stock
	86949300	AIR DUCT FASTENER SURROUND	$11.69	To Order

Photo	Part No	Description	Price (each)	Stock
	86949400	AIR DUCT FASTENER SURROUND	$9.16	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.35	To Order

View All

DASHBOARD AIR DUCTS of Ferrari Ferrari 488 GTB

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	1	86180200	COMPL. RH PASSENGER SIDE VENTILATION DUCT	86180200 COMPL. RH PASSENGER SIDE VENTILATION DUCT After depletion, order compl. 86180200 ref. 3; Not for GD; Applicable until depletion	$145.65	1
	2	87023000	COMPL. RH DRIVER SIDE VENTILATION DUCT	87023000 COMPL. RH DRIVER SIDE VENTILATION DUCT Applicable for GD	$213.82	1
	2	86179700	COMPL. LH DRIVER SIDE VENT DUCT	86179700 COMPL. LH DRIVER SIDE VENT DUCT Not for GD	$213.82	1
	3	86180200	COMPL. RH PASSENGER SIDE VENTILATION DUCT	86180200 COMPL. RH PASSENGER SIDE VENTILATION DUCT Not for GD	$145.65	1
	3	87028400	COMPL. LH PASSENGER SIDE VENTILATION DUCT	87028400 COMPL. LH PASSENGER SIDE VENTILATION DUCT Applicable for GD	$163.50	1
	4	11566224	SCREW IN STOCK	11566224 SCREW M5 X 10 IN STOCK	$0.33	2
	5	83127400	CENTRE AIR DUCT CONNECTOR	83127400 CENTRE AIR DUCT CONNECTOR	$12.56	1
	6	86166200	HVAC DEFROSTER CONNECTOR	86166200 HVAC DEFROSTER CONNECTOR Not for GD	$89.28	1
	6	87030200	HVAC DEFROSTER CONNECTOR	87030200 HVAC DEFROSTER CONNECTOR Applicable for GD	$89.28	1
	7	11566224	SCREW IN STOCK	11566224 SCREW M5 X 8 IN STOCK	$0.33	1
	8	11197774	WASHER IN STOCK	11197774 WASHER M6 X 22 IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	7
	9	12644424	WASHER IN STOCK	12644424 WASHER IN STOCK	$0.06 MSRP: ~~0.40~~ (85% off)	5
	10	11566224	SCREW IN STOCK	11566224 SCREW M5 X 16 IN STOCK	$0.33	1
	11	86175500	COMPL. PASSENGER SIDE DEMISTER DUCT	86175500 COMPL. PASSENGER SIDE DEMISTER DUCT Not for GD	$83.00	1
	11	87031300	COMPL. DRIVER SIDE DEMISTER DUCT	87031300 COMPL. DRIVER SIDE DEMISTER DUCT Applicable for GD	$83.00	1
	12	87030600	COMPL. PASSENGER SIDE DEMISTER DUCT	87030600 COMPL. PASSENGER SIDE DEMISTER DUCT Applicable for GD	$83.00	1
	12	86170700	COMPL. DRIVER SIDE DEMISTER DUCT	86170700 COMPL. DRIVER SIDE DEMISTER DUCT Not for GD	$83.00	1
	13	11566224	SCREW IN STOCK	11566224 SCREW M5 X 14; No longer supplied; Replaced by 85692000 IN STOCK	$0.33	3
	13	11566224	SCREW IN STOCK	11566224 SCREW M5 X 10 IN STOCK	$0.33	3
	14	84497100	FOOTWELL DUCT	84497100 FOOTWELL DUCT	$59.10	2
	15	81911600	SCREW	81911600 SCREW M6 X 18	$0.44	4
	16	62766300	SCRE CLIP M6 IN STOCK	62766300 SCRE CLIP M6 IN STOCK	$0.71 MSRP: ~~0.75~~ (5.3% off)	4
	17	86178400	COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT	86178400 COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT After depletion, order compl. 86178400 ref. 19; Not for GD; Applicable until depletion	$176.08	1
	18	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	7
	19	86178400	COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT	86178400 COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT Not for GD	$176.08	1
	19	87023900	COMPL. LH DRIVER SIDE / LH PASSENGER SIDE VENTILATION DUCT	87023900 COMPL. LH DRIVER SIDE / LH PASSENGER SIDE VENTILATION DUCT Applicable for GD	$201.23	1
	20	86178400	COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT	86178400 COMPL. RH DRIVER LH PASSENGER VENTILATION DUCT After depletion order compl. ref. 19; Applicable until depletion	$176.08	1
	21	12646624	WASHER IN STOCK	12646624 WASHER IN STOCK	$0.21 MSRP: ~~0.29~~ (27.6% off)	3
	22	86949200	AIR DUCT FASTENER SURROUND	86949200 AIR DUCT FASTENER SURROUND Applicable until depletion	$9.03	1
	23	86949300	AIR DUCT FASTENER SURROUND	86949300 AIR DUCT FASTENER SURROUND Applicable until depletion	$11.69	1
	24	86949400	AIR DUCT FASTENER SURROUND	86949400 AIR DUCT FASTENER SURROUND Applicable until depletion	$9.16	1
	25	16286124	SCREW	16286124 SCREW M6 X 20	$0.35	2
