Fuel Tanks - Fasteners And Guards

Ferrari 458 Italia

Find Your Part

Ferrari 458 Italia - FUEL TANKS - FASTENERS AND GUARDS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
263507 UPPER LH TANK RETAINER STRAP $85.62 To Order
256028 UPPER TANK RETAINER STRAP $90.65 To Order
263506 UPPER RH TANK RETAINER STRAP $85.62 To Order
Photo Part No Description Price (each) Stock
250516 TANK STRAP TIE-ROD $23.90 To Order
Photo Part No Description Price (each) Stock
264555 SPLIT PIN Enquire To Order
Photo Part No Description Price (each) Stock
271055 UPPER PIN $11.75 To Order
256037 UPPER PIN $12.45 To Order
Photo Part No Description Price (each) Stock
256055 LOWER PIN $11.19 To Order
Photo Part No Description Price (each) Stock
14054511 NUT $1.21 IN STOCK
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
263509 LOWER LH TANK RETAINER STRAP $85.62 To Order
256038 LOWER RH TANK RETAINER STRAP $503.71 To Order
263508 LOWER RH TANK RETAINER STRAP $85.62 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
296446 FUEL TANK ANTI-VIBRATION PAD KIT $163.70 To Order
Photo Part No Description Price (each) Stock
68984500 SCREW $2.99 To Order
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
283260 LH TANK HEAT INSULATION $742.98 To Order
283261 RH TANK HEAT INSULATION $742.98 To Order
Photo Part No Description Price (each) Stock
11585024 SCREW $0.30 To Order
Photo Part No Description Price (each) Stock
263513 LH MOUNTING BRACKET FOR REMOVABLE SUBFRAME $71.76 To Order
256047 RH MOUNTING BRACKET FOR REMOVABLE SUBFRAME $62.95 To Order
263510 RH MOUNTING BRACKET FOR REMOVABLE SUBFRAME $71.76 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16286121 SCREW M6 X 20 $0.65 IN STOCK
View All

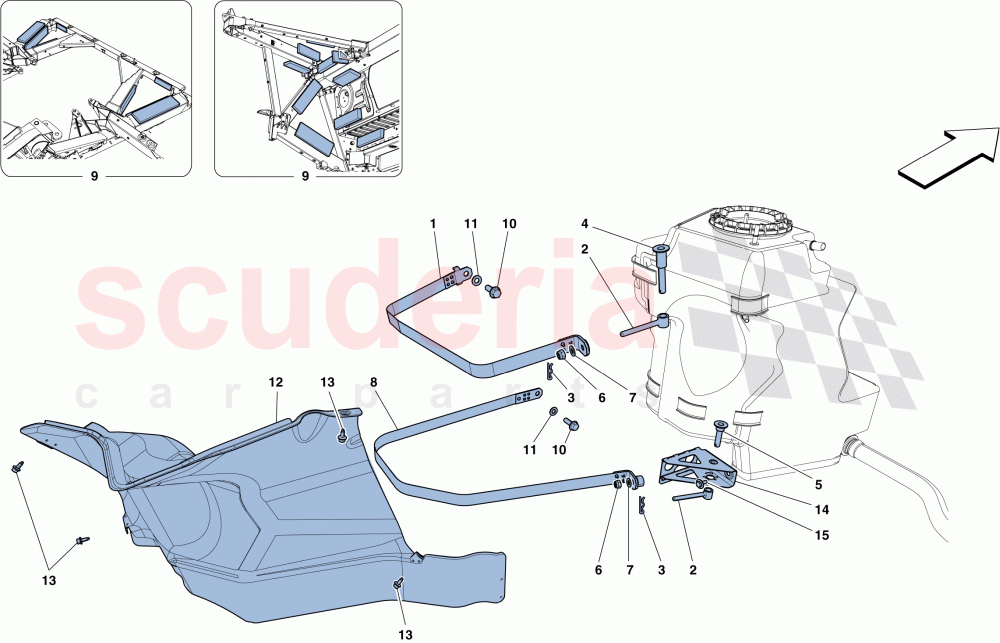

FUEL TANKS - FASTENERS AND GUARDS of Ferrari Ferrari 458 Italia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 263507
UPPER LH TANK RETAINER STRAP
Applicable from Ass. No. 89229 		$85.62 1
1 256028
UPPER TANK RETAINER STRAP
Applicable up to Ass. No. 89228 		$90.65 2
1 263506
UPPER RH TANK RETAINER STRAP
Applicable from Ass. No. 89229 		$85.62 1
2 250516
TANK STRAP TIE-ROD
Applicable up to Ass. No. 89228 		$23.90 4
3 264555
SPLIT PIN 		- 4 Enquire
4 271055
UPPER PIN
Applicable from Ass. No. 105421 		$11.75 2
4 256037
UPPER PIN
Applicable up to Ass. No. 105420 		$12.45 2
5 256055
LOWER PIN 		$11.19 2
6 14054511
NUT
Applicable from Ass. No. 89229
IN STOCK 		$1.21 4
6 104030
NUT
Applicable up to Ass. No. 89228
IN STOCK 		$0.24 (76% off) 4
7 14496524
WASHER D.8.4 X 17 X 1.6
IN STOCK 		$0.11 (92.7% off) 4
8 263509
LOWER LH TANK RETAINER STRAP
Applicable from Ass. No. 89229 		$85.62 1
8 256038
LOWER RH TANK RETAINER STRAP
Applicable up to Ass. No. 89228 		$503.71 1
8 263508
LOWER RH TANK RETAINER STRAP
Applicable from Ass. No. 89229 		$85.62 1
8 256040
LOWER LH TANK RETAINER STRAP
Applicable up to Ass. No. 89228 		$214.07 1
9 296446
FUEL TANK ANTI-VIBRATION PAD KIT
Applicable from Ass. No. 104101 		$163.70 1
10 68984500
SCREW 		$2.99 4
11 11190574
WASHER
IN STOCK 		$0.06 4
12 283260
LH TANK HEAT INSULATION
Applicable from Ass. No. 106096 		$742.98 1
12 283261
RH TANK HEAT INSULATION
Applicable from Ass. No. 106096 		$742.98 1
13 11585024
SCREW
M5 X 14 		$0.30 17
14 263513
LH MOUNTING BRACKET FOR REMOVABLE SUBFRAME
Applicable from Ass. No. 89229 		$71.76 1
14 256047
RH MOUNTING BRACKET FOR REMOVABLE SUBFRAME
Applicable up to Ass. No. 89228 		$62.95 1
14 263510
RH MOUNTING BRACKET FOR REMOVABLE SUBFRAME
Applicable from Ass. No. 89229 		$71.76 1
14 256050
LH MOUNTING BRACKET FOR REMOVABLE SUBFRAME
Applicable up to Ass. No. 89228 		$62.95 1
15 16286121
SCREW M6 X 20
IN STOCK 		$0.65 (51.9% off) 4
