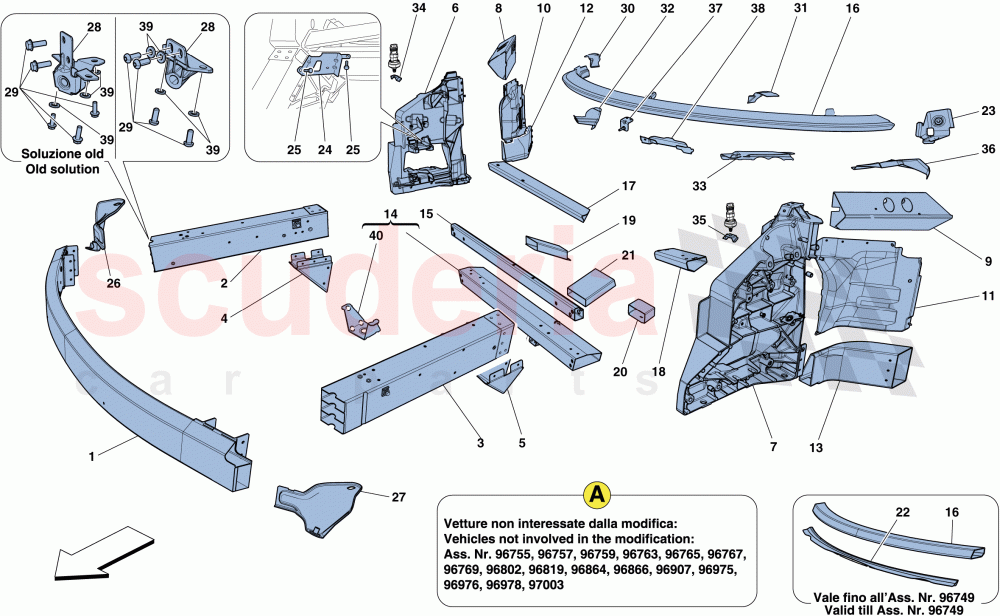

Ferrari 458 Italia - CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
256253 FRONT CROSS MEMBER $5,798.94 To Order
264894 FRONT CROSS MEMBER $5,436.10 To Order
264894 FRONT CROSS MEMBER $5,436.10 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
266098 FRONT RH STRUT $1,133.81 To Order
263945 FRONT RH STRUT $1,904.84 To Order
266330 FRONT RH STRUT $1,904.84 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
263944 Front LH Strut $1,904.84 To Order
249940 FRONT LH STRUT $1,083.43 To Order
Photo Part No Description Price (each) Stock
985244142 ANGULAR BRACE FOR RH STRUT $176.36 To Order
Photo Part No Description Price (each) Stock
985244141 ANGULAR BRACE FOR LH STRUT $182.24 IN STOCK
Photo Part No Description Price (each) Stock
285538 FRONT RH SHOCK TOWER $7,359.86 To Order
264306 FRONT RH SHOCK TOWER $5,258.32 To Order
Photo Part No Description Price (each) Stock
264305 FRONT LH SHOCK TOWER $6,795.46 To Order
285537 FRONT LH SHOCK TOWER $7,359.86 To Order
Photo Part No Description Price (each) Stock
253472 RH UPPER FRONT DIAGONAL BRACE $1,516.81 To Order
270833 RH UPPER FRONT DIAGONAL BRACE $365.33 To Order
Photo Part No Description Price (each) Stock
270834 LH UPPER FRONT DIAGONAL BRACE $286.05 To Order
253471 LH UPPER FRONT DIAGONAL BRACE $1,516.81 To Order
Photo Part No Description Price (each) Stock
263493 RH WHEEL BAY COVER $436.17 To Order
274064 RH WHEEL BAY COVER $529.11 To Order
261897 RH WHEEL BAY COVER $453.52 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
261896 LH WHEEL BAY COVER $436.17 To Order
271964 LH WHEEL BAY COVER $541.70 To Order
263492 LH WHEEL BAY COVER $436.17 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
257921 FRONT RH TORQUE BOX $1,259.81 To Order
Photo Part No Description Price (each) Stock
257920 FRONT LH TORQUE BOX $1,146.42 To Order
Photo Part No Description Price (each) Stock
269333 LOWER FRONT SUSPENSION CROSS MEMBER $1,778.84 To Order
283974 LOWER FRONT SUSPENSION CROSS MEMBER $1,146.42 To Order
283975 LOWER FRONT SUSPENSION CROSS MEMBER $1,196.82 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
265057 CASTING LINK CROSS MEMBER $440.91 To Order
265280 CASTING LINK CROSS MEMBER $491.31 To Order
242560 CASTING LINK CROSS MEMBER $655.09 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
251297 WINDSCREEN VALENCE PANEL CROSS MEMBER $503.92 To Order
275628 WINDSCREEN VALENCE PANEL CROSS MEMBER $755.88 To Order
Photo Part No Description Price (each) Stock
248866 UPPER LH DIAGONAL BRACE $428.32 To Order
248866 UPPER LH DIAGONAL BRACE $428.32 To Order
Photo Part No Description Price (each) Stock
248870 LOWER RH DIAGONAL BRACE $390.53 To Order
248870 LOWER RH DIAGONAL BRACE $390.53 To Order
265064 LOWER RH DIAGONAL BRACE $327.54 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
265063 LOWER LH DIAGONAL BRACE $339.82 To Order
248868 LOWER LH DIAGONAL BRACE $390.53 To Order
265063 LOWER LH DIAGONAL BRACE $339.82 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
265056 LOWER CENTRAL STRUT $251.94 To Order
265297 LOWER CENTRAL STRUT $1,128.06 To Order
241494 LOWER CENTRAL STRUT $267.85 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
257119 WINDSCREEN REINFORCEMENT MOUNTING LIP $340.14 To Order
Photo Part No Description Price (each) Stock
274091 WINDSCREEN WIPER BRACKET $64.24 To Order
256206 WINDSCREEN WIPER BRACKET $188.95 To Order
272197 WINDSCREEN WIPER BRACKET $49.12 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
81738700 RH LUGGAGE COMPARTMENT TUB BRACKET $145.88 To Order
81738900 LH LUGGAGE COMPARTMENT TUB BRACKET $145.88 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.40 To Order
Photo Part No Description Price (each) Stock
82981900 RH RADIATOR FASTENER BRACKET $147.39 IN STOCK
84641900 RH RADIATOR FASTENER BRACKET $176.36 To Order
Photo Part No Description Price (each) Stock
84641800 LH RADIATOR FASTENER BRACKET $176.36 IN STOCK
82982000 LH RADIATOR FASTENER BRACKET $147.39 To Order
Photo Part No Description Price (each) Stock
257964 COMPL. TOW HOOK $571.54 To Order
266096 COMPL. TOW HOOK $251.94 To Order
985290233 COMPL. TOW HOOK $377.92 To Order
Photo Part No Description Price (each) Stock
85633900 SCREW $7.22 IN STOCK
903295 SCREW $0.61 To Order
903295 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
985270832 RH WINDSCREEN VALENCE PANEL FASTENER BRACKET $133.41 To Order
Photo Part No Description Price (each) Stock
270831 LH WINDSCREEN VALENCE PANEL FASTENER BRACKET $239.35 To Order
Photo Part No Description Price (each) Stock
270836 RH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE $201.55 To Order
Photo Part No Description Price (each) Stock
270835 LH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE $201.55 To Order
Photo Part No Description Price (each) Stock
985279453 RH FRONT ACCELEROMETER BRACKET $39.03 To Order
Photo Part No Description Price (each) Stock
985279381 LH FRONT ACCELEROMETER BRACKET $39.03 To Order
Photo Part No Description Price (each) Stock
83754100 RH UNDERWINDSCREEN BOX ELEMENT $226.75 To Order
84827700 RH UNDERWINDSCREEN BOX ELEMENT $89.43 To Order
84827600 LH UNDERWINDSCREEN BOX ELEMENT $89.43 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
272192 BRAKE FLUID RESERVOIR BRACKET $64.24 To Order
Photo Part No Description Price (each) Stock
274093 BRAKE FLUID RESERVOIR BRACKET $251.94 To Order
Photo Part No Description Price (each) Stock
288818 SPACER $14.28 IN STOCK
290236 SPACER $6.72 IN STOCK
Photo Part No Description Price (each) Stock
265090 BRACKET $35.26 To Order
