Ferrari 458 Italia - AC SYSTEM - WATER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
65460300 COMPLETE WATER PUMP $416.27 To Order
Photo Part No Description Price (each) Stock
82328900 BRACKET $37.83 To Order
Photo Part No Description Price (each) Stock
82329400 CURVED BRACKET $20.17 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $5.29 ARRIVING SOON
Photo Part No Description Price (each) Stock
82302800 CONNECTOR PIPE $88.28 To Order
82887100 CONNECTOR PIPE $176.59 To Order
Photo Part No Description Price (each) Stock
82761900 RH TGK VALVE CONNECTOR PIPE $103.42 To Order
82887200 RH TGK VALVE CONNECTOR PIPE $315.35 To Order
Photo Part No Description Price (each) Stock
82302700 LH TGK VALVE CONNECTOR PIPE $63.06 To Order
82887300 LH TGK VALVE CONNECTOR PIPE $176.59 To Order
Photo Part No Description Price (each) Stock
82731600 HOSE $126.13 To Order
82731600 HOSE $126.13 To Order
Photo Part No Description Price (each) Stock
82535400 RIGID PIPE $201.81 To Order
82535400 RIGID PIPE $201.81 To Order
Photo Part No Description Price (each) Stock
82396800 CLIP $1.00 To Order
82396800 CLIP $1.00 To Order
Photo Part No Description Price (each) Stock
82890600 AC UNDERBODY PIPE $163.98 To Order
82890600 AC UNDERBODY PIPE $163.98 To Order
82890600 AC UNDERBODY PIPE $163.98 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
249018 WATER PIPE $122.34 To Order
249018 WATER PIPE $122.34 To Order
Photo Part No Description Price (each) Stock
82887000 CONNECTOR PIPE $44.13 To Order
82887000 CONNECTOR PIPE $44.13 To Order
82303000 CONNECTOR PIPE $28.60 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
67444900 LH TGK VALVE $225.90 IN STOCK
Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE $210.84 IN STOCK
Photo Part No Description Price (each) Stock
291116 HOSE $35.31 To Order
82302900 CONNECTOR PIPE $35.05 To Order
Photo Part No Description Price (each) Stock
247947 RIGID TGK VALVE OUTLET PIPE $65.58 To Order
290953 RIGID TGK VALVE OUTLET PIPE $4.96 To Order
Photo Part No Description Price (each) Stock
82328500 TGK VALVE BLOCK MOUNTING BRACKET $26.47 To Order
Photo Part No Description Price (each) Stock
174623 BUSH $11.88 To Order
Photo Part No Description Price (each) Stock
11625824 SCREW $0.33 IN STOCK
11625824 SCREW $0.33 IN STOCK
880041 Allen Head Bolt M6 X 26 $5.29 ARRIVING SOON
Photo Part No Description Price (each) Stock
270085 CLIP $1.60 IN STOCK
Photo Part No Description Price (each) Stock
291115 HOSE $41.61 To Order
82887400 HOSE $118.57 To Order
82944600 CONNECTOR PIPE $29.60 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
263232 CLIP $1.26 To Order
263232 CLIP $1.26 To Order
263232 CLIP $1.26 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
248334 SCREW $0.58 IN STOCK
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
320600 CLIP $2.10 To Order
320600 CLIP $2.10 To Order
320600 CLIP $2.10 To Order
Photo Part No Description Price (each) Stock
178772 SPACER STUD $9.96 To Order
178772 SPACER STUD $9.96 To Order
178772 SPACER STUD $9.96 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
83413300 RH TGK VALVE MOUNTING BRACKET $34.05 To Order
Photo Part No Description Price (each) Stock
83446400 LH TGK VALVE MOUNTING BRACKET $34.05 To Order
84058400 LH TGK VALVE MOUNTING BRACKET $114.78 To Order
Photo Part No Description Price (each) Stock
162606 CLIP $1.17 IN STOCK
Photo Part No Description Price (each) Stock
83444200 DRIP BAFFLE RING $3.91 IN STOCK
Photo Part No Description Price (each) Stock
83560800 GUARD $8.95 To Order
Photo Part No Description Price (each) Stock
83689500 WATER PIPE RUBBER GUARD $17.65 To Order
Photo Part No Description Price (each) Stock
83689600 WATER PIPE RUBBER GUARD $15.12 To Order
Photo Part No Description Price (each) Stock
231214 CLIP $1.26 IN STOCK
Photo Part No Description Price (each) Stock
320600 CLIP $2.10 To Order
Photo Part No Description Price (each) Stock
255515 BUSH $2.07 IN STOCK
Photo Part No Description Price (each) Stock
206739 CLAMP $7.74 To Order
Photo Part No Description Price (each) Stock
262737 RUBBER RETAINER $5.92 To Order
Photo Part No Description Price (each) Stock
292980 COLLAR $1.52 To Order
Photo Part No Description Price (each) Stock
241708 CLIP $2.27 To Order
View All

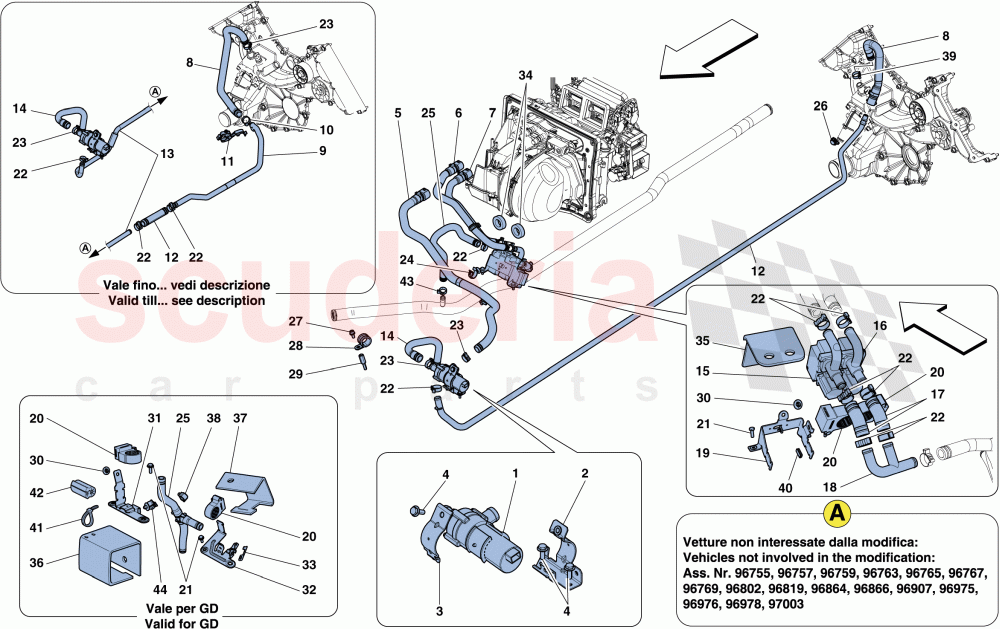

AC SYSTEM - WATER of Ferrari Ferrari 458 Italia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 65460300
COMPLETE WATER PUMP 		$416.27 1
2 82328900
BRACKET 		$37.83 1
3 82329400
CURVED BRACKET 		$20.17 1
4 880041
Allen Head Bolt M6 X 26
M6 X 14
ARRIVING SOON 		$5.29 3
5 82302800
CONNECTOR PIPE
Not for GD 		$88.28 1
5 82887100
CONNECTOR PIPE
Applicable for GD 		$176.59 1
6 82761900
RH TGK VALVE CONNECTOR PIPE
Not for GD 		$103.42 1
6 82887200
RH TGK VALVE CONNECTOR PIPE
Applicable for GD 		$315.35 1
7 82302700
LH TGK VALVE CONNECTOR PIPE
Not for GD 		$63.06 1
7 82887300
LH TGK VALVE CONNECTOR PIPE
Applicable for GD 		$176.59 1
8 82731600
HOSE
Applicable for GOLFO; Applicable up to Ass. No. 91118 		$126.13 1
8 82731600
HOSE
Applicable for EU GS; Applicable up to Ass. No. 90801 		$126.13 1
9 82535400
RIGID PIPE
Applicable for EU GS; Applicable up to Ass. No. 90801 		$201.81 1
9 82535400
RIGID PIPE
Applicable for GOLFO; Applicable up to Ass. No. 91118 		$201.81 1
11 82396800
CLIP
Applicable for GOLFO; Applicable up to Ass. No. 91118 		$1.00 1
11 82396800
CLIP
Applicable for EU GS; Applicable up to Ass. No. 90801 		$1.00 1
12 82890600
AC UNDERBODY PIPE
From start of production; Not for EU GS, GOLFO 		$163.98 1
12 82890600
AC UNDERBODY PIPE
Applicable for EU GS; Applicable from Ass. No. 90802 		$163.98 1
12 82890600
AC UNDERBODY PIPE
Applicable for GOLFO; Applicable from Ass. No. 91119 		$163.98 1
12 82731700
CONNECTOR PIPE
Applicable for EU GS; Applicable up to Ass. No. 90801 		$56.74 1
12 82731700
CONNECTOR PIPE
Applicable for GOLFO; Applicable up to Ass. No. 91118 		$56.74 1
13 249018
WATER PIPE
Applicable for GOLFO; Applicable up to Ass. No. 91118 		$122.34 1
13 249018
WATER PIPE
Applicable for EU GS; Applicable up to Ass. No. 90801 		$122.34 1
14 82887000
CONNECTOR PIPE
Applicable for GOLFO; Applicable from Ass. No. 91119 		$44.13 1
14 82887000
CONNECTOR PIPE
From start of production; Not for EU GS, GOLFO 		$44.13 1
14 82303000
CONNECTOR PIPE
Applicable for GOLFO; Applicable up to Ass. No. 91118 		$28.60 1
14 82887000
CONNECTOR PIPE
Applicable for EU GS; Applicable from Ass. No. 90802 		$44.13 1
14 82303000
CONNECTOR PIPE
Applicable for EU GS; Applicable up to Ass. No. 90801 		$28.60 1
15 67444900
LH TGK VALVE
IN STOCK 		$225.90 (21.6% off) 1
16 67635900
RH TGK VALVE
IN STOCK 		$210.84 (26.5% off) 1
17 291116
HOSE
Applicable from Ass. No. 119185 		$35.31 2
17 82302900
CONNECTOR PIPE
Applicable up to Ass. No. 119184 		$35.05 2
18 247947
RIGID TGK VALVE OUTLET PIPE
Applicable up to Ass. No. 119184 		$65.58 1
18 290953
RIGID TGK VALVE OUTLET PIPE
Applicable from Ass. No. 119185 		$4.96 1
19 82328500
TGK VALVE BLOCK MOUNTING BRACKET
Not for GD 		$26.47 1
20 174623
BUSH 		$11.88 2
21 11625824
SCREW
M6 X 18; Not for GD
IN STOCK 		$0.33 (67% off) 2
21 11625824
SCREW
M6 X 18; Applicable for GD
IN STOCK 		$0.33 (67% off) 4
21 880041
Allen Head Bolt M6 X 26
M6 X 14
ARRIVING SOON 		$5.29 1
24 270085
CLIP
IN STOCK 		$1.60 1
25 291115
HOSE
Applicable from Ass. No. 119185 		$41.61 1
25 82887400
HOSE
Applicable for GD 		$118.57 1
25 82944600
CONNECTOR PIPE
Applicable for GOLFO; Applicable from Ass. No. 91119 up to Ass. No. 119184 		$29.60 1
25 82944600
CONNECTOR PIPE
From start of production; Not for EU GS, GOLFO, GD; Applicable up to Ass. No. 119184 		$29.60 1
25 82303100
CONNECTOR PIPE
Applicable for GOLFO; Applicable up to Ass. No. 91118 		$32.78 1
25 82944600
CONNECTOR PIPE
Applicable for EU GS; Applicable from Ass. No. 90802 up to Ass. No. 119184 		$29.60 1
25 82303100
CONNECTOR PIPE
Applicable for EU GS; Applicable up to Ass. No. 90801 		$32.78 1
26 263232
CLIP
Applicable for EU GS; Applicable from Ass. No. 90802 		$1.26 1
26 263232
CLIP
Applicable for GOLFO; Applicable from Ass. No. 91119 		$1.26 1
26 263232
CLIP
From start of production; Not for EU GS, GOLFO 		$1.26 1
27 248334
SCREW
M6 X 14; From start of production; Not for EU GS, GOLFO
IN STOCK 		$0.58 1
27 248334
SCREW
M6 X 14; Applicable for EU GS; Applicable from Ass. No. 90802
IN STOCK 		$0.58 1
27 248334
SCREW
M6 X 14; Applicable for GOLFO; Applicable from Ass. No. 91119
IN STOCK 		$0.58 1
28 320600
CLIP
Applicable for GOLFO; Applicable from Ass. No. 91119 		$2.10 1
28 320600
CLIP
From start of production; Not for EU GS, GOLFO 		$2.10 1
28 320600
CLIP
Applicable for EU GS; Applicable from Ass. No. 90802 		$2.10 1
29 178772
SPACER STUD
From start of production; Not for EU GS, GOLFO 		$9.96 1
29 178772
SPACER STUD
Applicable for EU GS; Applicable from Ass. No. 90802 		$9.96 1
29 178772
SPACER STUD
Applicable for GOLFO; Applicable from Ass. No. 91119 		$9.96 1
30 303385
CLIP
IN STOCK 		$0.26 1
31 83413300
RH TGK VALVE MOUNTING BRACKET
Applicable for GD 		$34.05 1
32 83446400
LH TGK VALVE MOUNTING BRACKET
Applicable for GD; Applicable up to Ass. No. 96749 		$34.05 1
32 84058400
LH TGK VALVE MOUNTING BRACKET
not affected by modification; Applicable for GD; Applicable from Ass. No. 96750 		$114.78 1
33 162606
CLIP
Applicable for GD
IN STOCK 		$1.17 (20.4% off) 1
34 83444200
DRIP BAFFLE RING
IN STOCK 		$3.91 2
35 83560800
GUARD 		$8.95 1
36 83689500
WATER PIPE RUBBER GUARD
Applicable for GD 		$17.65 1
37 83689600
WATER PIPE RUBBER GUARD
Applicable for GD 		$15.12 1
38 231214
CLIP
Applicable for GD
IN STOCK 		$1.26 1
39 320600
CLIP 		$2.10 1
40 255515
BUSH
IN STOCK 		$2.07 1
41 206739
CLAMP
Applicable for GD 		$7.74 1
42 262737
RUBBER RETAINER
Applicable for GD 		$5.92 1
43 292980
COLLAR
Applicable for GD 		$1.52 1
44 241708
CLIP
Applicable for GD 		$2.27 1
