Ferrari 458 Spider - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
275436 CRANKSHAFT $2,183.63 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $31.27 IN STOCK
Photo Part No Description Price (each) Stock
186201 TAB $0.94 IN STOCK
Photo Part No Description Price (each) Stock
286834 UPPER HALF-BEARING $21.46 IN STOCK
286833 UPPER HALF-BEARING $22.71 IN STOCK
268866 UPPER HALF-BEARING $23.98 IN STOCK
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
268871 LOWER HALF-BEARING $22.71 To Order
286838 LOWER HALF-BEARING $21.10 To Order
286837 LOWER HALF-BEARING $22.71 IN STOCK
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
222874 SHIM RING $30.30 To Order
261727 SHIM RING $9.72 To Order
Photo Part No Description Price (each) Stock
256341 ENGINE DAMPER FLYWHEEL $3,150.22 To Order
Photo Part No Description Price (each) Stock
229907 SCREW $7.92 To Order
Photo Part No Description Price (each) Stock
196216 SCREW $65.26 IN STOCK
Photo Part No Description Price (each) Stock
263683 WASHER $45.47 To Order
Photo Part No Description Price (each) Stock
308488 COMPL. CONNECTING ROD AND CAP $2,187.68 To Order
Photo Part No Description Price (each) Stock
270248 SCREW $20.21 To Order
Photo Part No Description Price (each) Stock
224608 ALIGNMENT PIN $3.40 To Order
Photo Part No Description Price (each) Stock
234871 BUSHING $17.67 To Order
Photo Part No Description Price (each) Stock
260683 PISTON COMPL. WITH RINGS, RH CYLINDER BANK $1,187.29 To Order
260684 PISTON COMPL. WITH RINGS, LH CYLINDER BANK $1,187.29 To Order
Photo Part No Description Price (each) Stock
263328 PISTON RING SET $221.86 IN STOCK
Photo Part No Description Price (each) Stock
198260 GUDGEON PIN $57.70 To Order
Photo Part No Description Price (each) Stock
257919 STOP RING $5.22 To Order
Photo Part No Description Price (each) Stock
244418 CONNECTING ROD HALF-BEARING $22.71 To Order
262987 CONNECTING ROD HALF-BEARING $17.67 To Order
261719 CONNECTING ROD HALF-BEARING $17.67 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
176396 THREADED PLUG $5.36 To Order
View All

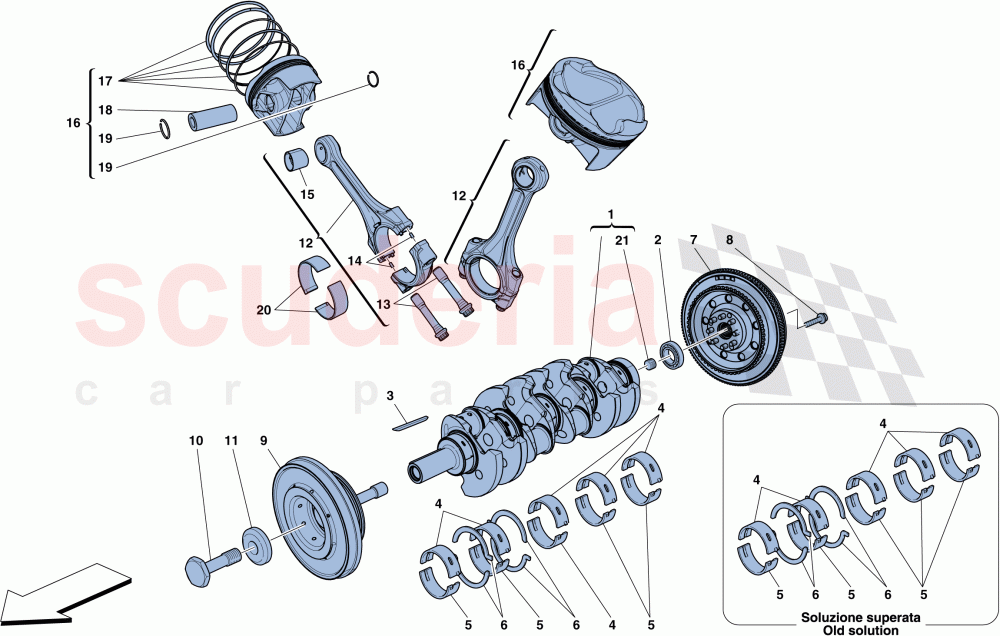

CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 458 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 275436
CRANKSHAFT 		$2,183.63 1
2 103877
BEARING
IN STOCK 		$31.27 1
3 186201
TAB
IN STOCK 		$0.94 1
4 286834
UPPER HALF-BEARING
Green; Not for EU GS, UK
IN STOCK 		$21.46 6
4 286833
UPPER HALF-BEARING
Yellow; Not for EU GS, UK
IN STOCK 		$22.71 6
4 268866
UPPER HALF-BEARING
Green; Applicable for EU GS, UK
IN STOCK 		$23.98 6
4 286832
UPPER MAIN HALF BEARING BLUE
Blue; Not for EU GS, UK
IN STOCK 		$23.47 6
4 268865
UPPER HALF-BEARING
Yellow; Applicable for EU GS, UK 		$21.46 6
4 268864
UPPER HALF-BEARING
Blue; Applicable for EU GS, UK 		$23.98 6
5 268871
LOWER HALF-BEARING
Green; Applicable for EU GS, UK 		$22.71 4
5 286838
LOWER HALF-BEARING
Green; Not for EU GS, UK 		$21.10 4
5 286837
LOWER HALF-BEARING
Yellow; Not for EU GS, UK
IN STOCK 		$22.71 4
5 200194
Lower Main Half Bearing Blue
Blue; Not for EU GS, UK
IN STOCK 		$28.64 4
5 268870
LOWER HALF-BEARING
Yellow; Applicable for EU GS, UK 		$21.46 4
5 268869
LOWER HALF-BEARING
Blue; Applicable for EU GS, UK 		$23.98 4
6 222874
SHIM RING
Not for EU GS, UK 		$30.30 4
6 261727
SHIM RING
Applicable for EU GS, UK 		$9.72 4
7 256341
ENGINE DAMPER FLYWHEEL 		$3,150.22 1
8 229907
SCREW 		$7.92 8
10 196216
SCREW
IN STOCK 		$65.26 (1.6% off) 1
11 263683
WASHER 		$45.47 1
12 308488
COMPL. CONNECTING ROD AND CAP 		$2,187.68 8
13 270248
SCREW 		$20.21 16
14 224608
ALIGNMENT PIN 		$3.40 16
15 234871
BUSHING 		$17.67 8
16 260683
PISTON COMPL. WITH RINGS, RH CYLINDER BANK 		$1,187.29 4
16 260684
PISTON COMPL. WITH RINGS, LH CYLINDER BANK 		$1,187.29 4
17 263328
PISTON RING SET
IN STOCK 		$221.86 8
18 198260
GUDGEON PIN
Applicable until depletion 		$57.70 8
19 257919
STOP RING
Applicable until depletion 		$5.22 16
20 244418
CONNECTING ROD HALF-BEARING
Black; Not for EU GS, UK 		$22.71 16
20 262987
CONNECTING ROD HALF-BEARING
Pink; Lead free; Applicable from engine No. 175549 		$17.67 16
20 261719
CONNECTING ROD HALF-BEARING
Blue; Applicable for EU GS, UK 		$17.67 16
20 244417
CONNECTING ROD HALF-BEARING
Blue; Not for EU GS, UK 		$23.98 16
20 261720
CONNECTING ROD HALF-BEARING
Black; Applicable for EU GS, UK; No longer supplied 		$17.67 16
20 261718
CONNECTING ROD HALF-BEARING
Red; Applicable for EU GS, UK 		$17.67 16
20 244416
CONNECTING ROD HALF-BEARING
Red; Not for EU GS, UK 		$22.71 16
21 176396
THREADED PLUG 		$5.36 1
