Lubrication System: Tank, Pump And Filter

Ferrari 458 Speciale Aperta

Find Your Part

Ferrari 458 Speciale Aperta - LUBRICATION SYSTEM: TANK, PUMP AND FILTER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock

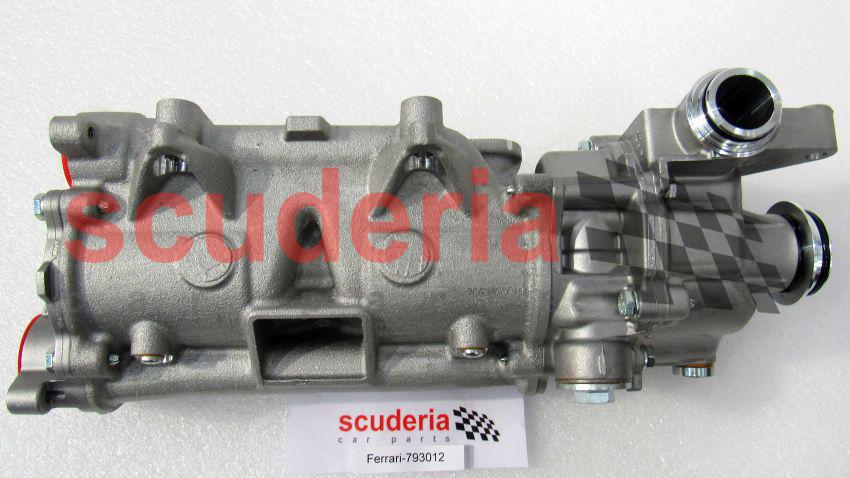

793012 COMPL. OIL PUMP $3,571.38 To Order
781584 COMPL. OIL PUMP $3,608.24 To Order
Photo Part No Description Price (each) Stock
274261 COMPL. OIL TANK $1,759.29 To Order
Photo Part No Description Price (each) Stock
237937 COMPLETE CAP $288.29 To Order
Photo Part No Description Price (each) Stock
176179 RUBBER PIPE FROM TANK TO CONNECTOR $6.47 To Order
Photo Part No Description Price (each) Stock
258855 3-WAY CONNECTOR $40.28 IN STOCK
Photo Part No Description Price (each) Stock
165608 RUBBER PIPE $2.56 To Order
Photo Part No Description Price (each) Stock
141235 RUBBER PIPE $9.64 To Order
Photo Part No Description Price (each) Stock
290312 RH INLET PIPE $101.67 To Order
274264 RH INLET PIPE $66.08 To Order
Photo Part No Description Price (each) Stock
290313 LH INLET PIPE $101.67 IN STOCK
274266 LH INLET PIPE $64.80 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
Photo Part No Description Price (each) Stock
287204 PIPE WITH FLANGE $735.45 IN STOCK
Photo Part No Description Price (each) Stock
255176 OIL PICKUP $151.72 IN STOCK
Photo Part No Description Price (each) Stock
104212 O-RING $0.66 IN STOCK
862084 GASKET $4.94 To Order
Photo Part No Description Price (each) Stock
239453 YOKE $6.59 To Order
Photo Part No Description Price (each) Stock
284579 OIL VAPOUR BREATHER PIPE $176.14 To Order
281311 OIL VAPOUR BREATHER PIPE $144.14 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
13431970 COLLAR $0.81 To Order
Photo Part No Description Price (each) Stock
100332 OIL PICKUP FILTER $17.95 ARRIVING SOON
Photo Part No Description Price (each) Stock
125521 O-RING $10.59 To Order
Photo Part No Description Price (each) Stock
11500524 STUD BOLT $0.34 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.21 IN STOCK
Photo Part No Description Price (each) Stock
293107 THREADED PLUG $77.92 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
253909 OIL RECOVERY PIPE $292.31 To Order
Photo Part No Description Price (each) Stock
121903 O-RING $0.71 IN STOCK
Photo Part No Description Price (each) Stock
239452 YOKE $6.59 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.32 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
241986 COLLAR FOR HOSE UNION $0.97 IN STOCK
Photo Part No Description Price (each) Stock
275528 PUMP SEAL FILTER $30.49 IN STOCK
Photo Part No Description Price (each) Stock
14306424 SCREW $0.23 IN STOCK
Photo Part No Description Price (each) Stock
14306624 SCREW $0.28 IN STOCK
Photo Part No Description Price (each) Stock
292495 CALIBRATED STUD BOLT $26.67 To Order
Photo Part No Description Price (each) Stock
986847 CONICAL WASHER $0.60 To Order
Photo Part No Description Price (each) Stock
247044 HEXAGONAL OIL PUMP DRIVE ROD $31.76 To Order
Photo Part No Description Price (each) Stock
271893 OIL PUMP GASKET KIT $82.72 IN STOCK
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG $1.10 To Order
291502 CONNECTOR $64.80 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
819489 FLANGED BUSHING $13.96 To Order
Photo Part No Description Price (each) Stock
255546 CLIP $1.78 IN STOCK
Photo Part No Description Price (each) Stock
263347 BRACKET $10.41 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
294005 STUD BOLT $14.70 To Order
Photo Part No Description Price (each) Stock
293410 STUD BOLT $31.34 To Order
Photo Part No Description Price (each) Stock
299989 OIL PUMP HEAT SHIELD $457.53 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
274262 OIL TANK $2,193.66 To Order
Photo Part No Description Price (each) Stock
284208 OIL VAPOUR BREATHER PIPE ON HEADS $183.85 IN STOCK
Photo Part No Description Price (each) Stock
284209 OIL VAPOUR BREATHER PIPE, TANK SIDE $67.35 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.32 To Order
View All
LUBRICATION SYSTEM: TANK, PUMP AND FILTER of Ferrari Ferrari 458 Speciale Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 793012
COMPL. OIL PUMP 		$3,571.38 1
1 781584
COMPL. OIL PUMP
No longer supplied; Replaced by 793012 		$3,608.24 1
2 274261
COMPL. OIL TANK
After depletion, order loose components; Applicable until depletion 		$1,759.29 1
3 237937
COMPLETE CAP 		$288.29 1
4 176179
RUBBER PIPE FROM TANK TO CONNECTOR
Applicable for USA, CDN, USA LIGHT 		$6.47 1
5 258855
3-WAY CONNECTOR
Applicable for USA, CDN, USA LIGHT
IN STOCK 		$40.28 1
6 165608
RUBBER PIPE
Applicable for USA, CDN, USA LIGHT 		$2.56 1
7 141235
RUBBER PIPE
Applicable for USA, CDN, USA LIGHT 		$9.64 1
8 290312
RH INLET PIPE
Applicable for USA, CDN, USA LIGHT 		$101.67 1
8 274264
RH INLET PIPE
Not for USA, CDN, USA LIGHT 		$66.08 1
9 290313
LH INLET PIPE
Applicable for USA, CDN, USA LIGHT
IN STOCK 		$101.67 1
9 274266
LH INLET PIPE
Not for USA, CDN, USA LIGHT 		$64.80 1
10 13432070
HOSE COLLAR
D. 15.7
IN STOCK 		$0.49 (54.2% off) 2
11 287204
PIPE WITH FLANGE
IN STOCK 		$735.45 1
12 255176
OIL PICKUP
IN STOCK 		$151.72 1
13 104212
O-RING
Also supplied with kit 271893 ref. 37
IN STOCK 		$0.66 (34% off) 2
13 862084
GASKET
Also supplied with kit 271893 ref. 37 		$4.94 1
14 239453
YOKE 		$6.59 1
15 284579
OIL VAPOUR BREATHER PIPE
After depletion, order loose components; Applicable for USA, CDN, USA LIGHT; Applicable until depletion 		$176.14 1
15 281311
OIL VAPOUR BREATHER PIPE
Not for USA, CDN, USA LIGHT 		$144.14 1
16 13432070
HOSE COLLAR
D. 15.7; Head side
IN STOCK 		$0.49 (54.2% off) 2
16 13431970
COLLAR
Tank side 		$0.81 1
17 100332
OIL PICKUP FILTER
ARRIVING SOON 		$17.95 1
18 125521
O-RING 		$10.59 1
19 11500524
STUD BOLT 		$0.34 (66% off) 4
20 177576
CABLE GROMMET
IN STOCK 		$2.21 4
21 293107
THREADED PLUG
IN STOCK 		$77.92 1
22 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 4
23 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
24 253909
OIL RECOVERY PIPE 		$292.31 1
25 121903
O-RING
Also supplied with kit 271893 ref. 37
IN STOCK 		$0.71 (63.6% off) 4
26 239452
YOKE 		$6.59 2
27 248334
SCREW
M6 X 14
IN STOCK 		$0.58 2
28 10261460
COPPER WASHER 16 X 24 X 1.5
IN STOCK 		$0.32 (68% off) 1
29 248334
SCREW
M6 X 14
IN STOCK 		$0.58 4
30 241986
COLLAR FOR HOSE UNION
Applicable for USA, CDN, USA LIGHT
IN STOCK 		$0.97 1
31 275528
PUMP SEAL FILTER
IN STOCK 		$30.49 1
32 14306424
SCREW
M8 X 20
IN STOCK 		$0.23 (43.9% off) 2
33 14306624
SCREW
M8 X 35
IN STOCK 		$0.28 2
34 292495
CALIBRATED STUD BOLT 		$26.67 2
35 986847
CONICAL WASHER 		$0.60 6
36 247044
HEXAGONAL OIL PUMP DRIVE ROD 		$31.76 1
37 271893
OIL PUMP GASKET KIT
IN STOCK 		$82.72 (32.4% off) 1
38 14326101
THREADED PLUG
Applicable for USA, CDN, USA LIGHT 		$1.10 (33.3% off) 1
38 291502
CONNECTOR
Not for USA, CDN, USA LIGHT 		$64.80 1
39 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
40 14059290
FLANGED NUT M6
IN STOCK 		$1.32 4
41 819489
FLANGED BUSHING 		$13.96 8
42 255546
CLIP
IN STOCK 		$1.78 1
43 263347
BRACKET 		$10.41 1
44 248334
SCREW
IN STOCK 		$0.58 2
45 294005
STUD BOLT 		$14.70 1
46 293410
STUD BOLT 		$31.34 1
47 299989
OIL PUMP HEAT SHIELD 		$457.53 1
48 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
49 274262
OIL TANK 		$2,193.66 1
50 284208
OIL VAPOUR BREATHER PIPE ON HEADS
Applicable for USA, CDN, USA LIGHT
IN STOCK 		$183.85 1
51 284209
OIL VAPOUR BREATHER PIPE, TANK SIDE
Applicable for USA, CDN, USA LIGHT 		$67.35 1
52 13046011
NUT 		$0.32 1
