Secondary Air System

Ferrari 458 Speciale

Find Your Part

Ferrari 458 Speciale - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247795 SECONDARY AIR SYSTEM PUMP $744.39 ARRIVING SOON
Photo Part No Description Price (each) Stock
251773 BRACKET $34.11 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
297245 CONNECTOR PIPE $644.55 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
258291 LH HEAT SHIELD $176.92 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
195645 VACUUM ACCUMULATOR TANK $189.56 To Order
Photo Part No Description Price (each) Stock
60758600 NUT $0.49 To Order
Photo Part No Description Price (each) Stock
277185 BREATHER PIPE FROM REGULATOR CYLINDER $45.48 To Order
Photo Part No Description Price (each) Stock
295677 RUBBER PIPE $21.48 To Order
Photo Part No Description Price (each) Stock
282849 PRESSURE SENSOR $33.96 To Order
Photo Part No Description Price (each) Stock
296233 RH VACUUM PIPE TO ENGINE $176.92 To Order
Photo Part No Description Price (each) Stock
296234 LH VACUUM PIPE TO ENGINE $176.92 To Order
Photo Part No Description Price (each) Stock
265726 SHIELD BRACKET $12.25 To Order
Photo Part No Description Price (each) Stock
296235 PIPE FROM TANK TO CONNECTOR $240.11 To Order
Photo Part No Description Price (each) Stock
251422 CONNECTOR $10.96 To Order
Photo Part No Description Price (each) Stock
10716370 COLLAR $0.78 IN STOCK
13432070 HOSE COLLAR $0.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
295349 VACUUM RETAINER VALVE $44.22 To Order
Photo Part No Description Price (each) Stock
257691 3-WAY CONNECTOR $1.34 To Order
Photo Part No Description Price (each) Stock
178309 SOLENOID VALVE $100.55 IN STOCK
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
248008 CAP $13.72 To Order
Photo Part No Description Price (each) Stock
296238 ALUMINIUM PIPE $214.84 To Order
Photo Part No Description Price (each) Stock
295441 RUBBER PIPE $18.95 To Order
Photo Part No Description Price (each) Stock
199696 BRAIDED CONNECTOR $10.85 To Order
Photo Part No Description Price (each) Stock
260272 BENT PIPE $10.35 To Order
Photo Part No Description Price (each) Stock
260244 BRACKET $9.72 To Order
Photo Part No Description Price (each) Stock
260246 BRACKET $6.55 To Order
Photo Part No Description Price (each) Stock
11570024 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
295349 VACUUM RETAINER VALVE $44.22 To Order
Photo Part No Description Price (each) Stock
149773 CLIP $0.38 IN STOCK
263772 CLIP $1.43 IN STOCK
Photo Part No Description Price (each) Stock
297266 SECONDARY AIR SYSTEM PIPE $189.56 To Order
Photo Part No Description Price (each) Stock
225098 PLUG $1.45 IN STOCK
Photo Part No Description Price (each) Stock
141235 RUBBER PIPE $9.59 To Order
Photo Part No Description Price (each) Stock
284235 SECONDARY AIR SYSTEM VALVE $240.11 To Order
Photo Part No Description Price (each) Stock
183717 SLEEVE $328.59 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
186781 GASKET $4.94 To Order
Photo Part No Description Price (each) Stock
245816 RH VALVE FASTENER BRACKET $14.77 To Order
245815 LH VALVE FASTENER BRACKET $18.95 To Order
Photo Part No Description Price (each) Stock
263794 PIPE FROM AIR VALVE TO RH MANIFOLD $202.19 To Order
263795 PIPE FROM AIR VALVE TO LH MANIFOLD $202.19 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
819489 FLANGED BUSHING $13.88 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
241986 COLLAR FOR HOSE UNION $0.96 IN STOCK
Photo Part No Description Price (each) Stock
295677 RUBBER PIPE $21.48 To Order
Photo Part No Description Price (each) Stock
249556 CLIP $0.47 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
View All

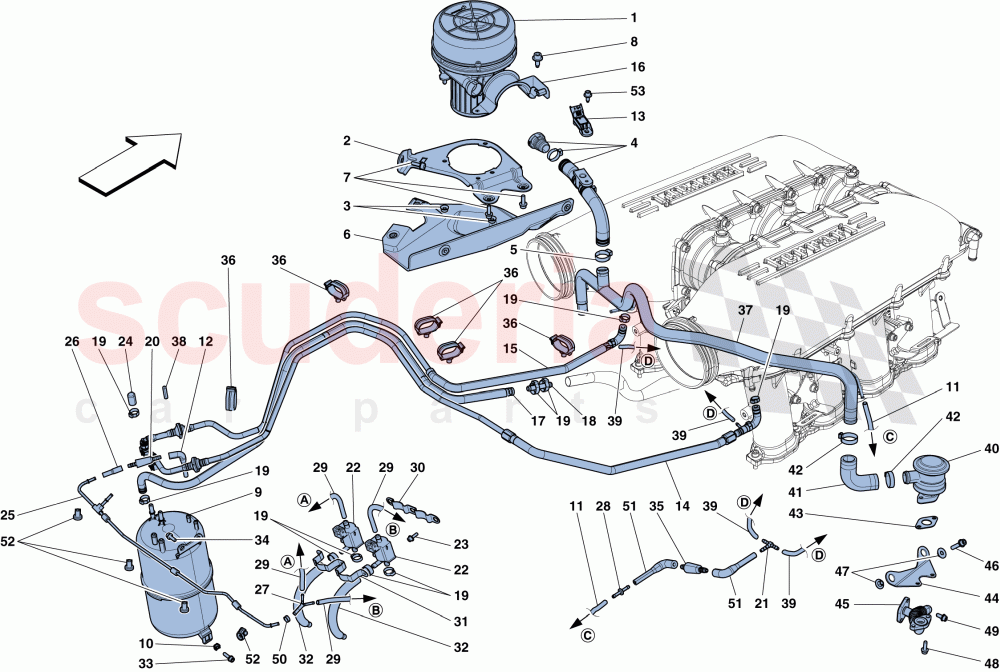

SECONDARY AIR SYSTEM of Ferrari Ferrari 458 Speciale Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 247795
SECONDARY AIR SYSTEM PUMP
ARRIVING SOON 		$744.39 (29.4% off) 1
2 251773
BRACKET 		$34.11 1
3 14059290
FLANGED NUT M6
IN STOCK 		$1.31 3
4 297245
CONNECTOR PIPE 		$644.55 1
5 262111
SCREW CLAMP 		$1.39 1
6 258291
LH HEAT SHIELD 		$176.92 1
7 231619
SCREW
M6 X 18
IN STOCK 		$0.29 3
8 11566224
SCREW
IN STOCK 		$0.34 2
9 195645
VACUUM ACCUMULATOR TANK 		$189.56 (29.1% off) 1
10 60758600
NUT 		$0.49 (68.4% off) 1
11 277185
BREATHER PIPE FROM REGULATOR CYLINDER 		$45.48 1
12 295677
RUBBER PIPE 		$21.48 1
13 282849
PRESSURE SENSOR 		$33.96 1
14 296233
RH VACUUM PIPE TO ENGINE 		$176.92 1
15 296234
LH VACUUM PIPE TO ENGINE 		$176.92 1
16 265726
SHIELD BRACKET 		$12.25 1
17 296235
PIPE FROM TANK TO CONNECTOR 		$240.11 1
18 251422
CONNECTOR 		$10.96 1
19 10716370
COLLAR
D. 18
IN STOCK 		$0.78 3
19 13432070
HOSE COLLAR
D. 16.2
ARRIVING SOON 		$0.49 (54.2% off) 7
20 295349
VACUUM RETAINER VALVE 		$44.22 1
21 257691
3-WAY CONNECTOR 		$1.34 1
22 178309
SOLENOID VALVE
IN STOCK 		$100.55 (27.6% off) 2
23 11566224
SCREW
M5 X 16
IN STOCK 		$0.34 3
24 248008
CAP 		$13.72 1
25 296238
ALUMINIUM PIPE 		$214.84 1
26 295441
RUBBER PIPE 		$18.95 1
28 199696
BRAIDED CONNECTOR 		$10.85 1
29 260272
BENT PIPE 		$10.35 2
30 260244
BRACKET 		$9.72 1
31 260246
BRACKET 		$6.55 1
33 11570024
SCREW 		$0.50 1
34 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
35 295349
VACUUM RETAINER VALVE 		$44.22 1
36 149773
CLIP
For air pipes on chassis
IN STOCK 		$0.38 2
36 263772
CLIP
For actuator pipes on LH reinforcement
IN STOCK 		$1.43 3
37 297266
SECONDARY AIR SYSTEM PIPE 		$189.56 1
38 225098
PLUG
IN STOCK 		$1.45 1
39 141235
RUBBER PIPE 		$9.59 2
40 284235
SECONDARY AIR SYSTEM VALVE 		$240.11 2
41 183717
SLEEVE 		$328.59 2
42 262111
SCREW CLAMP 		$1.39 4
43 186781
GASKET 		$4.94 (22.2% off) 4
44 245816
RH VALVE FASTENER BRACKET 		$14.77 1
44 245815
LH VALVE FASTENER BRACKET 		$18.95 1
45 263794
PIPE FROM AIR VALVE TO RH MANIFOLD 		$202.19 1
45 263795
PIPE FROM AIR VALVE TO LH MANIFOLD 		$202.19 1
46 231620
SCREW
M6 X 25
IN STOCK 		$0.30 (14.3% off) 4
47 819489
FLANGED BUSHING 		$13.88 8
48 231619
SCREW
M6 X 20
IN STOCK 		$0.29 4
49 248334
SCREW
M6 X 14
IN STOCK 		$0.58 4
50 241986
COLLAR FOR HOSE UNION
IN STOCK 		$0.96 1
51 295677
RUBBER PIPE 		$21.48 2
52 249556
CLIP
IN STOCK 		$0.47 4
53 248334
SCREW
IN STOCK 		$0.58 1
