Name: FUEL SYSTEM PUMPS AND PIPES
Rating: 4.2 (1 reviews)

View All

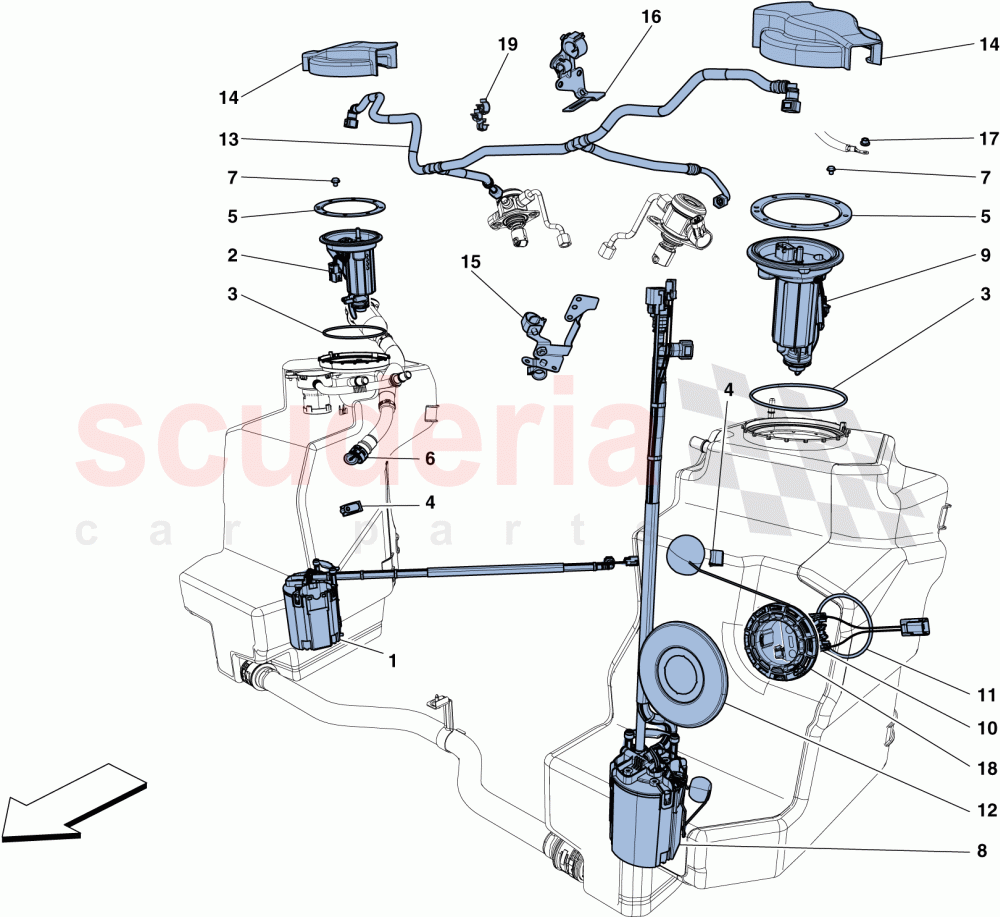

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	272086	FUEL PUMP	$1,609.75	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	282784	FUEL PUMP FILTER RH	$629.49	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	275314	O-RING	$6.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	254078	CLIP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	275998	FASTENER RING	$70.71	To Order

Photo	Part No	Description	Price (each)	Stock
	237407	ANTI SPIT-BACK VALVE	$32.82	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	272087	LH FUEL PUMP	$1,463.60	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	282785	FUEL PUMP FILTER LH	$995.91	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	273540	COMPL. INCLINATION SENSOR	$1,807.38	To Order

Photo	Part No	Description	Price (each)	Stock
	239413	O-RING	$4.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	250480	INSPECTION CAP	$28.63	To Order

Photo	Part No	Description	Price (each)	Stock
	272380	DELIVERY PIPE FUEL TANK TO INJECTORS	$417.56	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	264802	COVER	$34.08	To Order

Photo	Part No	Description	Price (each)	Stock
	262273	WIRING HARNESS FASTENER BRACKET	$39.12	To Order

Photo	Part No	Description	Price (each)	Stock
	290701	CHANNEL FASTENER BRACKET	$31.56	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	276001	FASTENER RING	$235.73	To Order

Photo	Part No	Description	Price (each)	Stock
	276436	CLIP	$1.69	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	272086	FUEL PUMP ARRIVING SOON	272086 FUEL PUMP ARRIVING SOON	$1,609.75	1
2	282784	FUEL PUMP FILTER RH ARRIVING SOON	282784 FUEL PUMP FILTER RH ARRIVING SOON	$629.49	1
3	275314	O-RING IN STOCK	275314 O-RING IN STOCK	$6.00 MSRP: ~~7.65~~ (21.6% off)	2
4	254078	CLIP	254078 CLIP	$1.60	2
5	275998	FASTENER RING	275998 FASTENER RING	$70.71	2
6	237407	ANTI SPIT-BACK VALVE	237407 ANTI SPIT-BACK VALVE	$32.82	1
7	11566224	SCREW IN STOCK	11566224 SCREW M5 X 16 IN STOCK	$0.34	16
8	272087	LH FUEL PUMP ARRIVING SOON	272087 LH FUEL PUMP ARRIVING SOON	$1,463.60	1
9	282785	FUEL PUMP FILTER LH ARRIVING SOON	282785 FUEL PUMP FILTER LH ARRIVING SOON	$995.91	1
10	273540	COMPL. INCLINATION SENSOR	273540 COMPL. INCLINATION SENSOR	$1,807.38 MSRP: ~~3,447.36~~ (47.6% off)	1
11	239413	O-RING IN STOCK	239413 O-RING IN STOCK	$4.69 MSRP: ~~14.23~~ (67% off)	1
12	250480	INSPECTION CAP	250480 INSPECTION CAP	$28.63	1
13	272380	DELIVERY PIPE FUEL TANK TO INJECTORS ARRIVING SOON	272380 DELIVERY PIPE FUEL TANK TO INJECTORS ARRIVING SOON	$417.56	1
14	264802	COVER	264802 COVER	$34.08	2
15	262273	WIRING HARNESS FASTENER BRACKET	262273 WIRING HARNESS FASTENER BRACKET	$39.12	1
16	290701	CHANNEL FASTENER BRACKET	290701 CHANNEL FASTENER BRACKET	$31.56	1
17	13046011	NUT	13046011 NUT	$0.32	2
18	276001	FASTENER RING	276001 FASTENER RING	$235.73	1
19	276436	CLIP	276436 CLIP	$1.69	1

Fuel System Pumps And Pipes

Ferrari 458 Speciale
