Flat Undertray And Wheelhouses

Ferrari 458 Speciale

Find Your Part

Ferrari 458 Speciale - FLAT UNDERTRAY AND WHEELHOUSES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
86245100 COMPL. FRONT RH UNDERBODY SHIELD $265.64 To Order
Photo Part No Description Price (each) Stock
86245200 COMPL. FRONT LH UNDERBODY SHIELD $265.64 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $5.31 ARRIVING SOON
Photo Part No Description Price (each) Stock
62766300 SCRE CLIP M6 $0.72 IN STOCK
Photo Part No Description Price (each) Stock
82884900 CENTRAL UNDERBODY SHIELD $290.96 To Order
Photo Part No Description Price (each) Stock
82955800 CENTRAL UNDERBODY SHIELD, FRONT SECTION $196.08 IN STOCK
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $5.31 ARRIVING SOON
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $5.31 ARRIVING SOON
Photo Part No Description Price (each) Stock
85282500 REAR UNDERBODY SHIELD $7,758.77 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $5.31 ARRIVING SOON
Photo Part No Description Price (each) Stock
85353500 RH FRONT WHEELHOUSE $430.61 To Order
85353700 LH FRONT WHEELHOUSE $430.61 To Order
Photo Part No Description Price (each) Stock
85493600 LH Gravel Guard $336.74 IN STOCK
85493500 RH Front Gravel Guard $360.78 IN STOCK
Photo Part No Description Price (each) Stock
14296196 RIVET $0.23 To Order
Photo Part No Description Price (each) Stock
82159500 CAP FOR SLOT $2.78 To Order
Photo Part No Description Price (each) Stock
85199200 FIXING BUTTON $5.58 IN STOCK
Photo Part No Description Price (each) Stock
85924900 COMPL. LH WHEELHOUSE $791.43 To Order
85925000 COMPL. RH WHEELHOUSE $791.43 To Order
Photo Part No Description Price (each) Stock
83862100 VENT OUTLET $67.04 To Order
Photo Part No Description Price (each) Stock
83561600 REAR GRAVEL GUARD GRILLE $139.64 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
85199200 FIXING BUTTON $5.58 IN STOCK
Photo Part No Description Price (each) Stock
85354000 RH REAR WHEELHOUSE REAR GRAVEL GUARD $651.75 To Order
85354200 LH REAR WHEELHOUSE REAR GRAVEL GUARD $651.75 To Order
Photo Part No Description Price (each) Stock
81763000 RH DUCT $222.21 IN STOCK
Photo Part No Description Price (each) Stock
81763100 LH DUCT $222.21 IN STOCK
Photo Part No Description Price (each) Stock
85924800 UPPER RH HEAT SHIELD $366.86 To Order
85924700 UPPER LH HEAT SHIELD $366.86 To Order
Photo Part No Description Price (each) Stock
85924600 LOWER RH HEAT SHIELD $366.86 To Order
85924500 LOWER LH HEAT SHIELD $366.86 To Order
Photo Part No Description Price (each) Stock
83003800 FLOOR HATCH COVER $108.78 IN STOCK
Photo Part No Description Price (each) Stock
142798 RUBBER SHIM $1.45 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
12648925 WASHER $0.35 IN STOCK
Photo Part No Description Price (each) Stock
86245000 RH FRONT DAM $122.69 To Order
Photo Part No Description Price (each) Stock
86244900 LH FRONT DAM $121.43 To Order
Photo Part No Description Price (each) Stock
88822200 SCREW $0.60 ARRIVING SOON
Photo Part No Description Price (each) Stock
284407 RH REAR BRAKE AIR DUCT $468.07 To Order
284350 LH REAR BRAKE AIR DUCT $468.07 To Order
Photo Part No Description Price (each) Stock
14643291 RIVET $0.06 To Order
Photo Part No Description Price (each) Stock
62766300 SCRE CLIP M6 $0.72 IN STOCK
Photo Part No Description Price (each) Stock
86245100 COMPL. FRONT RH UNDERBODY SHIELD $265.64 To Order
Photo Part No Description Price (each) Stock
86245200 COMPL. FRONT LH UNDERBODY SHIELD $265.64 To Order
Photo Part No Description Price (each) Stock
86431400 WASHER $13.49 To Order
View All

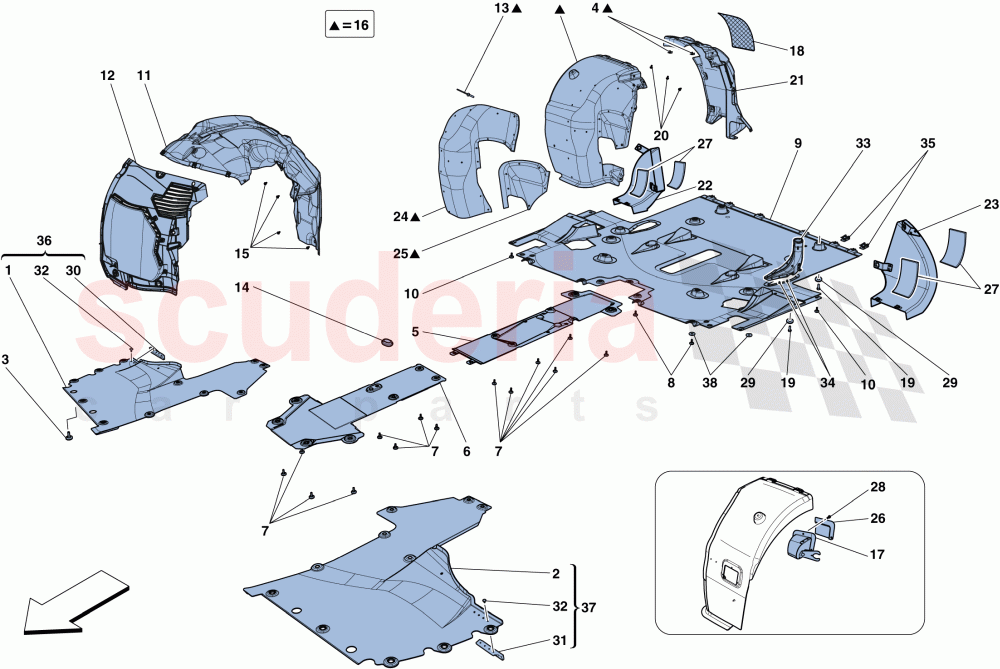

FLAT UNDERTRAY AND WHEELHOUSES of Ferrari Ferrari 458 Speciale Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 86245100
COMPL. FRONT RH UNDERBODY SHIELD
No longer supplied 		$265.64 1
2 86245200
COMPL. FRONT LH UNDERBODY SHIELD
No longer supplied 		$265.64 1
3 880041
Allen Head Bolt M6 X 26
M6 X 20
ARRIVING SOON 		$5.31 22
4 62766300
SCRE CLIP M6
IN STOCK 		$0.72 (4% off) 6
5 82884900
CENTRAL UNDERBODY SHIELD 		$290.96 1
6 82955800
CENTRAL UNDERBODY SHIELD, FRONT SECTION
IN STOCK 		$196.08 (31.1% off) 1
7 880041
Allen Head Bolt M6 X 26
M6 X 20
ARRIVING SOON 		$5.31 14
8 880041
Allen Head Bolt M6 X 26
M6 X 20
ARRIVING SOON 		$5.31 15
9 85282500
REAR UNDERBODY SHIELD 		$7,758.77 1
10 880041
Allen Head Bolt M6 X 26
M6 X 22
ARRIVING SOON 		$5.31 4
11 85353500
RH FRONT WHEELHOUSE
Also order 85353700 		$430.61 1
11 85353700
LH FRONT WHEELHOUSE
Also order 85353500 		$430.61 1
12 85493600
LH Gravel Guard
Also order 85493500
IN STOCK 		$336.74 1
12 85493500
RH Front Gravel Guard
Also order 85493600
IN STOCK 		$360.78 (22.7% off) 1
13 14296196
RIVET 		$0.23 (61.7% off) 48
14 82159500
CAP FOR SLOT 		$2.78 2
15 85199200
FIXING BUTTON
M6 X 15
IN STOCK 		$5.58 28
16 85924900
COMPL. LH WHEELHOUSE
Also order 85925000 		$791.43 1
16 85925000
COMPL. RH WHEELHOUSE
Also order 85924900 		$791.43 1
17 83862100
VENT OUTLET
On LH rear gravel guard; Applicable for vapour filter 273201 Tab. 12 ref. 34 		$67.04 1
18 83561600
REAR GRAVEL GUARD GRILLE 		$139.64 2
19 231620
SCREW
IN STOCK 		$0.31 (11.4% off) 4
20 85199200
FIXING BUTTON
M6 X 15
IN STOCK 		$5.58 32
21 85354000
RH REAR WHEELHOUSE REAR GRAVEL GUARD
Also order 85354200 		$651.75 1
21 85354200
LH REAR WHEELHOUSE REAR GRAVEL GUARD
Also order 85354000 		$651.75 1
22 81763000
RH DUCT
IN STOCK 		$222.21 1
23 81763100
LH DUCT
IN STOCK 		$222.21 1
24 85924800
UPPER RH HEAT SHIELD 		$366.86 1
24 85924700
UPPER LH HEAT SHIELD 		$366.86 1
25 85924600
LOWER RH HEAT SHIELD 		$366.86 1
25 85924500
LOWER LH HEAT SHIELD 		$366.86 1
26 83003800
FLOOR HATCH COVER
IN STOCK 		$108.78 1
27 142798
RUBBER SHIM 		$1.45 4
28 11566224
SCREW
IN STOCK 		$0.34 3
29 12648925
WASHER
IN STOCK 		$0.35 4
30 86245000
RH FRONT DAM 		$122.69 1
31 86244900
LH FRONT DAM 		$121.43 1
32 88822200
SCREW
ARRIVING SOON 		$0.60 8
33 284407
RH REAR BRAKE AIR DUCT 		$468.07 1
33 284350
LH REAR BRAKE AIR DUCT 		$468.07 1
34 14643291
RIVET 		$0.06 16
35 62766300
SCRE CLIP M6
IN STOCK 		$0.72 (4% off) 6
36 86245100
COMPL. FRONT RH UNDERBODY SHIELD 		$265.64 1
37 86245200
COMPL. FRONT LH UNDERBODY SHIELD 		$265.64 1
38 86431400
WASHER 		$13.49 12
