Fuel Supply System

Ferrari 456 M GT/GTA

Find Your Part

Ferrari 456 M GT/GTA - FUEL SUPPLY SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
178520 R.H. DELIVERY PIPE $348.16 To Order
Photo Part No Description Price (each) Stock
179263 R.H. RETURN PIPE $363.30 To Order
Photo Part No Description Price (each) Stock
155253 R.H. DELIVERY RIGID PIPE $159.94 To Order
Photo Part No Description Price (each) Stock
156362 R.H. RETURN RIGID PIPE $190.17 To Order
Photo Part No Description Price (each) Stock
157584 R.H. REAR DELIVERY RIGID PIPE $177.50 To Order
Photo Part No Description Price (each) Stock
174815 R.H. REAR DELIVERY PIPE $127.14 IN STOCK
Photo Part No Description Price (each) Stock
174813 R.H. REAR RETURN PIPE $118.06 IN STOCK
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.64 To Order
Photo Part No Description Price (each) Stock
139512 BRACKET WITH SHEATH $2.19 To Order
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH $1.53 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
277407 HOSE CONNECTOR $10.26 IN STOCK
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
111644 UNION $3.88 To Order
Photo Part No Description Price (each) Stock
11270160 COPPER WASHER $1.48 IN STOCK
Photo Part No Description Price (each) Stock
127816 O-RING $3.32 IN STOCK
Photo Part No Description Price (each) Stock
232649 CLIP $1.07 IN STOCK
Photo Part No Description Price (each) Stock
62658800 CLIP $1.73 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
129316 R.H. SAFETY PLATE $3.35 To Order
Photo Part No Description Price (each) Stock
14054577 CAP NUT $0.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
140727 CLIP $0.23 IN STOCK
Photo Part No Description Price (each) Stock
176109 CLIP $1.45 To Order
Photo Part No Description Price (each) Stock
186922 Fuel Filter $103.75 IN STOCK
Photo Part No Description Price (each) Stock
152885 BRACKET WITH SHEATH $8.43 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.98 IN STOCK
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.64 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
View All

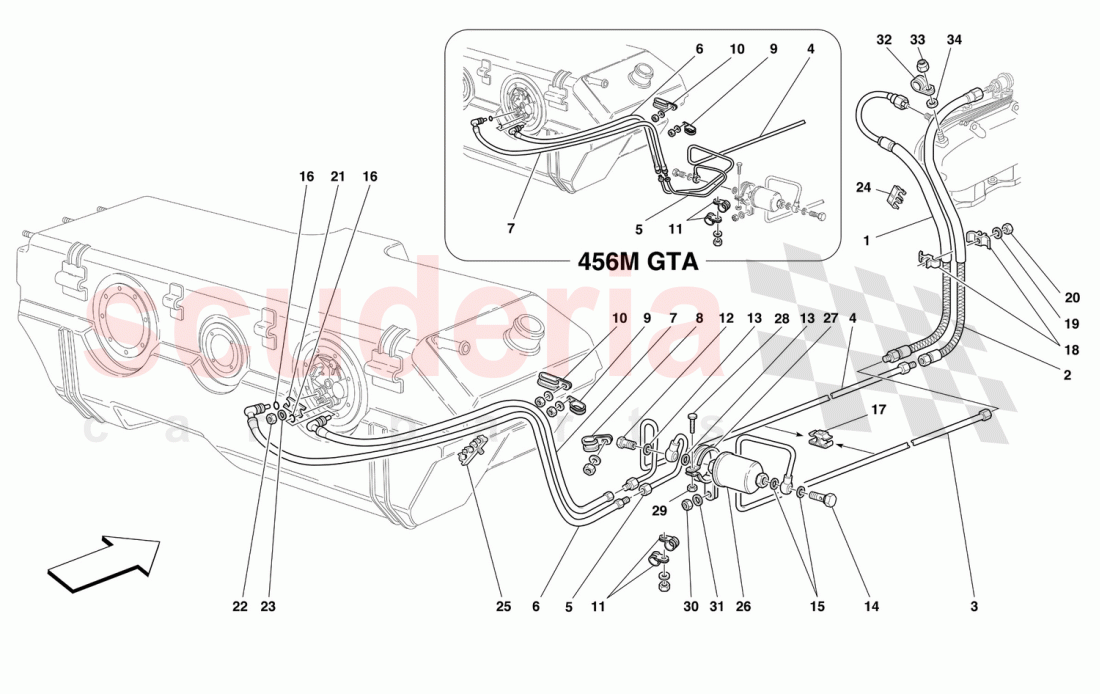

FUEL SUPPLY SYSTEM of Ferrari Ferrari 456 M GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 186922
Fuel Filter
Valid after stock exhaustion of 152212
IN STOCK 		$103.75 2
- 10441790
BRACKET WITH SHEATH
L.h. side 		$0.64 (81.4% off) 1
- 175150
R.H. REAR DELIVERY PIPE
Valid for 456M GTA 		$122.60 (15.1% off) 1
- 174816
L.H. REAR DELIVERY PIPE
Not for 456M GTA 		$118.06 (14.9% off) 1
- 175151
L.H. REAR DELIVERY PIPE
Valid for 456M GTA 		$118.06 (14.9% off) 1
- 175152
R.H. REAR RETURN PIPE
Valid for 456M GTA 		$118.06 (14.9% off) 1
- 174814
L.H. REAR RETURN PIPE
Not for 456M GTA 		$127.14 1
- 175153
L.H. REAR RETURN PIPE
Valid for 456M GTA 		$122.60 (15.1% off) 1
- 182161
RETURN PIPE
Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$378.44 2
- 150017
L.H. DELIVERY RIGID PIPE 		$82.75 1
- 169633
R.H. RETURN RIGID PIPE
Valid for 456M GTA 		$230.74 1
- 157585
L.H. RETURN RIGID PIPE
Not for 456M GTA 		$240.89 1
- 169627
L.H. RETURN RIGID PIPE
Valid for 456M GTA 		$115.29 1
- 169634
R.H. REAR DELIVERY RIGID PIPE
Valid for 456M GTA 		$80.83 1
- 156364
L.H. REAR RIGID DELIVERY PIPE
Not for 456M GTA 		$84.76 1
- 169626
L.H. REAR RIGID DELIVERY PIPE
Valid for 456M GTA 		$84.10 1
- 179264
L.H. RETURN PIPE
Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$363.30 1
- 179263
R.H. RETURN PIPE
Valid for GD 		$363.30 1
- 179263
R.H. RETURN PIPE
Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$363.30 1
- 179265
R.H. RETURN PIPE
Valid for GD 		$378.44 1
- 179011
L.H. DELIVERY PIPE
Not for GD 		$363.30 1
- 178956
L.H. DELIVERY PIPE
Valid for GD 		$363.30 1
- 178520
R.H. DELIVERY PIPE
Not for GD 		$348.16 1
- 178955
R.H. DELIVERY PIPE
Valid for GD 		$378.44 1
1 178520
R.H. DELIVERY PIPE
Not for GD / Not as spare part now / Replaced by 178520 		$348.16 1
2 179263
R.H. RETURN PIPE
Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Not as spare part now / Replaced by 179263 		$363.30 1
3 155253
R.H. DELIVERY RIGID PIPE 		$159.94 1
4 156362
R.H. RETURN RIGID PIPE
Not for 456M GTA 		$190.17 1
5 157584
R.H. REAR DELIVERY RIGID PIPE
Not for 456M GTA 		$177.50 1
6 174815
R.H. REAR DELIVERY PIPE
Not for 456M GTA
IN STOCK 		$127.14 1
7 174813
R.H. REAR RETURN PIPE
Not for 456M GTA
IN STOCK 		$118.06 1
8 10441790
BRACKET WITH SHEATH
Not for 456M GTA 		$0.64 (81.4% off) 4
9 139512
BRACKET WITH SHEATH
R.h. side 		$2.19 1
10 61712500
BRACKET WITH SHEATH
R.h. side
IN STOCK 		$1.53 1
11 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 4
12 277407
HOSE CONNECTOR
IN STOCK 		$10.26 2
13 10280060
WASHER COPPER D14. 20 X 1.5
IN STOCK 		$0.20 (80% off) 4
14 111644
UNION 		$3.88 (85.9% off) 2
15 11270160
COPPER WASHER
IN STOCK 		$1.48 4
16 127816
O-RING
IN STOCK 		$3.32 (32.9% off) 4
17 232649
CLIP
IN STOCK 		$1.07 12
18 62658800
CLIP 		$1.73 (72.3% off) 2
19 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
20 14059290
FLANGED NUT M6
IN STOCK 		$1.32 1
21 129316
R.H. SAFETY PLATE 		$3.35 2
22 14054577
CAP NUT
IN STOCK 		$0.31 2
23 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
24 140727
CLIP
IN STOCK 		$0.23 (69.3% off) 4
25 176109
CLIP 		$1.45 2
26 186922
Fuel Filter
IN STOCK 		$103.75 2
27 152885
BRACKET WITH SHEATH 		$8.43 (60.8% off) 2
28 10902424
SCREW
IN STOCK 		$0.14 (80% off) 2
29 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
30 147985
NUT
IN STOCK 		$0.14 (72% off) 2
31 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.98 2
32 10441790
BRACKET WITH SHEATH 		$0.64 (81.4% off) 2
33 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
34 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
