Ferrari 456 M GT/GTA - LAY SHAFT GEARS -Not for 456M GTA-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
144498 SECONDARY SHAFT BEARING, DIFFERENTIAL SIDE $262.09 To Order
Photo Part No Description Price (each) Stock
144486 ROLLER BEARING $38.02 To Order
Photo Part No Description Price (each) Stock
144511 STOP RING $0.67 To Order
Photo Part No Description Price (each) Stock
70000815 PINION SET GEAR $2,219.78 To Order
Photo Part No Description Price (each) Stock
144476 ROLLER BEARING $45.97 To Order
Photo Part No Description Price (each) Stock
144520 STOP RING $0.49 To Order
Photo Part No Description Price (each) Stock
148188 BALL BEARING $128.67 To Order
Photo Part No Description Price (each) Stock
148137 RING NUT $12.87 To Order
Photo Part No Description Price (each) Stock
228055 ROLLER BEARING $151.19 To Order
Photo Part No Description Price (each) Stock
143924 RING $61.12 To Order
Photo Part No Description Price (each) Stock
143923 BUSHING $78.11 To Order
Photo Part No Description Price (each) Stock
121822 ROLLER BEARING $362.88 To Order
Photo Part No Description Price (each) Stock
155718 SHIM $41.56 To Order
Photo Part No Description Price (each) Stock
122152 SPACER $154.50 To Order
Photo Part No Description Price (each) Stock
16321434 SCREW -Not as spare part replaced $7.05 To Order
Photo Part No Description Price (each) Stock
150876 CROWN WHEEL AND PINION COMPLETE R.11/40 $1,651.57 To Order
Photo Part No Description Price (each) Stock
152198 SLEEVE FOR SYNCHRONIZER $246.13 To Order
Photo Part No Description Price (each) Stock
152090 BUSHING $525.73 To Order
Photo Part No Description Price (each) Stock
150004 ROLLER BEARING CAGE $19.13 To Order
Photo Part No Description Price (each) Stock
70000810 PINION SET REV/1ST/2ND GEAR $4,845.51 To Order
Photo Part No Description Price (each) Stock
152203 SYNCHRONIZER BODY $356.64 To Order
Photo Part No Description Price (each) Stock
152205 SYNCHRONIZER RING $290.64 To Order
Photo Part No Description Price (each) Stock
152195 PAD FOR SYNCHRONIZER $0.74 To Order
Photo Part No Description Price (each) Stock
152196 SPRING FOR SYNCHRONIZER $0.84 To Order
Photo Part No Description Price (each) Stock
152197 BALL $3.92 To Order
Photo Part No Description Price (each) Stock
152091 BUSHING $350.48 To Order
Photo Part No Description Price (each) Stock
70000810 PINION SET REV/1ST/2ND GEAR $4,845.51 To Order
Photo Part No Description Price (each) Stock
156931 SLEEVE FOR SYNCHRONIZER $458.54 To Order
Photo Part No Description Price (each) Stock
143889 BUSHING $23.77 To Order
Photo Part No Description Price (each) Stock
70000814 PINION KIT FOR 6TH GEAR $3,731.36 To Order
Photo Part No Description Price (each) Stock
155577 PLUG $5.56 To Order
Photo Part No Description Price (each) Stock
70000813 PINION KIT FOR 5TH GEAR $3,254.11 To Order
Photo Part No Description Price (each) Stock
70000812 PINION SET FOR 4TH GEAR $3,362.81 To Order
Photo Part No Description Price (each) Stock
70000811 PINION SET FOR 3RD GEAR $577.44 To Order
Photo Part No Description Price (each) Stock
143892 BUSHING $89.99 To Order
Photo Part No Description Price (each) Stock
104254 ROLLER CAGE $51.39 To Order
Photo Part No Description Price (each) Stock
70000810 PINION SET REV/1ST/2ND GEAR $4,845.51 To Order
Photo Part No Description Price (each) Stock
144048 RING NUT $30.09 To Order
Photo Part No Description Price (each) Stock
157375 SPACER $12.54 To Order
Photo Part No Description Price (each) Stock
104254 ROLLER CAGE $51.39 To Order
Photo Part No Description Price (each) Stock
159088 SYNCHRONIZER RINGS SERIES $808.82 To Order
Photo Part No Description Price (each) Stock
157255 SYNCHRONIZER BODY $594.41 To Order
Photo Part No Description Price (each) Stock
157051 PAD FOR SYNCHRONIZER $11.05 To Order
Photo Part No Description Price (each) Stock
157049 SPRING FOR PAD $1.64 To Order
Photo Part No Description Price (each) Stock
157050 BALL $0.12 To Order
View All

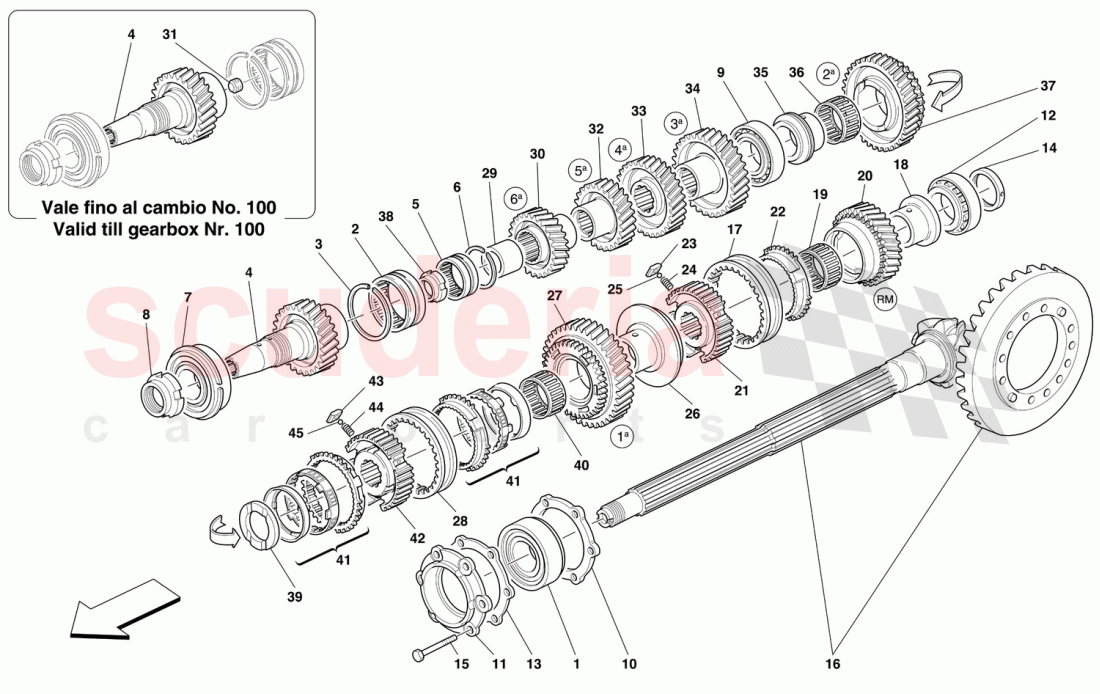

LAY SHAFT GEARS -Not for 456M GTA- of Ferrari Ferrari 456 M GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 175727
CROWN WHEEL AND PINION COMPLETE R.11/40
COMPLETE R.11/40 / Valid from car Ass. Nr. 30094 		$1,375.68 1
- 155719
SHIM 		$64.69 1
- 155720
SHIM 		$28.95 1
- 175375
SHIM 		$36.38 1
- 175376
SHIM 		$39.72 1
- 175377
SHIM 		$20.70 1
- 155721
SHIM 		$30.56 1
- 155722
SHIM 		$22.06 1
- 157668
SPACER
As an alternative of 122152 		$90.31 1
- 177885
DRIVING GEAR - Z 31
Valid from gearbox Nr. 101 		$2,128.07 1
1 144498
SECONDARY SHAFT BEARING, DIFFERENTIAL SIDE
DIFFERENTIAL SIDE 		$262.09 1
2 144486
ROLLER BEARING 		$38.02 1
3 144511
STOP RING 		$0.67 1
4 70000815
PINION SET GEAR
Valid till gearbox Nr. 100 		$2,219.78 1
5 144476
ROLLER BEARING 		$45.97 1
6 144520
STOP RING 		$0.49 1
7 148188
BALL BEARING 		$128.67 1
8 148137
RING NUT 		$12.87 1
9 228055
ROLLER BEARING 		$151.19 (19.2% off) 1
10 143924
RING 		$61.12 1
11 143923
BUSHING 		$78.11 1
12 121822
ROLLER BEARING 		$362.88 1
13 155718
SHIM 		$41.56 1
14 122152
SPACER 		$154.50 1
15 16321434
SCREW -Not as spare part replaced 		$7.05 6
16 150876
CROWN WHEEL AND PINION COMPLETE R.11/40
COMPLETE R.11/40 / Valid till car Ass. Nr. 30093 		$1,651.57 1
17 152198
SLEEVE FOR SYNCHRONIZER 		$246.13 (31.5% off) 1
18 152090
BUSHING 		$525.73 1
19 150004
ROLLER BEARING CAGE 		$19.13 1
20 70000810
PINION SET REV/1ST/2ND GEAR 		$4,845.51 1
21 152203
SYNCHRONIZER BODY 		$356.64 1
22 152205
SYNCHRONIZER RING 		$290.64 1
23 152195
PAD FOR SYNCHRONIZER 		$0.74 3
24 152196
SPRING FOR SYNCHRONIZER 		$0.84 3
25 152197
BALL 		$3.92 3
26 152091
BUSHING 		$350.48 1
27 70000810
PINION SET REV/1ST/2ND GEAR
GEAR -Z 45 		$4,845.51 1
28 156931
SLEEVE FOR SYNCHRONIZER 		$458.54 (44.6% off) 1
29 143889
BUSHING 		$23.77 1
30 70000814
PINION KIT FOR 6TH GEAR 		$3,731.36 1
31 155577
PLUG
Valid till gearbox Nr. 100 		$5.56 1
32 70000813
PINION KIT FOR 5TH GEAR 		$3,254.11 1
33 70000812
PINION SET FOR 4TH GEAR 		$3,362.81 1
34 70000811
PINION SET FOR 3RD GEAR 		$577.44 1
35 143892
BUSHING 		$89.99 1
36 104254
ROLLER CAGE 		$51.39 (9.7% off) 1
37 70000810
PINION SET REV/1ST/2ND GEAR
GEAR -Z 40 		$4,845.51 1
38 144048
RING NUT 		$30.09 1
39 157375
SPACER 		$12.54 1
40 104254
ROLLER CAGE 		$51.39 (9.7% off) 1
41 159088
SYNCHRONIZER RINGS SERIES 		$808.82 (41.6% off) 2
42 157255
SYNCHRONIZER BODY 		$594.41 1
43 157051
PAD FOR SYNCHRONIZER 		$11.05 3
44 157049
SPRING FOR PAD 		$1.64 3
45 157050
BALL 		$0.12 3
