Ferrari 456 GT/GTA - ELECTRICAL SYSTEM -Not for 456 GTA-

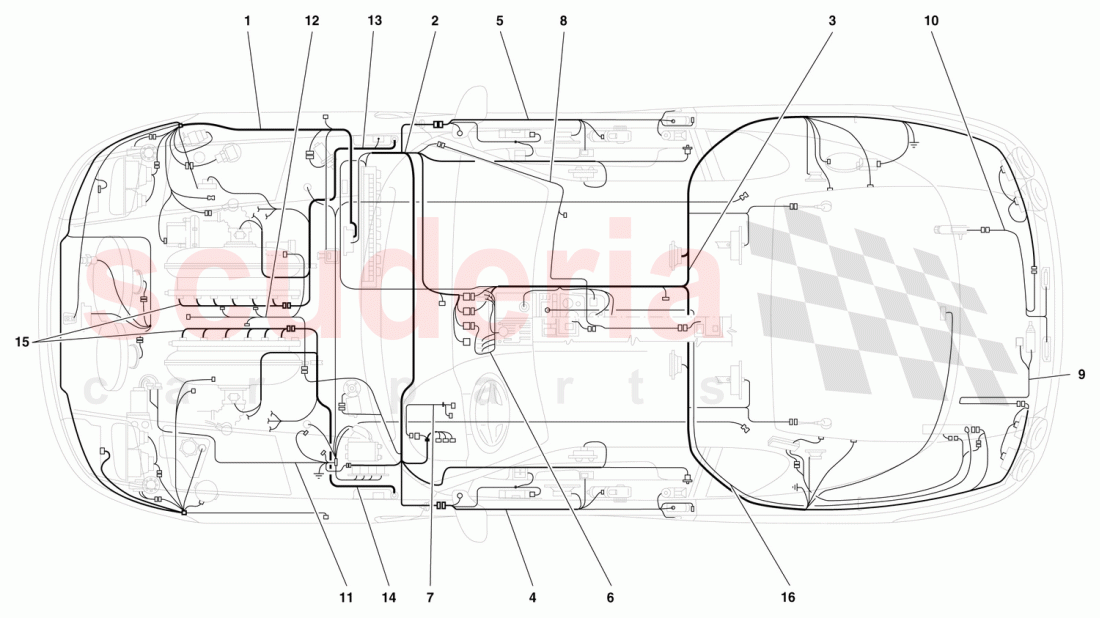

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
153098 FRONT CABLES $983.96 To Order
Photo Part No Description Price (each) Stock
164336 DASHBOARD CONNECTION CABLES $3,612.75 To Order
Photo Part No Description Price (each) Stock
153100 REAR CABLES $886.00 To Order
Photo Part No Description Price (each) Stock
153103 LH DOOR CONNECTION CABLES $741.75 To Order
Photo Part No Description Price (each) Stock
153104 RH DOOR CONNECTION CABLES $802.30 To Order
Photo Part No Description Price (each) Stock
153102 CABLES FOR TUNNEL SWITCHES CONNECTION $257.33 To Order
Photo Part No Description Price (each) Stock
153101 UNHOOK DEVIATION CONNECTION CABLES $110.49 To Order
Photo Part No Description Price (each) Stock
153105 ROOF LIGHTS CONNECTION CABLES $62.05 To Order
Photo Part No Description Price (each) Stock
153115 TRUNK HOOD BONNET CONNECTION CABLES $83.24 To Order
Photo Part No Description Price (each) Stock
155139 CABLES FOR NUMBER PLATE LIGHTS AND REAR SPOILER $115.03 To Order
Photo Part No Description Price (each) Stock
153125 CABLES FOR ANTISKID DEVICES VEHICLES CONNECTION $941.97 To Order
Photo Part No Description Price (each) Stock
153112 CABLES FOR MOTOR DEVICES CONNECTION $136.23 To Order
Photo Part No Description Price (each) Stock
152469 RH ENGINE SIDE CONNECTION CABLE $1,211.03 To Order
Photo Part No Description Price (each) Stock
152470 LH ENGINE SIDE CONNECTION CABLE $1,105.06 To Order
Photo Part No Description Price (each) Stock
168529 INJECTORS CONNECTION CABLES $874.11 To Order
Photo Part No Description Price (each) Stock
155754 CAR RADIO CABLES $484.40 To Order
View All
ELECTRICAL SYSTEM -Not for 456 GTA- of Ferrari Ferrari 456 GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 158116
LH ENGINE SIDE CONNECTION CABLE
CABLE -Valid for USA, CDN and CH 		$1,135.34 1
- 156577
LH ENGINE SIDE CONNECTION CABLE
CABLE -Valid for GD 		$1,226.17 1
- 168529
INJECTORS CONNECTION CABLES
Valid after stock exhaustion of 154787 		$874.11 2
- 156576
RH ENGINE SIDE CONNECTION CABLE
CABLE -Valid for GD / Valid till car Ass. Nr. 20878 		$1,362.41 1
- 167383
RH ENGINE SIDE CONNECTION CABLE
CABLE -Valid for GD / Valid from car Ass. Nr. 20879 		$1,362.41 1
- 158117
RH ENGINE SIDE CONNECTION CABLE
CABLE -Valid for USA and CH / Valid till car Ass. Nr. 20878 		$1,165.62 1
- 167382
RH ENGINE SIDE CONNECTION CABLE
CABLE -Valid for USA and CH / Valid from car Ass. Nr. 20879 		$1,948.25 1
- 167381
RH ENGINE SIDE CONNECTION CABLE
CABLE -Not for USA, CH and GD / Valid from car Ass. Nr. 20879 		$1,135.34 1
- 160876
CABLES FOR NUMBER PLATE LIGHTS, REAR SPOILER AND SIDE-MARKER
LIGHTS, REAR SPOILER AND / SIDE-MARKER -Valid for USA and CDN 		$115.03 1
- 156578
CABLES FOR ANTISKID DEVICES VEHICLES CONNECTION
VEHICLES CONNECTION / Valid for GD 		$1,226.17 1
- 167174
TRUNK HOOD BONNET CONNECTION CABLES
CONNECTION CABLES / Valid from car Ass. Nr. 19085 / and till Ass. Nr. 24668 		$196.78 1
- 173978
TRUNK HOOD BONNET CONNECTION CABLES
CONNECTION CABLES / Valid from car Ass. Nr. 24669 		$34.80 1
- 165152
CABLES FOR TUNNEL SWITCHES CONNECTION
CONNECTION / Valid for MOTRONIC 2.7 / Valid for cars with Air-Bag / Valid for J 		- 1 Enquire
- 169345
CABLES FOR TUNNEL SWITCHES CONNECTION
CONNECTION / Valid for MOTRONIC 5.2 / Valid for cars with Air-Bag / Valid for J 		$302.75 1
- 167572
CABLES FOR TUNNEL SWITCHES CONNECTION
CONNECTION / Valid for MOTRONIC 2.7 / Valid for cars with Air-Bag / Valid for GD 		$196.78 1
- 167094
CABLES FOR TUNNEL SWITCHES CONNECTION
CONNECTION / Valid for MOTRONIC 5.2 / Valid for cars with Air-Bag / Valid for GD 		$726.61 1
- 158325
CABLES FOR TUNNEL SWITCHES CONNECTION
CONNECTION / Valid for MOTRONIC 2.7 / Not for cars with Air-Bag / Valid for J 		$242.19 1
- 166984
CABLES FOR TUNNEL SWITCHES CONNECTION
CONNECTION / Valid for MOTRONIC 5.2 / Valid for cars with Air-Bag / Not for GD and J 		$130.17 1
- 156580
CABLES FOR TUNNEL SWITCHES CONNECTION
CONNECTION / Valid for MOTRONIC 2.7 / Not for cars with Air-Bag / Valid for GD 		$287.61 1
- 159505
CABLES FOR TUNNEL SWITCHES CONNECTION
CONNECTION / Valid for MOTRONIC 2.7 / Valid for cars with Air-Bag / Not for GD and J 		$196.78 1
- 168127
REAR CABLES
Valid for MOTRONIC 2.7 / Valid for cars with Air-Bag / Valid for AUS 		$976.31 1
- 169350
REAR CABLES
Valid for MOTRONIC 5.2 / Valid for cars with Air-Bag / Valid for AUS 		$1,407.82 1
- 167304
REAR CABLES
Valid for MOTRONIC 2.7 / Valid for cars with Air-Bag / Valid for USA and CDN / Valid from car Ass. Nr. 19085 		$1,105.06 1
- 169352
REAR CABLES
Valid for MOTRONIC 5.2 / Valid for cars with Air-Bag / Valid for USA and CDN 		$1,483.52 1
- 159503
REAR CABLES
Valid for MOTRONIC 2.7 / Valid for cars with Air-Bag / Valid for USA and CDN / Valid till car Ass. Nr. 19084 		$1,105.06 1
- 167303
REAR CABLES
Valid for MOTRONIC 2.7 / Valid for cars with Air-Bag / Not for USA, CDN and AUS / Valid from car Ass. Nr. 19085 		$847.72 1
- 169350
REAR CABLES
Valid for MOTRONIC 5.2 / Valid for cars with Air-Bag / Not for USA and CDN 		$1,407.82 1
- 167305
REAR CABLES
Valid for MOTRONIC 2.7 / Not for cars with Air-Bag / Valid for AUS / Valid from car Ass. Nr. 19085 		$1,377.55 1
- 165372
REAR CABLES
Valid for MOTRONIC 2.7 / Valid for cars with Air-Bag / Not for USA, CDN and AUS / Valid till car Ass. Nr. 19084 		$1,438.10 1
- 167306
REAR CABLES
Valid for MOTRONIC 2.7 / Not for cars with Air-Bag / Not for AUS / Valid from car Ass. Nr. 19085 		$484.40 1
- 161670
REAR CABLES
Valid for MOTRONIC 2.7 / Not for cars with Air-Bag / Valid for AUS / Valid till car Ass. Nr. 19084 		$2,094.25 1
- 171044
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 169711 / Valid for SA and J 		$2,668.83 1
- 167043
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for SA and J / Valid from car Ass. Nr. 20879 		- 1 Enquire
- 169356
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for SA and J 		$3,852.62 1
- 171040
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 169711 / Valid for AUS 		$2,064.82 1
- 164622
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Not for cars with Air-Bag / Valid for SA and J 		$6,147.55 1
- 165547
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for SA and J / Valid till car Ass. Nr. 20878 		- 1 Enquire
- 169358
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for AUS 		$3,852.62 1
- 161669
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Not for cars with Air-Bag / Valid for AUS 		$2,307.03 1
- 168126
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for AUS / Valid till car Ass. Nr. 20878 		- 1 Enquire
- 167046
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for AUS / Valid from car Ass. Nr. 20879 		- 1 Enquire
- 169351
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for GB and ZA 		$3,852.62 1
- 171043
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 169711 / Valid for GB and ZA 		$2,809.61 1
- 167045
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for GB and ZA / Valid from car Ass. Nr. 20879 		$1,930.09 1
- 171042
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 169711 / Valid for CDN 		$2,691.53 1
- 164962
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Not for cars with Air-Bag / Valid for GB and ZA 		$3,937.40 1
- 167571
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for GB and ZA / Valid till car Ass. Nr. 20878 		- 1 Enquire
- 169354
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for CDN 		$1,392.69 1
- 163195
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for CDN / Valid till car Ass. Nr. 20878 		$2,676.39 1
- 167039
FACIA PANEL CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for CDN / Valid from car Ass. Nr. 20879 		- 1 Enquire
- 171041
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 169711 / Valid for USA 		- 1 Enquire
- 167038
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for USA / Valid from car Ass. Nr. 20879 		$1,815.04 1
- 169353
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for USA 		$5,345.24 1
- 171039
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 169711 / Not for USA, CDN, GD, SA and J 		$4,491.45 1
- 159501
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Valid for USA / Valid till car Ass. Nr. 20878 		$2,540.15 1
- 169349
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 5.2 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Not for USA, CDN, GD, SA and J 		- 1 Enquire
- 165371
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Not for USA, CDN, GD, SA and J / Valid till car Ass. Nr. 20878 		$3,224.39 1
- 167041
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Valid for Air-Bag cars with Air-Bag control unit 158122 / Not for USA, CDN, GD, SA and J / Valid from car Ass. Nr. 20879 		$1,739.35 1
- 167042
FRONT CABLES
Valid for MOTRONIC 2.7 / Valid for J / Valid from car Ass. Nr. 20879 		- 1 Enquire
- 168608
FRONT CABLES
Valid for MOTRONIC 5.2 / Valid for J 		$1,195.89 1
- 158323
FRONT CABLES
Valid for MOTRONIC 2.7 / Valid for J / Valid till car Ass. Nr. 19524 		$999.10 1
- 168039
FRONT CABLES
Valid for MOTRONIC 2.7 / Valid for J / Valid from car Ass. Nr. 19525 and / valid till car Ass. Nr. 20878 		- 1 Enquire
- 167044
FRONT CABLES
Valid for MOTRONIC 2.7 / Valid for GD / Valid from car Ass. Nr. 20879 		$817.44 1
- 167044
FRONT CABLES
Valid for MOTRONIC 5.2 / Valid for GD / Valid from car Ass. Nr. 20879 		$817.44 1
- 168607
FRONT CABLES
Valid for MOTRONIC 5.2 / Valid for USA and CDN 		$1,195.89 1
- 156528
FRONT CABLES
Valid for MOTRONIC 2.7 / Valid for GD / Valid till car Ass. Nr. 19524 		$1,074.79 1
- 168041
FRONT CABLES
Valid for MOTRONIC 2.7 / Valid for GD / Valid from car Ass. Nr. 19525 and / valid till car Ass. Nr. 20878 		$964.95 1
- 168040
FRONT CABLES
Valid for MOTRONIC 2.7 / Valid for USA and CDN / Valid from car Ass. Nr. 19525 and / valid till car Ass. Nr. 20878 		$605.51 1
- 167037
FRONT CABLES
Valid for MOTRONIC 2.7 / Valid for USA and CDN / Valid from car Ass. Nr. 20879 		$787.16 1
- 168745
FRONT CABLES
Valid for MOTRONIC 5.2 / Not for USA, CDN, GD and J 		$2,862.59 1
- 159500
FRONT CABLES
Valid for MOTRONIC 2.7 / Valid for USA and CDN / Valid till car Ass. Nr. 19524 		$1,044.51 1
- 168037
FRONT CABLES
Valid for MOTRONIC 2.7 / Not for USA, CDN, GD and J / Valid from car Ass. Nr. 19525 and / valid till car Ass. Nr. 20878 		$1,544.36 1
- 167040
FRONT CABLES
Valid for MOTRONIC 2.7 / Not for USA, CDN, GD and J / Valid from car Ass. Nr. 20879 		$741.75 1
1 153098
FRONT CABLES
Valid for MOTRONIC 2.7 / Not for USA, CDN, GD and J / Valid till car Ass. Nr. 19524 		$983.96 1
2 164336
DASHBOARD CONNECTION CABLES
Valid for MOTRONIC 2.7 / Not for cars with Air-Bag / Not for USA, CDN, GD, SA and J 		$3,612.75 1
3 153100
REAR CABLES
Valid for MOTRONIC 2.7 / Not for cars with Air-Bag / Not for AUS / Valid till car Ass. Nr. 19084 		$886.00 1
4 153103
LH DOOR CONNECTION CABLES
CABLES 		$741.75 1
5 153104
RH DOOR CONNECTION CABLES
CABLES 		$802.30 1
6 153102
CABLES FOR TUNNEL SWITCHES CONNECTION
CONNECTION / Valid for MOTRONIC 2.7 / Not for cars with Air-Bag / Not for GD and J 		$257.33 1
7 153101
UNHOOK DEVIATION CONNECTION CABLES
CONNECTION CABLES 		$110.49 1
8 153105
ROOF LIGHTS CONNECTION CABLES
CABLES 		$62.05 1
9 153115
TRUNK HOOD BONNET CONNECTION CABLES
CONNECTION CABLES / Valid till car Ass. Nr. 19084 		$83.24 1
10 155139
CABLES FOR NUMBER PLATE LIGHTS AND REAR SPOILER
LIGHTS AND REAR SPOILER / Not for USA and CDN 		$115.03 1
11 153125
CABLES FOR ANTISKID DEVICES VEHICLES CONNECTION
VEHICLES CONNECTION -Not for GD 		$941.97 1
12 153112
CABLES FOR MOTOR DEVICES CONNECTION
CONNECTION 		$136.23 1
13 152469
RH ENGINE SIDE CONNECTION CABLE
CABLE -Not for USA, CH and GD / Valid till car Ass. Nr. 20878 		$1,211.03 1
14 152470
LH ENGINE SIDE CONNECTION CABLE
CABLE -Not for USA, CDN, GD and CH 		$1,105.06 1
15 168529
INJECTORS CONNECTION CABLES 		$874.11 2
16 155754
CAR RADIO CABLES 		$484.40 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
