Brake System -Not Applicable For Gd-

Ferrari 430 Spider

Find Your Part

Ferrari 430 Spider - BRAKE SYSTEM -Not applicable for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
221252 ABS/ASR HYDRAULIC UNIT/ECU $3,527.33 To Order
194608 ABS/ASR HYDRAULIC UNIT/ECU $3,125.90 To Order
Photo Part No Description Price (each) Stock
203603 ECU MOUNTING BRACKET $52.75 To Order
Photo Part No Description Price (each) Stock
197149 VIBRATION DAMPER $0.38 To Order
Photo Part No Description Price (each) Stock
193877 FASTENER CLIP $0.55 To Order
Photo Part No Description Price (each) Stock
212645 CLIP $3.00 To Order
Photo Part No Description Price (each) Stock
194602 BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT $34.66 To Order
209904 BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT $43.70 To Order
Photo Part No Description Price (each) Stock
209906 BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT $49.73 To Order
194601 BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT $36.17 To Order
Photo Part No Description Price (each) Stock
194603 PIPE FROM ECU TO LH INTERMEDIATE PIPE $46.72 To Order
Photo Part No Description Price (each) Stock
194604 PIPE FROM ECU TO RH INTERMEDIATE PIPE $43.70 To Order
Photo Part No Description Price (each) Stock
194605 PIPE FROM ECU TO INTERMEDIATE PIPE $48.23 To Order
Photo Part No Description Price (each) Stock
194606 PIPE FROM ECU TO RH FRONT BRAKE PIPE $58.78 To Order
Photo Part No Description Price (each) Stock
268658 RUBBER PIPE $618.72 To Order
271771 PIPE Enquire To Order
Photo Part No Description Price (each) Stock
200325 FRONT LH BRAKE PIPE $37.67 To Order
200324 FRONT RH BRAKE PIPE $37.67 To Order
173805 FRONT LH BRAKE PIPE $52.75 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
205295 INTERMEDIATE PIPE $51.24 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.05 IN STOCK
Photo Part No Description Price (each) Stock
205093 PIPE TO REAR RH HOSE $130.52 To Order
Photo Part No Description Price (each) Stock
205094 TUBE TO REAR LH HOSE $303.03 To Order
Photo Part No Description Price (each) Stock
207278 BRAKE PIPE MOUNTING BRACKET $19.58 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
212645 CLIP $3.00 To Order
Photo Part No Description Price (each) Stock
116374 CLIP $2.18 IN STOCK
Photo Part No Description Price (each) Stock
216383 RH CABLE RETAINER $67.82 To Order
178938 CABLE MOUNTING $30.23 To Order
216382 LH CABLE RETAINER $67.82 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
185283 REAR MOUNTING $202.01 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.96 IN STOCK
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10107225 PIPE UNION $9.52 To Order
Photo Part No Description Price (each) Stock
249656 CONNECTOR $16.40 To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 $0.14 IN STOCK
View All

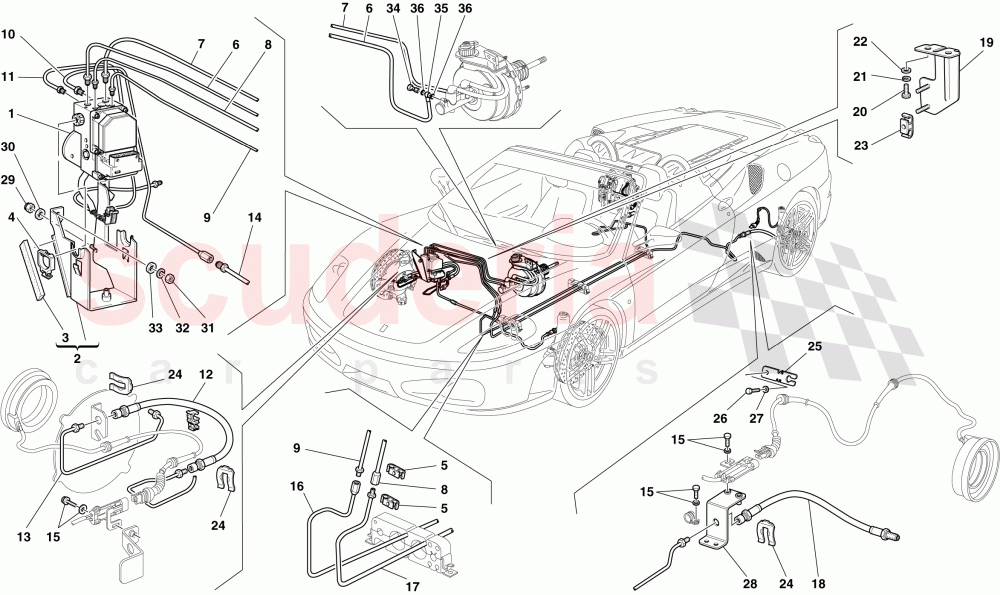

BRAKE SYSTEM -Not applicable for GD- of Ferrari Ferrari 430 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 221252
ABS/ASR HYDRAULIC UNIT/ECU
Not for GD; Applicable from Ass. No. 61537 		$3,527.33 1
1 194608
ABS/ASR HYDRAULIC UNIT/ECU
Not for GD; Applicable up to Ass. No. 61536 		$3,125.90 (33.6% off) 1
2 203603
ECU MOUNTING BRACKET
Not for GD 		$52.75 1
3 197149
VIBRATION DAMPER
Not for GD 		$0.38 1
4 193877
FASTENER CLIP
Not for GD 		$0.55 2
5 212645
CLIP
Not for GD 		$3.00 4
6 194602
BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT
Standard; Cast iron version; Not for GD 		$34.66 1
6 209904
BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT
Version with CCM brakes; Not for GD 		$43.70 (24% off) 1
7 209906
BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT
Version with CCM brakes; Not for GD 		$49.73 (24.4% off) 1
7 194601
BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT
Standard; Cast iron version; Not for GD 		$36.17 1
8 194603
PIPE FROM ECU TO LH INTERMEDIATE PIPE
Not for GD 		$46.72 1
9 194604
PIPE FROM ECU TO RH INTERMEDIATE PIPE
Not for GD 		$43.70 1
10 194605
PIPE FROM ECU TO INTERMEDIATE PIPE
Not for GD 		$48.23 1
11 194606
PIPE FROM ECU TO RH FRONT BRAKE PIPE
Not for GD 		$58.78 1
12 268658
RUBBER PIPE
Not for GD; Applicable until depletion 		$618.72 2
12 271771
PIPE
Not for GD; Applicable after depletion of 116373 		- 2 Enquire
13 200325
FRONT LH BRAKE PIPE
Version with CCM brakes; Not for GD 		$37.67 1
13 200324
FRONT RH BRAKE PIPE
Version with CCM brakes; Not for GD 		$37.67 1
13 173805
FRONT LH BRAKE PIPE
Not for GD 		$52.75 1
13 173806
FRONT RH BRAKE PIPE
Not for GD 		$52.75 1
14 205295
INTERMEDIATE PIPE
Not for GD 		$51.24 1
15 250657
SCREW
Not for GD
IN STOCK 		$7.05 6
16 205093
PIPE TO REAR RH HOSE
Not for GD 		$130.52 1
17 205094
TUBE TO REAR LH HOSE
Not for GD 		$303.03 1
19 207278
BRAKE PIPE MOUNTING BRACKET
Not for GD 		$19.58 1
20 10902424
SCREW
Not for GD
IN STOCK 		$0.14 (80% off) 2
21 127494
WASHER
Not for GD
IN STOCK 		$0.08 (88.2% off) 2
22 12644424
WASHER
Not for GD
IN STOCK 		$0.06 (85% off) 2
23 212645
CLIP
Not for GD 		$3.00 1
24 116374
CLIP
Not for GD
IN STOCK 		$2.18 (37.7% off) 8
25 216383
RH CABLE RETAINER
Version with CCM brakes; Not for GD 		$67.82 (29.8% off) 1
25 178938
CABLE MOUNTING
Standard; Cast iron version; Not for GD 		$30.23 2
25 216382
LH CABLE RETAINER
Version with CCM brakes; Not for GD 		$67.82 (29.8% off) 1
26 10977524
SCREW
Not for GD
IN STOCK 		$0.14 2
28 185283
REAR MOUNTING
Not for GD 		$202.01 2
29 147985
NUT
Not for GD
IN STOCK 		$0.14 (72% off) 1
30 12638524
WASHER D8.15-15 X 1.5
Not for GD
IN STOCK 		$0.06 (76% off) 1
31 14040711
NUT
Not for GD
IN STOCK 		$0.35 1
32 127496
WASHER
Not for GD 		$0.06 (80% off) 1
33 84653800
WASHER 10 X 18 X 2.5
Not for GD
IN STOCK 		$4.96 1
33 12638524
WASHER D8.15-15 X 1.5
Not for GD; No longer supplied; Replaced by 12646724
IN STOCK 		$0.06 (76% off) 1
34 10107225
PIPE UNION
Not for GD 		$9.52 1
35 249656
CONNECTOR
Not for GD 		$16.40 1
36 10261060
GASKET COPPER 12 - 16 X 1.5
Not for GD
IN STOCK 		$0.14 (71.4% off) 2
