Name: PNEUMATIC ACTUATOR SYSTEM
Rating: 4.0 (1 reviews)

PNEUMATIC ACTUATOR SYSTEM of Ferrari Ferrari 430 Spider

View All

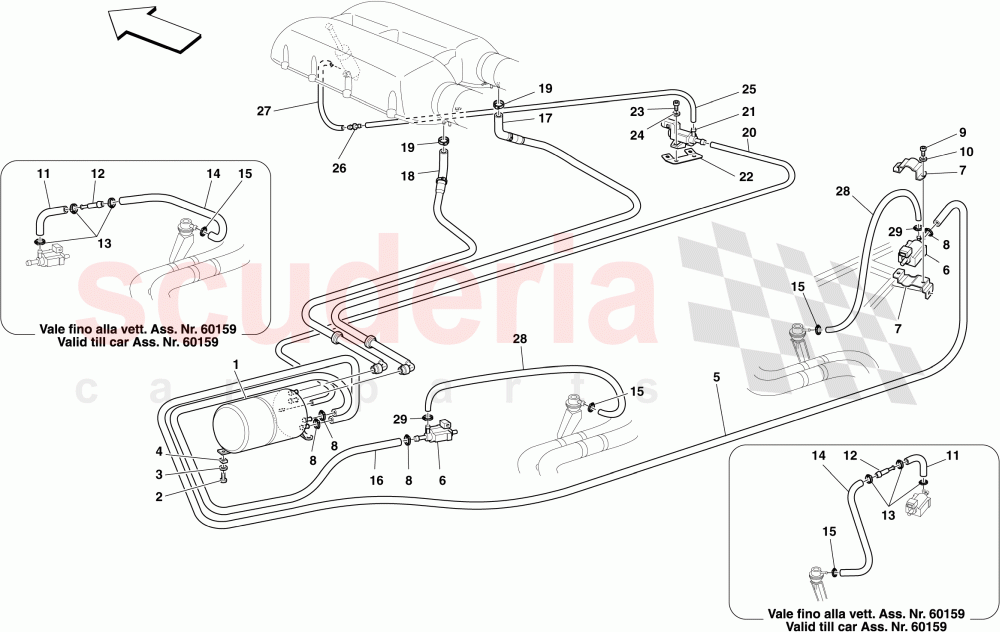

Ferrari 430 Spider - PNEUMATIC ACTUATOR SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	207624	VACUUM ACCUMULATOR TANK	$427.76	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$0.06	IN STOCK
	10902424	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	IN STOCK
	12639724	WASHER	$0.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	210352	PIPE FROM TANK TO RH SOLENOID VALVE	$130.05	To Order

Photo	Part No	Description	Price (each)	Stock
	178309	SOLENOID VALVE	$100.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	178515	SOLENOID VALVE MOUNTING	$4.11	To Order

Photo	Part No	Description	Price (each)	Stock
	13432170	COLLAR FOR HOSE UNION	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW	$0.59	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	127492	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	178552	RUBBER PIPE	$12.67	To Order

Photo	Part No	Description	Price (each)	Stock
	178369	CONNECTOR	$4.67	To Order

Photo	Part No	Description	Price (each)	Stock
	13432270	HOSE COLLAR	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	147125	RUBBER HOSE -Valid till car Ass. Nr. 60159-	$25.14	To Order

Photo	Part No	Description	Price (each)	Stock
	241986	COLLAR FOR HOSE UNION	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	210351	PIPE FROM TANK TO LH SOLENOID VALVE	$105.67	To Order

Photo	Part No	Description	Price (each)	Stock
	222112	COMPLETE RH VACUUM PIPE	$339.70	To Order

Photo	Part No	Description	Price (each)	Stock
	222114	COMPLETE LH VACUUM PIPE	$339.70	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.49	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	124406	PIPE FROM TANK TO CONNECTOR	$13.35	To Order
	169692	PIPE FROM TANK TO SOLENOID VALVE	$22.62	To Order

Photo	Part No	Description	Price (each)	Stock
	200111	BRACKET	$75.47	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	12544179	Washer	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	122126	RUBBER PIPE	$9.94	To Order

Photo	Part No	Description	Price (each)	Stock
	178491	CONNECTOR	$22.65	To Order

Photo	Part No	Description	Price (each)	Stock
	168248	RUBBER PIPE	$33.96	To Order

Photo	Part No	Description	Price (each)	Stock
	198275	RUBBER PIPE	$35.22	To Order

Photo	Part No	Description	Price (each)	Stock
	13432270	HOSE COLLAR	$0.83	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	207624	VACUUM ACCUMULATOR TANK	207624 VACUUM ACCUMULATOR TANK	$427.76	1
2	10902224	SCREW M6 X 16 IN STOCK	10902224 SCREW M6 X 16 No longer supplied; Replaced by 10902424 IN STOCK	$0.06 MSRP: ~~0.45~~ (86.7% off)	3
2	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	$0.14 MSRP: ~~0.70~~ (80% off)	3
3	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	3
4	12644424	WASHER IN STOCK	12644424 WASHER IN STOCK	$0.06 MSRP: ~~0.40~~ (85% off)	3
4	12639724	WASHER IN STOCK	12639724 WASHER No longer supplied; Replaced by 12644424 IN STOCK	$0.05 MSRP: ~~0.50~~ (90% off)	3
5	210352	PIPE FROM TANK TO RH SOLENOID VALVE	210352 PIPE FROM TANK TO RH SOLENOID VALVE	$130.05	1
6	178309	SOLENOID VALVE IN STOCK	178309 SOLENOID VALVE IN STOCK	$100.10 MSRP: ~~138.94~~ (28% off)	2
7	178515	SOLENOID VALVE MOUNTING	178515 SOLENOID VALVE MOUNTING	$4.11	2
8	13432170	COLLAR FOR HOSE UNION	13432170 COLLAR FOR HOSE UNION	$0.44	4
9	88822200	SCREW ARRIVING SOON	88822200 SCREW ARRIVING SOON	$0.59	4
10	127492	WASHER	127492 WASHER	$0.02	4
11	178552	RUBBER PIPE	178552 RUBBER PIPE Applicable up to Ass. No. 60159	$12.67	2
12	178369	CONNECTOR	178369 CONNECTOR Applicable up to Ass. No. 60159	$4.67 MSRP: ~~10.00~~ (53.3% off)	2
13	13432270	HOSE COLLAR	13432270 HOSE COLLAR Applicable up to Ass. No. 60159	$0.83	6
14	147125	RUBBER HOSE -Valid till car Ass. Nr. 60159-	147125 RUBBER HOSE -Valid till car Ass. Nr. 60159- Applicable up to Ass. No. 60159	$25.14	2
15	241986	COLLAR FOR HOSE UNION IN STOCK	241986 COLLAR FOR HOSE UNION IN STOCK	$0.96	2
16	210351	PIPE FROM TANK TO LH SOLENOID VALVE	210351 PIPE FROM TANK TO LH SOLENOID VALVE	$105.67	1
17	222112	COMPLETE RH VACUUM PIPE	222112 COMPLETE RH VACUUM PIPE	$339.70	1
18	222114	COMPLETE LH VACUUM PIPE	222114 COMPLETE LH VACUUM PIPE	$339.70 MSRP: ~~516.16~~ (34.2% off)	1
19	13432070	HOSE COLLAR ARRIVING SOON	13432070 HOSE COLLAR ARRIVING SOON	$0.49 MSRP: ~~1.07~~ (54.2% off)	2
20	124406	PIPE FROM TANK TO CONNECTOR	124406 PIPE FROM TANK TO CONNECTOR No longer supplied; Replaced by 169692	$13.35	1
20	169692	PIPE FROM TANK TO SOLENOID VALVE	169692 PIPE FROM TANK TO SOLENOID VALVE	$22.62	1
22	200111	BRACKET	200111 BRACKET	$75.47	1
23	14304124	SCREW	14304124 SCREW	$0.14 MSRP: ~~0.75~~ (81.3% off)	2
24	12544179	Washer	12544179 Washer	$0.53	2
25	122126	RUBBER PIPE	122126 RUBBER PIPE	$9.94	1
26	178491	CONNECTOR	178491 CONNECTOR	$22.65	1
27	168248	RUBBER PIPE	168248 RUBBER PIPE	$33.96	1
28	198275	RUBBER PIPE	198275 RUBBER PIPE Applicable from Ass. No. 60160	$35.22	2
29	13432270	HOSE COLLAR	13432270 HOSE COLLAR Applicable from Ass. No. 60160	$0.83	2

Pneumatic Actuator System

Ferrari 430 Spider

Ferrari 430 Spider - PNEUMATIC ACTUATOR SYSTEM
