Ferrari 430 Spider - ROOF KINEMATICS - LOWER PART

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
66457700 RH MAIN MOUNTING $1,249.09 To Order
66457600 LH MAIN MOUNTING $1,294.24 To Order
Photo Part No Description Price (each) Stock
66689800 RH TIE-ROD $316.02 To Order
66689700 LH TIE-ROD $270.88 To Order
Photo Part No Description Price (each) Stock
66457900 COMPLETE RH SPLINED PIN $270.88 To Order
66457800 COMPLETE LH SPLINED PIN $270.88 To Order
Photo Part No Description Price (each) Stock
66683700 WASHER $3.57 IN STOCK
Photo Part No Description Price (each) Stock
66682000 PIN $7.92 To Order
Photo Part No Description Price (each) Stock
66682200 CLIP $4.80 To Order
Photo Part No Description Price (each) Stock
66683800 PIN $5.69 To Order
Photo Part No Description Price (each) Stock
66684500 SEEGER $4.45 To Order
Photo Part No Description Price (each) Stock
66689100 COMPLETE PROTECTIVE ELASTIC $27.07 To Order
Photo Part No Description Price (each) Stock
183177 HARD TOP ADJUSTER SCREW $168.07 To Order
Photo Part No Description Price (each) Stock
66683900 SCREW $7.14 IN STOCK
Photo Part No Description Price (each) Stock
66684000 WASHER $4.03 IN STOCK
Photo Part No Description Price (each) Stock
66460700 RH TENSION ROD CONNECTOR $225.73 To Order
66460600 LH TENSIONING ROD CONNECTOR $225.73 To Order
Photo Part No Description Price (each) Stock
66688700 SCREW $3.91 To Order
Photo Part No Description Price (each) Stock
66688800 WASHER $4.03 To Order
Photo Part No Description Price (each) Stock
66684200 NUT $4.03 To Order
Photo Part No Description Price (each) Stock
66684100 WASHER $4.12 To Order
Photo Part No Description Price (each) Stock
66457500 RH REAR PROTECTION $1,580.18 IN STOCK
66457300 LH PASSENGER COMPARTMENT REAR KINEMATICS $1,580.18 To Order
Photo Part No Description Price (each) Stock
66684300 PIN $7.48 To Order
Photo Part No Description Price (each) Stock
66684400 PIN $15.63 To Order
Photo Part No Description Price (each) Stock
66682400 SEEGER $3.91 To Order
Photo Part No Description Price (each) Stock
182479 SHIM $20.16 To Order
183158 SHIM $1.38 To Order
183157 SHIM $1.40 To Order
Photo Part No Description Price (each) Stock
14164374 SPRING PIN $0.20 To Order
Photo Part No Description Price (each) Stock
184161 SHIM $1.78 To Order
184162 SHIM $1.78 To Order
184159 SHIM $2.11 To Order
Photo Part No Description Price (each) Stock
11307021 Screw $5.38 IN STOCK
Photo Part No Description Price (each) Stock
11190679 WASHER $0.27 IN STOCK
Photo Part No Description Price (each) Stock
66683400 SCREW $4.80 To Order
Photo Part No Description Price (each) Stock
66683500 WASHER $4.12 To Order
Photo Part No Description Price (each) Stock
66688300 RH SPRING $37.61 To Order
66688400 LH SPRING $37.61 To Order
Photo Part No Description Price (each) Stock
66683600 SCREW $10.82 To Order
Photo Part No Description Price (each) Stock
66958900 LH ARM $451.47 To Order
66958800 RH ARM $451.47 To Order
Photo Part No Description Price (each) Stock
66689000 RH MOULDING $625.92 To Order
66688900 LH MOULDING $625.92 To Order
Photo Part No Description Price (each) Stock
66682600 SEEGER $4.24 To Order
Photo Part No Description Price (each) Stock
67049400 WASHER $4.12 To Order
Photo Part No Description Price (each) Stock
67049600 PLASTIC RETAINMENT COLUMN $27.07 To Order
Photo Part No Description Price (each) Stock
67049500 WASHER $6.48 To Order
Photo Part No Description Price (each) Stock
15904070 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
81096100 RH FRONT TOP CROSS MEMBER $1,457.54 IN STOCK
81096000 LH FRONT TOP CROSSMEMBER KIT $1,457.54 IN STOCK
View All

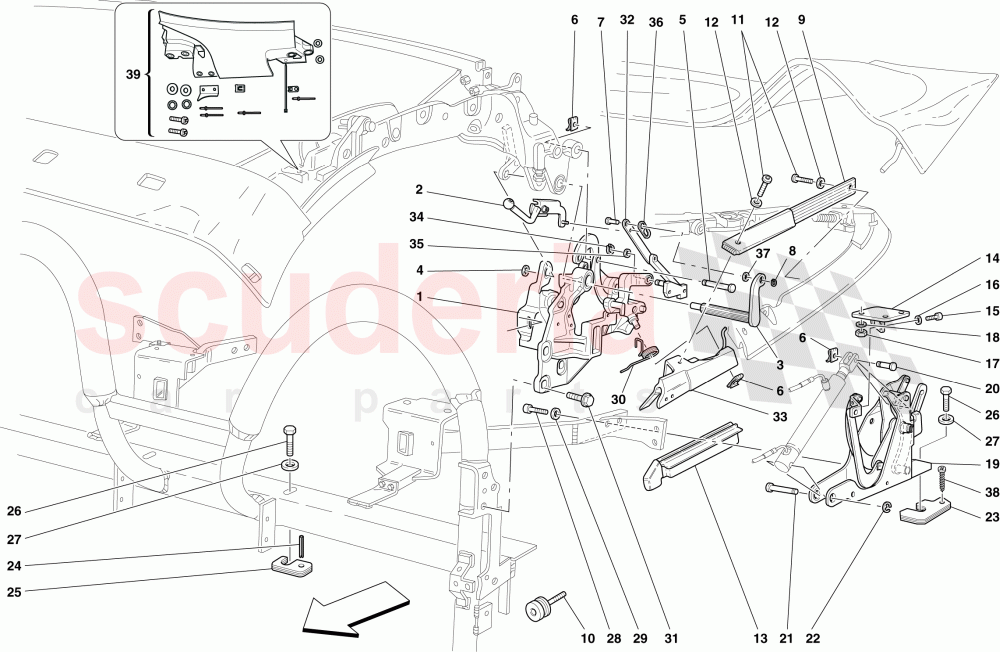

ROOF KINEMATICS - LOWER PART of Ferrari Ferrari 430 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 66457700
RH MAIN MOUNTING 		$1,249.09 1
1 66457600
LH MAIN MOUNTING 		$1,294.24 1
2 66689800
RH TIE-ROD 		$316.02 1
2 66689700
LH TIE-ROD 		$270.88 1
3 66457900
COMPLETE RH SPLINED PIN 		$270.88 1
3 66457800
COMPLETE LH SPLINED PIN 		$270.88 1
4 66683700
WASHER
IN STOCK 		$3.57 2
5 66682000
PIN 		$7.92 2
6 66682200
CLIP 		$4.80 (20% off) 6
7 66683800
PIN 		$5.69 2
8 66684500
SEEGER 		$4.45 2
9 66689100
COMPLETE PROTECTIVE ELASTIC 		$27.07 2
10 183177
HARD TOP ADJUSTER SCREW 		$168.07 2
11 66683900
SCREW
IN STOCK 		$7.14 4
12 66684000
WASHER
IN STOCK 		$4.03 4
13 66460700
RH TENSION ROD CONNECTOR 		$225.73 1
13 66460600
LH TENSIONING ROD CONNECTOR 		$225.73 1
14 66688600
RH PLATE 		$106.84 1
14 66688500
LH PLATE 		$106.84 1
15 66688700
SCREW 		$3.91 2
16 66688800
WASHER 		$4.03 2
17 66684200
NUT 		$4.03 3
18 66684100
WASHER 		$4.12 3
19 66457500
RH REAR PROTECTION
IN STOCK 		$1,580.18 1
19 66457300
LH PASSENGER COMPARTMENT REAR KINEMATICS 		$1,580.18 (31% off) 1
20 66684300
PIN 		$7.48 2
21 66684400
PIN 		$15.63 2
22 66682400
SEEGER 		$3.91 2
23 182479
SHIM
Th. 3 mm 		$20.16 2
23 183158
SHIM
Th. 1.5 mm 		$1.38 2
23 183157
SHIM
Th. 1 mm 		$1.40 (75.4% off) 2
24 14164374
SPRING PIN 		$0.20 2
25 184161
SHIM
Th. 1 mm 		$1.78 2
25 184162
SHIM
Th. 1.5 mm 		$1.78 2
25 184159
SHIM
Th. 3 mm 		$2.11 (57.8% off) 2
26 11307021
Screw
IN STOCK 		$5.38 4
27 11190679
WASHER
IN STOCK 		$0.27 4
28 66683400
SCREW 		$4.80 4
29 66683500
WASHER 		$4.12 4
30 66688300
RH SPRING 		$37.61 1
30 66688400
LH SPRING 		$37.61 1
31 66683600
SCREW 		$10.82 2
32 66958900
LH ARM 		$451.47 1
32 66958800
RH ARM 		$451.47 1
33 66689000
RH MOULDING 		$625.92 1
33 66688900
LH MOULDING 		$625.92 1
34 66682600
SEEGER 		$4.24 2
35 67049400
WASHER 		$4.12 2
36 67049600
PLASTIC RETAINMENT COLUMN 		$27.07 2
37 67049500
WASHER 		$6.48 2
38 15904070
SCREW 		$0.18 2
39 81096100
RH FRONT TOP CROSS MEMBER
IN STOCK 		$1,457.54 1
39 81096000
LH FRONT TOP CROSSMEMBER KIT
IN STOCK 		$1,457.54 1
