Ferrari 430 Spider - AC SYSTEM

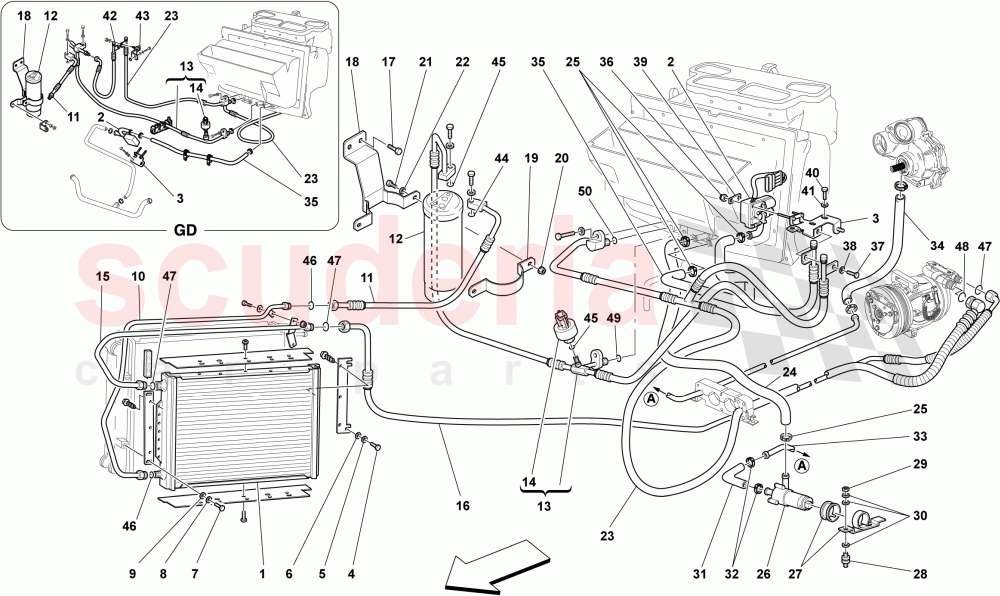

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock

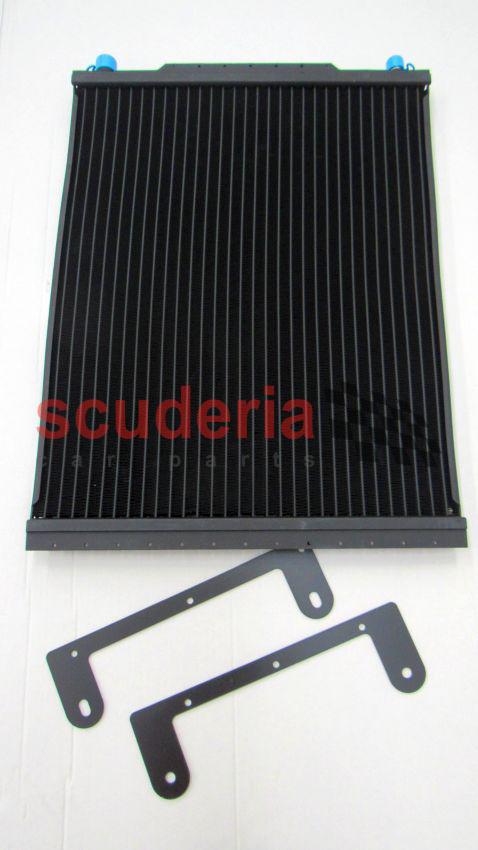

200340 AIR CONDITIONING CONDENSER $772.93 IN STOCK
Photo Part No Description Price (each) Stock
65066400 TGK VALVE $330.64 To Order
Photo Part No Description Price (each) Stock
66150300 VALVE FASTENER BRACKET $22.76 To Order
68643100 VALVE FASTENER BRACKET $19.06 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
60909500 ALLEN HEAD SCREW M6 X 15 $1.96 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
80668700 EXHAUST METAL PIPE $305.19 To Order
Photo Part No Description Price (each) Stock
67750800 PIPE FROM CONDENSER TO FILTER $121.45 To Order
Photo Part No Description Price (each) Stock
67085100 DEHYDRATING FILTER $50.44 ARRIVING SOON
Photo Part No Description Price (each) Stock
67750900 PIPE FROM FILTER TO AC UNIT $683.22 To Order
68640900 PIPE FROM FILTER TO AC UNIT $378.02 To Order
Photo Part No Description Price (each) Stock
65628200 AIR CONDITIONING PRESSURE SWITCH $165.56 IN STOCK
Photo Part No Description Price (each) Stock
67750500 INLET METAL PIPE $406.93 To Order
Photo Part No Description Price (each) Stock
67750400 UNDERBODY PIPE $406.93 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
67942200 BRACKET $28.83 To Order
Photo Part No Description Price (each) Stock
67942200 BRACKET $28.83 To Order
Photo Part No Description Price (each) Stock
14098700 NUT $0.11 To Order
Photo Part No Description Price (each) Stock
68721400 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
67750300 PIPE FROM AC UNIT TO COMPRESSOR $637.67 To Order
68640800 PIPE FROM AC UNIT TO COMPRESSOR $409.92 To Order
Photo Part No Description Price (each) Stock
68641000 PIPE FROM MINIMUM PRESSURE PUMP TO AC UNIT $57.65 To Order
69741700 PIPE FROM MINIMUM PRESSURE PUMP TO AC UNIT $30.50 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.40 To Order
Photo Part No Description Price (each) Stock
65460300 COMPLETE WATER PUMP $419.65 To Order
Photo Part No Description Price (each) Stock
68018300 COMPLETE BRACKET $57.20 To Order
Photo Part No Description Price (each) Stock
897379 RUBBER BUSHING $10.80 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
65460700 PIPE FROM UNDERBODY PIPE TO MINIMUM PRESSURE PUMP $92.60 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.72 IN STOCK
Photo Part No Description Price (each) Stock
68393000 UNDERBODY WATER PIPE $227.73 To Order
Photo Part No Description Price (each) Stock
68237600 PIPE FROM PUMP TO UNDERBODY PIPE $56.16 To Order
Photo Part No Description Price (each) Stock
65231700 PIPE FROM AC HEATER TO TGK VALVE $31.87 To Order
68641100 PIPE FROM AC HEATER TO TGK VALVE $44.02 To Order
Photo Part No Description Price (each) Stock
62790300 NUT $0.29 IN STOCK
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11188079 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
65929400 PLATE $2.56 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11193274 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
68863200 AC LOAD FILTER CONNECTION TUBE $139.67 To Order
Photo Part No Description Price (each) Stock
212340 BRACKET $19.72 To Order
Photo Part No Description Price (each) Stock
68392000 O-RING $11.39 IN STOCK
Photo Part No Description Price (each) Stock
68392100 O-RING $5.78 IN STOCK
Photo Part No Description Price (each) Stock
66309300 O-RING $1.40 IN STOCK
Photo Part No Description Price (each) Stock
66309400 O-RING A/C SYSTEM $15.77 IN STOCK
Photo Part No Description Price (each) Stock
66309500 O-RING AIR CON SYSTEM $15.77 IN STOCK
Photo Part No Description Price (each) Stock
66309700 O-RING $10.17 IN STOCK
Photo Part No Description Price (each) Stock
66309800 O-RING $3.99 IN STOCK
View All
AC SYSTEM of Ferrari Ferrari 430 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 200340
AIR CONDITIONING CONDENSER
IN STOCK 		$772.93 (7% off) 1
2 65066400
TGK VALVE 		$330.64 (40.4% off) 1
3 66150300
VALVE FASTENER BRACKET
Not for GD 		$22.76 1
3 68643100
VALVE FASTENER BRACKET
Applicable for GD 		$19.06 1
4 897538
SCREW
L. 14 mm 		$1.53 3
5 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
6 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 3
7 60909500
ALLEN HEAD SCREW M6 X 15
IN STOCK 		$1.96 (34.4% off) 1
8 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
9 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
10 80668700
EXHAUST METAL PIPE 		$305.19 (53.6% off) 1
11 67750800
PIPE FROM CONDENSER TO FILTER 		$121.45 1
12 67085100
DEHYDRATING FILTER
ARRIVING SOON 		$50.44 (29.8% off) 1
13 67750900
PIPE FROM FILTER TO AC UNIT
Not for GD 		$683.22 1
13 68640900
PIPE FROM FILTER TO AC UNIT
Applicable for GD 		$378.02 1
14 65628200
AIR CONDITIONING PRESSURE SWITCH
IN STOCK 		$165.56 (30% off) 1
15 67750500
INLET METAL PIPE 		$406.93 (44.8% off) 1
16 67750400
UNDERBODY PIPE 		$406.93 1
17 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 2
18 67942200
BRACKET 		$28.83 1
19 67942200
BRACKET 		$28.83 1
20 14098700
NUT 		$0.11 2
21 68721400
SCREW 		$0.94 2
22 12644424
WASHER
IN STOCK 		$0.06 (85% off) 2
23 67750300
PIPE FROM AC UNIT TO COMPRESSOR
Not for GD 		$637.67 1
23 68640800
PIPE FROM AC UNIT TO COMPRESSOR
Applicable for GD 		$409.92 1
24 68641000
PIPE FROM MINIMUM PRESSURE PUMP TO AC UNIT
Applicable for GD 		$57.65 1
24 69741700
PIPE FROM MINIMUM PRESSURE PUMP TO AC UNIT
Not for GD 		$30.50 1
25 262111
SCREW CLAMP 		$1.40 4
26 65460300
COMPLETE WATER PUMP 		$419.65 1
27 68018300
COMPLETE BRACKET 		$57.20 1
28 897379
RUBBER BUSHING 		$10.80 2
29 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
30 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
31 65460700
PIPE FROM UNDERBODY PIPE TO MINIMUM PRESSURE PUMP 		$92.60 (39.4% off) 1
32 13000490
Screw Collar
IN STOCK 		$0.72 (62.1% off) 2
33 68393000
UNDERBODY WATER PIPE 		$227.73 1
34 68237600
PIPE FROM PUMP TO UNDERBODY PIPE 		$56.16 1
35 65231700
PIPE FROM AC HEATER TO TGK VALVE
Not for GD 		$31.87 1
35 68641100
PIPE FROM AC HEATER TO TGK VALVE
Applicable for GD 		$44.02 1
36 62790300
NUT
IN STOCK 		$0.29 (61.3% off) 2
37 10977524
SCREW
IN STOCK 		$0.14 1
38 11188079
WASHER 		$0.05 1
39 65929400
PLATE 		$2.56 1
40 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 2
41 11193274
WASHER
IN STOCK 		$0.03 2
42 68863200
AC LOAD FILTER CONNECTION TUBE
Applicable for GD 		$139.67 1
43 212340
BRACKET
Applicable for GD 		$19.72 1
44 68392000
O-RING
IN STOCK 		$11.39 1
45 68392100
O-RING
IN STOCK 		$5.78 (17.3% off) 2
46 66309300
O-RING
IN STOCK 		$1.40 (64.1% off) 2
47 66309400
O-RING A/C SYSTEM
IN STOCK 		$15.77 3
48 66309500
O-RING AIR CON SYSTEM
IN STOCK 		$15.77 1
49 66309700
O-RING
IN STOCK 		$10.17 (16.3% off) 1
50 66309800
O-RING
IN STOCK 		$3.99 (23.7% off) 1
