Ferrari 430 Scuderia Spider 16M - GEARBOX - COVERS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247320 COMPLETE GEARBOX $46,633.76 To Order
Photo Part No Description Price (each) Stock
215599 RETENTION BRACKET ABSORBER $147.32 To Order
Photo Part No Description Price (each) Stock
185723 SEEGER RING $4.11 IN STOCK
Photo Part No Description Price (each) Stock
213174 BUSHING $66.62 To Order
Photo Part No Description Price (each) Stock
14314774 SCREW $7.10 To Order
Photo Part No Description Price (each) Stock
13507734 WASHER $1.35 To Order
Photo Part No Description Price (each) Stock
237531 Gearbox Mounting Bush $103.74 IN STOCK
Photo Part No Description Price (each) Stock
188141 RETAINER WASHER $43.21 To Order
Photo Part No Description Price (each) Stock
11117134 SCREW $16.95 To Order
Photo Part No Description Price (each) Stock
106004 NUT $0.83 To Order
Photo Part No Description Price (each) Stock
14496824 WASHER $0.21 To Order
Photo Part No Description Price (each) Stock
197797 OIL BREATHER $28.54 To Order
Photo Part No Description Price (each) Stock
190183 O-RING D.69.85 - 8 X 100 $14.88 IN STOCK
Photo Part No Description Price (each) Stock
122429 Oil Pickup Filter $10.96 IN STOCK
Photo Part No Description Price (each) Stock
185723 SEEGER RING $4.11 IN STOCK
Photo Part No Description Price (each) Stock
207541 O-Ring $14.01 IN STOCK
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $0.97 IN STOCK
Photo Part No Description Price (each) Stock
198163 OIL DELIVERY PIPE $107.13 To Order
Photo Part No Description Price (each) Stock
184727 Banjo bolt For Union M16 x 1.5 $5.70 IN STOCK
Photo Part No Description Price (each) Stock
872137 GASKET D.16.7-26 X 1.5 $26.27 To Order
Photo Part No Description Price (each) Stock
198166 OIL RETURN PIPE $118.35 To Order
Photo Part No Description Price (each) Stock
232554 TUBE FASTENING BRACKET $9.64 To Order
Photo Part No Description Price (each) Stock
184995 BEARING $152.50 To Order
Photo Part No Description Price (each) Stock
184994 SNAP RING $7.00 IN STOCK
Photo Part No Description Price (each) Stock
206350 SHIM $44.53 To Order
206351 SHIM $44.53 To Order
205881 SHIM $44.53 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16287524 SCREW $1.18 IN STOCK
Photo Part No Description Price (each) Stock
15231524 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.87 To Order
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG $1.10 To Order
Photo Part No Description Price (each) Stock
184006 RH OIL SEAL RING. $53.10 To Order
Photo Part No Description Price (each) Stock
182100 GEARBOX OIL FILTER $122.91 IN STOCK
Photo Part No Description Price (each) Stock
10977624 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11199277 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
198596 OIL FILTER COVER $288.30 To Order
Photo Part No Description Price (each) Stock
182117 DIPSTICK $62.26 To Order
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.35 IN STOCK
Photo Part No Description Price (each) Stock
183962 OIL DRAIN PLUG MAGNETIC 22X1.5 $31.51 IN STOCK
Photo Part No Description Price (each) Stock
182119 GEARBOX OIL FILTER O-RING $2.28 IN STOCK
Photo Part No Description Price (each) Stock
10265060 Gasket Copper D32. 38 x 1.5 $1.58 IN STOCK
Photo Part No Description Price (each) Stock
14446924 WASHER $0.28 IN STOCK
Photo Part No Description Price (each) Stock
14456981 GASKET $0.94 IN STOCK
Photo Part No Description Price (each) Stock
150957 ALIGNMENT BUSHING $8.45 To Order
Photo Part No Description Price (each) Stock
187064 PLATE $747.84 To Order
239230 PLATE $1,128.57 To Order
Photo Part No Description Price (each) Stock
212634 REAR COVER $336.63 To Order
Photo Part No Description Price (each) Stock
137192 O-RING $0.34 IN STOCK
Photo Part No Description Price (each) Stock
183986 PLATE $3.72 To Order
Photo Part No Description Price (each) Stock
176573 SELF-LOCKING HEX NUT M16 X 1.5 $1.75 IN STOCK
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.67 IN STOCK
Photo Part No Description Price (each) Stock
206350 SHIM $44.53 To Order
214788 SHIM $77.99 To Order
205881 SHIM $44.53 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
10276140 CAP $41.09 To Order
Photo Part No Description Price (each) Stock
69619500 HEAT SHIELD $67.35 To Order
Photo Part No Description Price (each) Stock
10977624 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
207461 REAR IMPACT ABSORBER $241.52 To Order
Photo Part No Description Price (each) Stock
261462 GEARBOX FILLER KIT $17.21 To Order
View All

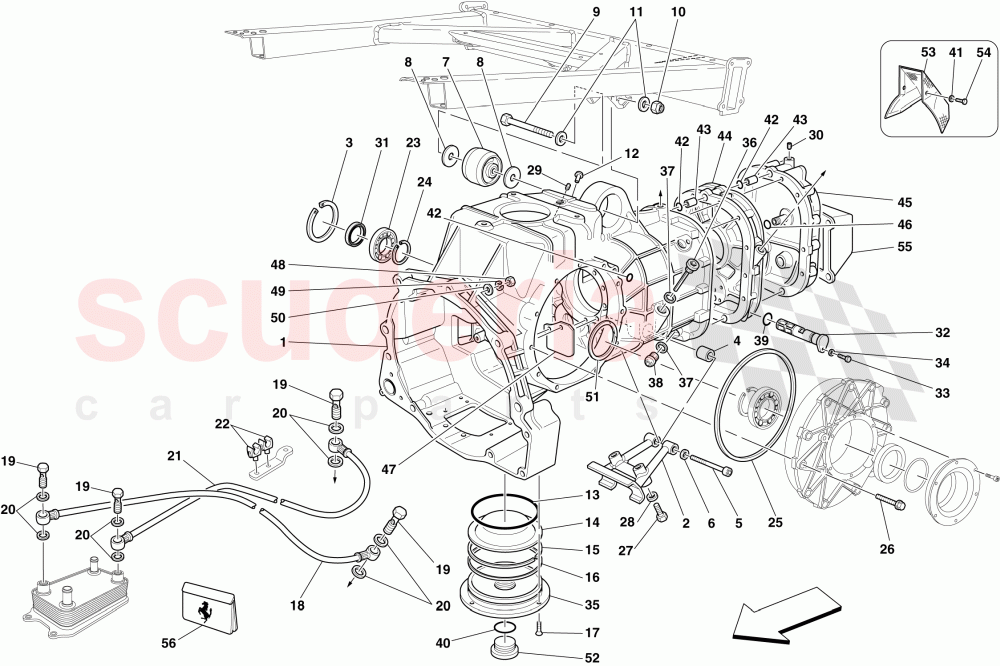

GEARBOX - COVERS of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 212633
GEARBOX HOUSING
Applicable up to Ass. No. 77100 		$5,018.79 1
- 239229
GEARBOX HOUSING
Applicable from Ass. No. 77101; Applicable from gearbox No. 131521 		$8,816.56 1
1 247320
COMPLETE GEARBOX
Also order supplement kit ref. 56; 		$46,633.76 1
2 215599
RETENTION BRACKET ABSORBER 		$147.32 1
3 185723
SEEGER RING
IN STOCK 		$4.11 (39.6% off) 1
4 213174
BUSHING
Ext. D. 32 mm; Int. D. 17 mm 		$66.62 1
5 14314774
SCREW 		$7.10 1
6 13507734
WASHER 		$1.35 1
7 237531
Gearbox Mounting Bush
IN STOCK 		$103.74 (29% off) 1
8 188141
RETAINER WASHER 		$43.21 2
9 11117134
SCREW 		$16.95 1
10 106004
NUT 		$0.83 (89.3% off) 1
11 14496824
WASHER 		$0.21 (79% off) 2
12 197797
OIL BREATHER 		$28.54 1
13 190183
O-RING D.69.85 - 8 X 100
IN STOCK 		$14.88 (22.5% off) 1
14 122429
Oil Pickup Filter
IN STOCK 		$10.96 (22.8% off) 1
15 185723
SEEGER RING
IN STOCK 		$4.11 (39.6% off) 1
16 207541
O-Ring
IN STOCK 		$14.01 (2.7% off) 1
17 62797600
Allen Bolt Countersunk M6 x 20
IN STOCK 		$0.97 (33.1% off) 4
18 198163
OIL DELIVERY PIPE 		$107.13 1
19 184727
Banjo bolt For Union M16 x 1.5
IN STOCK 		$5.70 4
20 872137
GASKET D.16.7-26 X 1.5 		$26.27 8
21 198166
OIL RETURN PIPE 		$118.35 1
22 232554
TUBE FASTENING BRACKET 		$9.64 2
23 184995
BEARING 		$152.50 1
24 184994
SNAP RING
IN STOCK 		$7.00 1
25 206350
SHIM
Th. 2.8 mm 		$44.53 1
25 206351
SHIM
Th. 3 mm 		$44.53 1
25 205881
SHIM
Th. 2.5 mm 		$44.53 1
25 206349
SHIM
Th. 2.2 mm 		$41.09 1
26 16287524
SCREW
IN STOCK 		$1.18 11
27 15231524
SCREW 		$0.95 2
28 12601474
WASHER
IN STOCK 		$0.03 2
29 282755
THREADED PLUG 		$1.87 1
30 14326101
THREADED PLUG 		$1.10 (33.3% off) 1
31 184006
RH OIL SEAL RING. 		$53.10 (42.6% off) 1
32 182100
GEARBOX OIL FILTER
IN STOCK 		$122.91 1
33 10977624
SCREW
IN STOCK 		$0.06 1
34 11199277
WASHER 		$0.11 1
35 198596
OIL FILTER COVER 		$288.30 1
36 182117
DIPSTICK 		$62.26 (30.3% off) 1
37 10263460
COPPER GASKET D.28-22.3 X 1.5
IN STOCK 		$0.35 (65% off) 3
38 183962
OIL DRAIN PLUG MAGNETIC 22X1.5
IN STOCK 		$31.51 2
39 182119
GEARBOX OIL FILTER O-RING
IN STOCK 		$2.28 (29.8% off) 1
40 10265060
Gasket Copper D32. 38 x 1.5
IN STOCK 		$1.58 1
41 14446924
WASHER
IN STOCK 		$0.28 2
42 14456981
GASKET
IN STOCK 		$0.94 (24.8% off) 4
43 150957
ALIGNMENT BUSHING 		$8.45 4
44 187064
PLATE
Applicable up to Ass. No. 77100 		$747.84 1
44 239230
PLATE
Applicable from Ass. No. 77101; Applicable from gearbox No. 131521 		$1,128.57 1
45 212634
REAR COVER 		$336.63 1
46 137192
O-RING
IN STOCK 		$0.34 (32% off) 2
47 183986
PLATE 		$3.72 1
48 176573
SELF-LOCKING HEX NUT M16 X 1.5
IN STOCK 		$1.75 (22.2% off) 7
49 127497
SPRING WASHER M10
IN STOCK 		$0.06 (92% off) 7
50 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.67 (4.6% off) 7
51 206350
SHIM
Th. 2.8 mm; Installed if necessary 		$44.53 1
51 214788
SHIM
Th. 2.6 mm; Installed if necessary 		$77.99 1
51 205881
SHIM
Th. 2.5 mm; Installed if necessary 		$44.53 1
51 206351
SHIM
Th. 3 mm; Installed if necessary 		$44.53 1
52 10276140
CAP 		$41.09 (42.8% off) 1
53 69619500
HEAT SHIELD 		$67.35 1
54 10977624
SCREW
IN STOCK 		$0.06 2
55 207461
REAR IMPACT ABSORBER
Applicable for USA, CDN 		$241.52 1
56 261462
GEARBOX FILLER KIT 		$17.21 1
