Ferrari 430 Scuderia Spider 16M - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
181197 Secondary Air Pump $512.55 IN STOCK
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
122221 PIPE $29.33 To Order
Photo Part No Description Price (each) Stock
227181 PUMP MOUNTING BRACKET $195.97 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
236154 PIPE $391.43 To Order
Photo Part No Description Price (each) Stock
232992 PIPE $757.61 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
162606 CLIP $1.17 IN STOCK
Photo Part No Description Price (each) Stock
186781 GASKET $4.93 To Order
Photo Part No Description Price (each) Stock
231559 AIR VALVE BRACKET $328.29 To Order
Photo Part No Description Price (each) Stock
186781 GASKET $4.93 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.19 IN STOCK
Photo Part No Description Price (each) Stock
819489 FLANGED BUSHING $13.87 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
228369 CONNECTOR PIPE $40.14 To Order
Photo Part No Description Price (each) Stock
171175 SECONDARY AIR VALVE $316.57 IN STOCK
Photo Part No Description Price (each) Stock
254756 CONNECTOR PIPE $30.29 To Order
Photo Part No Description Price (each) Stock
262422 PIPE $1,035.41 To Order
Photo Part No Description Price (each) Stock
161816257691 THREE-WAY UNION Enquire To Order
257691 3-WAY CONNECTOR $1.34 To Order
Photo Part No Description Price (each) Stock
147119 Rubber pipe from R.H. cut-off $14.18 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
12544179 Washer $0.53 To Order
Photo Part No Description Price (each) Stock
200111 BRACKET $75.74 To Order
Photo Part No Description Price (each) Stock
118501 PIPE $10.72 To Order
Photo Part No Description Price (each) Stock
232993 PIPE $757.61 To Order
Photo Part No Description Price (each) Stock
138505 PIPE $8.73 To Order
Photo Part No Description Price (each) Stock
239609 STUD BOLT $9.58 To Order
Photo Part No Description Price (each) Stock
198339 VACUUM ACCUMULATOR TANK $48.23 To Order
Photo Part No Description Price (each) Stock
260063 TANK MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
12644478 WASHER $0.18 To Order
66121400 WASHER $10.43 IN STOCK
Photo Part No Description Price (each) Stock
289103 RUBBER PIPE $11.98 To Order
Photo Part No Description Price (each) Stock
194323 PIPE $11.98 To Order
Photo Part No Description Price (each) Stock
225098 PLUG $1.45 IN STOCK
View All

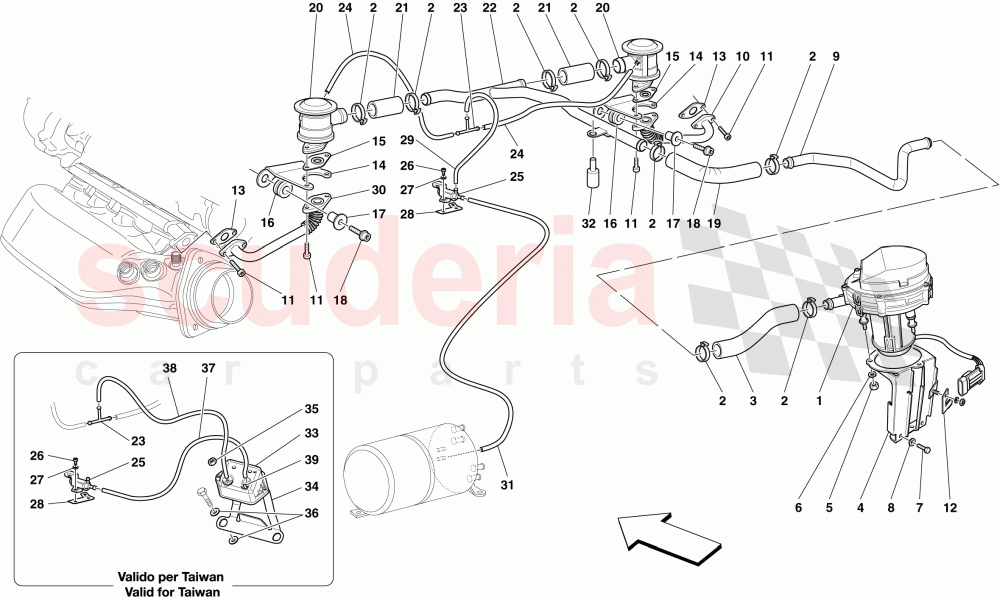

SECONDARY AIR SYSTEM of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 181197
Secondary Air Pump
IN STOCK 		$512.55 (22.7% off) 1
2 262111
SCREW CLAMP 		$1.39 6
2 262111
SCREW CLAMP
Hose fastener ref. 3 		$1.39 2
3 122221
PIPE 		$29.33 1
4 227181
PUMP MOUNTING BRACKET 		$195.97 1
5 14059290
FLANGED NUT M6
IN STOCK 		$1.31 3
6 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
7 16296934
SCREW 6 X 14MM
IN STOCK 		$0.41 3
8 12643724
WASHER
IN STOCK 		$0.06 (88% off) 3
9 236154
PIPE 		$391.43 1
10 232992
PIPE 		$757.61 1
11 231619
SCREW
IN STOCK 		$0.29 8
12 162606
CLIP
IN STOCK 		$1.17 (20.4% off) 1
13 186781
GASKET 		$4.93 (22.4% off) 2
14 231559
AIR VALVE BRACKET 		$328.29 2
15 186781
GASKET 		$4.93 (22.4% off) 2
16 177576
CABLE GROMMET
IN STOCK 		$2.19 4
17 819489
FLANGED BUSHING 		$13.87 4
18 231619
SCREW
IN STOCK 		$0.29 4
19 228369
CONNECTOR PIPE 		$40.14 1
20 171175
SECONDARY AIR VALVE
IN STOCK 		$316.57 2
21 254756
CONNECTOR PIPE 		$30.29 2
22 262422
PIPE 		$1,035.41 1
23 161816257691
THREE-WAY UNION
No longer supplied; Replaced by 257691 		- 1 Enquire
23 257691
3-WAY CONNECTOR 		$1.34 1
24 147119
Rubber pipe from R.H. cut-off 		$14.18 2
26 14304124
SCREW 		$0.14 (81.3% off) 2
27 12544179
Washer 		$0.53 2
28 200111
BRACKET 		$75.74 1
29 118501
PIPE
Not for Taiwan 		$10.72 1
30 232993
PIPE 		$757.61 1
31 138505
PIPE
Not for Taiwan 		$8.73 1
32 239609
STUD BOLT
Not for USA, CDN 		$9.58 1
33 198339
VACUUM ACCUMULATOR TANK
Applicable for Taiwan; Not for Spider 16M 		$48.23 1
34 260063
TANK MOUNTING BRACKET
Applicable for Taiwan; Not for Spider 16M 		- 1 Enquire
35 14059290
FLANGED NUT M6
Applicable for Taiwan; Not for Spider 16M
IN STOCK 		$1.31 2
36 12644478
WASHER
Applicable for Taiwan; Not for Spider 16M 		$0.18 2
36 66121400
WASHER
Applicable for Taiwan; Not for Spider 16M
IN STOCK 		$10.43 (29.3% off) 2
37 289103
RUBBER PIPE
Applicable for Taiwan; Not for Spider 16M 		$11.98 1
38 194323
PIPE
Applicable for Taiwan; Not for Spider 16M 		$11.98 1
39 225098
PLUG
Applicable for Taiwan; Not for Spider 16M
IN STOCK 		$1.45 1
