Ferrari 430 Scuderia - CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
81779911 COMPLETE FRONT FRAME $16,446.85 To Order
82407711 COMPLETE FRONT FRAME $15,965.30 To Order
82467811 COMPLETE FRONT FRAME Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
81790411 COMPLETE FRONT LATERAL RH. FLANK $6,585.33 To Order
81790611 COMPLETE FRONT LATERAL RH. FLANK $8,672.66 To Order
Photo Part No Description Price (each) Stock
81790511 COMPLETE FRONT LATERAL LH. FLANK $6,717.05 To Order
81790711 COMPLETE FRONT LATERAL LH. FLANK $6,585.33 To Order
Photo Part No Description Price (each) Stock
81790811 RH. FRONT LATERAL CONNECTOR $5,026.66 To Order
Photo Part No Description Price (each) Stock
81790911 LH. FRONT LATERAL CONNECTOR $5,026.66 To Order
Photo Part No Description Price (each) Stock
81791611 COMPLETE RH. FRONT LATERAL TRELLIS $2,709.05 To Order
Photo Part No Description Price (each) Stock
81791711 COMPLETE LH. FRONT LATERAL TRELLIS $3,514.37 To Order
Photo Part No Description Price (each) Stock
81035011 COMPLETE FRONT FRAME $4,085.51 To Order
Photo Part No Description Price (each) Stock
985235611 FRONT BUMPER RH. PILLAR $2,693.67 To Order
Photo Part No Description Price (each) Stock
985235610 FRONT BUMPER LH. PILLAR $2,693.67 To Order
Photo Part No Description Price (each) Stock
207735 L.M. FRAME $1,884.31 To Order
Photo Part No Description Price (each) Stock
207736 R.H. FRAME $1,884.31 To Order
Photo Part No Description Price (each) Stock
194945 L.H. FRONT CRUSH-BOX $1,120.25 To Order
Photo Part No Description Price (each) Stock
166301 FRONT UPPER CROSS MEMBER -Valid from Ass. Nr. 74672- -Valid after stock exhaustion of 166301- $843.33 To Order
Photo Part No Description Price (each) Stock
68037711 LUGGAGE COMPARTMENT FRONT WALL $717.96 To Order
Photo Part No Description Price (each) Stock
985166291 RH FRONT REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
985166191 LH FRONT REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
66395400 L.H. BRACKET $453.13 To Order
66395500 R.H. BRACKET $355.27 To Order
Photo Part No Description Price (each) Stock
985207176 RH FRONT BUMPER FASTENER BRACKET $75.50 To Order
985207175 LH FRONT BUMPER FASTENER BRACKET $75.50 To Order
Photo Part No Description Price (each) Stock
67357711 RH FRONT LATERAL WALL $641.94 To Order
Photo Part No Description Price (each) Stock
67357811 LH FRONT LATERAL WALL $553.82 To Order
Photo Part No Description Price (each) Stock
985198739 RH PANEL $352.43 To Order
207516 R.H. PLATE -Valid for GD- $352.43 To Order
Photo Part No Description Price (each) Stock
985198737 LH PANEL $352.43 To Order
207515 L.H. PLATE -Valid for GD- $352.43 To Order
Photo Part No Description Price (each) Stock
68886011 COMPLETE RH DOOR PILLAR $4,077.02 To Order
Photo Part No Description Price (each) Stock
68886100 COMPLETO COMPLETE LH DOOR PILLAR $553.00 To Order
Photo Part No Description Price (each) Stock
196005 R.H. UPPER FRAME $55.36 To Order
Photo Part No Description Price (each) Stock
196004 L.H. UPPER FRAME $151.02 To Order
Photo Part No Description Price (each) Stock
985166215 RH LOWER EXTRUSION $339.85 To Order
Photo Part No Description Price (each) Stock
166115 L.H. LOWER FRAME $64.53 To Order
Photo Part No Description Price (each) Stock
14642891 POP RIVET $0.14 To Order
Photo Part No Description Price (each) Stock
65133800 RIVET $0.14 IN STOCK
Photo Part No Description Price (each) Stock
248146 HEXAGONAL RIVET $1.00 To Order
15624311 HEXAGONAL RIVET $4.34 IN STOCK
15624211 Hexagonal Rivet $0.94 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65151200 Rivet $4.11 IN STOCK
Photo Part No Description Price (each) Stock
166101 Knurled Rivet $1.44 IN STOCK
65135000 Knurled Rivet $1.09 IN STOCK
65930400 Knurled Rivet $0.94 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65065400 HEXAGONAL HEAD STUD BOLT $3.23 To Order
Photo Part No Description Price (each) Stock
13836771 SCREW $2.11 IN STOCK
Photo Part No Description Price (each) Stock
193754 UNDER WINDSCREEN CROSS MEMBER -Not for GD- Not as spare part now- -Replaced by 193754- $176.21 To Order
217012 UNDER WINDSCREEN CROSS MEMBER -Valid for GD- $434.20 To Order
Photo Part No Description Price (each) Stock
70000950 REPAIR INSERTS KIT $1,672.60 To Order
Photo Part No Description Price (each) Stock
196003 R.H. FRONT REINFORCEMENT $120.82 To Order
Photo Part No Description Price (each) Stock
209306 L.H. FRONT REINFORCEMENT $100.69 To Order
Photo Part No Description Price (each) Stock
985214462 TOW HOOK BRACKET $264.31 To Order
Photo Part No Description Price (each) Stock
214490 GANCIO DL TRAINO $226.56 To Order
Photo Part No Description Price (each) Stock
14306924 SCREW $0.64 IN STOCK
Photo Part No Description Price (each) Stock
12642777 WASHER -Valid for GTS- $0.35 To Order
Photo Part No Description Price (each) Stock
68018400 PUMP MOUNTING BRACKET $12.49 To Order
View All

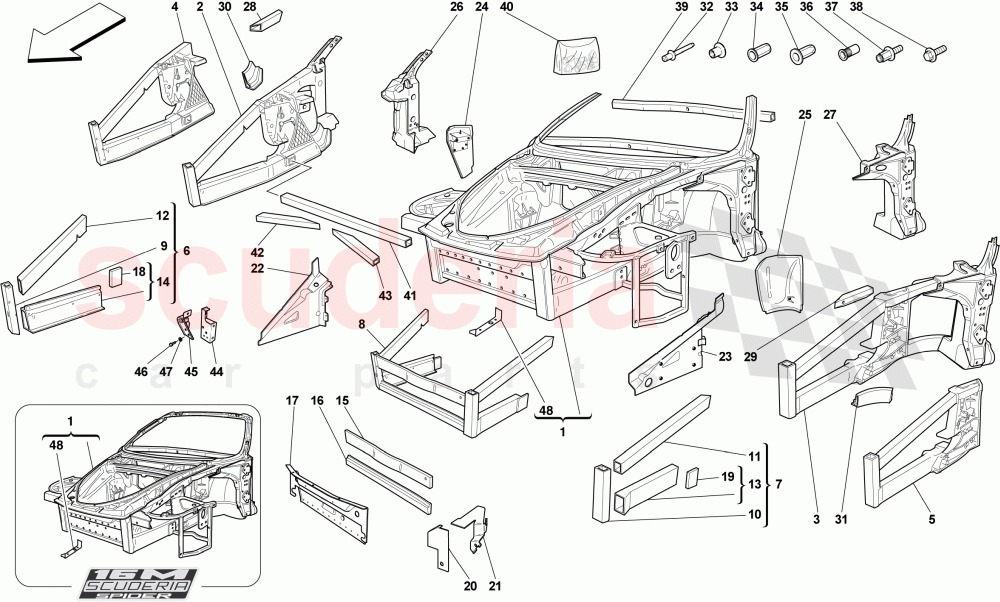

CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 81779911
COMPLETE FRONT FRAME
Not for Spider 16M; Applicable for GD 		$16,446.85 1
1 82407711
COMPLETE FRONT FRAME
Applicable for Spider 16M; Not for GD 		$15,965.30 1
1 82467811
COMPLETE FRONT FRAME
Applicable for Spider 16M; Applicable for GD 		- 1 Enquire
1 81035111
COMPLETE FRONT FRAME
Not for Spider 16M; Not for GD 		$15,965.30 1
2 81790411
COMPLETE FRONT LATERAL RH. FLANK
Not for GD 		$6,585.33 1
2 81790611
COMPLETE FRONT LATERAL RH. FLANK
Applicable for GD 		$8,672.66 1
3 81790511
COMPLETE FRONT LATERAL LH. FLANK
Not for GD 		$6,717.05 1
3 81790711
COMPLETE FRONT LATERAL LH. FLANK
Applicable for GD 		$6,585.33 1
4 81790811
RH. FRONT LATERAL CONNECTOR 		$5,026.66 1
5 81790911
LH. FRONT LATERAL CONNECTOR 		$5,026.66 1
6 81791611
COMPLETE RH. FRONT LATERAL TRELLIS 		$2,709.05 1
7 81791711
COMPLETE LH. FRONT LATERAL TRELLIS 		$3,514.37 1
8 81035011
COMPLETE FRONT FRAME 		$4,085.51 1
9 985235611
FRONT BUMPER RH. PILLAR 		$2,693.67 1
10 985235610
FRONT BUMPER LH. PILLAR 		$2,693.67 1
11 207735
L.M. FRAME 		$1,884.31 1
12 207736
R.H. FRAME 		$1,884.31 1
13 194945
L.H. FRONT CRUSH-BOX 		$1,120.25 1
15 166301
FRONT UPPER CROSS MEMBER -Valid from Ass. Nr. 74672- -Valid after stock exhaustion of 166301- 		$843.33 1
17 68037711
LUGGAGE COMPARTMENT FRONT WALL 		$717.96 1
18 985166291
RH FRONT REINFORCEMENT 		- 1 Enquire
19 985166191
LH FRONT REINFORCEMENT 		- 1 Enquire
20 66395400
L.H. BRACKET 		$453.13 1
20 66395500
R.H. BRACKET 		$355.27 1
21 985207176
RH FRONT BUMPER FASTENER BRACKET 		$75.50 1
21 985207175
LH FRONT BUMPER FASTENER BRACKET 		$75.50 1
22 67357711
RH FRONT LATERAL WALL 		$641.94 1
23 67357811
LH FRONT LATERAL WALL 		$553.82 1
24 985198739
RH PANEL
Not for GD 		$352.43 1
24 207516
R.H. PLATE -Valid for GD-
Applicable for GD 		$352.43 1
25 985198737
LH PANEL
Not for GD 		$352.43 1
25 207515
L.H. PLATE -Valid for GD-
Applicable for GD 		$352.43 1
26 68886011
COMPLETE RH DOOR PILLAR 		$4,077.02 1
27 68886100
COMPLETO COMPLETE LH DOOR PILLAR 		$553.00 1
28 196005
R.H. UPPER FRAME 		$55.36 1
29 196004
L.H. UPPER FRAME 		$151.02 1
30 985166215
RH LOWER EXTRUSION 		$339.85 1
31 166115
L.H. LOWER FRAME 		$64.53 1
32 14642891
POP RIVET
L. 14 mm 		$0.14 -
33 65133800
RIVET
L. 6.4 mm
IN STOCK 		$0.14 -
34 248146
HEXAGONAL RIVET
M6 		$1.00 -
34 15624311
HEXAGONAL RIVET
M5
IN STOCK 		$4.34 -
34 15624211
Hexagonal Rivet
M4
IN STOCK 		$0.94 -
34 15180411
Hexagonal Blind Rivet
IN STOCK 		$1.34 -
34 248150
ESAGONAL RIVET M8
M8 		$0.41 -
35 65151200
Rivet
M6
IN STOCK 		$4.11 -
36 166101
Knurled Rivet
M4
IN STOCK 		$1.44 -
36 65135000
Knurled Rivet
M8
IN STOCK 		$1.09 -
36 65930400
Knurled Rivet
M6
IN STOCK 		$0.94 -
36 65319800
Nut Knurled Rivet
M5
IN STOCK 		$0.79 -
36 60853400
RIVET 		$0.58 -
37 65065400
HEXAGONAL HEAD STUD BOLT
M6 		$3.23 -
38 13836771
SCREW
IN STOCK 		$2.11 -
39 193754
UNDER WINDSCREEN CROSS MEMBER -Not for GD- Not as spare part now- -Replaced by 193754-
Not for GD 		$176.21 1
39 217012
UNDER WINDSCREEN CROSS MEMBER -Valid for GD-
Applicable for GD 		$434.20 1
40 70000950
REPAIR INSERTS KIT 		$1,672.60 1
42 196003
R.H. FRONT REINFORCEMENT 		$120.82 1
43 209306
L.H. FRONT REINFORCEMENT 		$100.69 1
44 985214462
TOW HOOK BRACKET 		$264.31 (29.7% off) 1
45 214490
GANCIO DL TRAINO 		$226.56 1
46 14306924
SCREW
IN STOCK 		$0.64 6
47 12642777
WASHER -Valid for GTS- 		$0.35 6
48 68018400
PUMP MOUNTING BRACKET 		$12.49 1
