Evaporative Emissions Control System

Ferrari 430 Scuderia

Find Your Part

Ferrari 430 Scuderia - EVAPORATIVE EMISSIONS CONTROL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
219311 FUEL VAPOUR FILTER $264.78 IN STOCK
Photo Part No Description Price (each) Stock
209663 FILTER MOUNTING BRACKET $254.20 To Order
Photo Part No Description Price (each) Stock
180636 WRAPPER $7.77 To Order
Photo Part No Description Price (each) Stock
180638 RUBBER SHIM $11.02 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
197688 LH TUBE COMPLETE WITH CONNECTORS $80.42 To Order
Photo Part No Description Price (each) Stock
220981 AIR INTAKE PIPE $42.08 To Order
Photo Part No Description Price (each) Stock

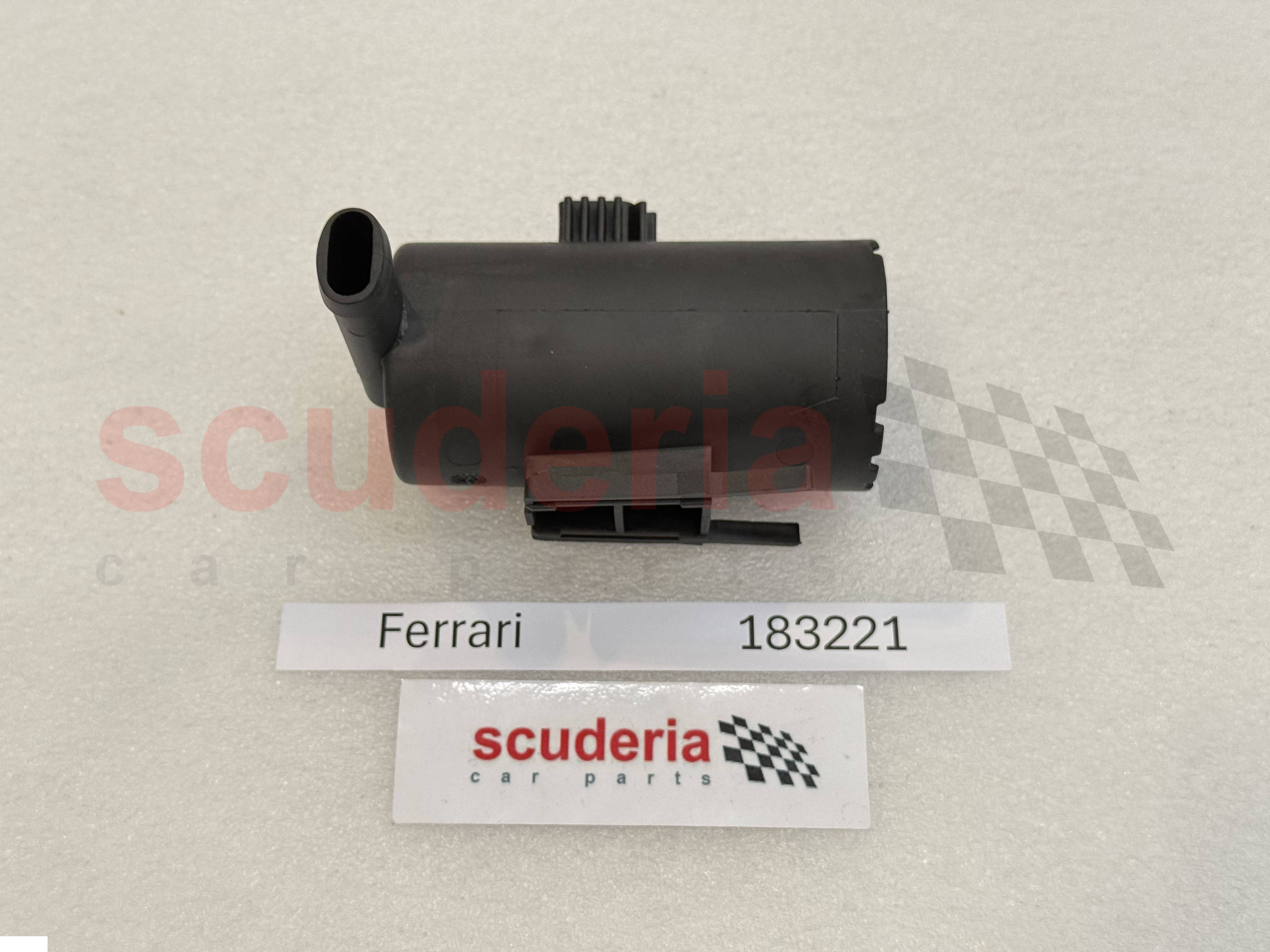

183221 OBD PUMP FILTER $22.43 ARRIVING SOON
Photo Part No Description Price (each) Stock
13433370 Screw Collar $0.86 IN STOCK
Photo Part No Description Price (each) Stock
192879 PIPE FROM SEPARATOR TO FILTER $101.66 To Order
243910 PIPE FROM SEPARATOR TO FILTER $95.59 To Order
Photo Part No Description Price (each) Stock
211358 BRACKET $33.89 To Order
Photo Part No Description Price (each) Stock
180972 CLIPS $0.32 To Order
Photo Part No Description Price (each) Stock
162412 Flush Valve $124.55 To Order
Photo Part No Description Price (each) Stock
174623 BUSH $11.97 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
Photo Part No Description Price (each) Stock

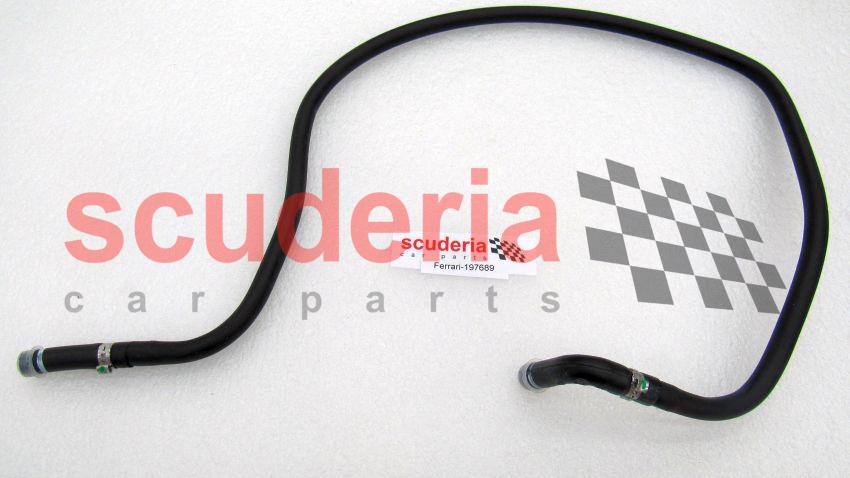

197689 RH PIPE COMPLETE WITH CONNECTORS $74.35 To Order
Photo Part No Description Price (each) Stock
252170 PIPE FROM RH SEPARATOR TO LH SEPARATOR $142.64 To Order
Photo Part No Description Price (each) Stock
251288 Diagnostic Pump $336.23 ARRIVING SOON
Photo Part No Description Price (each) Stock
195288 COMPLETE PIPE WITH UNION $40.96 To Order
View All

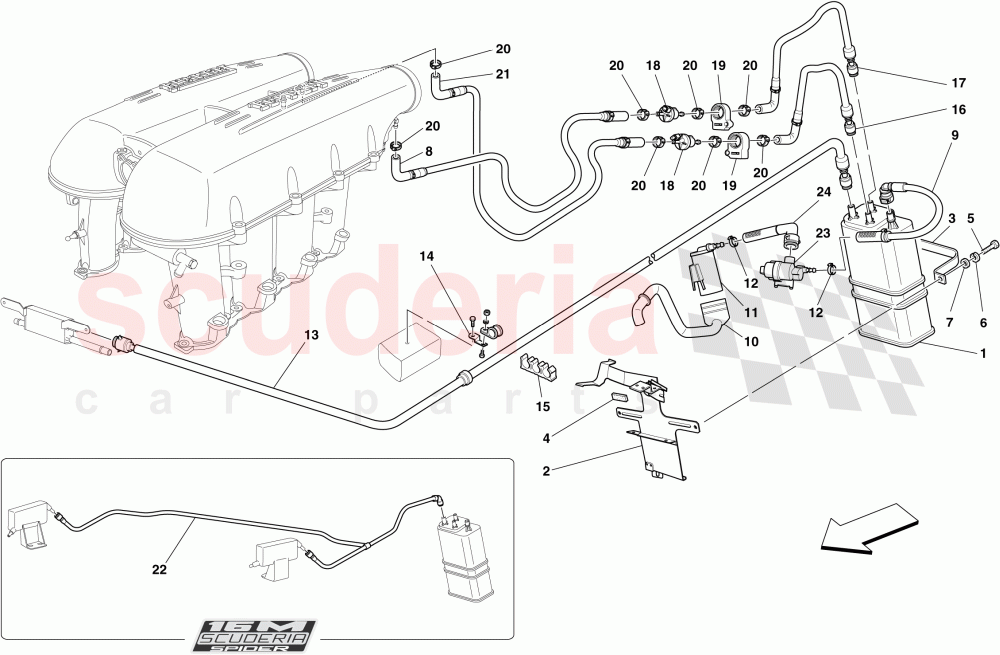

EVAPORATIVE EMISSIONS CONTROL SYSTEM of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 219311
FUEL VAPOUR FILTER
IN STOCK 		$264.78 1
2 209663
FILTER MOUNTING BRACKET 		$254.20 1
3 180636
WRAPPER 		$7.77 (45.5% off) 1
4 180638
RUBBER SHIM 		$11.02 2
5 897538
SCREW 		$1.53 2
6 12639724
WASHER
IN STOCK 		$0.05 (90% off) 2
7 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
8 197688
LH TUBE COMPLETE WITH CONNECTORS 		$80.42 1
10 220981
AIR INTAKE PIPE 		$42.08 1
11 183221
OBD PUMP FILTER
ARRIVING SOON 		$22.43 1
12 13433370
Screw Collar
IN STOCK 		$0.86 2
13 192879
PIPE FROM SEPARATOR TO FILTER
Not for Spider 16M; Applicable up to Ass. No. 78239 		$101.66 1
13 243910
PIPE FROM SEPARATOR TO FILTER
Not for Spider 16M; Applicable from Ass. No. 78240 		$95.59 1
14 211358
BRACKET
Not for Spider 16M 		$33.89 1
15 180972
CLIPS 		$0.32 1
18 162412
Flush Valve 		$124.55 2
19 174623
BUSH 		$11.97 2
20 13432070
HOSE COLLAR
IN STOCK 		$0.49 (54.2% off) 8
21 197689
RH PIPE COMPLETE WITH CONNECTORS 		$74.35 1
22 252170
PIPE FROM RH SEPARATOR TO LH SEPARATOR
Applicable for Spider 16M 		$142.64 1
23 251288
Diagnostic Pump
ARRIVING SOON 		$336.23 1
24 195288
COMPLETE PIPE WITH UNION 		$40.96 1
