Parking Brake Control

Ferrari 430 Scuderia

Find Your Part

Ferrari 430 Scuderia - PARKING BRAKE CONTROL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
236933 HANDBREAK ARM Enquire To Order
80769100 COMPL. PARKING BRAKE LEVER $1,411.38 To Order
Photo Part No Description Price (each) Stock
14308424 SCREW $3.14 To Order
Photo Part No Description Price (each) Stock
207655 ARM MOUNTING BRACKET $89.52 To Order
Photo Part No Description Price (each) Stock
176118 MICROSWITCH $53.42 To Order
Photo Part No Description Price (each) Stock
14308924 SCREW $4.15 IN STOCK
Photo Part No Description Price (each) Stock
16043224 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
16043434 HEX HEAD SCREW M8 X 20 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
256606 RH REAR PARKING BRAKE CABLE $257.98 IN STOCK
Photo Part No Description Price (each) Stock
122091 PULLEY $9.01 IN STOCK
Photo Part No Description Price (each) Stock
10050814 PIN $2.38 To Order
Photo Part No Description Price (each) Stock
10734208 SPLIT PIN $0.02 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
176245 CABLE FASTENER BRACKET $59.00 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10041214 PIN $3.02 To Order
Photo Part No Description Price (each) Stock
10734208 SPLIT PIN $0.02 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
176261 PULLEY $83.88 To Order
Photo Part No Description Price (each) Stock
10091011 SLEEVE $102.65 To Order
Photo Part No Description Price (each) Stock
312592 NUT $2.28 To Order
Photo Part No Description Price (each) Stock
256605 LH REAR CABLE $254.21 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
228045 LH CALLIPER FOR HANDBRAKE $816.90 To Order
228046 RH CALLIPER FOR HANDBRAKE $858.44 To Order
View All

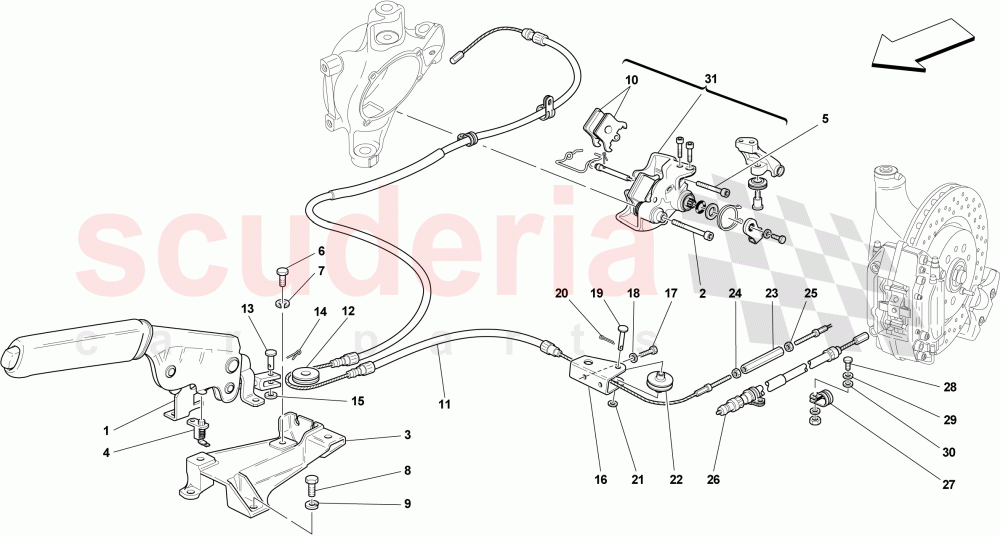

PARKING BRAKE CONTROL of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 236933
HANDBREAK ARM
Alcantara; No longer supplied 		- 1 Enquire
1 80769100
COMPL. PARKING BRAKE LEVER
Leather 		$1,411.38 1
2 14308424
SCREW 		$3.14 (73.8% off) 1
3 207655
ARM MOUNTING BRACKET 		$89.52 1
4 176118
MICROSWITCH 		$53.42 (34.3% off) 1
5 14308924
SCREW
IN STOCK 		$4.15 (33.6% off) 1
6 16043224
SCREW
IN STOCK 		$0.14 (72% off) 2
7 127496
WASHER 		$0.06 (80% off) 2
8 16043434
HEX HEAD SCREW M8 X 20
IN STOCK 		$0.23 (54% off) 2
9 127496
WASHER 		$0.06 (80% off) 2
11 256606
RH REAR PARKING BRAKE CABLE
Replace as a pair with LH rear cable
IN STOCK 		$257.98 (11.5% off) 1
12 122091
PULLEY
IN STOCK 		$9.01 1
13 10050814
PIN 		$2.38 (61.9% off) 1
14 10734208
SPLIT PIN 		$0.02 1
15 14496524
WASHER D.8.4 X 17 X 1.6
IN STOCK 		$0.11 (92.7% off) 1
16 176245
CABLE FASTENER BRACKET 		$59.00 1
17 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 2
18 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
19 10041214
PIN 		$3.02 1
20 10734208
SPLIT PIN 		$0.02 1
21 14496524
WASHER D.8.4 X 17 X 1.6
IN STOCK 		$0.11 (92.7% off) 1
22 176261
PULLEY 		$83.88 1
23 10091011
SLEEVE 		$102.65 1
24 312592
NUT 		$2.28 1
25 10727314
NUT 		$0.34 1
26 256605
LH REAR CABLE
Replace as a pair with RH rear cable 		$254.21 1
27 10441390
BRACKET WITH SHEATH
IN STOCK 		$0.54 5
28 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 3
29 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
30 12644424
WASHER
IN STOCK 		$0.06 (85% off) 3
31 228045
LH CALLIPER FOR HANDBRAKE
Version with CCM brakes 		$816.90 (14.9% off) 1
31 228046
RH CALLIPER FOR HANDBRAKE
Version with CCM brakes 		$858.44 (10.5% off) 1
