Ferrari 430 Scuderia - COOLING SYSTEM RADIATORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
194078 WATER RADIATOR $1,171.10 To Order
Photo Part No Description Price (each) Stock
198965 WATER DRAIN PLUG $46.03 To Order
Photo Part No Description Price (each) Stock
241069 RH. COMPLETE ELECTRIC FAN $705.01 To Order
241068 LH. COMPLETE ELECTRIC FAN $609.33 To Order
Photo Part No Description Price (each) Stock
185543 RESISTOR $30.61 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
14498801 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
233906 LOWER RADIATOR MOUNTING $94.67 IN STOCK
194519 Lower Radiator Mounting $156.77 IN STOCK
Photo Part No Description Price (each) Stock
242995 UPPER RADIATOR MOUNTING $101.03 To Order
Photo Part No Description Price (each) Stock
16044324 SCREW $0.34 To Order
Photo Part No Description Price (each) Stock
14054511 NUT $1.23 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $5.03 IN STOCK
Photo Part No Description Price (each) Stock
15958801 SCREW $0.28 To Order
Photo Part No Description Price (each) Stock
205354 RH RADIATOR CENTRAL MOUNTING $75.45 IN STOCK
205658 LH RADIATOR CENTRAL MOUNTING $90.80 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12648925 WASHER $0.35 IN STOCK
Photo Part No Description Price (each) Stock
14054511 NUT $1.23 IN STOCK
Photo Part No Description Price (each) Stock
219344 WASHER $0.29 To Order
Photo Part No Description Price (each) Stock
14305324 ALLEN SCREW M6 X 20 $0.08 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
220970 GUARD $9.61 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
260425 O-RING $3.50 To Order
View All

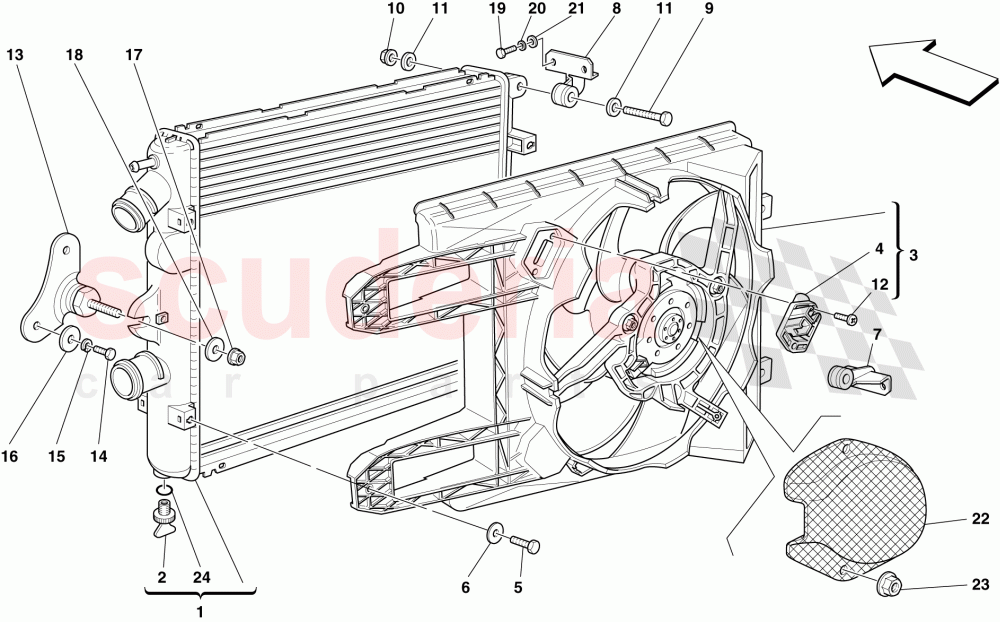

COOLING SYSTEM RADIATORS of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 194078
WATER RADIATOR 		$1,171.10 (31.4% off) 2
2 198965
WATER DRAIN PLUG 		$46.03 2
3 241069
RH. COMPLETE ELECTRIC FAN 		$705.01 (48% off) 1
3 241068
LH. COMPLETE ELECTRIC FAN 		$609.33 (55% off) 1
4 185543
RESISTOR 		$30.61 (33.8% off) 1
5 86574700
SCREW 		$0.62 3
6 14498801
WASHER
IN STOCK 		$0.11 (45% off) 3
7 233906
LOWER RADIATOR MOUNTING
Not for GD
IN STOCK 		$94.67 2
7 194519
Lower Radiator Mounting
Applicable for GD
IN STOCK 		$156.77 2
8 242995
UPPER RADIATOR MOUNTING 		$101.03 (30.9% off) 2
9 16044324
SCREW 		$0.34 (24.4% off) 2
10 14054511
NUT
IN STOCK 		$1.23 2
11 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$5.03 4
12 15958801
SCREW 		$0.28 2
13 205354
RH RADIATOR CENTRAL MOUNTING
IN STOCK 		$75.45 1
13 205658
LH RADIATOR CENTRAL MOUNTING 		$90.80 1
14 10902424
SCREW
IN STOCK 		$0.14 (80% off) 4
15 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 4
16 12648925
WASHER
IN STOCK 		$0.35 4
17 14054511
NUT
IN STOCK 		$1.23 2
18 219344
WASHER 		$0.29 2
19 14305324
ALLEN SCREW M6 X 20
IN STOCK 		$0.08 8
20 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 8
21 12644424
WASHER
IN STOCK 		$0.06 (85% off) 8
22 220970
GUARD
IN STOCK 		$9.61 (30.9% off) 2
23 14059290
FLANGED NUT M6
IN STOCK 		$1.33 6
24 260425
O-RING 		$3.50 (15.7% off) 2
