Differential And Axle Shaft

Ferrari 430 Coupe

Find Your Part

Ferrari 430 Coupe - DIFFERENTIAL AND AXLE SHAFT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
238598 COMPLETE DIFFERENTIAL $10,043.03 To Order
220371 COMPLETE DIFFERENTIAL Enquire To Order
238599 COMPLETE DIFFERENTIAL $9,325.09 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
199744 LEFT DIFFERENTIAL OUTPUT SHAFT $541.92 IN STOCK
Photo Part No Description Price (each) Stock
199743 RIGHT DIFFERENTIAL OUTPUT SHAFT $788.98 To Order
Photo Part No Description Price (each) Stock
205745 COVER $107.83 To Order
Photo Part No Description Price (each) Stock
16043634 SCREW $0.21 IN STOCK
Photo Part No Description Price (each) Stock
201911 COMPLETE AXLE SHAFT $1,427.95 To Order
Photo Part No Description Price (each) Stock
223916 Screw $2.28 To Order
Photo Part No Description Price (each) Stock
222679 SHIM PLATE Enquire To Order
Photo Part No Description Price (each) Stock
208327 AXLE SHAFT GUARD SHIELD $288.43 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
172347 BIG CLAMP $6.78 To Order
Photo Part No Description Price (each) Stock
154213 SMALL CLAMP $3.99 To Order
Photo Part No Description Price (each) Stock
13540724 STUD BOLT $0.43 To Order
Photo Part No Description Price (each) Stock
205740 GEARBOX COVER Enquire To Order
Photo Part No Description Price (each) Stock
14468781 GASKET $34.95 IN STOCK
Photo Part No Description Price (each) Stock
14305321 SCREW $0.09 To Order
Photo Part No Description Price (each) Stock
181617 LH Rotating Oil Sealing Ring $47.29 IN STOCK
Photo Part No Description Price (each) Stock
184995 BEARING $152.56 To Order
Photo Part No Description Price (each) Stock
184994 SNAP RING $7.01 IN STOCK
Photo Part No Description Price (each) Stock
14460981 O-RING $10.50 IN STOCK
Photo Part No Description Price (each) Stock
205741 BREATHER VALVE $54.64 To Order
Photo Part No Description Price (each) Stock
742238 Oil Pressure Sensor $299.05 To Order
View All

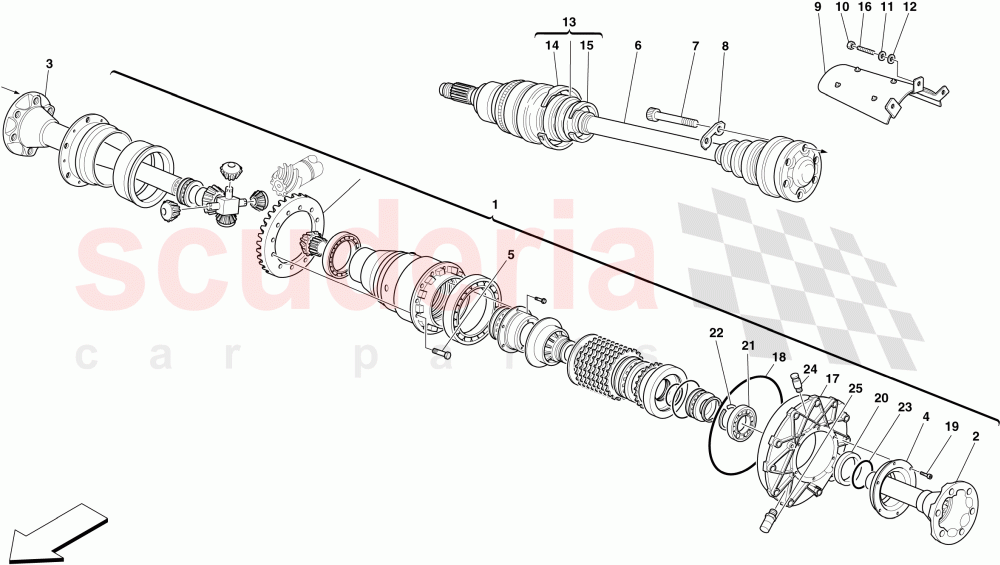

DIFFERENTIAL AND AXLE SHAFT of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 238598
COMPLETE DIFFERENTIAL
Also see Power Unit table; Not for Taiwan; Applicable from Ass. No. 77101; Applicable from gearbox No. 19 		$10,043.03 1
1 220371
COMPLETE DIFFERENTIAL
Also see Power Unit table; Applicable for Taiwan; Applicable up to Ass. No. 77100; Applicable up to gearbox No. 18 		- 1 Enquire
1 238599
COMPLETE DIFFERENTIAL
Also see Power Unit table; Applicable for Taiwan; Applicable from Ass. No. 77101; Applicable from gearbox No. 19 		$9,325.09 1
1 207545
COMPLETE DIFFERENTIAL
Also see Power Unit table; Not for Taiwan; Applicable up to Ass. No. 77100; Applicable up to gearbox No. 18 		$5,393.83 1
2 199744
LEFT DIFFERENTIAL OUTPUT SHAFT
IN STOCK 		$541.92 1
3 199743
RIGHT DIFFERENTIAL OUTPUT SHAFT 		$788.98 1
4 205745
COVER 		$107.83 1
5 16043634
SCREW
IN STOCK 		$0.21 11
6 201911
COMPLETE AXLE SHAFT 		$1,427.95 2
7 223916
Screw 		$2.28 12
8 222679
SHIM PLATE 		- 6 Enquire
9 208327
AXLE SHAFT GUARD SHIELD 		$288.43 2
10 14059290
FLANGED NUT M6
IN STOCK 		$1.32 6
11 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 6
12 12643724
WASHER
IN STOCK 		$0.06 (88% off) 12
12 12639724
WASHER
No longer supplied; Replaced by 12647727
IN STOCK 		$0.05 (90% off) 6
14 172347
BIG CLAMP 		$6.78 (6.1% off) 4
15 154213
SMALL CLAMP 		$3.99 (16.5% off) 4
16 13540724
STUD BOLT 		$0.43 6
17 205740
GEARBOX COVER
Not supplied 		- 1 Enquire
18 14468781
GASKET
IN STOCK 		$34.95 1
19 14305321
SCREW 		$0.09 (88% off) 6
20 181617
LH Rotating Oil Sealing Ring
IN STOCK 		$47.29 (37.5% off) 1
21 184995
BEARING 		$152.56 1
22 184994
SNAP RING
IN STOCK 		$7.01 1
23 14460981
O-RING
IN STOCK 		$10.50 (29.2% off) 1
24 205741
BREATHER VALVE 		$54.64 1
25 742238
Oil Pressure Sensor 		$299.05 1
