Pedal Board -Not For Gd-

Ferrari 430 Coupe

Find Your Part

Ferrari 430 Coupe - PEDAL BOARD -Not for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
176464 PEDAL BOARD MOUNTING $2,774.79 To Order
241502 PEDAL BOARD MOUNTING $1,376.98 To Order
Photo Part No Description Price (each) Stock
176466 PEDAL MOUNTING PIN $148.34 To Order
Photo Part No Description Price (each) Stock
180558 COMPLETE BRAKE PEDAL $603.52 To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING $1.85 To Order
Photo Part No Description Price (each) Stock
176475 BALL-JOINT $166.50 To Order
Photo Part No Description Price (each) Stock
180559 COMPLETE CLUTCH PEDAL $591.68 To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING $1.85 To Order
Photo Part No Description Price (each) Stock
176475 BALL-JOINT $166.50 To Order
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
187014 PEDAL ADJUSTER SCREW $29.96 To Order
Photo Part No Description Price (each) Stock
180516 CENTRAL MOUNTING $339.44 To Order
Photo Part No Description Price (each) Stock
133555 PUSHBUTTON SWITCH $34.22 To Order
Photo Part No Description Price (each) Stock
176471 FORK $116.20 To Order
176471 FORK $116.20 To Order
199754 FORK $81.73 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
66535800 SCREW $5.08 To Order
66535800 SCREW $5.08 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
176522 PLASTIC WASHER $14.22 IN STOCK
176522 PLASTIC WASHER $14.22 IN STOCK
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
101305 SPRING $87.46 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
219558 SWITCH MOUNTING $202.85 To Order
219558 SWITCH MOUNTING $202.85 To Order
Photo Part No Description Price (each) Stock
334064 PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22- $26.61 To Order
958694 PUSH-BUTTON SWITCH $31.77 IN STOCK
Photo Part No Description Price (each) Stock
16043224 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
187014 PEDAL ADJUSTER SCREW $29.96 To Order
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
180560 COMPLETE BRAKE PEDAL $603.52 To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING $1.85 To Order
Photo Part No Description Price (each) Stock
176475 BALL-JOINT $166.50 To Order
Photo Part No Description Price (each) Stock
176918 SHIM $126.78 To Order
Photo Part No Description Price (each) Stock
113836 WASHER $4.07 To Order
Photo Part No Description Price (each) Stock
106083 WASHER $0.54 To Order
113833 WASHER $2.13 IN STOCK
113834 WASHER $2.09 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
178340 WASHER $3.55 To Order
113834 WASHER $2.09 To Order
113835 WASHER $8.20 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13516924 STUD BOLT $2.11 IN STOCK
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13517024 STUD BOLT $0.47 To Order
Photo Part No Description Price (each) Stock
16102377 NUT $1.68 To Order
Photo Part No Description Price (each) Stock
13550321 WASHER $0.28 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
176524 PEDAL BOARD MOUNTING GASKET $16.67 To Order
View All

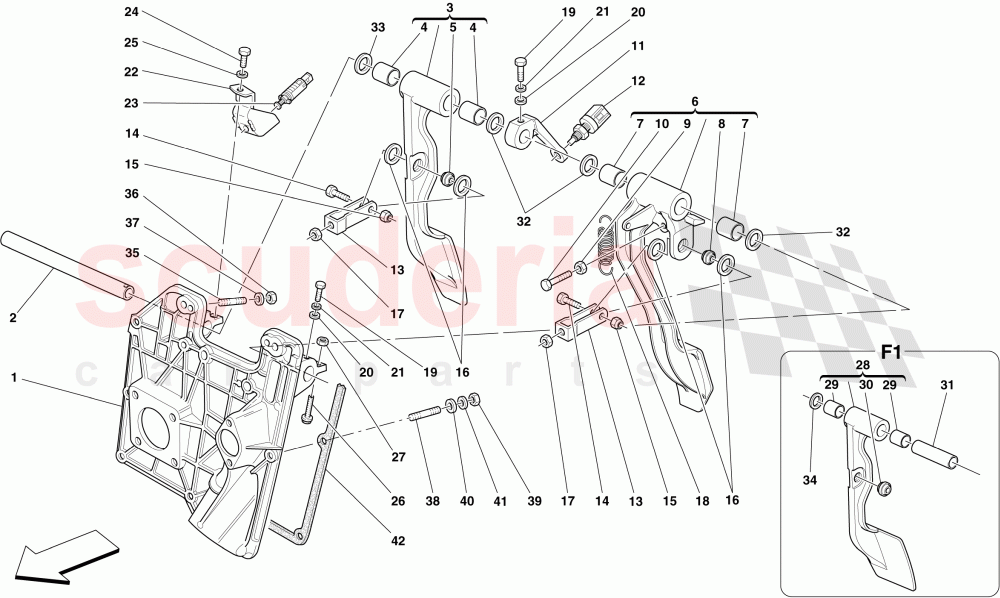

PEDAL BOARD -Not for GD- of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 176464
PEDAL BOARD MOUNTING
Not for GD; Applicable for F1 gearbox 		$2,774.79 1
1 241502
PEDAL BOARD MOUNTING
Not for GD; Not for F1 gearbox 		$1,376.98 1
2 176466
PEDAL MOUNTING PIN
Not for GD 		$148.34 1
3 180558
COMPLETE BRAKE PEDAL
Not for GD; Not for F1 gearbox 		$603.52 1
4 103163
SELF-LUBRICATING BUSHING
Not for GD; Not for F1 gearbox 		$1.85 (84.6% off) 2
5 176475
BALL-JOINT
Not for GD; Not for F1 gearbox 		$166.50 1
6 180559
COMPLETE CLUTCH PEDAL
Not for GD; Not for F1 gearbox 		$591.68 1
7 103163
SELF-LUBRICATING BUSHING
Not for GD; Not for F1 gearbox 		$1.85 (84.6% off) 2
8 176475
BALL-JOINT
Not for GD; Not for F1 gearbox 		$166.50 1
9 16102314
NUT
Not for GD; Not for F1 gearbox 		$0.06 (95.3% off) 1
10 187014
PEDAL ADJUSTER SCREW
Not for GD; Not for F1 gearbox 		$29.96 1
11 180516
CENTRAL MOUNTING
Not for GD; Not for F1 gearbox 		$339.44 1
12 133555
PUSHBUTTON SWITCH
Not for GD; Not for F1 gearbox 		$34.22 (21.1% off) 1
13 176471
FORK
Standard; Not for GD; Not for F1 gearbox 		$116.20 2
13 176471
FORK
Standard; Not for GD; Applicable for F1 gearbox 		$116.20 1
13 199754
FORK
Optional; Version with CCM brakes; Not for GD; Not for F1 gearbox 		$81.73 (25.5% off) 2
13 199754
FORK
Optional; Version with CCM brakes; Not for GD; Applicable for F1 gearbox 		$81.73 (25.5% off) 1
14 66535800
SCREW
Not for GD; Not for F1 gearbox 		$5.08 2
14 66535800
SCREW
Not for GD; Applicable for F1 gearbox 		$5.08 1
15 147985
NUT
Not for GD; Not for F1 gearbox
IN STOCK 		$0.14 (72% off) 2
15 147985
NUT
Not for GD; Applicable for F1 gearbox
IN STOCK 		$0.14 (72% off) 1
16 176522
PLASTIC WASHER
Not for GD; Not for F1 gearbox
IN STOCK 		$14.22 4
16 176522
PLASTIC WASHER
Not for GD; Applicable for F1 gearbox
IN STOCK 		$14.22 2
17 16102314
NUT
Not for GD; Not for F1 gearbox 		$0.06 (95.3% off) 2
17 16102314
NUT
Not for GD; Applicable for F1 gearbox 		$0.06 (95.3% off) 1
18 101305
SPRING
Not for GD; Not for F1 gearbox 		$87.46 1
19 10902424
SCREW
Not for GD
IN STOCK 		$0.14 (80% off) 1
20 10519424
WASHER D.6.4 X 11.95 X 1.6
Not for GD
IN STOCK 		$0.02 (92% off) 2
21 127494
WASHER
Not for GD
IN STOCK 		$0.08 (88.2% off) 1
22 219558
SWITCH MOUNTING
Applicable for switch 183433 ref. 23; Not for GD 		$202.85 1
22 219558
SWITCH MOUNTING
Applicable for switch 201957 ref. 23; Not for GD 		$202.85 1
23 334064
PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22-
Applicable for mount 218606 ref. 22; Not for GD 		$26.61 1
23 958694
PUSH-BUTTON SWITCH
Applicable for mount 219558 ref. 22; Not for GD
IN STOCK 		$31.77 1
24 16043224
SCREW
Not for GD
IN STOCK 		$0.14 (72% off) 1
25 127496
WASHER
Not for GD 		$0.06 (80% off) 1
26 187014
PEDAL ADJUSTER SCREW
Not for GD; Not for F1 gearbox 		$29.96 1
27 16102314
NUT
Not for GD; Not for F1 gearbox 		$0.06 (95.3% off) 1
28 180560
COMPLETE BRAKE PEDAL
Not for GD; Applicable for F1 gearbox 		$603.52 1
29 103163
SELF-LUBRICATING BUSHING
Not for GD; Applicable for F1 gearbox 		$1.85 (84.6% off) 2
30 176475
BALL-JOINT
Not for GD; Applicable for F1 gearbox 		$166.50 1
31 176918
SHIM
Not for GD; Applicable for F1 gearbox 		$126.78 1
32 113836
WASHER
Th. 1.4 mm; Not for GD; Not for F1 gearbox 		$4.07 3
33 106083
WASHER
Th. 1 mm; Not for GD; Not for F1 gearbox 		$0.54 1
33 113833
WASHER
Th. 1.1 mm; Installed if necessary; Not for GD; Not for F1 gearbox
IN STOCK 		$2.13 1
33 113834
WASHER
Th. 1.2 mm; Installed if necessary; Not for GD; Not for F1 gearbox 		$2.09 1
33 113835
WASHER
Th. 1.3 mm; Installed if necessary; Not for GD; Not for F1 gearbox 		$8.20 1
33 113836
WASHER
Th. 1.4 mm; Installed if necessary; Not for GD; Not for F1 gearbox 		$4.07 1
34 178340
WASHER
Not for GD; Applicable for F1 gearbox 		$3.55 1
34 113834
WASHER
Th. 1.2 mm; Installed if necessary; Not for GD; Applicable for F1 gearbox 		$2.09 1
34 113835
WASHER
Th. 1.3 mm; Installed if necessary; Not for GD; Applicable for F1 gearbox 		$8.20 1
34 113836
WASHER
Th. 1.4 mm; Installed if necessary; Not for GD; Applicable for F1 gearbox 		$4.07 1
35 13516924
STUD BOLT
Not for GD
IN STOCK 		$2.11 6
36 104030
NUT
Not for GD
IN STOCK 		$0.24 (76% off) 6
37 12638524
WASHER D8.15-15 X 1.5
Not for GD
IN STOCK 		$0.06 (76% off) 6
38 13517024
STUD BOLT
Not for GD 		$0.47 2
39 16102377
NUT
Not for GD 		$1.68 2
40 13550321
WASHER
Not for GD 		$0.28 (77.6% off) 2
41 12601374
WASHER D.8.40-15 X 0.8
Not for GD
IN STOCK 		$0.02 (92% off) 2
42 176524
PEDAL BOARD MOUNTING GASKET
Not for GD 		$16.67 1
