Ferrari 430 Coupe - FLAT UNDERTRAY AND WHEELHOUSES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
80494600 Front Underbody Guard $471.67 IN STOCK
Photo Part No Description Price (each) Stock
198642 CENTRE CONSOLE REINFORCEMENT $1,189.52 To Order
Photo Part No Description Price (each) Stock
68373000 REAR UNDERBODY GUARD $1,244.69 IN STOCK
Photo Part No Description Price (each) Stock
67964900 LH FRONT WHEELHOUSE EXTERNAL FAIRING $396.60 To Order
67957400 RH FRONT WHEELHOUSE EXTERNAL FAIRING $419.94 To Order
Photo Part No Description Price (each) Stock
65522400 LH WHEELHOUSE COVER PLATE $83.15 IN STOCK
65522300 RH WHEELHOUSE COVER PLATE $75.81 IN STOCK
Photo Part No Description Price (each) Stock
68036400 GASKET $11.53 To Order
Photo Part No Description Price (each) Stock
64994500 GASKET $68.81 To Order
Photo Part No Description Price (each) Stock
67957200 LH REAR WHEELHOUSE $629.90 To Order
67957300 RH REAR WHEELHOUSE $454.92 To Order
Photo Part No Description Price (each) Stock
64865000 GASKET $25.64 To Order
Photo Part No Description Price (each) Stock
80780000 LH GASKET $61.36 To Order
68034900 RH GASKET $68.81 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
66121400 WASHER D7.4 X 35 X 2 $10.47 IN STOCK
Photo Part No Description Price (each) Stock
62766300 SCRE CLIP M6 $0.72 IN STOCK
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
13276477 SCREW M6 X 20 POZZI HEAD $0.50 IN STOCK
Photo Part No Description Price (each) Stock
11197777 WAVY WASHER D6.4-12 x 1.2 $0.14 IN STOCK
Photo Part No Description Price (each) Stock
10977887 SCREW M5 X 16 $0.78 IN STOCK
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
68700800 CLIP $0.96 IN STOCK
Photo Part No Description Price (each) Stock
13276477 SCREW M6 X 20 POZZI HEAD $0.50 IN STOCK
Photo Part No Description Price (each) Stock
11197777 WAVY WASHER D6.4-12 x 1.2 $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
64783600 CAP $5.41 To Order
Photo Part No Description Price (each) Stock
66092500 ANTI-VIBRATION GASKET $3.73 To Order
Photo Part No Description Price (each) Stock
68023300 CENTRAL UNDERBODY GUARD $148.34 To Order
Photo Part No Description Price (each) Stock
68035000 GASKET $0.78 To Order
Photo Part No Description Price (each) Stock
81061600 OIL FILTER ACCESS HATCH $141.95 To Order
Photo Part No Description Price (each) Stock
205370 SCREW $0.49 IN STOCK
210246 SCREW $1.44 IN STOCK
Photo Part No Description Price (each) Stock
12647021 WASHER $0.31 IN STOCK
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
63965800 PLUG $6.35 IN STOCK
Photo Part No Description Price (each) Stock
69403900 CENTRAL SOUNDPROOFING $181.64 To Order
Photo Part No Description Price (each) Stock
69403800 RH SOUNDPROOFING $119.25 To Order
Photo Part No Description Price (each) Stock
69404000 LH SOUNDPROOFING $119.25 To Order
Photo Part No Description Price (each) Stock
80964000 BRACKET $113.52 To Order
80964000 BRACKET $113.52 To Order
68502300 BRACKET $113.52 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14623187 CAP $0.52 IN STOCK
Photo Part No Description Price (each) Stock
14507787 PLUG $0.81 IN STOCK
View All

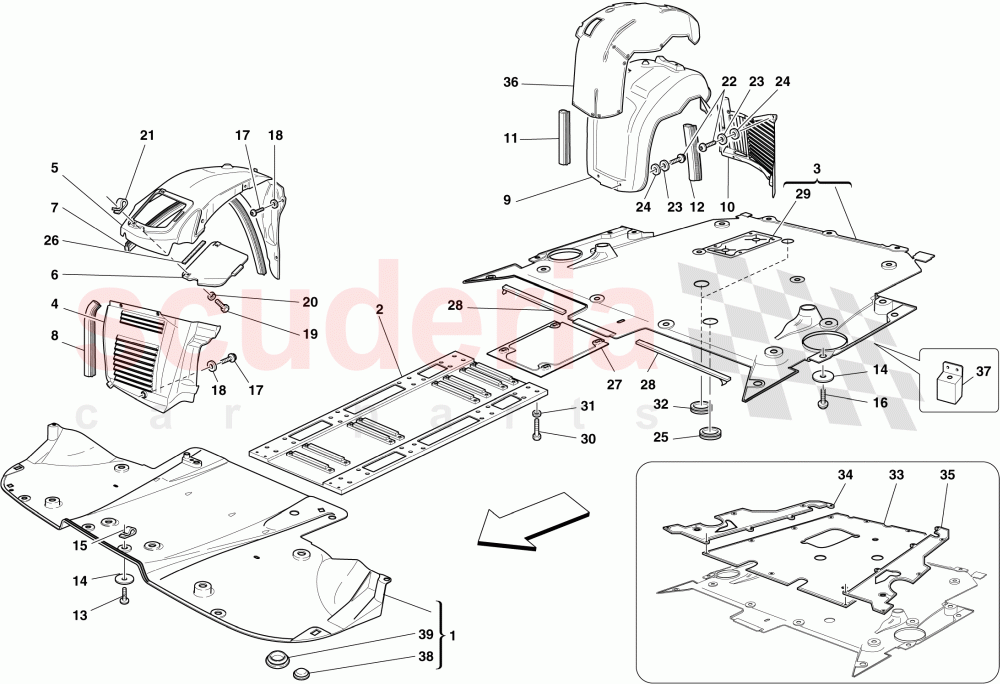

FLAT UNDERTRAY AND WHEELHOUSES of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 80494600
Front Underbody Guard
IN STOCK 		$471.67 (27.5% off) 1
2 198642
CENTRE CONSOLE REINFORCEMENT 		$1,189.52 1
3 68373000
REAR UNDERBODY GUARD
IN STOCK 		$1,244.69 (27.5% off) 1
5 67964900
LH FRONT WHEELHOUSE EXTERNAL FAIRING 		$396.60 1
5 67957400
RH FRONT WHEELHOUSE EXTERNAL FAIRING 		$419.94 (29.3% off) 1
6 65522400
LH WHEELHOUSE COVER PLATE
IN STOCK 		$83.15 (25.7% off) 1
6 65522300
RH WHEELHOUSE COVER PLATE
IN STOCK 		$75.81 1
7 68036400
GASKET 		$11.53 (21.6% off) 2
8 64994500
GASKET
No longer supplied 		$68.81 (26.3% off) 2
9 67957200
LH REAR WHEELHOUSE
Front part 		$629.90 1
9 67957300
RH REAR WHEELHOUSE
Front part 		$454.92 (28.4% off) 1
11 64865000
GASKET
No longer supplied 		$25.64 2
12 80780000
LH GASKET 		$61.36 1
12 68034900
RH GASKET 		$68.81 1
13 10902424
SCREW
IN STOCK 		$0.14 (80% off) 16
14 66121400
WASHER D7.4 X 35 X 2
IN STOCK 		$10.47 (29.1% off) 34
15 62766300
SCRE CLIP M6
IN STOCK 		$0.72 (4% off) 6
16 10902424
SCREW
IN STOCK 		$0.14 (80% off) 23
17 13276477
SCREW M6 X 20 POZZI HEAD
IN STOCK 		$0.50 (50% off) 10
18 11197777
WAVY WASHER D6.4-12 x 1.2
IN STOCK 		$0.14 10
19 10977887
SCREW M5 X 16
IN STOCK 		$0.78 (54.1% off) 4
20 62769800
WASHER D.5-14 X 2.5
IN STOCK 		$0.21 (30% off) 4
21 68700800
CLIP
IN STOCK 		$0.96 4
22 13276477
SCREW M6 X 20 POZZI HEAD
IN STOCK 		$0.50 (50% off) 18
23 11197777
WAVY WASHER D6.4-12 x 1.2
IN STOCK 		$0.14 18
24 12643724
WASHER
IN STOCK 		$0.06 (88% off) 18
25 64783600
CAP 		$5.41 (16.8% off) 1
26 66092500
ANTI-VIBRATION GASKET
No longer supplied 		$3.73 2
27 68023300
CENTRAL UNDERBODY GUARD 		$148.34 1
28 68035000
GASKET 		$0.78 2
29 81061600
OIL FILTER ACCESS HATCH 		$141.95 1
30 205370
SCREW
M6 X 25
IN STOCK 		$0.49 16
30 210246
SCREW
M8 X 25
IN STOCK 		$1.44 32
31 12647021
WASHER
8.45 X 20 X 2
IN STOCK 		$0.31 32
31 12639724
WASHER
6.45 X 11 X 1
IN STOCK 		$0.05 (90% off) 16
32 63965800
PLUG
IN STOCK 		$6.35 (47.1% off) 2
33 69403900
CENTRAL SOUNDPROOFING 		$181.64 1
34 69403800
RH SOUNDPROOFING 		$119.25 1
35 69404000
LH SOUNDPROOFING 		$119.25 1
37 80964000
BRACKET
Not for USA, CDN; Applicable from Ass. No. 84423 		$113.52 1
37 80964000
BRACKET
Applicable for CDN; Applicable from Ass. No. 75817 		$113.52 1
37 68502300
BRACKET
Applicable for CDN; Applicable up to Ass. No. 75816 		$113.52 1
37 68502300
BRACKET
Not for CDN 		$113.52 1
38 14623187
CAP
IN STOCK 		$0.52 1
39 14507787
PLUG
IN STOCK 		$0.81 1
