Rear Passengers Compartment Control Stations

Ferrari 430 Challenge (2006)

Find Your Part

Ferrari 430 Challenge (2006) - rear passengers compartment control stations

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
228727 F1 GEARBOX CONTROL UNIT $5,115.61 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
188172 YAW SENSOR $741.42 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
81036000 LH UPPER BRACKET $85.51 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
67420900 LH LOWER BRACKET $18.31 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.42 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
81035600 LH. SIDE ECU FASTENING BRACKET $61.38 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.42 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
170114 TERMINAL BLOCK $52.44 To Order
Photo Part No Description Price (each) Stock
155184 BRACKET $10.15 To Order
Photo Part No Description Price (each) Stock
194909 RELAY 50A $19.18 To Order
Photo Part No Description Price (each) Stock
172877 10 A MINI FUSE $9.78 To Order
172878 15 A MINI FUSE $7.64 IN STOCK
172879 20 A MINI FUSE $8.90 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
81035900 RH BRACKET $61.38 To Order
Photo Part No Description Price (each) Stock
81035800 RH LOWER BRACKET $94.64 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.42 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
81034700 UPPER BRACKET $12.65 To Order
Photo Part No Description Price (each) Stock
68277800 ECU FASTENER BRACKET $12.82 To Order
View All

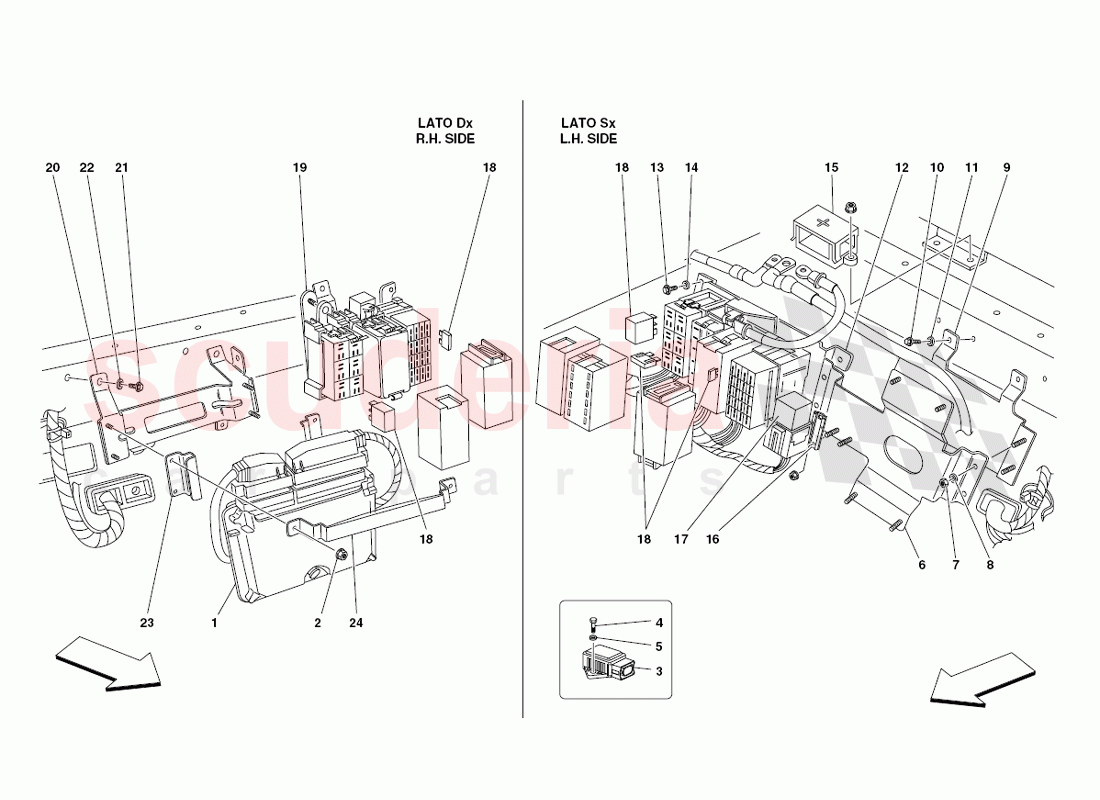

rear passengers compartment control stations of Ferrari Ferrari 430 Challenge (2006) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 228727
F1 GEARBOX CONTROL UNIT 		$5,115.61 1
2 14059290
FLANGED NUT M6
IN STOCK 		$1.33 4
3 188172
YAW SENSOR 		$741.42 1
4 10902424
SCREW
IN STOCK 		$0.14 (80% off) 2
5 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
6 81036000
LH UPPER BRACKET 		$85.51 1
7 14059290
FLANGED NUT M6
IN STOCK 		$1.33 4
8 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
9 67420900
LH LOWER BRACKET 		$18.31 1
10 16296934
SCREW 6 X 14MM
IN STOCK 		$0.42 3
11 12643724
WASHER
IN STOCK 		$0.06 (88% off) 3
12 81035600
LH. SIDE ECU FASTENING BRACKET 		$61.38 1
13 16296934
SCREW 6 X 14MM
IN STOCK 		$0.42 6
14 12643724
WASHER
IN STOCK 		$0.06 (88% off) 6
15 170114
TERMINAL BLOCK 		$52.44 (17.9% off) 1
16 155184
BRACKET 		$10.15 1
17 194909
RELAY 50A
Valid for F1 not as spare part use part number: 233100 		$19.18 (7.6% off) 1
18 172877
10 A MINI FUSE 		$9.78 11
18 172878
15 A MINI FUSE
IN STOCK 		$7.64 16
18 172879
20 A MINI FUSE 		$8.90 2
18 170093
30 A MAXI FUSE
IN STOCK 		$12.79 2
18 172881
30 A MINI FUSE 		$10.85 7
18 172875
5 A MINI FUSE
IN STOCK 		$9.98 4
18 170061
50 A MAXI FUSE
IN STOCK 		$5.14 1
18 172871
60 A MAXI FUSE
IN STOCK 		$15.03 2
18 172876
7.5 A MINI FUSE 		$9.87 5
18 161590
20 A MICRO RELAY 		$21.74 (74.3% off) 11
18 227285
20/10 A MICRO RELAY 		$24.28 2

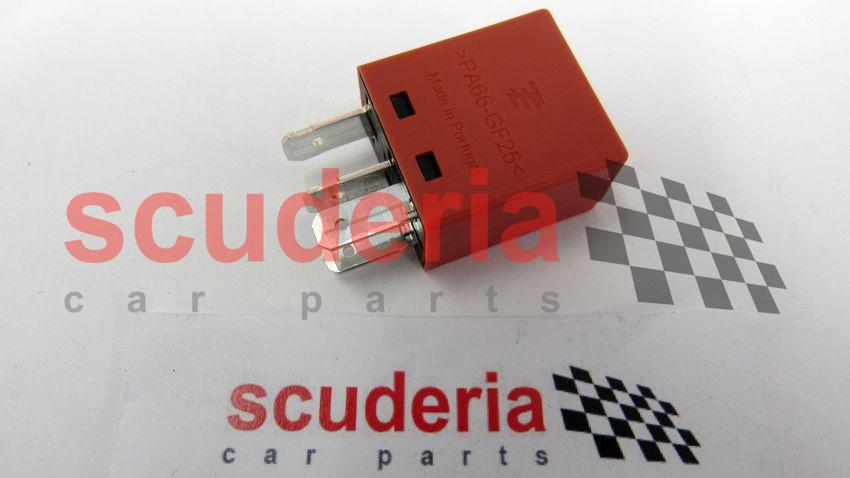

18 172882
30 A MICRO RELAY
IN STOCK 		$30.53 (28.6% off) 4
18 183662
IMMOBILIZER/DIAGNOSTIC RELAY 		$25.42 1
19 81035900
RH BRACKET 		$61.38 1
20 81035800
RH LOWER BRACKET 		$94.64 1
21 16296934
SCREW 6 X 14MM
IN STOCK 		$0.42 4
22 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
23 81034700
UPPER BRACKET 		$12.65 2
24 68277800
ECU FASTENER BRACKET 		$12.82 1
