Rear Suspension - Shock Absorber And Brake Disc

Ferrari 360 Challenge (2000)

Find Your Part

Ferrari 360 Challenge (2000) - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
181402 REAR SHOCK ABSORBER $945.86 To Order
Photo Part No Description Price (each) Stock
181422 SPRING 0,0344 mm/Kg $138.52 To Order
Photo Part No Description Price (each) Stock
245623 UPPER SPACER $45.10 To Order
Photo Part No Description Price (each) Stock
181408 LOWER SPACER $49.61 To Order
Photo Part No Description Price (each) Stock
157630 SHOCK ABSORBER BUSH $109.30 IN STOCK
Photo Part No Description Price (each) Stock
174727 UPPER SPRING RETENTION CAP $259.81 To Order
Photo Part No Description Price (each) Stock
181404 SHOCK ABSORBER PAD $38.35 To Order
Photo Part No Description Price (each) Stock
181410 SPACER $65.48 To Order
Photo Part No Description Price (each) Stock
181412 RING NUT $26.79 To Order
Photo Part No Description Price (each) Stock
176625 SHOCK ABSORBER CONNECTION SUPPORT $240.58 To Order
Photo Part No Description Price (each) Stock
100013 CENTERING DOWEL $2.34 To Order
Photo Part No Description Price (each) Stock
13526170 THREADED INSERT $3.61 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14306774 SCREW $0.38 To Order
Photo Part No Description Price (each) Stock
329184 FLANBLOC $151.11 To Order
Photo Part No Description Price (each) Stock
11306934 SCREW $0.53 To Order
Photo Part No Description Price (each) Stock
160092 WASHER $0.26 IN STOCK
Photo Part No Description Price (each) Stock
204974 SCREW $260.29 To Order
Photo Part No Description Price (each) Stock
129225 WASHER $1.43 To Order
Photo Part No Description Price (each) Stock
148020 NUT M12 X 1.25 $3.81 IN STOCK
Photo Part No Description Price (each) Stock
182508 PIN $9.81 To Order
Photo Part No Description Price (each) Stock
160092 WASHER $0.26 IN STOCK
Photo Part No Description Price (each) Stock
179778 REAR ANTI-ROLL BAR $1,473.59 To Order
Photo Part No Description Price (each) Stock
133216 NUT $7.99 IN STOCK
Photo Part No Description Price (each) Stock
181465 BUSHING $9.05 To Order
Photo Part No Description Price (each) Stock
182511 BAR BUFFER $10.06 To Order
Photo Part No Description Price (each) Stock
182512 PAD $18.88 To Order
Photo Part No Description Price (each) Stock
175861 LH ARM $270.65 To Order
Photo Part No Description Price (each) Stock
170950 ALLEN SCREW M10 X 1.25 $3.11 IN STOCK
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
179070 Hub Bearing $812.11 To Order
Photo Part No Description Price (each) Stock
180591 SCREW $2.13 To Order
Photo Part No Description Price (each) Stock
160092 WASHER $0.26 IN STOCK
Photo Part No Description Price (each) Stock
10732414 WASHER $7.70 To Order
Photo Part No Description Price (each) Stock
181466 NUT $27.05 To Order
Photo Part No Description Price (each) Stock
182943 R.H. REAR BRAKE DISC $604.93 To Order
Photo Part No Description Price (each) Stock
183251 FIXING DISC CLUTCH $1,196.51 To Order
Photo Part No Description Price (each) Stock
183241 WASHER $2.10 To Order
Photo Part No Description Price (each) Stock
183253 BUSHING $42.09 To Order
Photo Part No Description Price (each) Stock
183252 SCREW $7.81 To Order
Photo Part No Description Price (each) Stock
169088 Complete bar connecting rod $201.50 To Order
Photo Part No Description Price (each) Stock
178043 STUD $21.19 To Order
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14304021 SCREW M5 X 10 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
181447 RING FOR DISC COOLING $201.50 To Order
View All

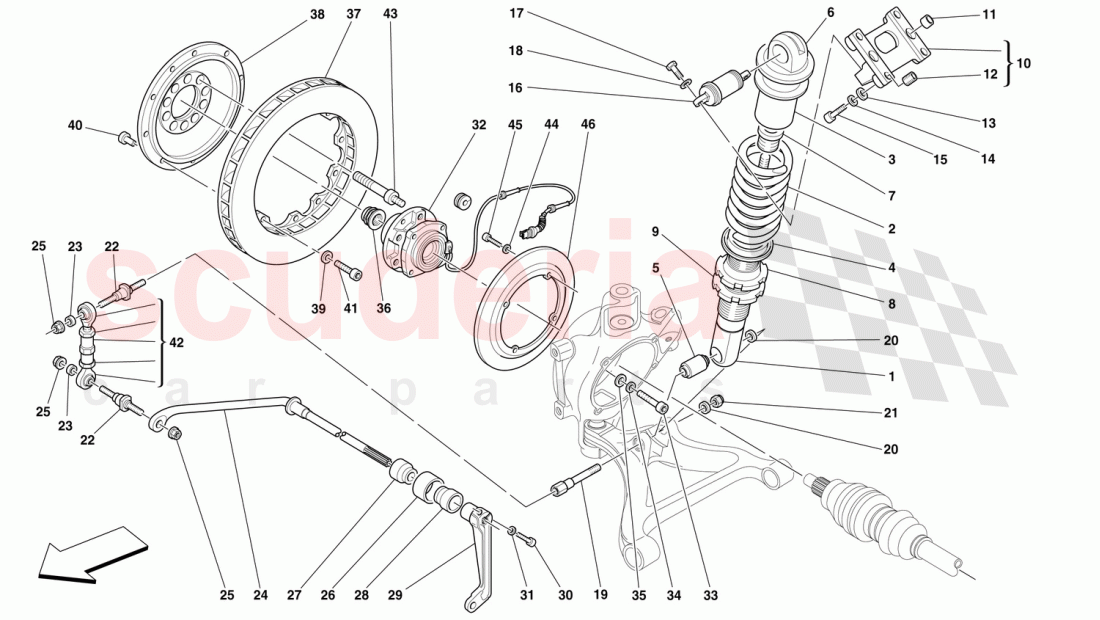

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 360 Challenge (2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 181416
RIGIDO SPACER
Thickness 3 		$31.06 2
- 181417
RIGIDO SPACER
Thickness 4 		$36.94 2
- 181418
RIGIDO SPACER
Thickness 5 		$65.49 2
- 181415
RIGIDO SPACER
Thickness 2 		$41.15 2
- 182949
L.H. REAR BRAKE DISC 		$735.33 1
- 182510
BUSHING
Outside diameter 50 mm -0,35 -0,45 / Neutral paint 		$55.39 2
- 184354
BUSHING
Outside diameter 50,2 mm -0 -0,1 / Green paint 		$16.53 2
- 181421
SPRING 0,0424 mm/Kg
As an alternative 		$150.36 2
1 181402
REAR SHOCK ABSORBER 		$945.86 2
2 181422
SPRING 0,0344 mm/Kg 		$138.52 2
3 245623
UPPER SPACER 		$45.10 2
4 181408
LOWER SPACER 		$49.61 (30.4% off) 2
5 157630
SHOCK ABSORBER BUSH
IN STOCK 		$109.30 (28.2% off) 2
6 174727
UPPER SPRING RETENTION CAP
SPACER 		$259.81 2
7 181404
SHOCK ABSORBER PAD 		$38.35 2
8 181410
SPACER 		$65.48 2
9 181412
RING NUT 		$26.79 2
10 176625
SHOCK ABSORBER CONNECTION SUPPORT
CONNECTION SUPPORT / Valid for Challenge 2000 		$240.58 2
11 100013
CENTERING DOWEL
Valid for Challenge 2000 		$2.34 4
12 13526170
THREADED INSERT
Valid for Challenge 2000 		$3.61 (39% off) 4
13 14496524
WASHER D.8.4 X 17 X 1.6
Valid for Challenge 2000
IN STOCK 		$0.11 (92.7% off) 8
14 127496
WASHER
Valid for Challenge 2000 		$0.06 (80% off) 8
15 14306774
SCREW
Valid for Challenge 2000 		$0.38 8
16 329184
FLANBLOC 		$151.11 2
17 11306934
SCREW 		$0.53 (64.7% off) 4
18 160092
WASHER
IN STOCK 		$0.26 (56.7% off) 4
19 204974
SCREW 		$260.29 2
20 129225
WASHER 		$1.43 (30.9% off) 4
21 148020
NUT M12 X 1.25
IN STOCK 		$3.81 2
22 182508
PIN 		$9.81 4
23 160092
WASHER
IN STOCK 		$0.26 (56.7% off) 4
24 179778
REAR ANTI-ROLL BAR 		$1,473.59 1
25 133216
NUT
IN STOCK 		$7.99 (23.3% off) 6
26 181465
BUSHING
Outside diameter 50 mm -0,1 -0,2 / Red paint 		$9.05 2
27 182511
BAR BUFFER 		$10.06 1
28 182512
PAD 		$18.88 1
29 175861
LH ARM 		$270.65 1
30 170950
ALLEN SCREW M10 X 1.25
IN STOCK 		$3.11 (35.6% off) 1
31 12601474
WASHER
IN STOCK 		$0.03 1
32 179070
Hub Bearing 		$812.11 (45.1% off) 2
33 180591
SCREW 		$2.13 (46.1% off) 8
34 160092
WASHER
IN STOCK 		$0.26 (56.7% off) 8
35 10732414
WASHER 		$7.70 (18.9% off) 8
36 181466
NUT 		$27.05 2
37 182943
R.H. REAR BRAKE DISC 		$604.93 1
38 183251
FIXING DISC CLUTCH 		$1,196.51 2
39 183241
WASHER 		$2.10 20
40 183253
BUSHING 		$42.09 20
41 183252
SCREW 		$7.81 20
42 169088
Complete bar connecting rod 		$201.50 2
43 178043
STUD 		$21.19 10
44 12601174
WASHER 		$0.06 (82.9% off) 8
45 14304021
SCREW M5 X 10
IN STOCK 		$0.20 8
46 181447
RING FOR DISC COOLING 		$201.50 2
47 181414
RIGIDO SPACER
Thickness 1 		$29.39 2
48 182544
WASHER 		$8.49 2
