Name: BRAKES HYDRAULIC CONTROLS
Rating: 5.0 (1 reviews)

View All

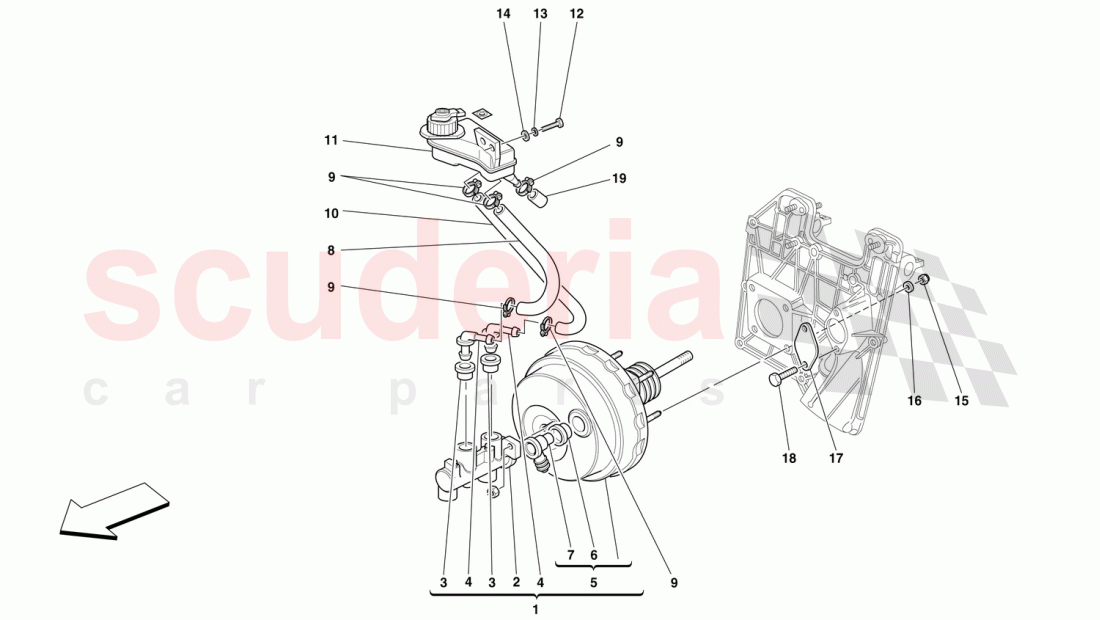

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	171872	COMPLETE BRAKE BOOSTER	$2,072.22	To Order

Photo	Part No	Description	Price (each)	Stock
	171782	BRAKE PUMP	$736.95	To Order

Photo	Part No	Description	Price (each)	Stock
	171784	CONNECTION FOR BRAKE PUMP	$20.33	To Order

Photo	Part No	Description	Price (each)	Stock
	173871	UNION	$7.54	To Order

Photo	Part No	Description	Price (each)	Stock
	177090	BOOSTER	$320.33	To Order

Photo	Part No	Description	Price (each)	Stock
	151475	CABLE GROMMET	$9.10	To Order

Photo	Part No	Description	Price (each)	Stock
	144552	UNION	$14.40	To Order

Photo	Part No	Description	Price (each)	Stock
	219140	PIPE FROM FRONT CONNECTOR TO TANK	$165.17	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211377	RUBBER PIPE	$9.24	To Order

Photo	Part No	Description	Price (each)	Stock
	173415	COMPLETE BRAKE OIL TANK	$80.03	To Order

Photo	Part No	Description	Price (each)	Stock
	10902524	SCREW M10 X 1.25 X 45	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	174177	FLANGE	$78.87	To Order

Photo	Part No	Description	Price (each)	Stock
	16043021	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	248008	CAP	$13.79	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	171872	COMPLETE BRAKE BOOSTER	171872 COMPLETE BRAKE BOOSTER	$2,072.22	1
2	171782	BRAKE PUMP	171782 BRAKE PUMP	$736.95	1
3	171784	CONNECTION FOR BRAKE PUMP	171784 CONNECTION FOR BRAKE PUMP	$20.33	2
4	173871	UNION	173871 UNION	$7.54	2
5	177090	BOOSTER	177090 BOOSTER	$320.33	1
6	151475	CABLE GROMMET	151475 CABLE GROMMET	$9.10	1
7	144552	UNION	144552 UNION	$14.40	1
8	219140	PIPE FROM FRONT CONNECTOR TO TANK	219140 PIPE FROM FRONT CONNECTOR TO TANK TANK	$165.17	1
9	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR IN STOCK	$0.49 MSRP: ~~1.07~~ (54.2% off)	5
10	211377	RUBBER PIPE	211377 RUBBER PIPE TANK	$9.24 MSRP: ~~12.74~~ (27.5% off)	1
11	173415	COMPLETE BRAKE OIL TANK	173415 COMPLETE BRAKE OIL TANK	$80.03 MSRP: ~~116.07~~ (31.1% off)	1
12	10902524	SCREW M10 X 1.25 X 45 IN STOCK	10902524 SCREW M10 X 1.25 X 45 IN STOCK	$0.14	2
13	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
14	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	2
15	104030	NUT IN STOCK	104030 NUT IN STOCK	$0.25 MSRP: ~~1.00~~ (75% off)	4
16	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
17	174177	FLANGE	174177 FLANGE	$78.87	1
18	16043021	SCREW	16043021 SCREW	$0.15	2
19	248008	CAP	248008 CAP	$13.79	1

Brakes Hydraulic Controls

Ferrari 360 Challenge (2000)
