Name: DASHBOARD INSTRUMENTS
Rating: 4.0 (1 reviews)

View All

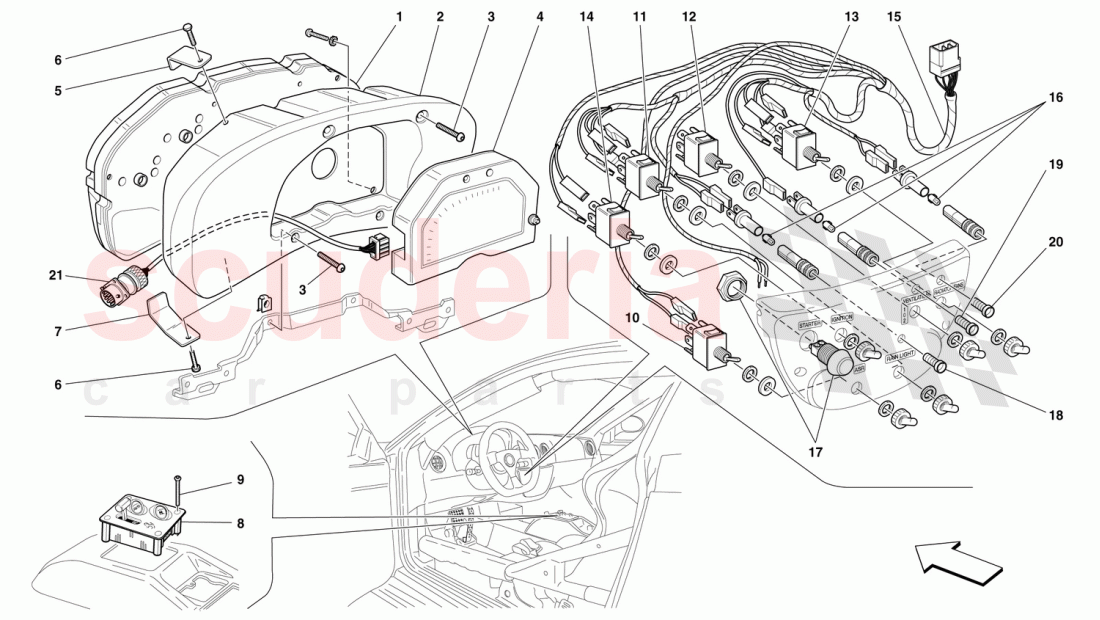

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	182546	INSTRUMENT BOARD	$168.24	To Order

Photo	Part No	Description	Price (each)	Stock
	183632	INSTRUMENT BEHIND DASH PANEL	$2,402.43	To Order

Photo	Part No	Description	Price (each)	Stock
	80365900	SCREW	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	182930	DASH PANEL	$7,869.25	To Order

Photo	Part No	Description	Price (each)	Stock
	64505500	UPPER BRACKET	$28.57	To Order

Photo	Part No	Description	Price (each)	Stock
	60815200	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	64505600	LOWER BRACKET	$28.57	To Order

Photo	Part No	Description	Price (each)	Stock
	181067	F1 GEARBOX CONTROL DASHBOARD	$2,382.88	To Order

Photo	Part No	Description	Price (each)	Stock
	68123900	SCREW	$5.61	To Order

Photo	Part No	Description	Price (each)	Stock
	183293	ASR SWITCH	$19.77	To Order

Photo	Part No	Description	Price (each)	Stock
	183294	RAIN LIGHT SWITCH	$19.77	To Order

Photo	Part No	Description	Price (each)	Stock
	183292	VENTILATION SWITCH	$19.77	To Order

Photo	Part No	Description	Price (each)	Stock
	183291	RADIATOR FANS SWITCH	$14.85	To Order

Photo	Part No	Description	Price (each)	Stock
	183290	IGNITION SWITCH	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	182855	DASHBOARD CONNECTION CABLES	$240.68	To Order

Photo	Part No	Description	Price (each)	Stock
	183296	BULB	$2.72	To Order

Photo	Part No	Description	Price (each)	Stock
	61665800	ENGINE STARTING CONTROL	$105.82	To Order

Photo	Part No	Description	Price (each)	Stock
	183299	GREEN WARNING LIGHT	$66.78	To Order

Photo	Part No	Description	Price (each)	Stock
	183298	BLUE WARNING LIGHT	$19.54	To Order

Photo	Part No	Description	Price (each)	Stock
	183297	BLUE WARNING LIGHT	$19.47	To Order

Photo	Part No	Description	Price (each)	Stock
	184227	CABLE	$1,474.25	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	182546	INSTRUMENT BOARD	182546 INSTRUMENT BOARD	$168.24	1
2	183632	INSTRUMENT BEHIND DASH PANEL	183632 INSTRUMENT BEHIND DASH PANEL PANEL	$2,402.43	1
3	80365900	SCREW IN STOCK	80365900 SCREW IN STOCK	$0.15 MSRP: ~~0.50~~ (70% off)	4
4	182930	DASH PANEL	182930 DASH PANEL	$7,869.25	1
5	64505500	UPPER BRACKET	64505500 UPPER BRACKET	$28.57	2
6	60815200	SCREW	60815200 SCREW	$0.68 MSRP: ~~3.25~~ (79.1% off)	4
7	64505600	LOWER BRACKET	64505600 LOWER BRACKET	$28.57	2
8	181067	F1 GEARBOX CONTROL DASHBOARD	181067 F1 GEARBOX CONTROL DASHBOARD	$2,382.88 MSRP: ~~3,232.48~~ (26.3% off)	1
9	68123900	SCREW	68123900 SCREW	$5.61 MSRP: ~~6.19~~ (9.4% off)	4
10	183293	ASR SWITCH	183293 ASR SWITCH	$19.77	1
11	183294	RAIN LIGHT SWITCH	183294 RAIN LIGHT SWITCH	$19.77	1
12	183292	VENTILATION SWITCH	183292 VENTILATION SWITCH	$19.77	1
13	183291	RADIATOR FANS SWITCH	183291 RADIATOR FANS SWITCH	$14.85	1
14	183290	IGNITION SWITCH	183290 IGNITION SWITCH	$72.19	1
15	182855	DASHBOARD CONNECTION CABLES	182855 DASHBOARD CONNECTION CABLES CABLES	$240.68	1
16	183296	BULB	183296 BULB	$2.72	3
17	61665800	ENGINE STARTING CONTROL	61665800 ENGINE STARTING CONTROL	$105.82	1
18	183299	GREEN WARNING LIGHT	183299 GREEN WARNING LIGHT	$66.78	1
19	183298	BLUE WARNING LIGHT	183298 BLUE WARNING LIGHT	$19.54	1
20	183297	BLUE WARNING LIGHT	183297 BLUE WARNING LIGHT	$19.47	1
21	184227	CABLE	184227 CABLE	$1,474.25	1

Dashboard Instruments

Ferrari 360 Challenge (2000)
