Flat Floor Pan And Wheelhouse

Ferrari 360 Challenge Stradale

Find Your Part

Ferrari 360 Challenge Stradale - FLAT FLOOR PAN AND WHEELHOUSE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
67670100 FRONT UNDER THE BODY SHELL SHIELD $1,409.18 To Order
Photo Part No Description Price (each) Stock
67895100 CENTRAL UNDER THE BODY SHELL SHIELD $1,091.48 To Order
Photo Part No Description Price (each) Stock
67670200 REAR UNDER THE BODY SHELL SHIELD $2,715.33 To Order
Photo Part No Description Price (each) Stock
65872500 RH FRONT GRAVEL GUARD $229.23 To Order

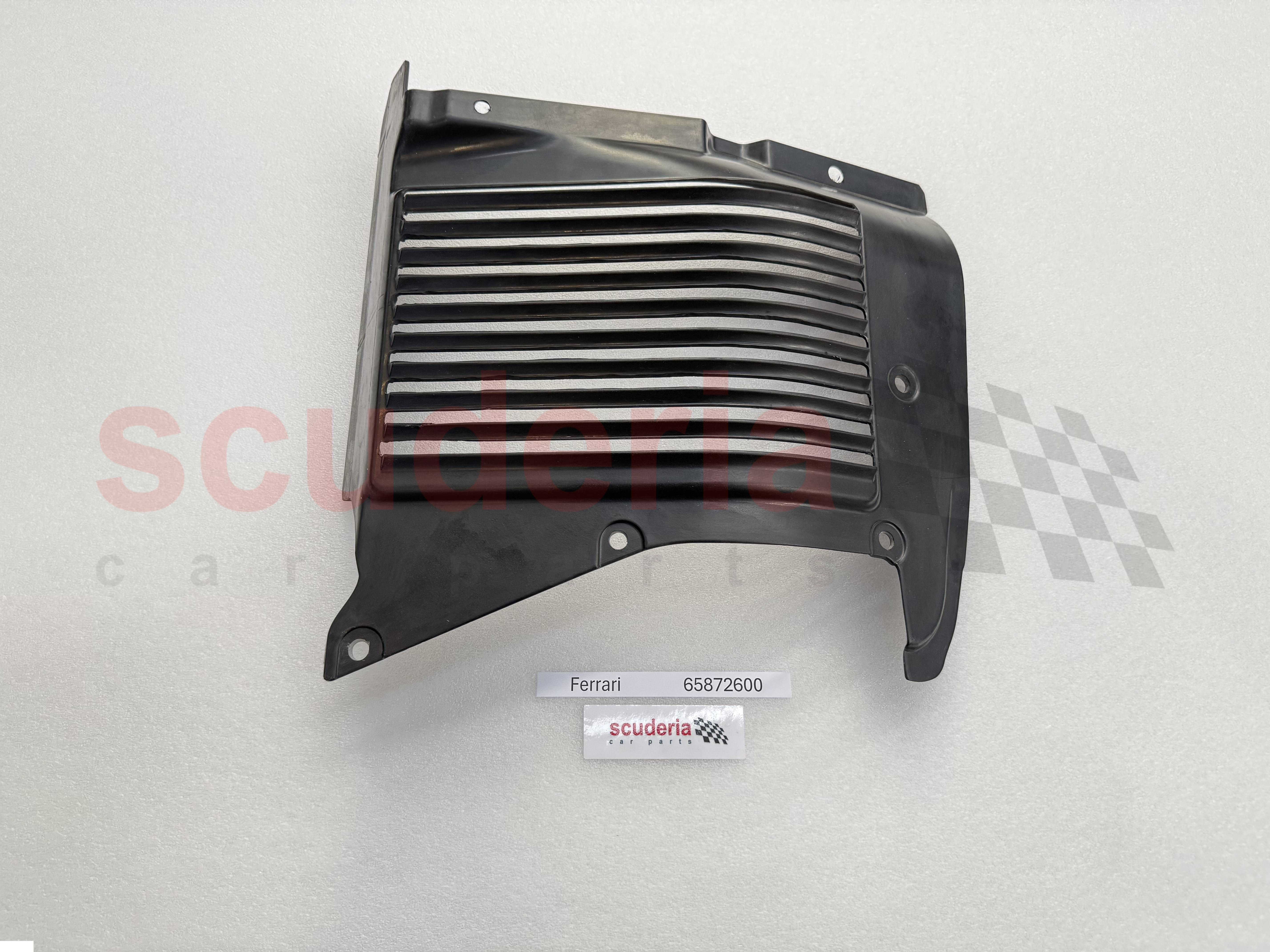

65872600 LH Front Gravel Guard $229.23 To Order
Photo Part No Description Price (each) Stock

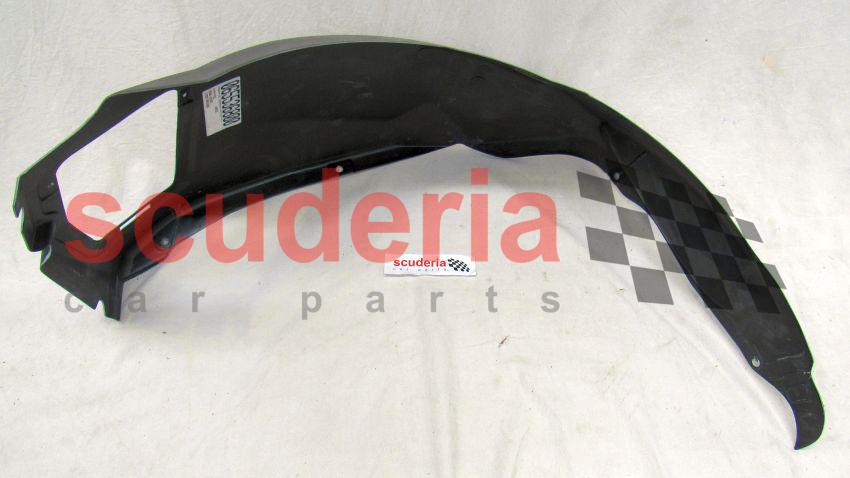

65536800 LH FRONT WHEELHOUSE OUTER CARPET SHIELD $315.17 To Order
65536700 RH FRONT WHEELHOUSE OUTER CARPET SHIELD $315.17 To Order
Photo Part No Description Price (each) Stock
65522300 RH WHEELHOUSE COVER PLATE $75.89 IN STOCK

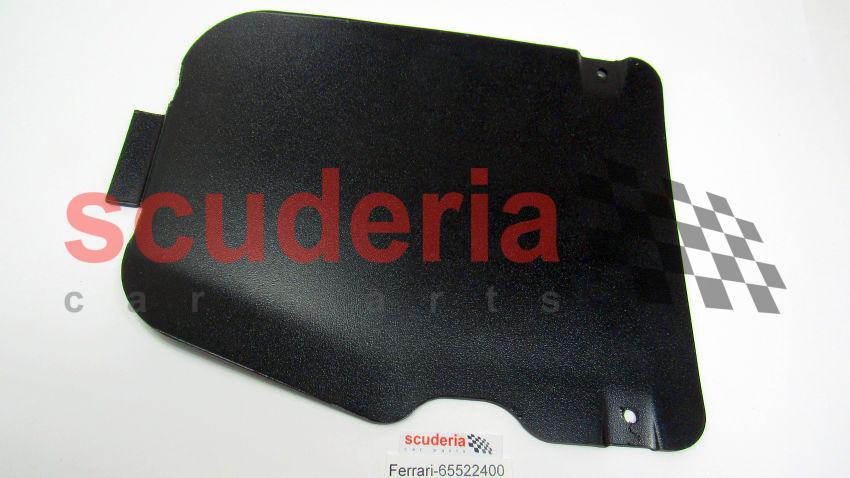

65522400 LH WHEELHOUSE COVER PLATE $83.23 IN STOCK
Photo Part No Description Price (each) Stock
64857800 GASKET $78.21 To Order
Photo Part No Description Price (each) Stock
64994500 GASKET $68.88 To Order
Photo Part No Description Price (each) Stock
65060000 RH REAR WHEELHOUSE ASSEMBLY $537.09 To Order
65060100 LH REAR WHEELHOUSE ASSEMBLY $360.20 To Order
Photo Part No Description Price (each) Stock

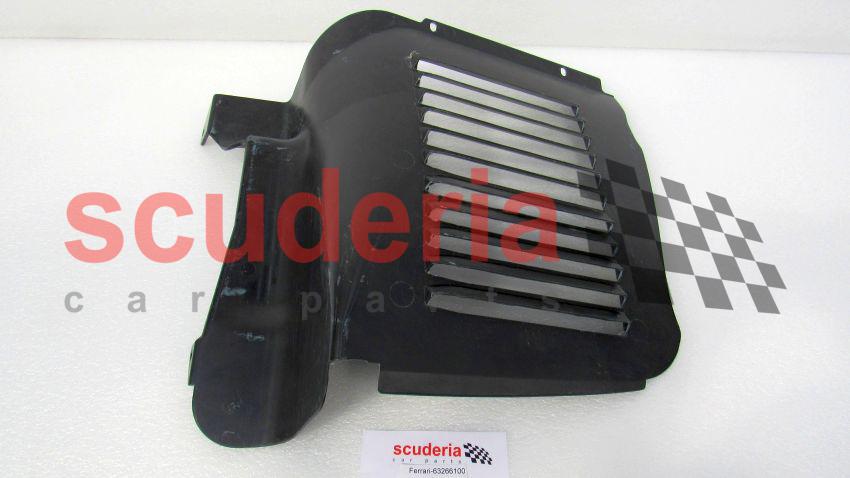

63266100 RH REAR GRAVEL GUARD $229.23 IN STOCK

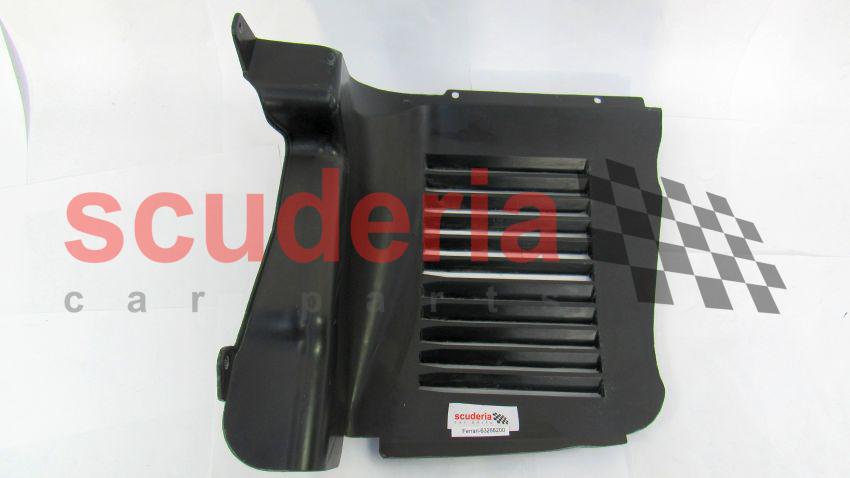

63266200 LH REAR GRAVEL GUARD $221.84 To Order
Photo Part No Description Price (each) Stock
64865000 GASKET $25.67 To Order
Photo Part No Description Price (each) Stock
64994500 GASKET $68.88 To Order
Photo Part No Description Price (each) Stock
15903975 Screw $0.55 IN STOCK
Photo Part No Description Price (each) Stock
12647724 WASHER $0.14 IN STOCK
Photo Part No Description Price (each) Stock
66252300 Clip for Screw $1.85 IN STOCK
Photo Part No Description Price (each) Stock
81911600 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
13276477 SCREW M6 X 20 POZZI HEAD $0.51 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10977887 SCREW M5 X 16 $0.78 IN STOCK
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
68700800 CLIP $0.96 IN STOCK
Photo Part No Description Price (each) Stock
13276477 SCREW M6 X 20 POZZI HEAD $0.51 IN STOCK
Photo Part No Description Price (each) Stock
11197777 WAVY WASHER D6.4-12 x 1.2 $0.14 IN STOCK
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
66252300 Clip for Screw $1.85 IN STOCK
Photo Part No Description Price (each) Stock
15644175 SCREW TBIC 4.2X16 $0.72 IN STOCK
Photo Part No Description Price (each) Stock
60711900 WASHER $0.43 IN STOCK
Photo Part No Description Price (each) Stock
64783600 CAP $5.42 To Order
Photo Part No Description Price (each) Stock

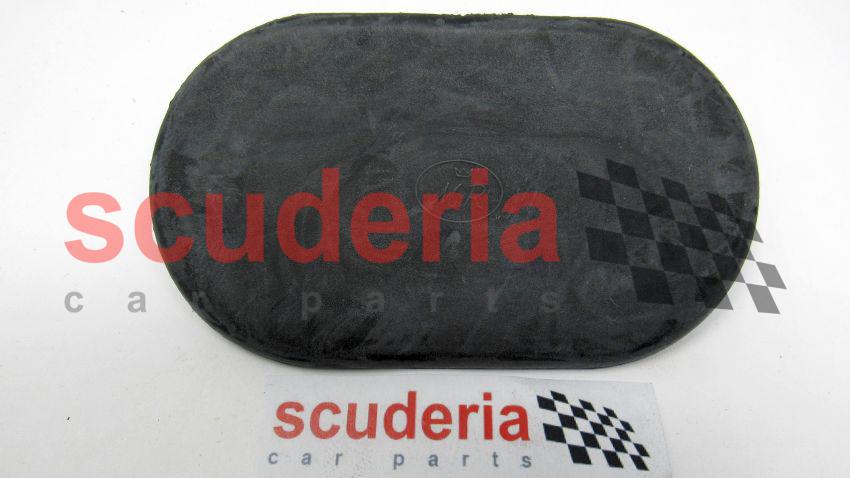

62678500 PLUG FOR HOLE $5.43 IN STOCK
Photo Part No Description Price (each) Stock
66092500 ANTI-VIBRATION GASKET $3.73 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
66307900 GASKET $2.56 IN STOCK
Photo Part No Description Price (each) Stock
68456100 CENTRAL INSULATION $648.22 To Order
Photo Part No Description Price (each) Stock
68456200 R.H. LATERAL INSULATION $648.22 To Order
Photo Part No Description Price (each) Stock
68456300 L.H. LATERAL INSULATION $648.22 To Order
Photo Part No Description Price (each) Stock
68455900 INSULATION FOR RH WHEEL PROTECTION $215.75 To Order
68456000 INSULATION FOR LH WHEEL PROTECTION $152.55 To Order
Photo Part No Description Price (each) Stock
68456500 INSULATION FOR LH WHEEL HOUSE $152.31 To Order
68456400 INSULATION FOR RH WHEEL HOUSE $215.75 To Order
Photo Part No Description Price (each) Stock
68484300 BUTTON $3.89 To Order
Photo Part No Description Price (each) Stock
68484400 CLIP $3.31 To Order
View All

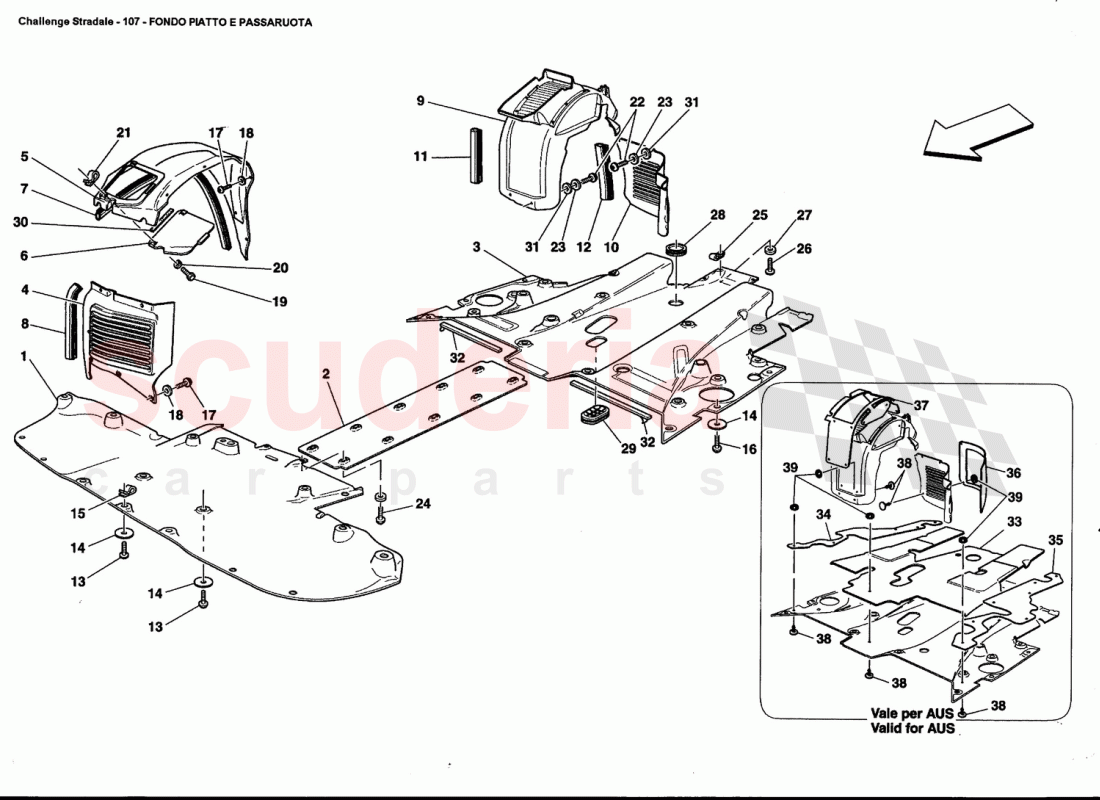

FLAT FLOOR PAN AND WHEELHOUSE of Ferrari Ferrari 360 Challenge Stradale Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 67670100
FRONT UNDER THE BODY SHELL SHIELD
SHIELD 		$1,409.18 1
2 67895100
CENTRAL UNDER THE BODY SHELL SHIELD
SHIELD 		$1,091.48 1
3 67670200
REAR UNDER THE BODY SHELL SHIELD
SHIELD 		$2,715.33 1
4 65872500
RH FRONT GRAVEL GUARD
FRONT WHEEL 		$229.23 (26.5% off) 1
4 65872600
LH Front Gravel Guard
FRONT WHEEL 		$229.23 (26.5% off) 1
5 65536800
LH FRONT WHEELHOUSE OUTER CARPET SHIELD
OUTER CARPET SHIELD 		$315.17 (19.1% off) 1
5 65536700
RH FRONT WHEELHOUSE OUTER CARPET SHIELD
OUTER CARPET SHIELD 		$315.17 (20.6% off) 1
6 65522300
RH WHEELHOUSE COVER PLATE
IN STOCK 		$75.89 1
6 65522400
LH WHEELHOUSE COVER PLATE
IN STOCK 		$83.23 (25.6% off) 1
7 64857800
GASKET 		$78.21 2
8 64994500
GASKET 		$68.88 (26.3% off) 2
9 65060000
RH REAR WHEELHOUSE ASSEMBLY
ASSEMBLY / Front side 		$537.09 1
9 65060100
LH REAR WHEELHOUSE ASSEMBLY
ASSEMBLY / Front side 		$360.20 (22.2% off) 1
10 63266100
RH REAR GRAVEL GUARD
REAR WHEEL
IN STOCK 		$229.23 (26.6% off) 1
10 63266200
LH REAR GRAVEL GUARD
REAR WHEEL 		$221.84 (28.9% off) 1
11 64865000
GASKET 		$25.67 2
12 64994500
GASKET 		$68.88 (26.3% off) 2
13 15903975
Screw
IN STOCK 		$0.55 (68.6% off) 7
14 12647724
WASHER
IN STOCK 		$0.14 7
15 66252300
Clip for Screw
IN STOCK 		$1.85 (24.5% off) 7
16 81911600
SCREW 		$0.44 22
17 13276477
SCREW M6 X 20 POZZI HEAD
IN STOCK 		$0.51 (49% off) 10
18 12643724
WASHER
IN STOCK 		$0.06 (88% off) 10
19 10977887
SCREW M5 X 16
IN STOCK 		$0.78 (54.1% off) 4
20 62769800
WASHER D.5-14 X 2.5
IN STOCK 		$0.21 (30% off) 4
21 68700800
CLIP
IN STOCK 		$0.96 2
22 13276477
SCREW M6 X 20 POZZI HEAD
IN STOCK 		$0.51 (49% off) 18
23 11197777
WAVY WASHER D6.4-12 x 1.2
IN STOCK 		$0.14 18
24 10902424
SCREW
IN STOCK 		$0.14 (80% off) 10
25 66252300
Clip for Screw
IN STOCK 		$1.85 (24.5% off) 2
26 15644175
SCREW TBIC 4.2X16
IN STOCK 		$0.72 2
27 60711900
WASHER
IN STOCK 		$0.43 (30.6% off) 2
28 64783600
CAP 		$5.42 (16.6% off) 1
29 62678500
PLUG FOR HOLE
IN STOCK 		$5.43 (36.1% off) 1
30 66092500
ANTI-VIBRATION GASKET 		$3.73 2
31 12643724
WASHER
IN STOCK 		$0.06 (88% off) 18
32 66307900
GASKET
IN STOCK 		$2.56 2
33 68456100
CENTRAL INSULATION
Valid from Nr.53911 for AUS / 		$648.22 1
34 68456200
R.H. LATERAL INSULATION
Valid from Nr.53911 for AUS / 		$648.22 1
35 68456300
L.H. LATERAL INSULATION
Valid from Nr.53911 for AUS / 		$648.22 1
36 68455900
INSULATION FOR RH WHEEL PROTECTION
WHEEL PROTECTION / Valid from Nr.53911 for AUS 		$215.75 1
36 68456000
INSULATION FOR LH WHEEL PROTECTION
WHEEL PROTECTION / Valid from Nr.53911 for AUS 		$152.55 1
37 68456500
INSULATION FOR LH WHEEL HOUSE
WHEEL HOUSE / Valid from Nr.53911 for AUS 		$152.31 1
37 68456400
INSULATION FOR RH WHEEL HOUSE
WHEEL HOUSE / Valid from Nr.53911 for AUS 		$215.75 1
38 68484300
BUTTON
Valid from Nr.53911 for AUS 		$3.89 21
39 68484400
CLIP
Valid from Nr.53911 for AUS 		$3.31 21
