Brake System -Valid For Gd-

Ferrari 360 Challenge Stradale

Find Your Part

Ferrari 360 Challenge Stradale - BRAKE SYSTEM -Valid for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
183435 ABS/ASR HYDRAULIC CONTROL $2,836.63 To Order
Photo Part No Description Price (each) Stock
177512 CONTROL STATION SUPPORTING BRACKET $721.95 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
201585 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION $30.07 To Order
213701 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION Enquire To Order
Photo Part No Description Price (each) Stock
213700 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION Enquire To Order
201584 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION $30.07 To Order
Photo Part No Description Price (each) Stock
201587 PIPE FROM CONTROL STATION TO LH BRAKING REGULATOR $28.56 To Order
213703 PIPE FROM CONTROL STATION TO LH BRAKING REGULATOR Enquire To Order
Photo Part No Description Price (each) Stock
201586 PIPE FROM CONTROL STATION TO RH BRAKING REGULATOR $27.06 To Order
213702 PIPE FROM CONTROL STATION TO RH BRAKING REGULATOR Enquire To Order
Photo Part No Description Price (each) Stock
177158 PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE $9.83 To Order
213659 PIPE FROM CONTROL STATION O LH FRONT BRAKE PIPE $14.13 To Order
Photo Part No Description Price (each) Stock
213658 PIPE FROM CONTROL STATION TO UNION PIPE Enquire To Order
177157 PIPE FROM CONTROL STATION TO UNION PIPE $8.71 To Order
Photo Part No Description Price (each) Stock
271771 PIPE Enquire To Order
Photo Part No Description Price (each) Stock
977803 Brake Pipe 325mm $36.43 IN STOCK
Photo Part No Description Price (each) Stock
177161 UNION PIPE TO RH FRONT BRAKE PIPE $100.47 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.03 IN STOCK
Photo Part No Description Price (each) Stock
172979 CORRETTORE DI FRENATA $90.81 To Order
Photo Part No Description Price (each) Stock
14307224 SCREW $0.62 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
198063 BRACKET FOR BRAKING REGULATOR SUPPORTING $36.08 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
215411 CLIP $1.34 To Order
Photo Part No Description Price (each) Stock
196424 PIPE FROM BRAKING REGULATOR TO RH REAR JOINT $32.86 To Order
213697 PIPE FROM BRAKING REGULATOR TO RH REAR JOINT Enquire To Order
Photo Part No Description Price (each) Stock
196427 PIPE FROM BRAKING REGULATOR TO LH REAR JOINT $32.57 To Order
213698 PIPE FROM BRAKING REGULATOR TO LH REAR JOINT Enquire To Order
Photo Part No Description Price (each) Stock
213694 TUBO AL FRENO ANTERIORE DX. $25.93 To Order
200325 FRONT LH BRAKE PIPE $37.59 To Order
213696 TUBO AL FRENO ANTERIORE SX. $28.56 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
212645 CLIP $2.99 To Order
Photo Part No Description Price (each) Stock
116374 CLIP $2.17 IN STOCK
Photo Part No Description Price (each) Stock
15896470 NUT $6.31 To Order
Photo Part No Description Price (each) Stock
149951 WASHER $0.29 IN STOCK
Photo Part No Description Price (each) Stock
143405 FASTON TONGUE $0.49 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.52 To Order
Photo Part No Description Price (each) Stock
14496324 WASHER $2.77 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
178938 CABLE MOUNTING $30.16 To Order
Photo Part No Description Price (each) Stock
10440890 BRACKET WITH SHEATH $0.47 To Order
Photo Part No Description Price (each) Stock
MC43254 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
185283 REAR MOUNTING $201.55 To Order
Photo Part No Description Price (each) Stock
150738 CLIP $0.53 To Order
View All

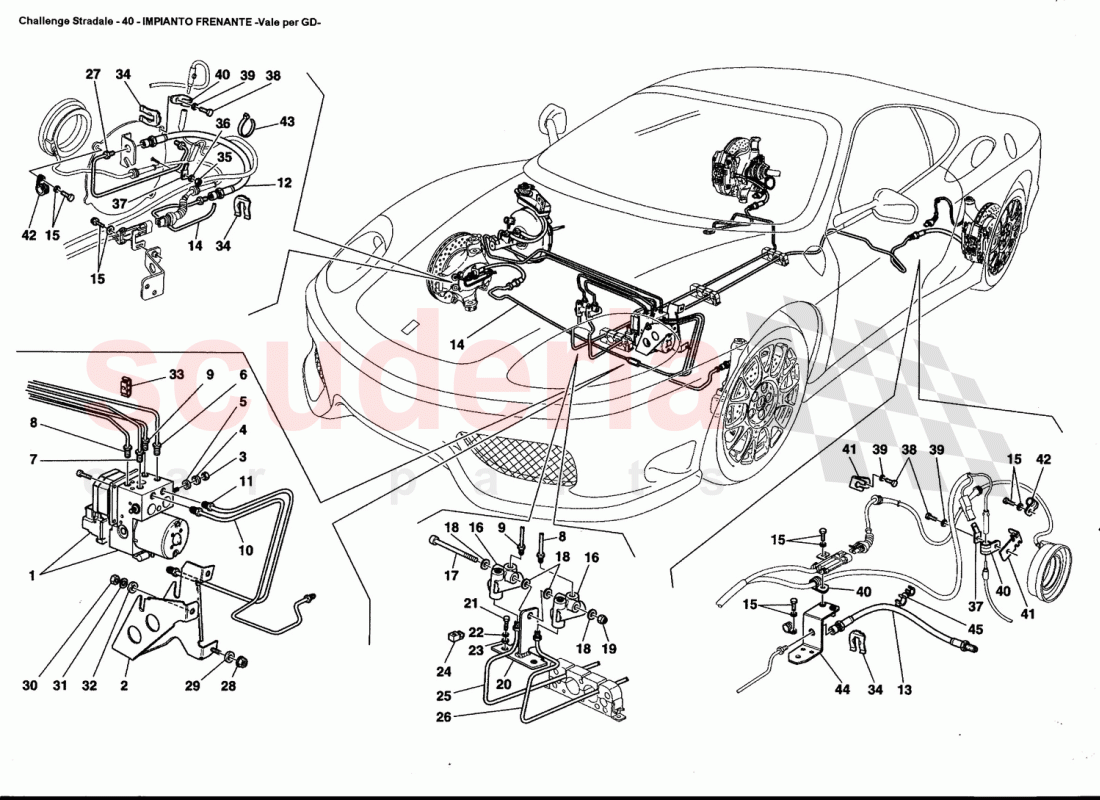

BRAKE SYSTEM -Valid for GD- of Ferrari Ferrari 360 Challenge Stradale Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 183435
ABS/ASR HYDRAULIC CONTROL
ABS/ASR 		$2,836.63 1
2 177512
CONTROL STATION SUPPORTING BRACKET 		$721.95 1
3 14040711
NUT
IN STOCK 		$0.35 2
4 127496
WASHER 		$0.06 (80% off) 2
5 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 2
6 201585
BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
A CENTRALINA / Vale fino all'Ass. Nr. 57483 		$30.07 1
6 213701
BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
A CENTRALINA / Vale dall'Ass. Nr. 57484 		- 1 Enquire
7 213700
BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
A CENTRALINA / Vale dall'Ass. Nr. 57484 		- 1 Enquire
7 201584
BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
A CENTRALINA / Vale fino all'Ass. Nr. 57483 		$30.07 1
8 201587
PIPE FROM CONTROL STATION TO LH BRAKING REGULATOR
CORRETTORE DI FRENATA SX. / Vale fino all'Ass. Nr. 57483 		$28.56 1
8 213703
PIPE FROM CONTROL STATION TO LH BRAKING REGULATOR
CORRETTORE DI FRENATA SX. / Vale dall'Ass. Nr. 57484 		- 1 Enquire
9 201586
PIPE FROM CONTROL STATION TO RH BRAKING REGULATOR
CORRETTORE DI FRENATA DX. / Vale fino all'Ass. Nr. 57483 		$27.06 1
9 213702
PIPE FROM CONTROL STATION TO RH BRAKING REGULATOR
CORRETTORE DI FRENATA DX. / Vale dall'Ass. Nr. 57484 		- 1 Enquire
10 177158
PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE
FRENO ANTERIORE SX. / Vale fino all'Ass. Nr. 57483 		$9.83 1
10 213659
PIPE FROM CONTROL STATION O LH FRONT BRAKE PIPE
FRENO ANTERIORE SX. / Vale dall'Ass. Nr. 57484 		$14.13 1
11 213658
PIPE FROM CONTROL STATION TO UNION PIPE
GIUNZIONE / Vale dall'Ass. Nr. 57484 		- 1 Enquire
11 177157
PIPE FROM CONTROL STATION TO UNION PIPE
GIUNZIONE / Vale fino all'Ass. Nr. 57483 		$8.71 1
12 271771
PIPE 		- 2 Enquire
13 977803
Brake Pipe 325mm
IN STOCK 		$36.43 2
14 177161
UNION PIPE TO RH FRONT BRAKE PIPE
ANTERIORE DX. 		$100.47 1
15 250657
SCREW
IN STOCK 		$7.03 14
16 172979
CORRETTORE DI FRENATA 		$90.81 2
17 14307224
SCREW
IN STOCK 		$0.62 2
18 14496524
WASHER D.8.4 X 17 X 1.6
IN STOCK 		$0.11 (92.7% off) 4
19 147985
NUT
IN STOCK 		$0.14 (72% off) 2
20 198063
BRACKET FOR BRAKING REGULATOR SUPPORTING
DI FRENATA 		$36.08 1
21 10902424
SCREW
IN STOCK 		$0.14 (80% off) 2
22 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
23 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
24 215411
CLIP 		$1.34 1
25 196424
PIPE FROM BRAKING REGULATOR TO RH REAR JOINT
A GIUNTO POSTERIORE DX. / Vale fino all'Ass. Nr. 57483 		$32.86 1
25 213697
PIPE FROM BRAKING REGULATOR TO RH REAR JOINT
A GIUNTO POSTERIORE DX. / Vale dall'Ass. Nr. 57484 		- 1 Enquire
26 196427
PIPE FROM BRAKING REGULATOR TO LH REAR JOINT
A GIUNTO POSTERIORE SX. / Vale fino all'Ass. Nr. 57483 		$32.57 1
26 213698
PIPE FROM BRAKING REGULATOR TO LH REAR JOINT
A GIUNTO POSTERIORE SX. / Vale dall'Ass. Nr. 57484 		- 1 Enquire
27 213694
TUBO AL FRENO ANTERIORE DX.
Vale dall'Ass. Nr. 57484 		$25.93 1
27 200325
FRONT LH BRAKE PIPE
Vale fino all'Ass. Nr. 57483 		$37.59 1
27 213696
TUBO AL FRENO ANTERIORE SX.
Vale dall'Ass. Nr. 57484 		$28.56 1
27 200324
FRONT RH BRAKE PIPE
Vale fino all'Ass. Nr. 57483 		$37.59 1
28 147985
NUT
IN STOCK 		$0.14 (72% off) 1
29 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 1
30 14040711
NUT
IN STOCK 		$0.35 2
31 127496
WASHER 		$0.06 (80% off) 2
32 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 2
33 212645
CLIP 		$2.99 4
34 116374
CLIP
IN STOCK 		$2.17 (38% off) 10
35 15896470
NUT 		$6.31 2
36 149951
WASHER
IN STOCK 		$0.29 2
37 143405
FASTON TONGUE 		$0.49 4
38 897538
SCREW 		$1.52 4
39 14496324
WASHER 		$2.77 4
40 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.53 (68.5% off) 4
41 178938
CABLE MOUNTING 		$30.16 4
42 10440890
BRACKET WITH SHEATH 		$0.47 4
43 MC43254
CLAMP 		- 6 Enquire
44 185283
REAR MOUNTING 		$201.55 2
45 150738
CLIP 		$0.53 6
