Lay Shaft Gears

Ferrari 360 Challenge Stradale

Find Your Part

Ferrari 360 Challenge Stradale - LAY SHAFT GEARS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
197822 COMPETE BEVEL SET $1,479.24 To Order
Photo Part No Description Price (each) Stock
16287730 SCREW $4.36 To Order
Photo Part No Description Price (each) Stock
185022 ROLLER BEARING $302.89 IN STOCK
Photo Part No Description Price (each) Stock
185027 RING ADJUSTER $52.64 To Order
185045 RING ADJUSTER $34.73 To Order
185028 RING ADJUSTER $52.64 To Order
Photo Part No Description Price (each) Stock
185042 RING ADJUSTER $10.85 To Order
185043 RING ADJUSTER $16.00 To Order
185044 RING ADJUSTER $27.79 To Order
Photo Part No Description Price (each) Stock
185020 BEARING MOUNTING $558.13 To Order
Photo Part No Description Price (each) Stock
185021 Roller Bearing $161.71 To Order
Photo Part No Description Price (each) Stock
196667 GEARBOX RING NUT M45 X 1.5 $64.83 IN STOCK
Photo Part No Description Price (each) Stock
197821 3rd AND 4th DRIVEN GEAR $510.88 To Order
Photo Part No Description Price (each) Stock
188461 5th AND 6th DRIVEN GEAR $484.21 To Order
Photo Part No Description Price (each) Stock
189791 RING $66.01 To Order
189792 RING $81.79 To Order
Photo Part No Description Price (each) Stock
184014 ROLLER BEARING CAGE $18.79 IN STOCK
Photo Part No Description Price (each) Stock
197818 PINION FOR 2nd GEAR $323.55 To Order
Photo Part No Description Price (each) Stock
185036 SNAP RING $38.08 To Order
185037 SNAP RING $62.17 To Order
183976 SNAP RING $11.79 To Order
Photo Part No Description Price (each) Stock
183971 BUSHING $74.13 To Order
Photo Part No Description Price (each) Stock
184016 ROLLER BEARING CAGE $25.84 IN STOCK
Photo Part No Description Price (each) Stock
197816 PINION FOR 1st GEAR $323.55 To Order
Photo Part No Description Price (each) Stock
185041 RING $33.69 To Order
183972 CENTRE BEARING $74.97 IN STOCK
185040 RING $44.81 To Order
Photo Part No Description Price (each) Stock
184020 Roller Bearing $146.22 IN STOCK
Photo Part No Description Price (each) Stock
184042 SNAP RING $11.79 To Order
Photo Part No Description Price (each) Stock
197820 REVERSE GEAR $246.16 To Order
Photo Part No Description Price (each) Stock
184018 ROLLER BEARING CAGE $28.19 IN STOCK
Photo Part No Description Price (each) Stock
326260 REVERSE SPEED SYNCHRONISER Enquire To Order
Photo Part No Description Price (each) Stock
184041 SNAP RING $4.81 To Order
Photo Part No Description Price (each) Stock
14303624 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
10571379 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
185048 BEARBOX OIL PUMP $754.23 To Order
Photo Part No Description Price (each) Stock
185164 1ST AND 2ND SPEED SYNCHRONISER $1,881.55 IN STOCK
Photo Part No Description Price (each) Stock
185050 PUMP DRIVE SHAFT $57.31 To Order
Photo Part No Description Price (each) Stock
184017 DRAWN CUP NEEDLE BEARING $9.36 To Order
Photo Part No Description Price (each) Stock
183975 RING $23.59 To Order
Photo Part No Description Price (each) Stock
197819 IDLE GEAR FOR REVERSE $255.44 To Order
Photo Part No Description Price (each) Stock
188320 SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT $12.77 IN STOCK
Photo Part No Description Price (each) Stock
193440 SYNCHROREVERSE/BLOCKS REPLACEMENT KIT $4.59 To Order
Photo Part No Description Price (each) Stock
201870 BUSHING $23.83 To Order
Photo Part No Description Price (each) Stock
188497 SHIM $77.02 To Order
212457 SPACER -Thickness mm. 6,00- Enquire To Order
View All

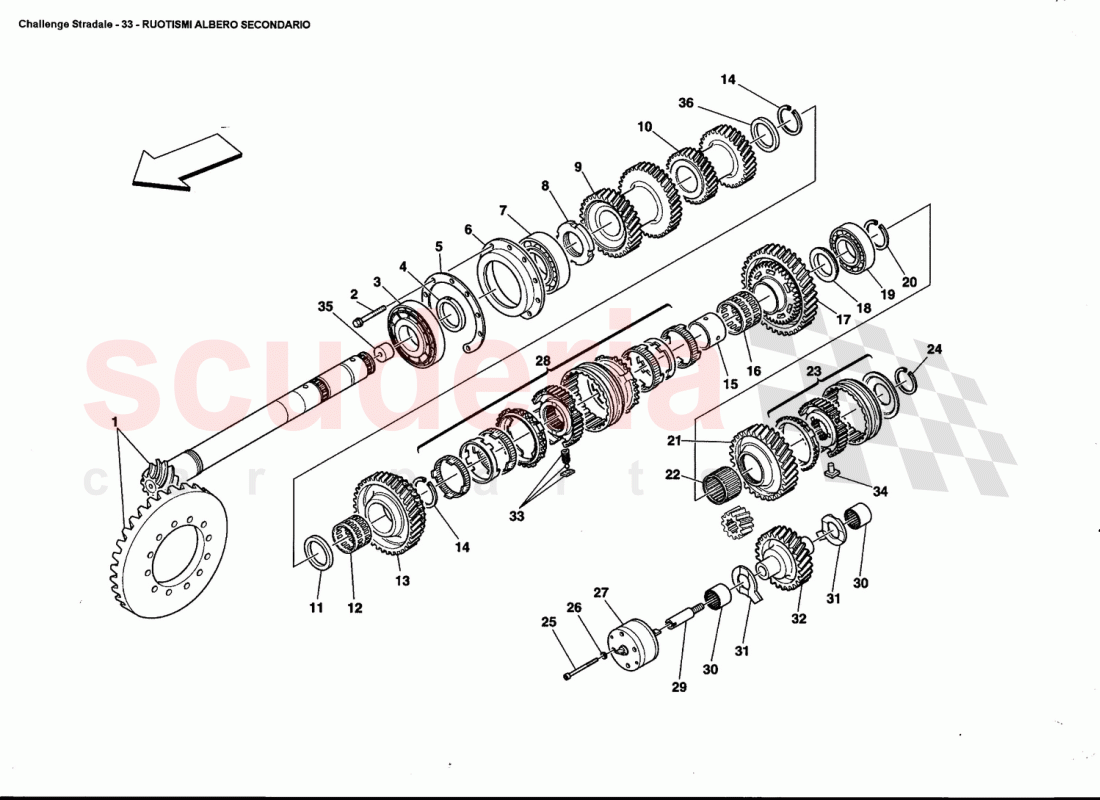

LAY SHAFT GEARS of Ferrari Ferrari 360 Challenge Stradale Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 197822
COMPETE BEVEL SET 		$1,479.24 1
2 16287730
SCREW 		$4.36 9
3 185022
ROLLER BEARING
IN STOCK 		$302.89 (2.4% off) 1
4 185027
RING ADJUSTER
Thickness mm. 6,4 / Possible fitting 		$52.64 1
4 185045
RING ADJUSTER
Thickness mm. 7,10 		$34.73 1
4 185028
RING ADJUSTER
Thickness mm. 6 / Possible fitting 		$52.64 1
5 185042
RING ADJUSTER
Thickness mm. 2,8 		$10.85 1
5 185043
RING ADJUSTER
Thickness mm. 2,5 / Possible fitting 		$16.00 1
5 185044
RING ADJUSTER
Thickness mm. 2,2 / Possible fitting 		$27.79 1
6 185020
BEARING MOUNTING 		$558.13 1
7 185021
Roller Bearing 		$161.71 1
8 196667
GEARBOX RING NUT M45 X 1.5
IN STOCK 		$64.83 1
9 197821
3rd AND 4th DRIVEN GEAR
GEAR 		$510.88 1
10 188461
5th AND 6th DRIVEN GEAR
GEAR 		$484.21 1
11 189791
RING
Thickness mm. 6,1 		$66.01 1
11 189792
RING
Thickness mm. 5,8 / As an alternative 		$81.79 1
12 184014
ROLLER BEARING CAGE
IN STOCK 		$18.79 1
13 197818
PINION FOR 2nd GEAR 		$323.55 1
14 185036
SNAP RING
Thickness mm. 1,85 / Possible fitting 		$38.08 2
14 185037
SNAP RING
Thickness mm. 1,60 / Possible fitting 		$62.17 2
14 183976
SNAP RING
Thickness mm. 2,10 		$11.79 2
15 183971
BUSHING 		$74.13 1
16 184016
ROLLER BEARING CAGE
IN STOCK 		$25.84 (21.7% off) 1
17 197816
PINION FOR 1st GEAR 		$323.55 1
18 185041
RING
Thickness mm. 4,60 / Possible fitting 		$33.69 1
18 183972
CENTRE BEARING
Thickness mm. 5,10
IN STOCK 		$74.97 1
18 185040
RING
Thickness mm. 4,85 / Possible fitting 		$44.81 1
19 184020
Roller Bearing
IN STOCK 		$146.22 (47.9% off) 1
20 184042
SNAP RING 		$11.79 (22.3% off) 1
21 197820
REVERSE GEAR 		$246.16 1
22 184018
ROLLER BEARING CAGE
IN STOCK 		$28.19 (23.8% off) 1
23 326260
REVERSE SPEED SYNCHRONISER
SYNCHRONIZER 		- 1 Enquire
24 184041
SNAP RING 		$4.81 (60.6% off) 1
25 14303624
SCREW 		$0.43 4
26 10571379
WASHER 		$0.06 4
27 185048
BEARBOX OIL PUMP 		$754.23 1
28 185164
1ST AND 2ND SPEED SYNCHRONISER
SYNCHRONIZER
IN STOCK 		$1,881.55 1
29 185050
PUMP DRIVE SHAFT 		$57.31 1
30 184017
DRAWN CUP NEEDLE BEARING 		$9.36 (68.8% off) 2
31 183975
RING 		$23.59 2
32 197819
IDLE GEAR FOR REVERSE 		$255.44 1
33 188320
SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT
SPRING REPLACEMENT KIT
IN STOCK 		$12.77 1
34 193440
SYNCHROREVERSE/BLOCKS REPLACEMENT KIT
KIT 		$4.59 (38.8% off) 1
35 201870
BUSHING 		$23.83 1
36 188497
SHIM
Thickness mm. 6,25 		$77.02 1
36 212457
SPACER -Thickness mm. 6,00- 		- 1 Enquire
